ERB44-02 ~ ERB44-10
PRV : 200 - 1000 Volts
Io : 1.0 Ampere
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Pb / RoHS Free
FAST RECOVERY
RECTIFIER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
Peak Forward Surge Current
Sine wave 10ms at no load (Non-repetitive)
Maximum Forward Voltage at I
FM
= 1.0 A
Maximum Reverse Current at V
RRM
Maximum Reverse Recovery Time ( Note 1 )
Junction Temperature Range
Storage Temperature Range
Notes :
SYMBOL ERB44-02 ERB44-04 ERB44-06 ERB44-08 ERB44-10
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
RRM
Trr
T
J
T
STG
1.1
10
0.4
-40 ~ +140
-40 ~ +140
200
160
200
400
320
400
600
480
600
1.0
30
1.5
800
640
800
1000
800
1000
UNIT
V
V
V
A
A
V
µA
µs
°C
°C
( 1 ) Reverse Recovery Test Conditions : I
F
= 100 mA, I
R
= 100 mA.
Page 1 of 2
Rev. 02 : March 25, 2005

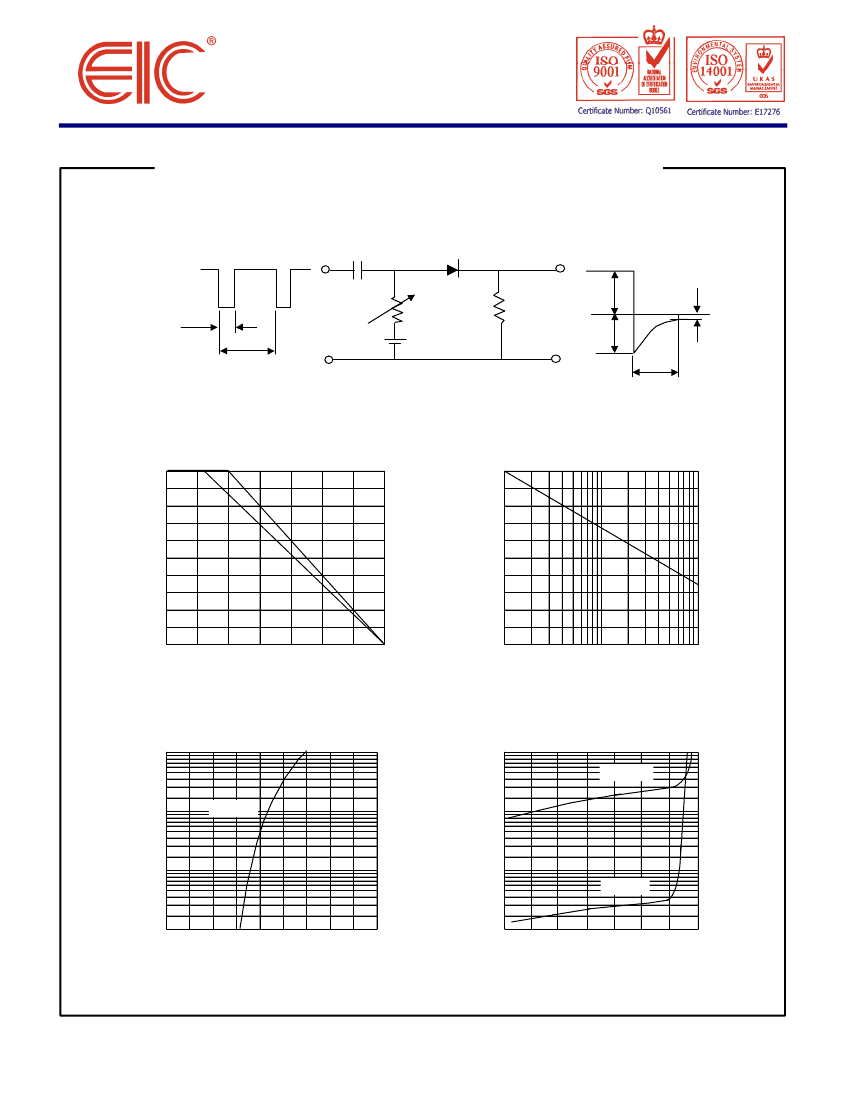

RATING AND CHARACTERISTIC CURVES ( ERB44-02 // 10 )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
100
µF
specimen
100 mA 100mA
I
R
I
F
0.1 I
R
20µS
200µS
NOTE : I
F
= I
R
= 100mA to 10 mA
100
Ω
Trr
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
1.0
30
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
0.8
24
0.6
18
0.4
12
0.2
6
0
0
0
20
40
60
80
100
120
140
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
REVERSE CURRENT, MICROAMPERES
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
FORWARD CURRENT, AMPERES
10
10
Ta = 100
°C
1.0
Ta = 25
°C
1.0
0.1
0.1
Ta = 25
°C
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.01
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
