DAC88E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC88E

DAC88E: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, HERMETIC SEALED, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size1MB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

DAC88E Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, HERMETIC SEALED, CERAMIC, DIP-24

DAC88E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
length	31.75 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Maximum seat height	4.65 mm
Maximum stabilization time	7 µs
Nominal settling time (tstl)	5 µs
Maximum slew rate	20 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

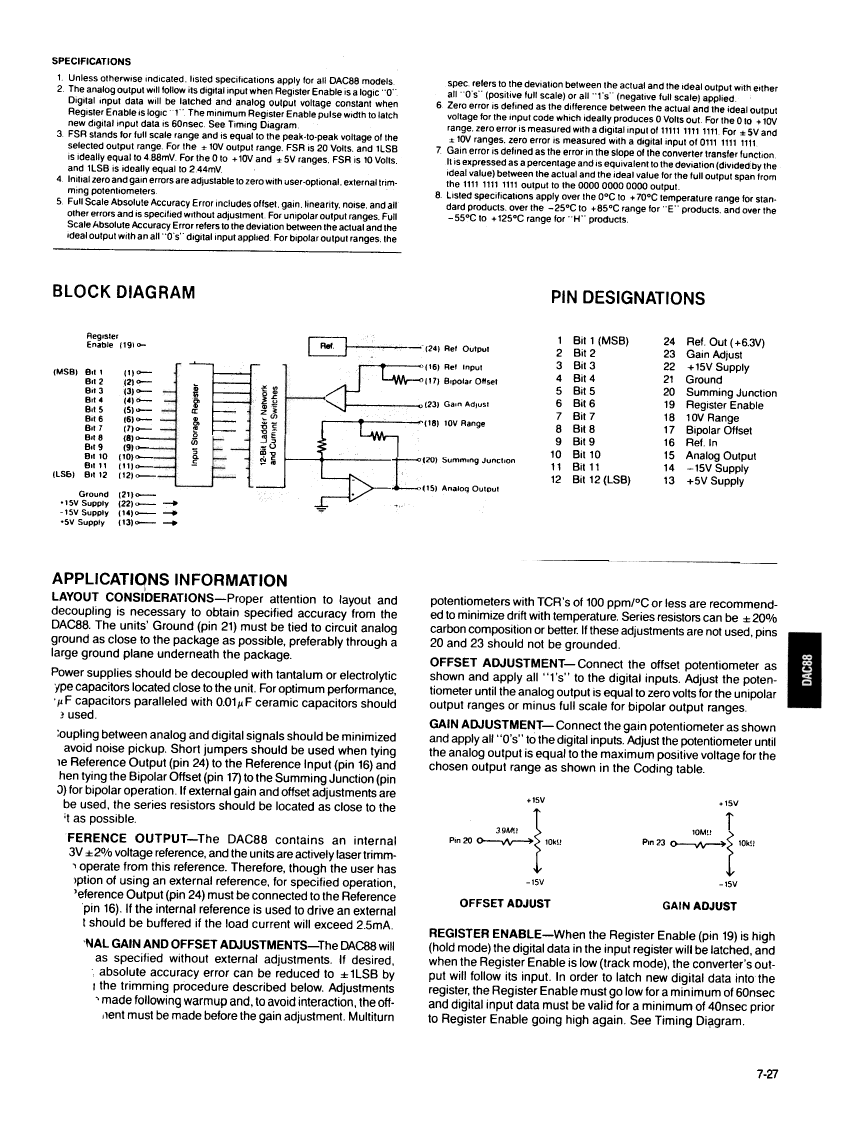

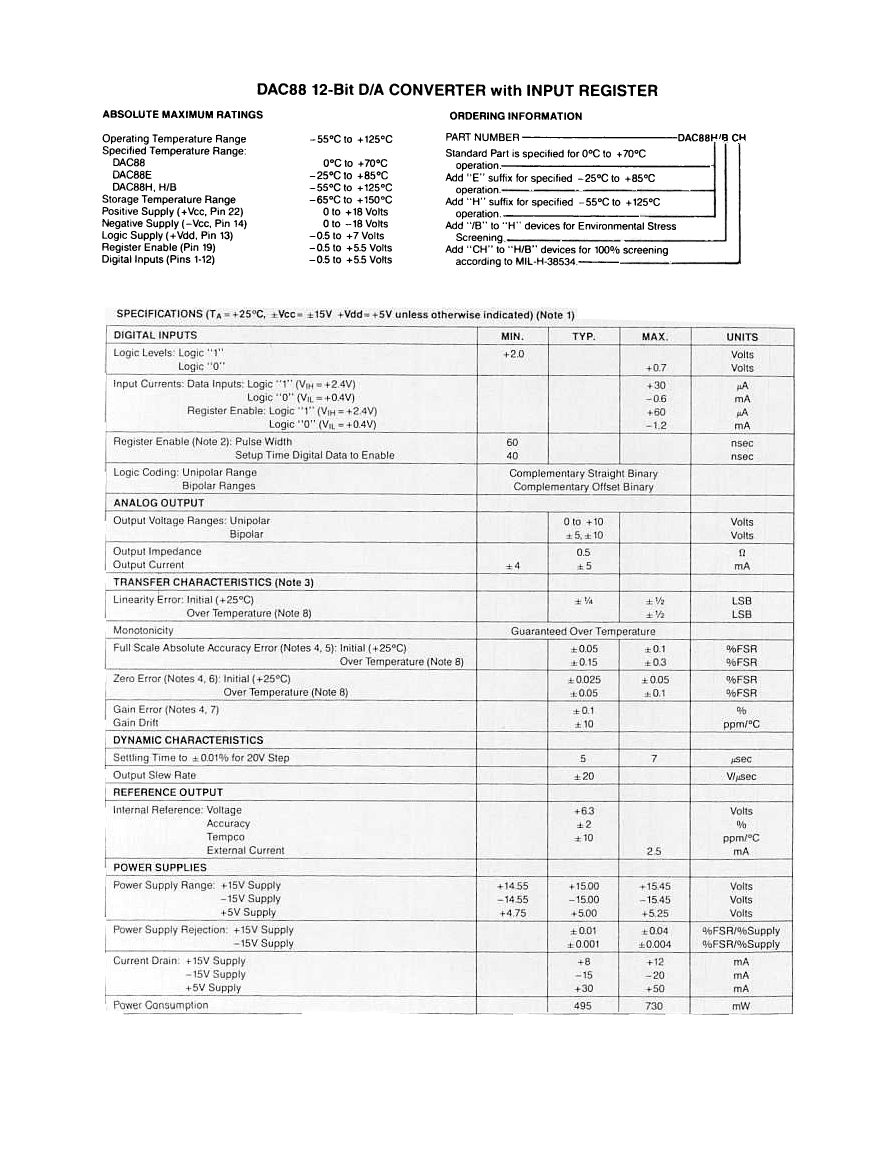

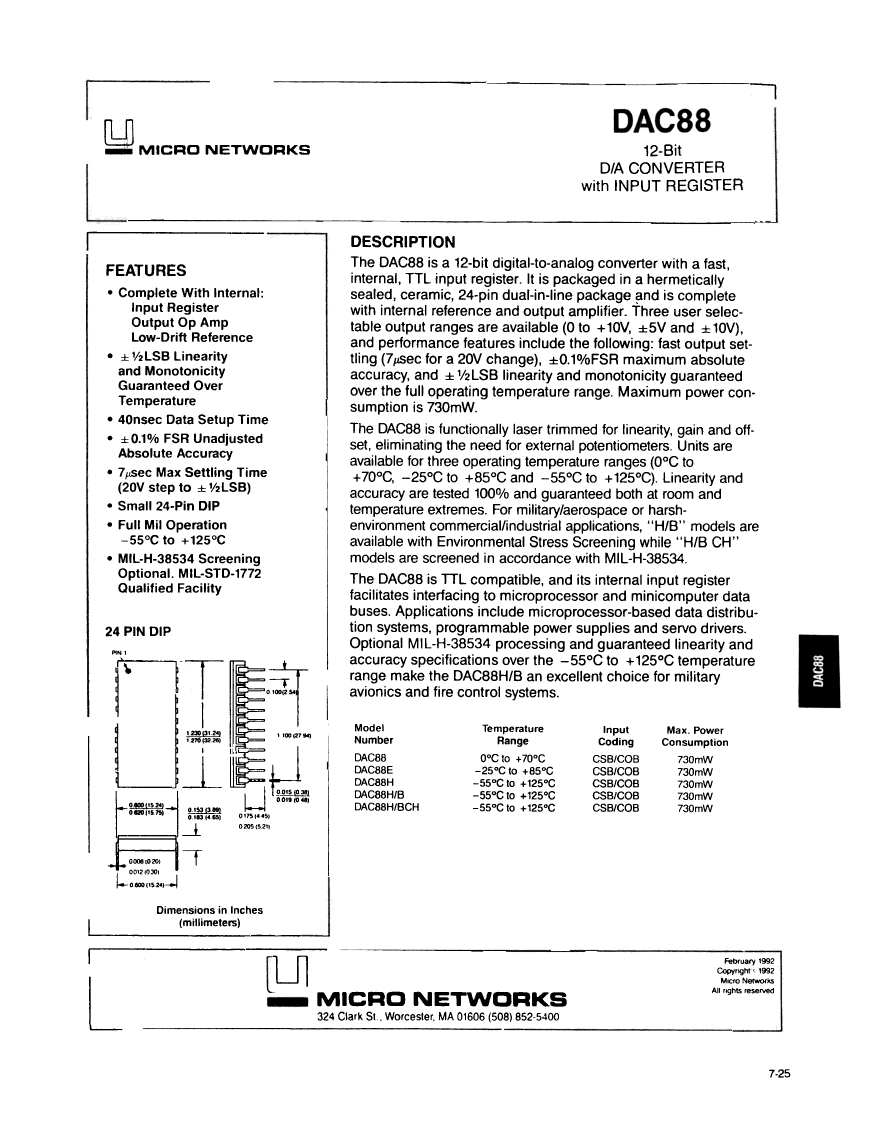

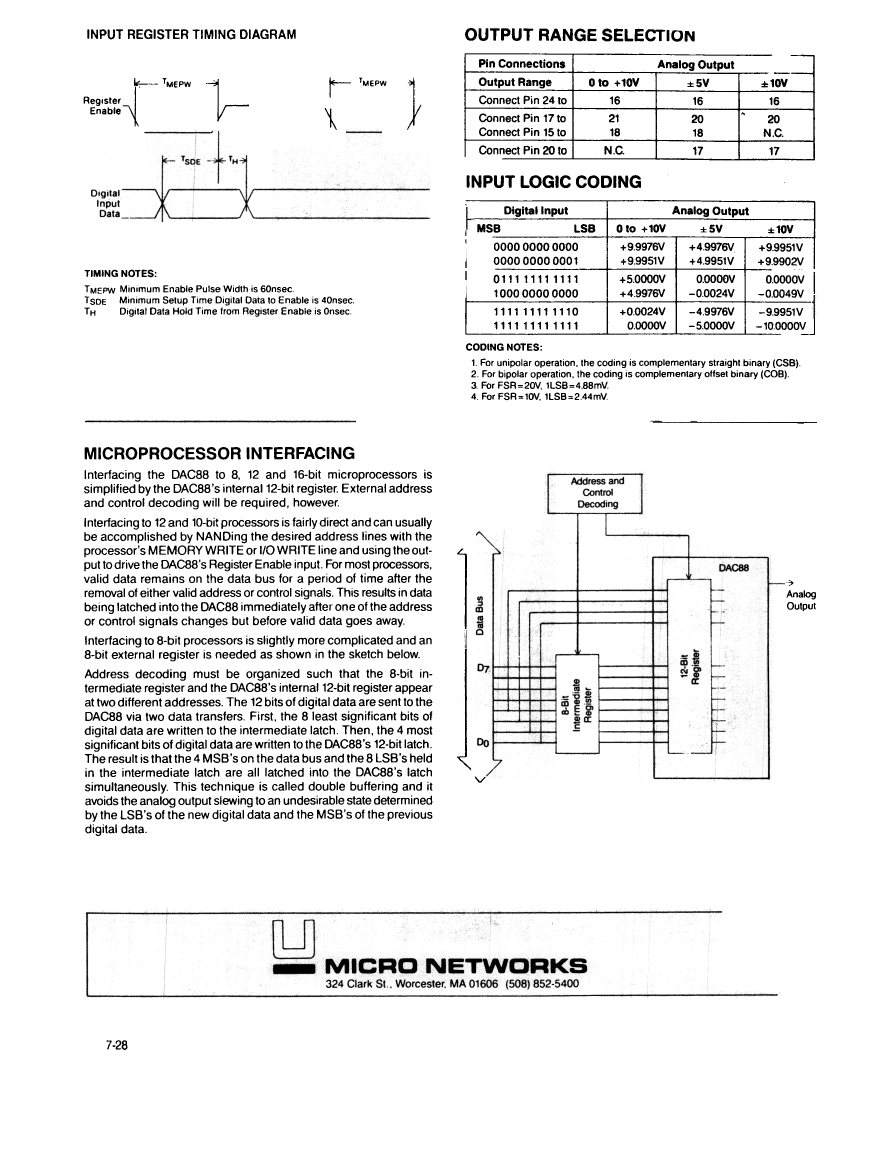

Preview

Download Datasheet

View All

DAC88E Related Products

	DAC88E	DAC88H	DAC88H/BCH	DAC88H/B	DAC88
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-XDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
length	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Maximum linear error (EL)	0.012%	0.0122%	0.0122%	0.0122%	0.0122%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	24	24
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-25 °C	-55 °C	-55 °C	-55 °C	-
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm
Maximum stabilization time	7 µs	7 µs	7 µs	7 µs	7 µs
Nominal settling time (tstl)	5 µs	5 µs	5 µs	5 µs	5 µs
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
ECCN code	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-
