CMPDM7590BKLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> CMPDM7590BKLEADFREE

CMPDM7590BKLEADFREE: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size603KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMPDM7590BKLEADFREE Overview

Transistor

CMPDM7590BKLEADFREE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	,
Reach Compliance Code	compliant
Configuration	Single
Maximum drain current (Abs) (ID)	0.14 A
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-609 code	e3
Humidity sensitivity level	1
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Polarity/channel type	P-CHANNEL
Maximum power dissipation(Abs)	0.35 W
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

CMPDM3590 N-CH

CMPDM7590 P-CH

SURFACE MOUNT

N-CHANNEL AND P-CHANNEL

ENHANCEMENT-MODE

COMPLEMENTARY MOSFETS

Central

Semiconductor Corp.

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPDM3590

and CMPDM7590 are complementary N-Channel

and P-Channel Enhancement-mode silicon MOSFETs

designed for high speed pulsed amplifier and driver

applications. These devices offer desirable MOSFET

electrical characteristics in an economical industry

standard SOT-23 package.

MARKING CODES: CMPDM3590: C359

CMPDM7590: C759

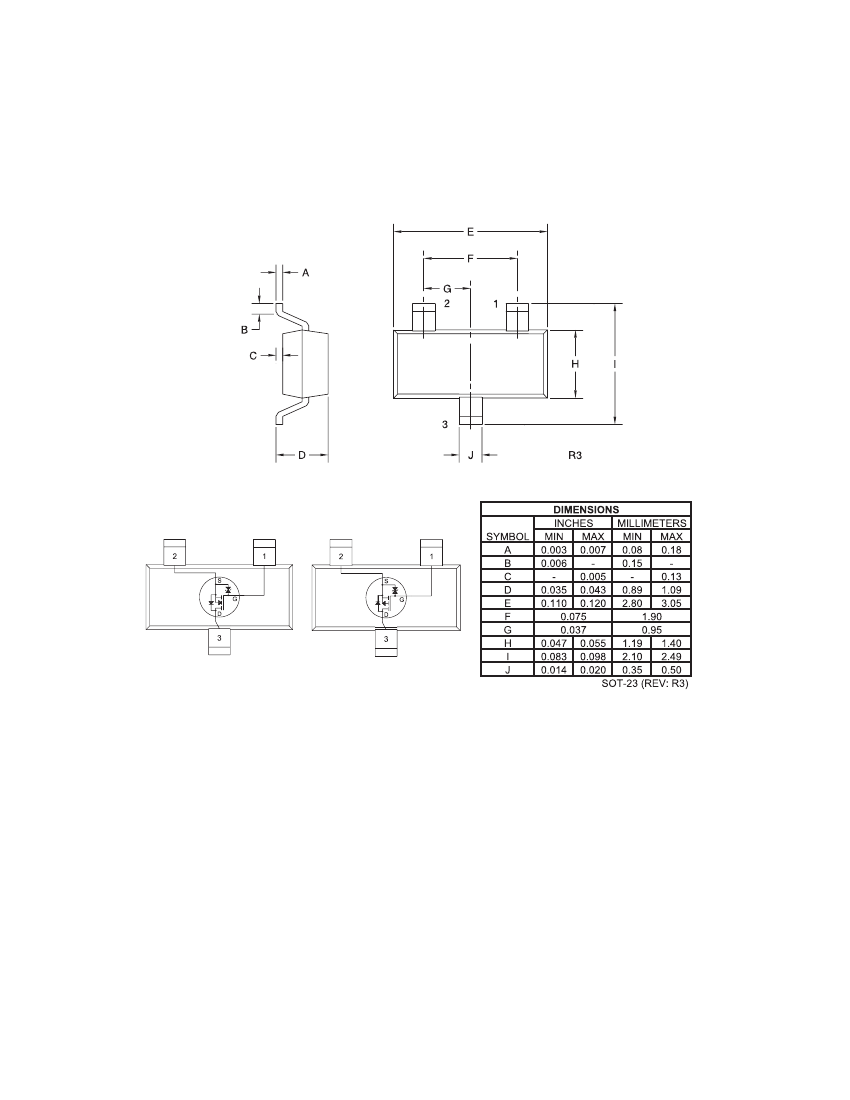

SOT-23 CASE

• Devices are

Halogen Free

by design

APPLICATIONS:

• Load/Power Switches

• Power Supply Converter Circuits

• Battery Powered Portable Devices

MAXIMUM RATINGS:

(TA=25°C)

Drain-Source Voltage

Gate-Source Voltage

Continuous Drain Current (Steady State)

Continuous Drain Current (tp < 5s)

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL CHARACTERISTICS:

(TA=25°C)

SYMBOL

TEST CONDITIONS

IGSSF, IGSSR VGS=5.0V, VDS=0V

VDS=5.0V, VGS=0V

IDSS

VDS=16V, VGS=0V

IDSS

BVDSS

VGS(th)

rDS(ON)

gFS

Crss

Ciss

Coss

ton

toff

VGS=0V, ID=250μA

VDS=VGS, ID=250μA

VGS=4.5V, ID=100mA

VGS=2.5V, ID=50mA

VGS=1.8V, ID=20mA

VGS=1.5V, ID=10mA

VGS=1.2V, ID=1.0mA

VDS=5.0V, ID=125mA

VDS=15V, VGS=0V, f=1.0MHz

VDD=10V, VGS=4.5V, ID=200mA

FEATURES:

• ESD Protection up to 2kV

• Power Dissipation: 350mW

• Low Threshold Voltage

• Logic Level Compatibility

• Small SOT-23 Surface Mount Package

SYMBOL

VDS

VGS

TJ, Tstg

CMPDM3590

8.0

160

200

350

-65 to +150

357

CMPDM7590

MIN TYP MAX

100

0.4

4.0

5.5

8.0

1.3

1.0

2.7

210

100

1.0

5.0

7.0

140

180

CMPDM7590

UNITS

°C

°C/W

CMPDM3590

MIN TYP MAX

100

0.4

1.5

2.0

3.0

4.0

7.0

1.3

2.2

9.0

3.0

150

100

1.0

3.0

4.0

6.0

UNITS

R0 (19-May 2009)
