MCSO1HV/B98.304MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSO1HV/B98.304MHZ

MCSO1HV/B98.304MHZ: DescriptionCMOS Output Clock Oscillator, 98.304MHz Nom; CategoryPassive components oscillator; File Size37KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

MCSO1HV/B98.304MHZ Overview

CMOS Output Clock Oscillator, 98.304MHz Nom

MCSO1HV/B98.304MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TRAY
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	MCSO1HV
Installation features	SURFACE MOUNT
Nominal operating frequency	98.304 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
physical size	7.86mm x 3.6mm x 2.0mm
longest rise time	3 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

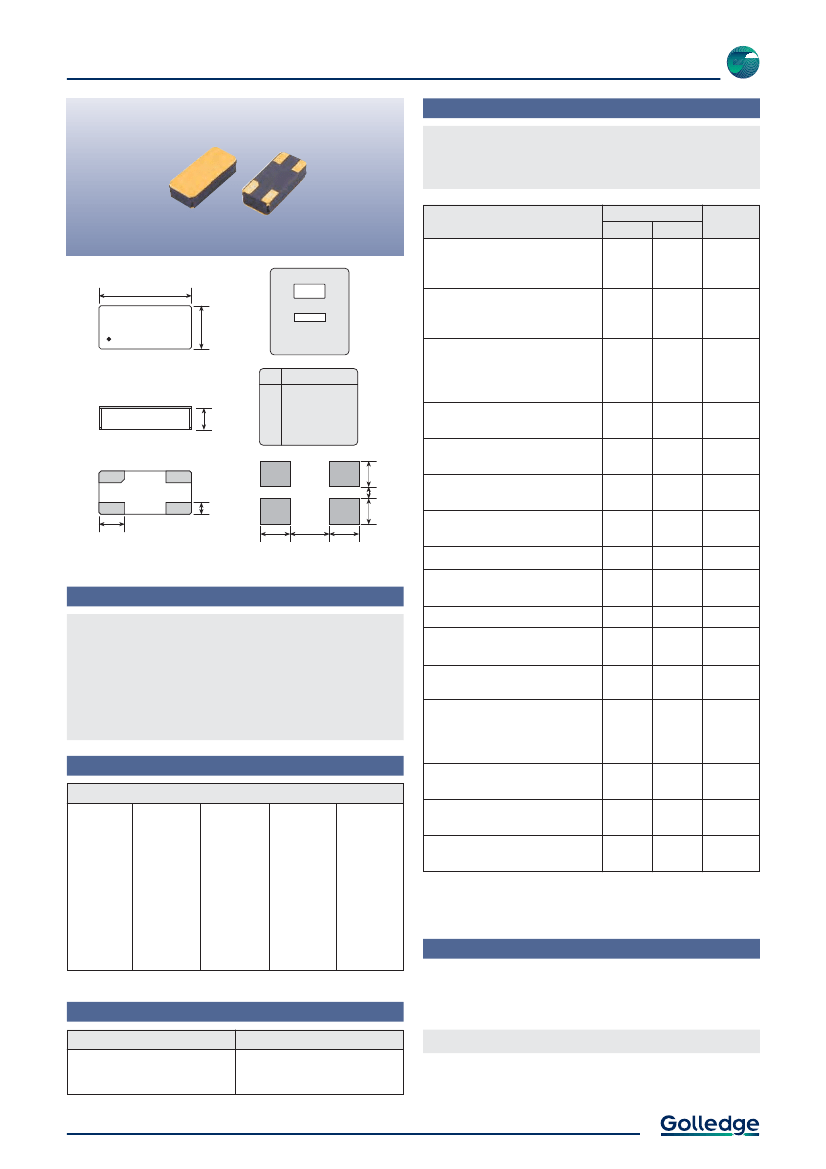

Preview

Download Datasheet

View All

3.3V CMOS Oscillator Mil Temp

MCSO1V & MCSO1HV

Specifications

MCSO1V: 400kHz ~ 20.0MHz

MCSO1HV: 20.0 ~ 160MHz

Parameters

Frequency range:

400kHz ~ 20.0MHz

20.0 ~ 160MHz

Frequency stability*:

3.60

±0.20

Product

MCSO1V MCSO1HV

Option

Codes

7.86

±0.20

±100ppm

±50ppm

tighter stabilities on request

specify

ACTUAL SIZE

PAD

CONNECTION

Not connected or

Enable/Disable

Operating temperature range:

0 to +70°C

-40 to +85°C

-55 to +125°C

Operable temperature range:

-55 to +125°C

Storage temperature range:

-65 to +125°C

Supply voltage (V

+3.3V (±10%)

Supply current (max):

Driving ability:

10mA

30mA

CMOS

2.00

±0.20

Ground

Output

Supply

2.10

1.00

2.12

1.16

2.12

2.54

3.18

TOP VIEW

2.54

Scale 3:1

Features

Logic levels:

‘0’

level = +0.4V max

‘1’

level = 90%V

min

Start up time:

5ms max

Military temperature range option

Excellent shock & vibration resistance

Enable / disable tristate option (> 500kHz)

Ceramic package with metal lid

Waveform symmetry:

40:60 max @ 50%V

Rise / fall times:

7ns max

3ns max

Enable / disable function:

None (pad 1 NC)

Tristate* (control via pad 1)

* not available under 500kHz

Shock resistance:

5,000G, 0.3ms,

sine

108.00000

110.59200

117.96400

120.00000

125.00000

128.00000

131.07200

132.71040

144.00000

150.00000

160.00000

Vibration resistance:

10G rms 10.0 ~ 2,000Hz

Soldering condition:

260°C, 10 sec max

Standard.

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

10.00000*

10.15000*

10.23000*

10.24000*

11.05920*

12.00000*

12.28800*

12.80000*

13.00000*

14.74560*

16.00000*

16.38400*

18.43200*

19.20000*

19.66080*

20.00000*

40.00000

40.60000

40.96000

44.23680

48.00000

49.15200

50.00000

50.75000

51.15000

51.20000

52.00000

55.29600

58.98240

60.00000

60.90000

61.38000

61.44000

64.00000

65.00000

65.53600

66.35520

72.00000

73.72800

76.80000

78.00000

80.00000

81.20000

81.84000

81.92000

88.47360

90.00000

96.00000

98.30400

100.00000

102.40000

104.00000

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Ordering Information

Product name + option codes (if any) + frequency

eg:

MCSO1V/TBE 16.0MHz

±50ppm -40 to +85°C Enable / disable

MCSO1HV/C 81.840MHz

±100ppm -55 to +125°C

Option code X (eg MCSO1V/X) denotes a custom specification.

Packed in trays (91pcs/tray).

* Binary divisions of the above frequencies also available.

Enable / Disable Function

Input (pad 1)

Open

‘1’

level

‘0’

level

Output (pad 3)

Enabled

High Impedance

Tel:

+44 1460 256 100

17 May 2011

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
