BU2858FV datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> BU2858FV

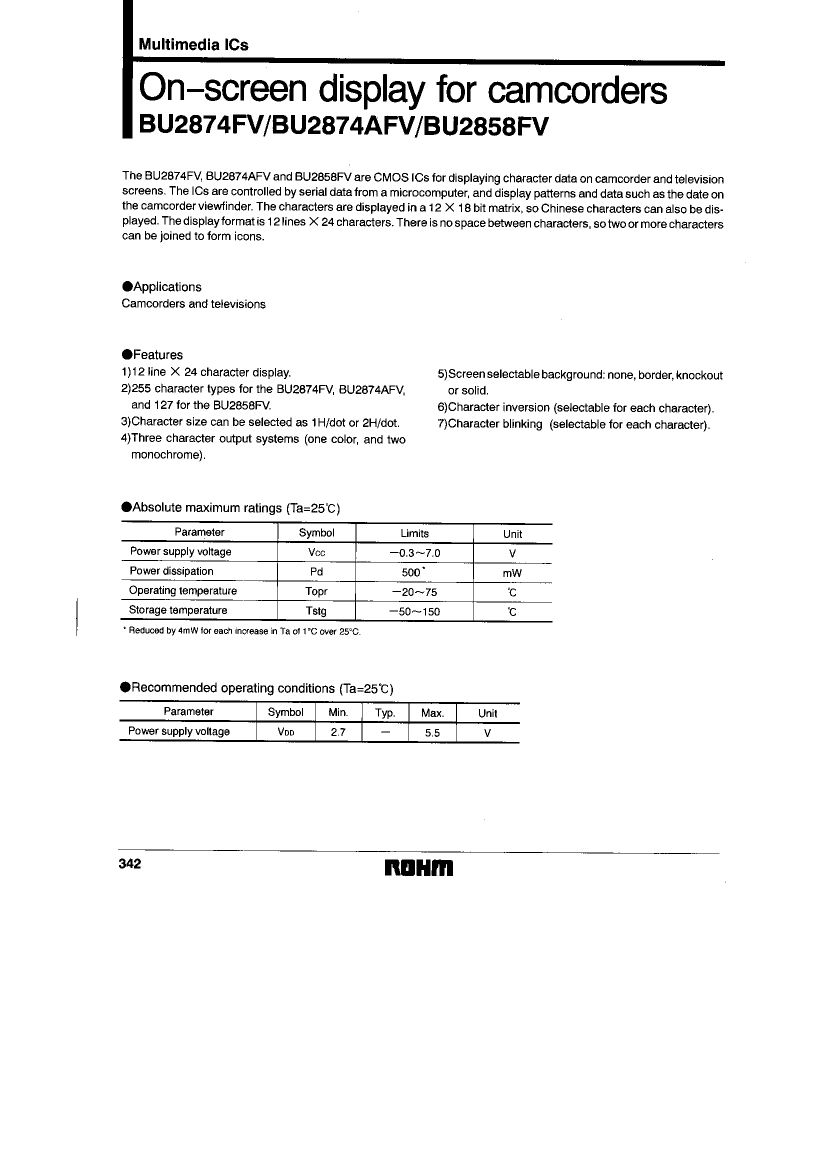

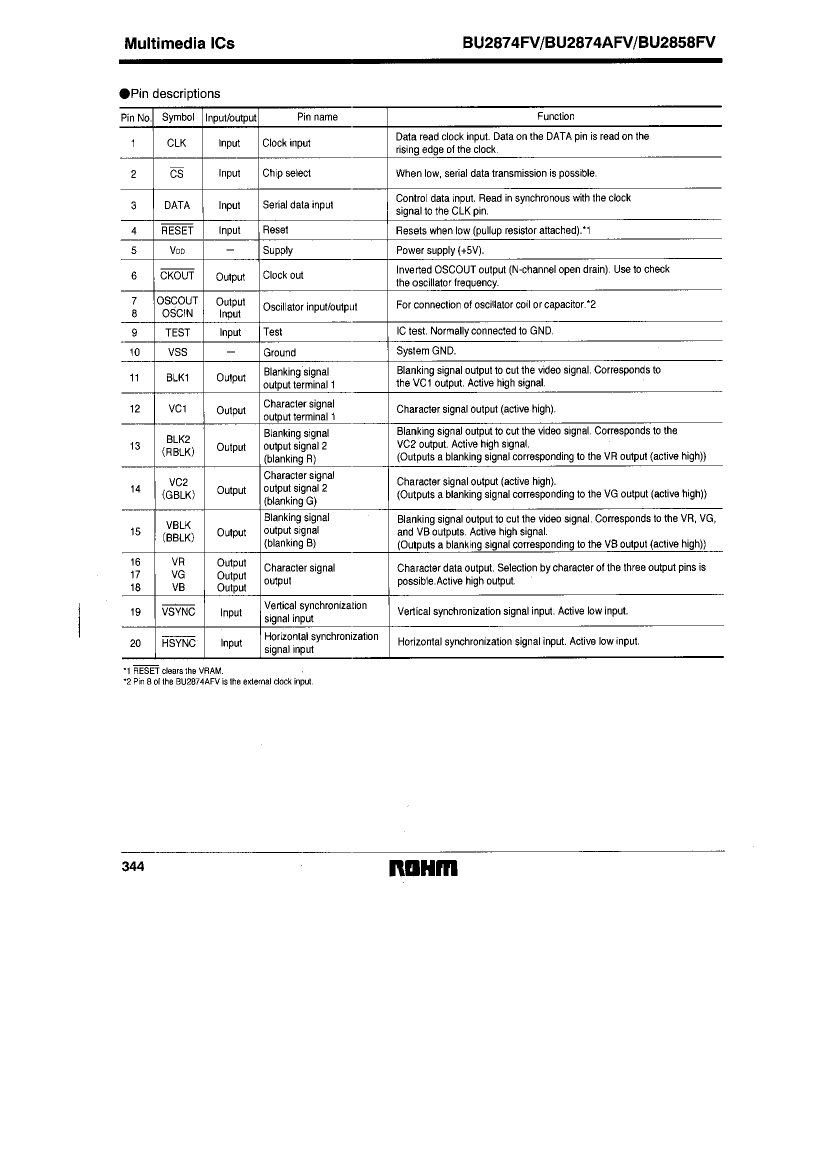

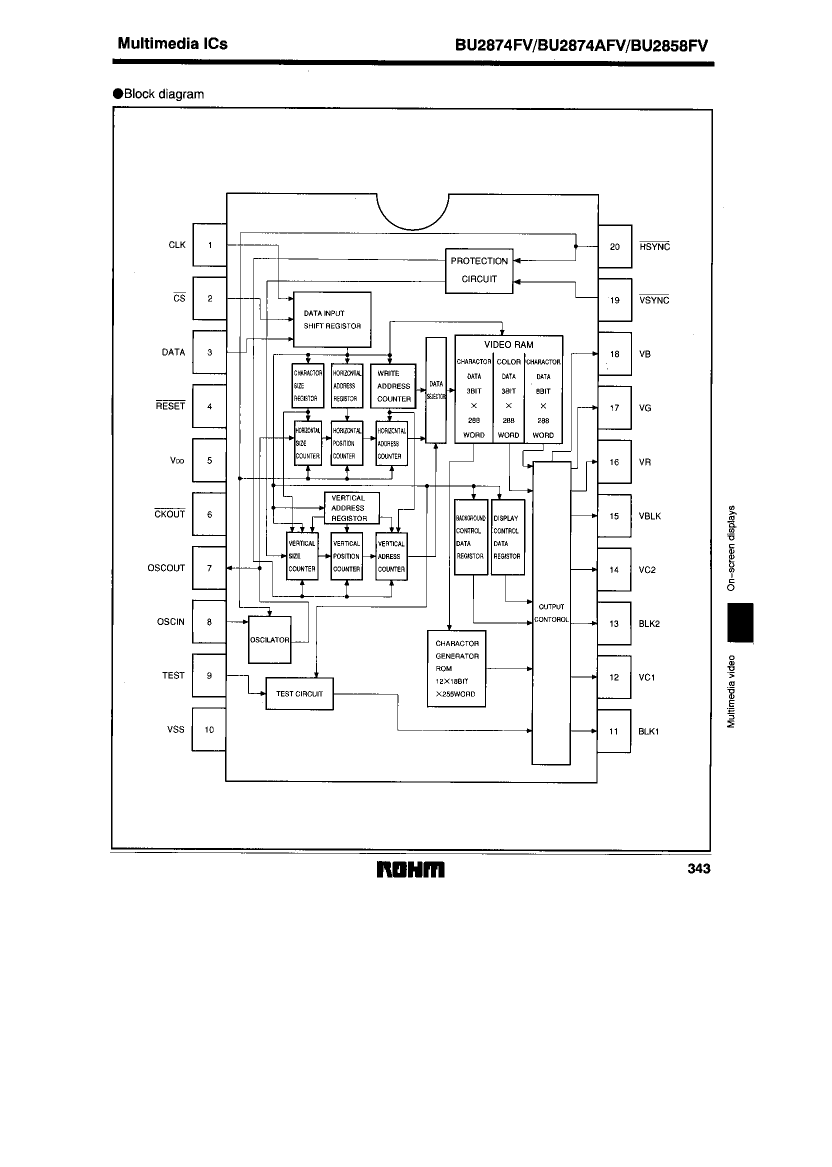

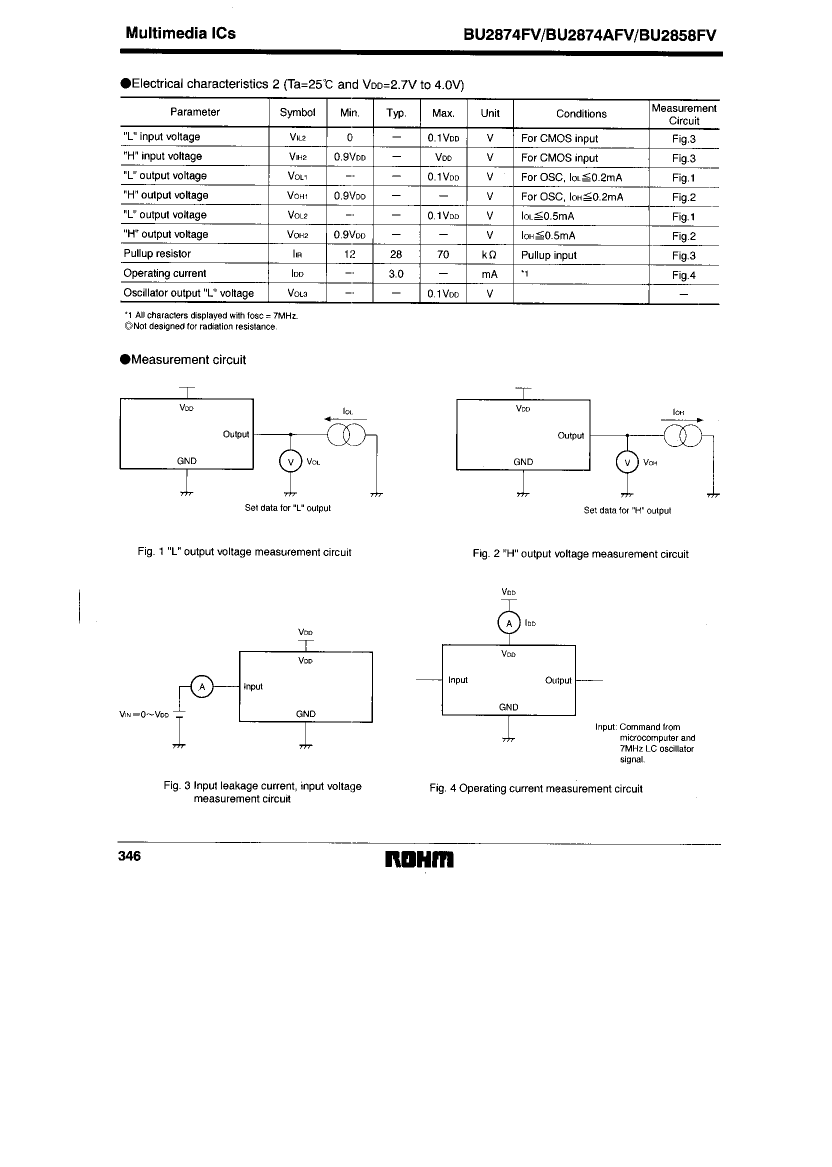

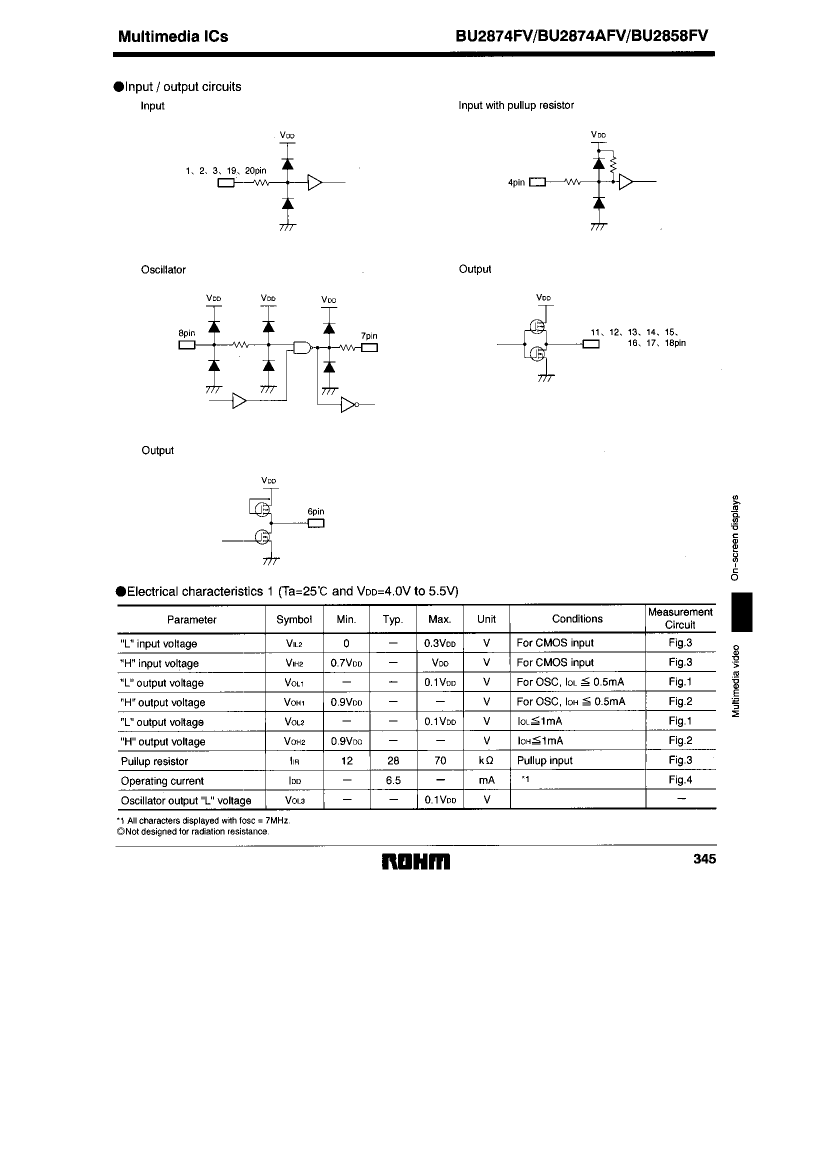

Preview

BU2858FV: DescriptionOn-Screen Display IC, CMOS, PDSO20, SSOP-20; CategoryOther integrated circuit (IC) Consumption circuit; File Size141KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BU2858FV Overview

On-Screen Display IC, CMOS, PDSO20, SSOP-20

BU2858FV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP, SSOP20,.3
Contacts	20
Reach Compliance Code	unknown
application	TV
character array size	12 X 18
Commercial integrated circuit types	ON-SCREEN DISPLAY IC
Lock live broadcast screen	NO
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	6.5 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm

Preview

Download Datasheet

View All

BU2858FV Related Products

	BU2858FV	BU2874AFV	BU2874FV
Description	On-Screen Display IC, CMOS, PDSO20, SSOP-20	On-Screen Display IC, CMOS, PDSO20, SSOP-20	On-Screen Display IC, CMOS, PDSO20, SSOP-20
Is it Rohs certified?	incompatible	conform to	incompatible
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SSOP	SSOP	SSOP
package instruction	SSOP, SSOP20,.3	SSOP, SSOP20,.3	SSOP, SSOP20,.3
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
application	TV	TV	TV
character array size	12 X 18	12 X 18	12 X 18
Commercial integrated circuit types	ON-SCREEN DISPLAY IC	ON-SCREEN DISPLAY IC	ON-SCREEN DISPLAY IC
Lock live broadcast screen	NO	NO	NO
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	6.5 mm	6.5 mm
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP
Encapsulate equivalent code	SSOP20,.3	SSOP20,.3	SSOP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.1 mm	6.1 mm	6.1 mm
JESD-609 code	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
