ME1504 datasheet, PDF - EEWORLD Datasheet

ME1504: DescriptionLED Emitter, 820nm Min, 880nm Max, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size106KB，4 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

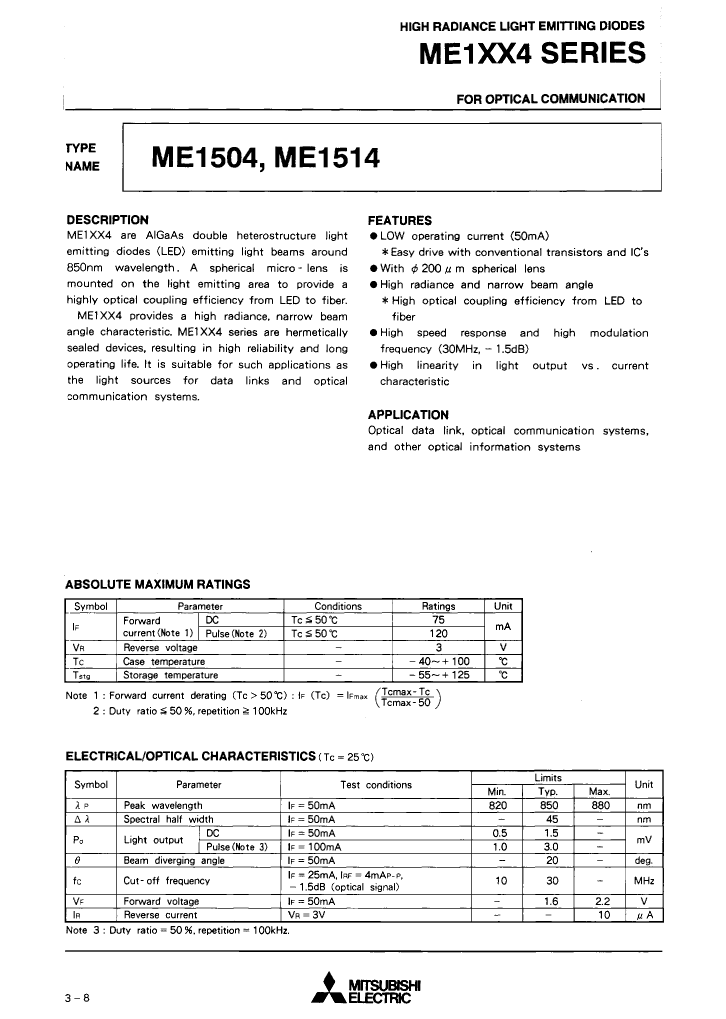

ME1504 Overview

LED Emitter, 820nm Min, 880nm Max, Through Hole Mount

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Reach Compliance Code	unknown

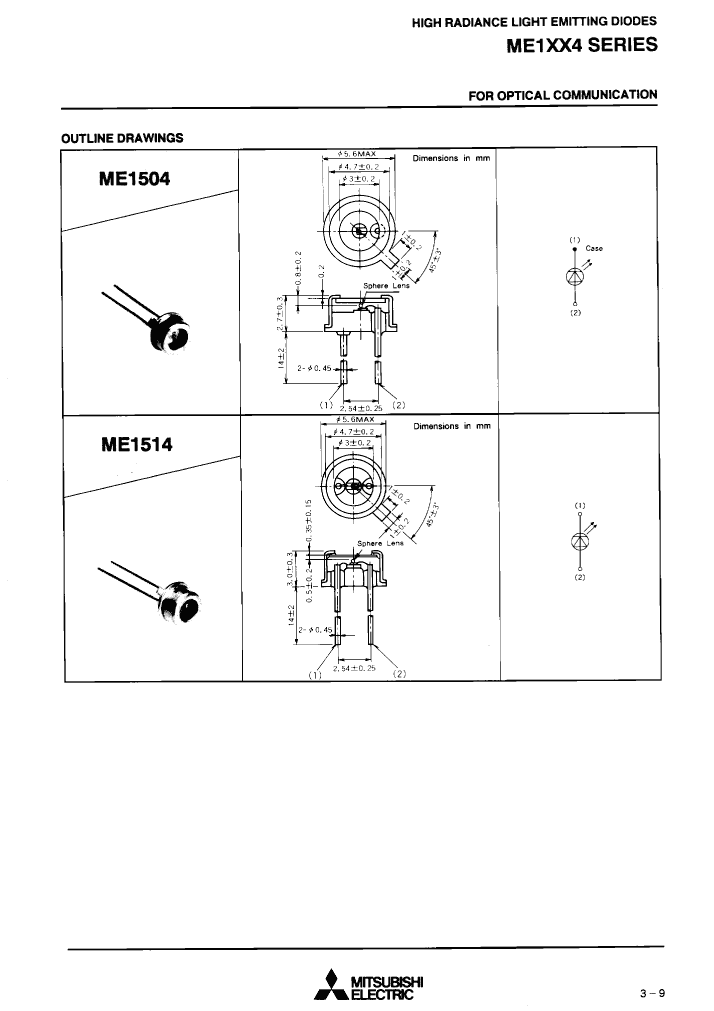

body height	2.7 mm
Body length or diameter	4.7 mm
maximum descent time	12 ns
Fiber optic equipment types	LED EMITTER
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C

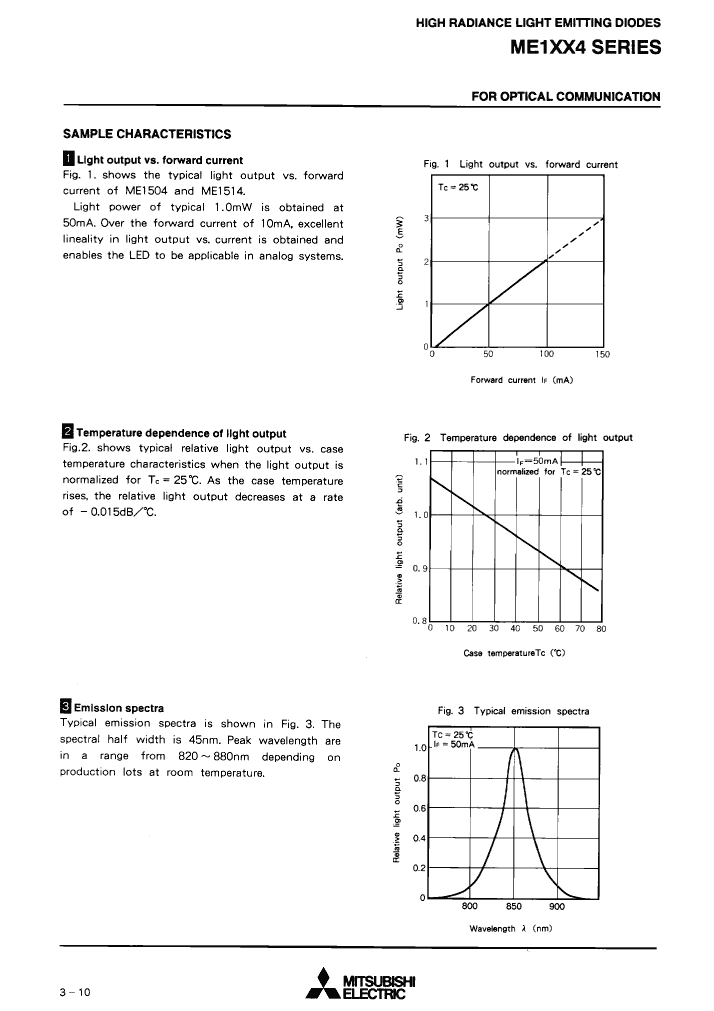

Maximum operating wavelength	880 nm
Minimum operating wavelength	820 nm
Nominal operating wavelength	850 nm

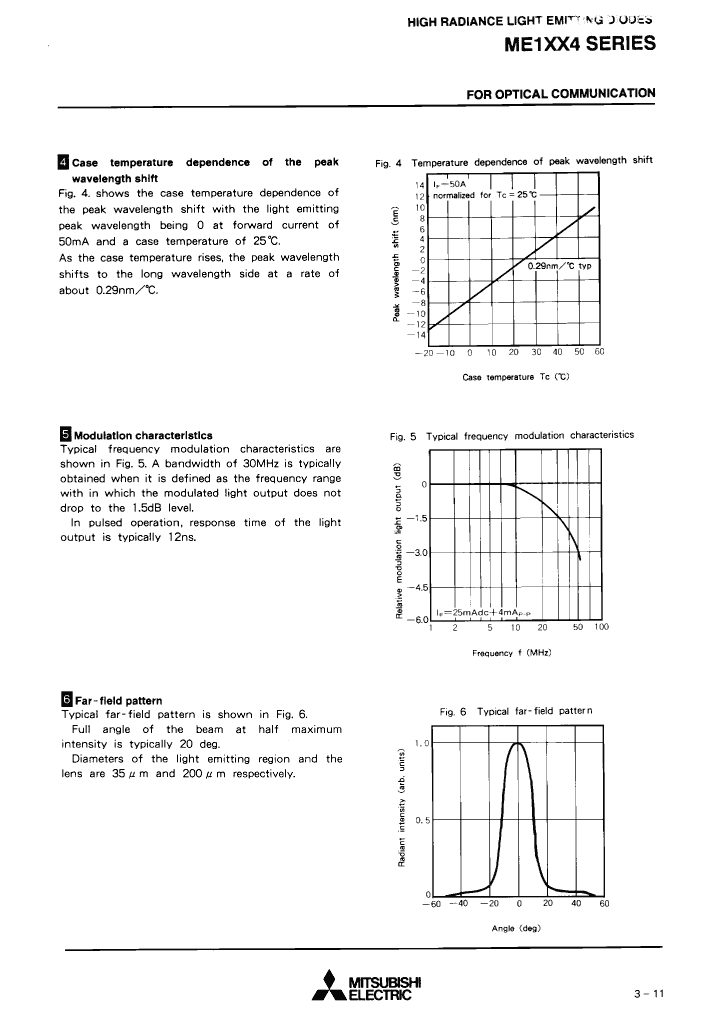

Rise Time	12 ns
Spectral width	45 nm
Supply current	100 mA
Maximum supply voltage	2.2 V
Nominal supply voltage	1.6 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

	ME1504	ME1514
Description	LED Emitter, 820nm Min, 880nm Max, Through Hole Mount	LED Emitter, 820nm Min, 880nm Max, Through Hole Mount
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
body height	2.7 mm	3 mm
Body length or diameter	4.7 mm	4.7 mm
maximum descent time	12 ns	12 ns
Fiber optic equipment types	LED EMITTER	LED EMITTER
JESD-609 code	e0	e0
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of channels	1	1
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum operating wavelength	880 nm	880 nm
Minimum operating wavelength	820 nm	820 nm
Nominal operating wavelength	850 nm	850 nm
Rise Time	12 ns	12 ns
Spectral width	45 nm	45 nm
Supply current	100 mA	100 mA
Maximum supply voltage	2.2 V	2.2 V
Nominal supply voltage	1.6 V	1.6 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
