K42X-E9S/E9P-CR30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> K42X-E9S/E9P-CR30

K42X-E9S/E9P-CR30: DescriptionD Subminiature Connector, 9 Contact(s), Female-Male, Solder Terminal, Receptacle-plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K42X-E9S/E9P-CR30 Overview

D Subminiature Connector, 9 Contact(s), Female-Male, Solder Terminal, Receptacle-plug, ROHS COMPLIANT

K42X-E9S/E9P-CR30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	OTHER STACKING CONNECTOR: 9 CONTACTS
Body/casing type	RECEPTACLE-PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE-MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K42X
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

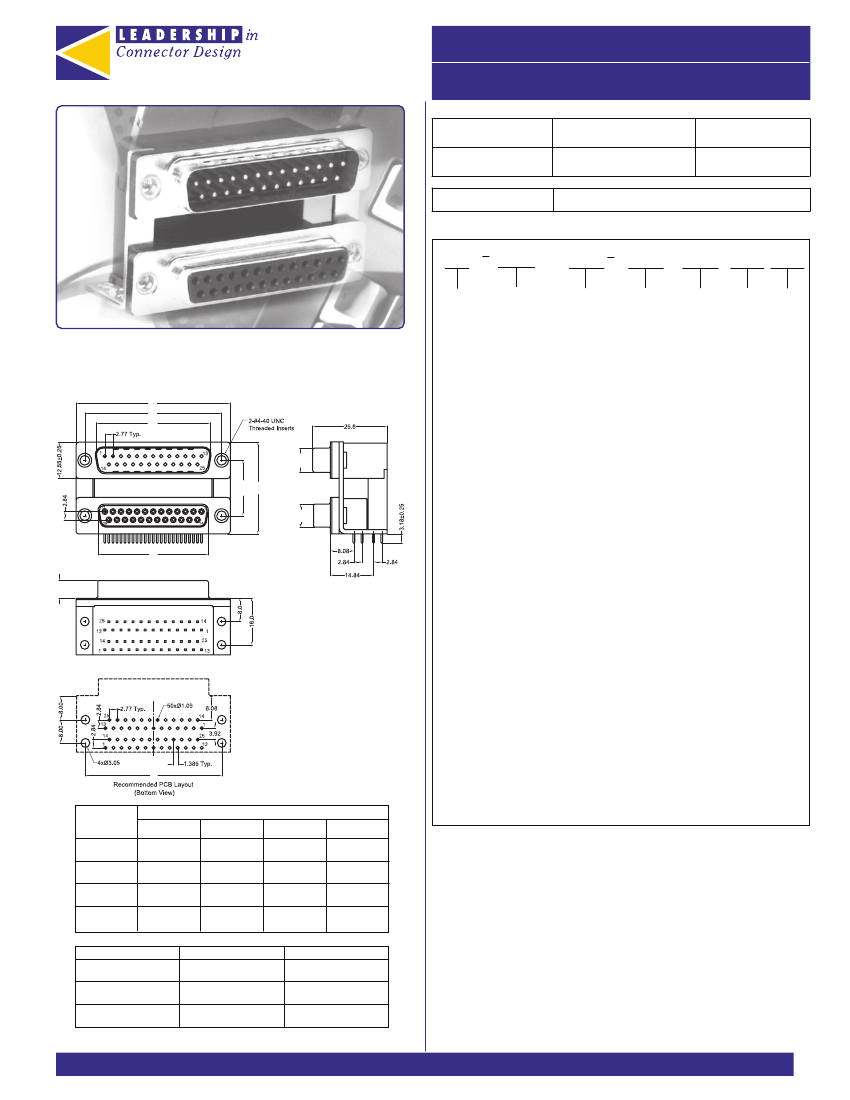

STACKED D-SUBMINIATURE

KYCON

RoHS

K42X Series

Documentation &

Ordering Information

Drawing

Sample

Kycon Part #

Stock

CofC

RFQ

K42X-E9P/P-A

Part Builder

K42X

Center Board Jack Plating

Series Top Shell Size Bottom

Connector Shell Size Distance Lock Screws Option

Type

Connector

K42X Series

Dual-Port D-Sub

Dimensions in mm

Series

K42X - Dual-Port D-Subminiature Connector

K42X

Top/Bottom Shell Size

9/9

9/9 - 9 Contacts over 9 Contacts

15/15

- 15 Contacts over 15 Contacts

25/25 - 25 Contacts over 25 Contacts

25/25

37/37

37/37 - 37 Contacts over 37 Contacts

Top/Bottom Connector Type

P/P - (Plug/Plug)

P/P

P/S

P/S - (Plug/Receptacle)

S/S

S/S - (Receptacle/Receptacle)

S/P

S/P - (Receptacle/Plug)

Center to Center Distance

A - .750” (Standard)

C - .625”

Board Locks Option

Blank

Blank - No Board Locks

4N - Board Locks (Standard)

8.36 Plug

7.90 Socket

6.1 Plug

5.8 Socket

Contact Kycon for Specific

Engineering Drawings

Jack Screws Option

Blank

Blank - No Jack Screws

J - 4-40 HEX Removable Jack Screws

- 4-40 Round Riveted Jack Screws

Plating Option

Blank

- Gold Flash

- 15µ” Gold

- 30µ” Gold

Dimensions (Inch/

mm)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.181

55.42

.750

19.05

.900

22.86

.625

15.88

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

1.244

31.60

1.394

35.41

1.119

28.42

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

37 (C)

Contact Kycon for High Temperature and other options

Center to Center Spacing

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Click here for Performance Specification
