KV6-38R-W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> KV6-38R-W

Preview

KV6-38R-W: DescriptionRing Terminal, 14mm2,; CategoryThe connector terminals; File Size135KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KV6-38R-W Overview

Ring Terminal, 14mm2,

KV6-38R-W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	14 mm2
Wire gauge	6 AWG

Preview

Download Datasheet

View All

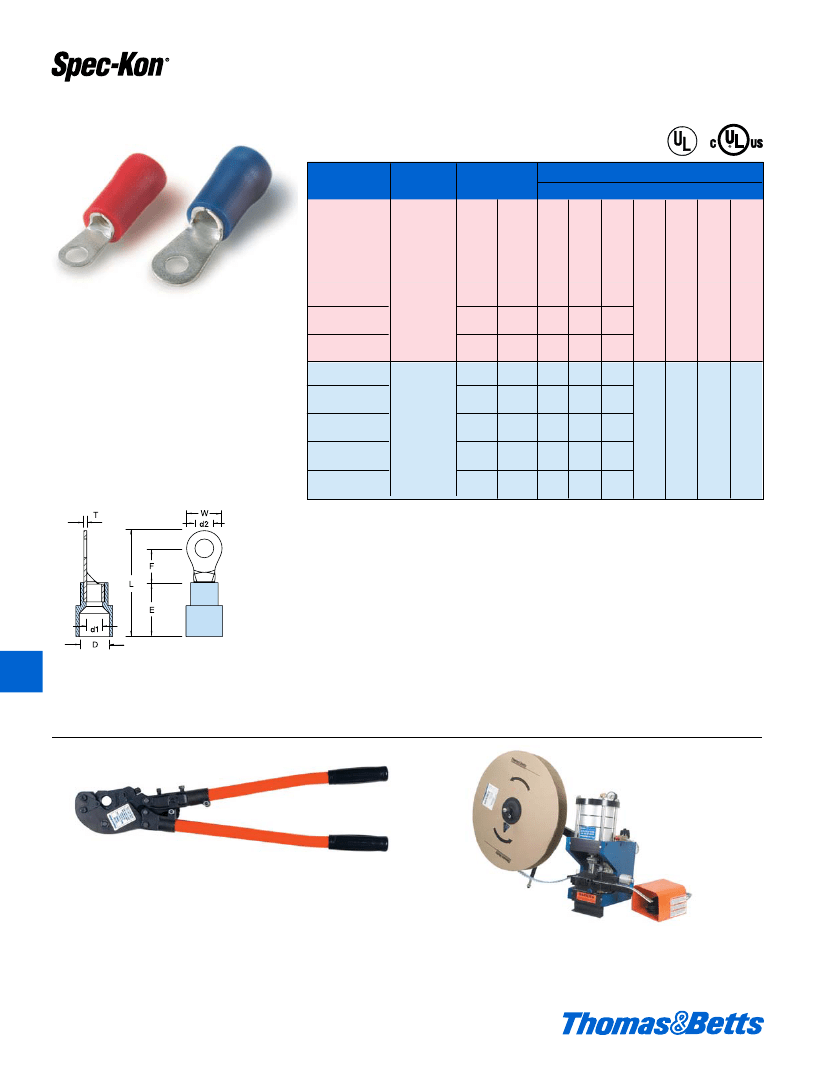

Terminals

Vinyl Insulated Large Ring Terminals

Catalog

Number

KV8-8R-D

KV8-10R-D

KV8-14R-D

K8-516R-D

KV8-38R-D

KV8-12R-D

8

A.W.G.

8

mm

2

®

Wire

Range

Bolt

Size (d2)

#8

#10

1/4

5/16

3/8

1/2

#10

1/4

.169

4.3

.209

5.3

.252

6.4

.331

8.4

.413

10.5

.512

13.0

.209

5.3

.252

6.4

.331

8.4

.413

10.5

.512

13.0

Dimension

inch

mm

W

.315

8.0

.346

8.8

.472

12.0

.591

15.0

.591

15.0

.787

20.0

.472

12.0

.472

12.0

.630

16.0

.630

16.0

.866

22.0

F

.366

9.3

.429

10.9

.366

9.3

.543

13.8

.543

13.8

.591

15.0

.524

13.3

.524

13.3

.571

14.5

.571

14.5

.780

19.8

L

1.16

29.5

1.25

31.8

1.25

31.8

1.49

37.8

1.49

37.8

1.63

41.5

1.62

41.2

1.62

41.2

1.75

44.5

1.75

44.5

2.09

53

E

D

d1

T

.650

16.5

.335

8.5

.177

4.5

.047

1.2

• Brazed Seam

• Internal Barrel Serrations

KV6-10R-W

KV6-14R-W

KV6-516R-W

KV6-38R-W

KV6-12R-W

6

A.W.G.

14

mm

2

5/16

3/8

1/2

.886

22.5

.414

10.5

.222

5.65

.059

1.5

Box Quantity: (W)=250; (D)=500

For mylar tape, replace box quantity with (T). Example: KN8-8R-T.

See pages in back of catalog for complete tool information.

Tool and Die Selection Chart on page M42.

Maximum Electrical Rating:

105˚C 600 Volts Max.

Terminal Material:

Copper

#8 AWG on mylar tape is UL Listed.

#6 AWG on mylar tape is UL Listed.

M

Spec-Kon

®

UL File #E9809

CSA File #LR4503

Tools used with Vinyl Insulated Large Ring Terminals

TBM6S

For tooling information for nylon insulated

large ring terminals, see page M37.

KT-2500

M12

www.tnb.com

KV6-38R-W Related Products

	KV6-38R-W	KV8-14R-D	KV8-38R-D	KV6-12R-W	KV6-516R-W	KV6-14R-W	KV8-8R-D	KV8-516R-D	KV8-10R-D
Description	Ring Terminal, 14mm2,	Ring Terminal, 8mm2,	Ring Terminal, 8mm2,	Ring Terminal, 14mm2,	Ring Terminal, 14mm2,	Ring Terminal, 14mm2,	Ring Terminal, 8mm2,	Ring Terminal, 8mm2,	Ring Terminal, 8mm2,
Maker	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL
Conductor cross section	14 mm2	8 mm2	8 mm2	14 mm2	14 mm2	14 mm2	8 mm2	8 mm2	8 mm2
Wire gauge	6 AWG	8 AWG	8 AWG	6 AWG	6 AWG	6 AWG	8 AWG	8 AWG	8 AWG
Is it Rohs certified?	conform to	conform to	conform to	-	-	conform to	conform to	conform to	conform to
