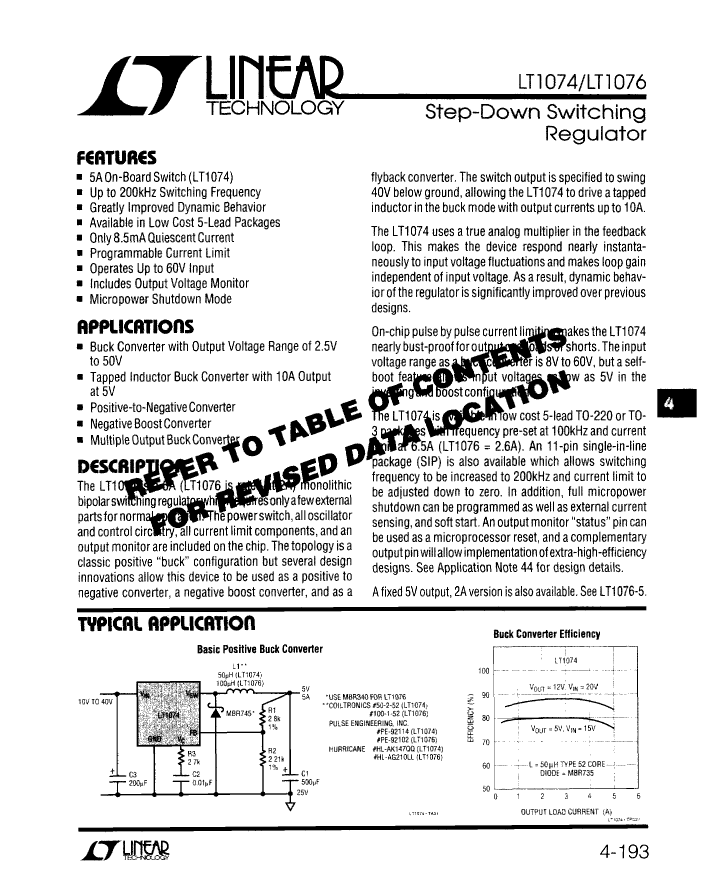

Preview

LT1074MK/883B: DescriptionIC 8.5 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size794KB，15 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1074MK/883B Overview

IC 8.5 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller

LT1074MK/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	TO-204AA
package instruction	METAL CAN, TO-3, 4 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	8 V
Nominal input voltage	25 V
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	8.5 A
Package body material	METAL
encapsulated code	TO-3
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
Switch configuration	BUCK-BOOST
Maximum switching frequency	200 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM

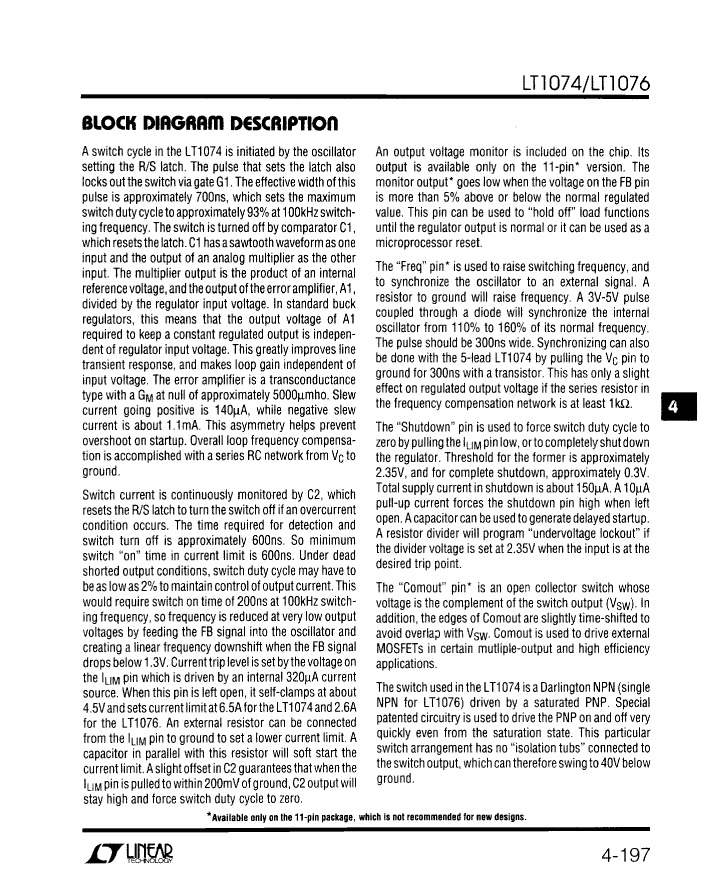

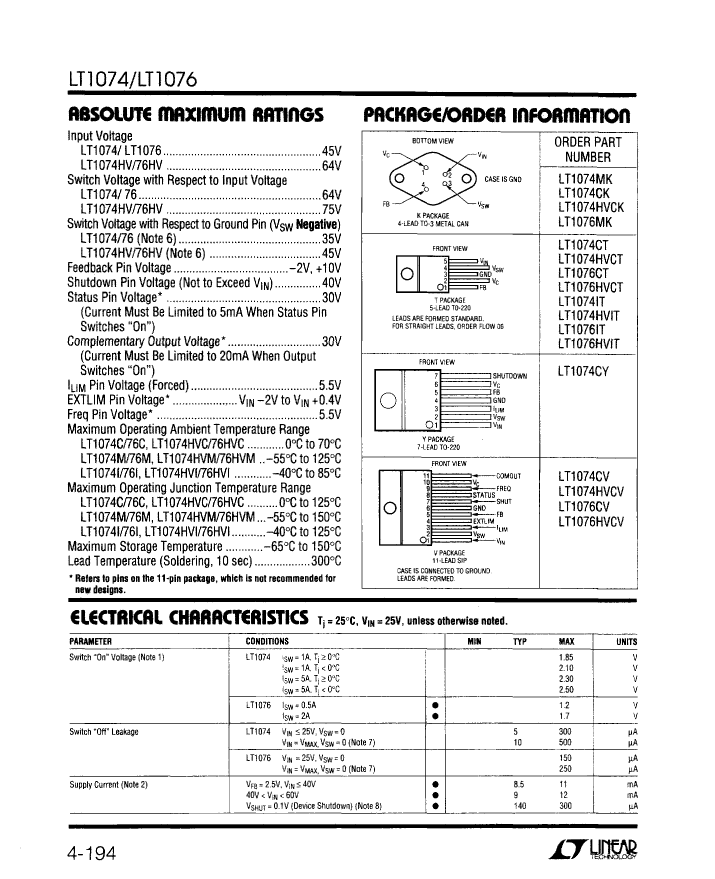

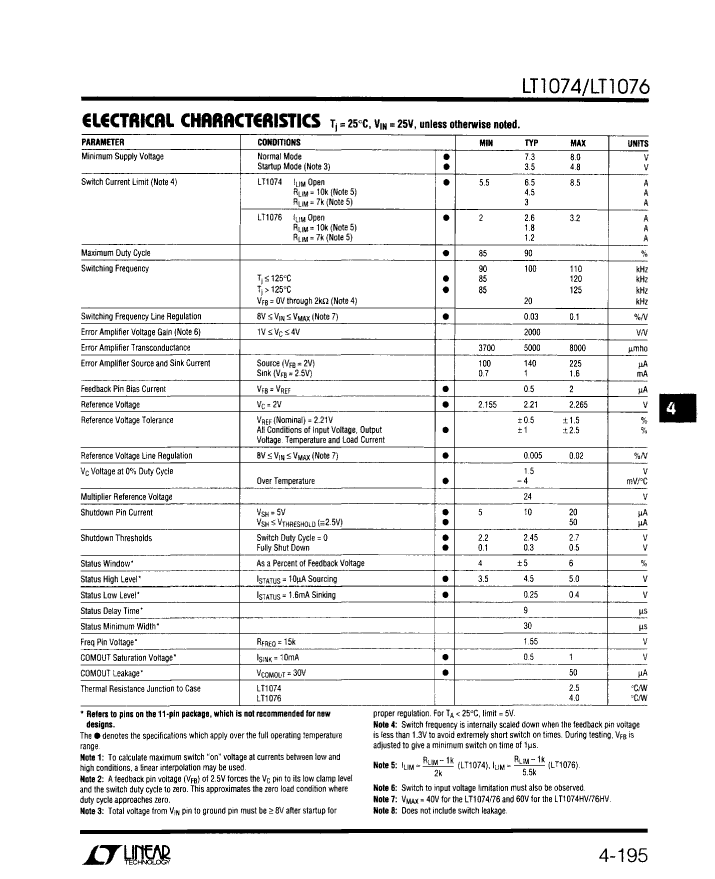

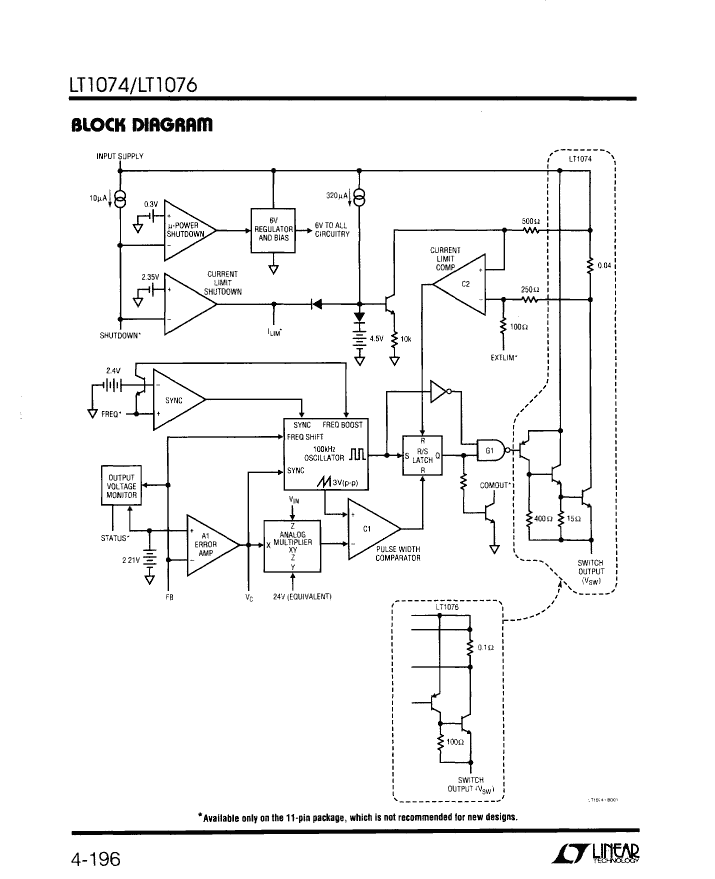

Preview

Download Datasheet

View All

LT1074MK/883B Related Products

	LT1074MK/883B	LT1076CV	LT1076MK/883B	LT1074HVCV	LT1076HVCV
Description	IC 8.5 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller	IC 2 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, PSIP11, SIP-11, Switching Regulator or Controller	IC 3.2 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller	IC 5.5 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, PSIP11, SIP-11, Switching Regulator or Controller	IC 2 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, PSIP11, SIP-11, Switching Regulator or Controller
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	TO-204AA	SIP	TO-204AA	SIP	SIP
package instruction	METAL CAN, TO-3, 4 PIN	SIP, ZIP11,.2,.17,67TB	METAL CAN, TO-3, 4 PIN	SIP, ZIP11,.2,.17,67TB	SIP, ZIP11,.2,.17,67TB
Contacts	2	11	2	11	11
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	40 V	40 V	60 V	60 V	60 V
Minimum input voltage	8 V	8 V	8 V	8 V	8 V
JESD-30 code	O-MBFM-P2	R-PSIP-T11	O-MBFM-P2	R-PSIP-T11	R-PSIP-T11
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1
Number of terminals	2	11	2	11	11
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	70 °C
Maximum output current	8.5 A	2 A	3.2 A	5.5 A	2 A
Package body material	METAL	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-3	SIP	TO-3	SIP	SIP
Package shape	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	IN-LINE	FLANGE MOUNT	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Switch configuration	BUCK-BOOST	BUCK	BUCK-BOOST	BUCK	BUCK
Maximum switching frequency	200 kHz	200 kHz	200 kHz	200 kHz	200 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	THROUGH-HOLE	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	SINGLE	BOTTOM	SINGLE	SINGLE
Nominal output voltage	-	2.21 V	-	2.21 V	2.21 V
Encapsulate equivalent code	-	ZIP11,.2,.17,67TB	-	ZIP11,.2,.17,67TB	ZIP11,.2,.17,67TB
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (Isup)	-	11 mA	-	12 mA	12 mA
Terminal pitch	-	1.7 mm	-	1.7 mm	1.7 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
