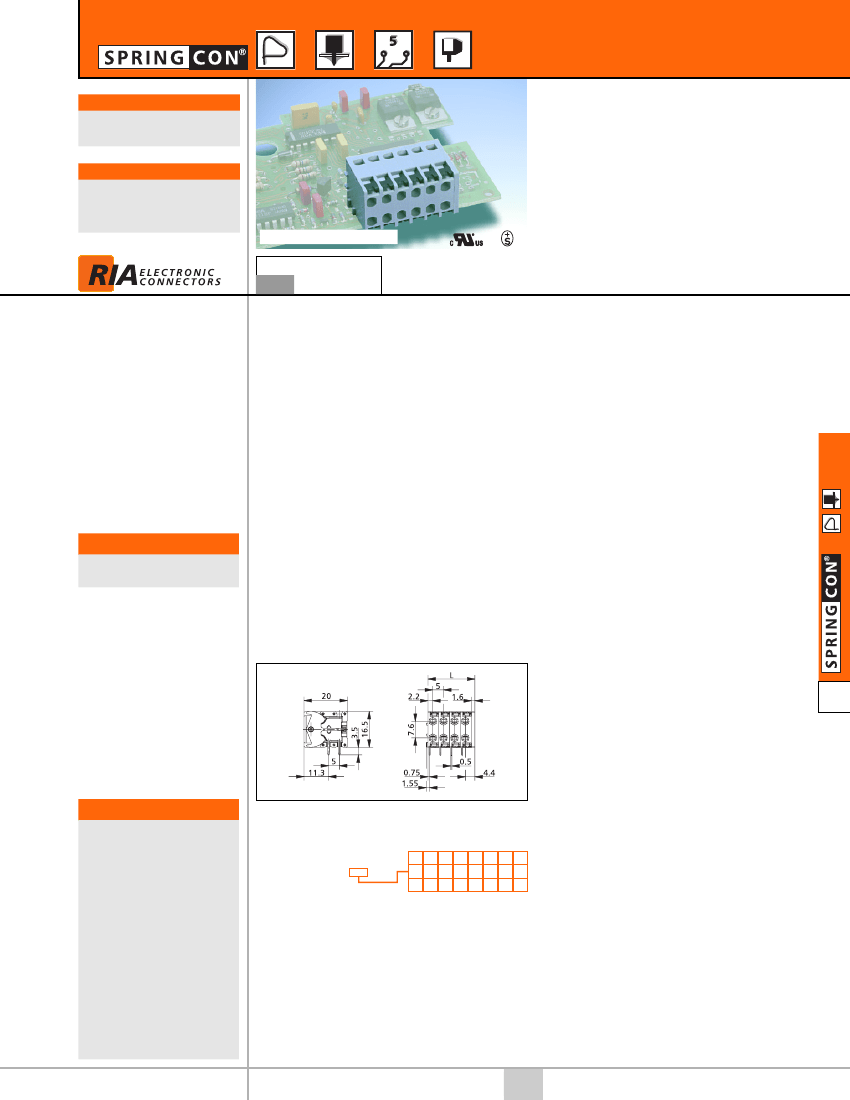

Previously type 430
mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Complete cross reference see page EA-6
Note
!
We have changed the
SPRINGCON part numbers.
Complete cross reference
see page EA-6.
Designed to IEC 60664-1
AST
09
horizontal connector
two wires per pole
double soldering pins
Electrical Data
Voltage
Current
Wire Range
Square pin
PCB hole diameter
Wire strip length
300 V
20 A
12 - 28 AWG
.5mm x 1 mm
1.4 mm
12 mm
Mechanical Data
Housing
Eccentric lever
Spring clamp
UL 94V-0 -40 °F to 189 °F
(-40 °C to 105 °C)
UL 94HB -40 °F to 230 °F
(-40 °C to 110 °C)
stainless chrome
molybdenum steel
copper alloy, tin plated
gray
(optional colors see margin)
2 to 24
Optional colors
black, light blue, green,
red, dark blue
Contact pin
Colors
Pole sizes
Additional material data - pages EA-3 to EA-5
Dimensions (mm)
L = (circuits - 1) x centerline + 6.6
Suffixes for color
suffix
02
04
05
06
08
13
color
black
gray (standard)
light blue
green
red
dark blue
Part Numbers
AST09
(other circuits please consult factory)
Complete the part number
by adding the pole size.
centerline 5 mm
Part No.
AST09 5
XX
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
For different sequences of
colors within the same termi-
nal block, i.e. black, red,
green, add suffix
99
multiple color
Please attach the color
sequence to your order or
consult factory.
XX
= color suffix - Please replace “XX” by the requested
color suffix (see margin).
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
EA-15
Subject to technical changes and printing errors.
