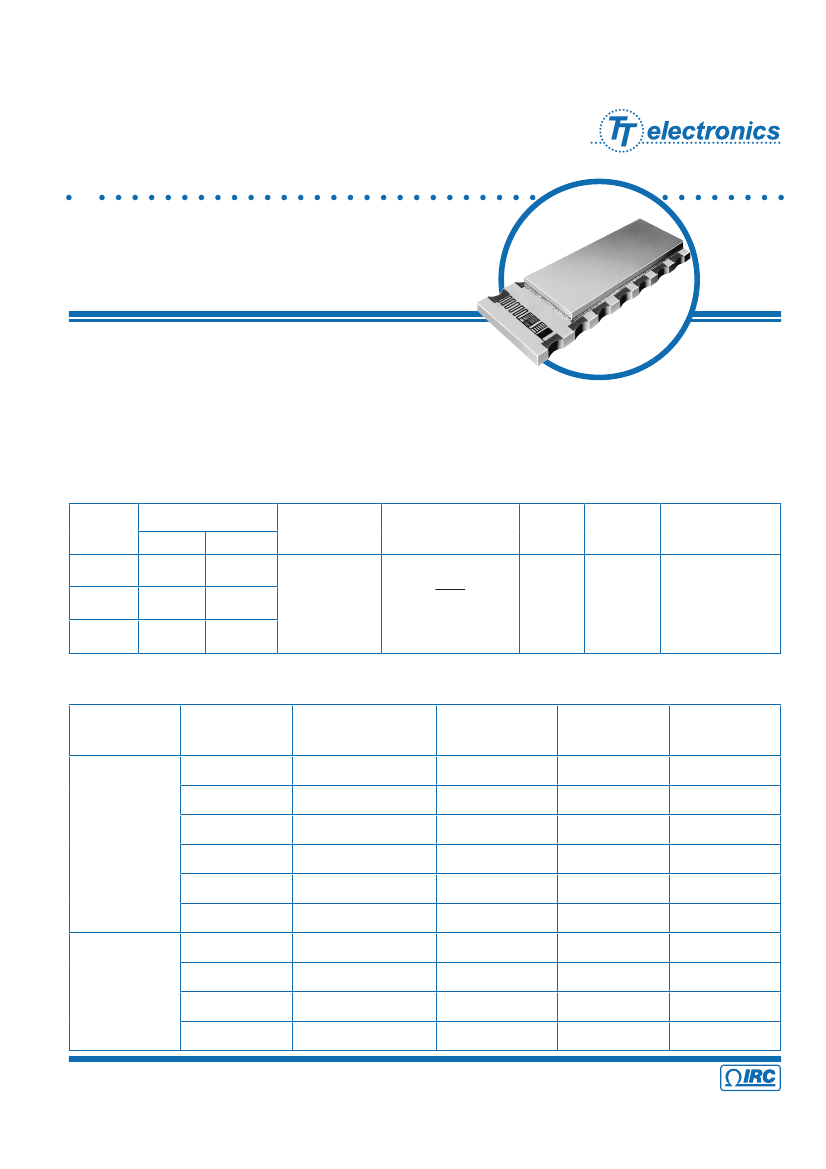

TaNFilm
®
Flat Precision
Resistor Array
SON Series
•
Compatible with standard SOIC footprint (210 Series)
•
Standard Sn/Pb and Pb-free terminations
•
Superior temperature performance
•
Absolute tolerances to ±0.1%
•
Ratio tolerances to ±0.01%
IRC’s TaNFilm® Small Outline Leadless Resistor Networks are
ideally suited for applications requiring precision, long term reliability
and stability in a small area. Its monolithic construction eliminates vulnerable terminations such as solder
connections. The SON package is ideal for the all surface mount production reflow techniques while still
possessing all the unique qualities of our TaNFilm® thin film system. Testing has demonstrated
performance exceeding MIL-PRF-83401 Characteristic H.
Electrical Data
Package
8-Pad
14-Pad
16-Pad
Power Rating at 70°C
Element
100mW
100mW
100mW
Network
400mW
700mW
800mW
-55°C to +150°C
Temperature
Range
Maximum Voltage
Noise
Substrate
Termination
√
PxR
(not to exceed 50V )
< -25dB
99.5%
Alumina
Solder Plated Over
Nickel Barrier
Manufacturing Capabilities
Resistance
Range
10Ω - 24.9Ω
25.0Ω - 49.9Ω
Schematic A
50Ω - 199Ω
200Ω - 999Ω
1.0K - 25.0K
25.1K - 100K
10Ω - 24.9Ω
Schematic B
25Ω - 49.9Ω
50Ω - 199Ω
200Ω - 50KΩ
General Note
Available
Absolute Tolerances
CDFGJ
CDFGJ
BCDFGJ
BCDFGJ
BDFGJ
BDFGJ
CDFGJ
CDFGJ
BCDFGJ
BCDFGJ
Available
Ratio Tolerances
(Ratio to R1)
CDFG
BCDFG
BCDFG
ABCDFG
TQABDFG
ABDFG
DFG
CDFG
BCDFG
ABCDFG
Best
Absolute TCR
±100 ppm/°C
±50 ppm/°C
±25 ppm/°C
±25 ppm/°C
±25 ppm/°C
±25 ppm/°C
±100 ppm/°C
±50 ppm/°C
±25 ppm/°C
±25 ppm/°C
Tracking TCR
(Track to R1)
±20 ppm/°C
±10 ppm/°C
±5 ppm/°C
±5 ppm/°C
±5 ppm/°C
±5 ppm/°C
±25ppm/°C
±15ppm/°C
±10ppm/°C
±5ppm/°C
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
SON Series Issue January 2009 Sheet 1 of 4

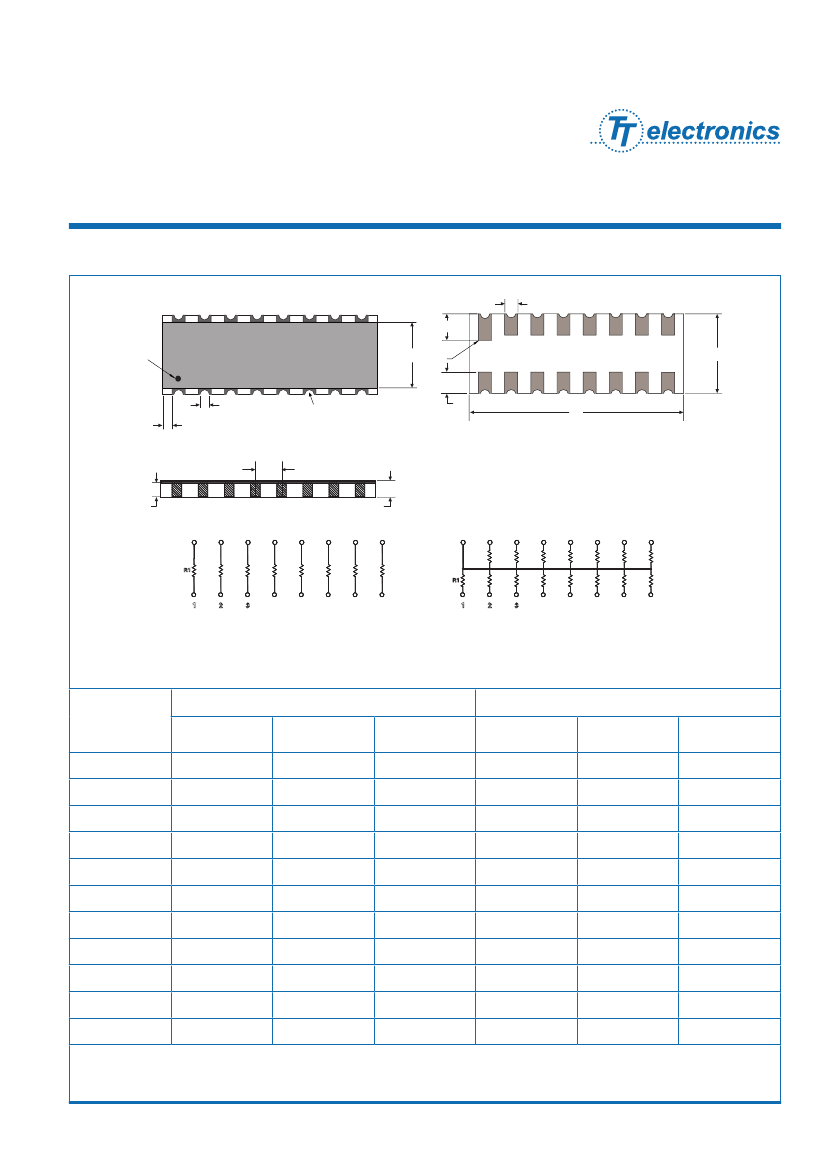

TaNFilm
®
Flat Precision
Resistor Array
Ordering Data
Prefix
Model
SON -
N989
-
01
-
1002
-
F
B
NS4A: 8-pad, 0.150" wide, schematic A, with 60/40 Sn/Pb terminations
NS4ALF: 8-pad, 0.150" wide, schematic A, with 100% matte tin, Pb-free terminations
NS4B: 8-pad, 0.150" wide, schematic B, with 60/40 Sn/Pb terminations
NS4BLF: 8-pad, 0.150" wide, schematic B, with 100% matte tin, Pb-free terminations
NS7A: 14-pad, 0.150" wide, schematic A, with 60/40 Sn/Pb terminations
NS7ALF: 14-pad, 0.150" wide, schematic A, with 100% matte tin, Pb-free terminations
NS7B: 14-pad, 0.150" wide, schematic B, with 60/40 Sn/Pb terminations
NS7BLF: 14-pad, 0.150" wide, schematic B, with 100% matte tin, Pb-free terminations
NS8A: 16-pad, 0.150" wide, schematic A, with 60/40 Sn/Pb terminations
NS8ALF: 16-pad, 0.150" wide, schematic A, with 100% matte tin, Pb-free terminations
NS8B: 16-pad, 0.150" wide, schematic B, with 60/40 Sn/Pb terminations
NS8BLF: 16-pad, 0.150" wide, schematic B, with 100% matte tin, Pb-free terminations
N959: 8-pad, 0.210" wide, schematic A, with 60/40 Sn/Pb terminations
N959LF: 8-pad, 0.210" wide, schematic A, with 100% matte tin, Pb-free terminations
N954: 8-pad, 0.210" wide, schematic B, with 60/40 Sn/Pb terminations
N954LF: 8-pad, 0.210" wide, schematic B, with 100% matte tin, Pb-free terminations
N989: 14-pad, 0.210" wide, schematic A, with 60/40 Sn/Pb terminations
N989LF: 14-pad, 0.210" wide, schematic A, with 100% matte tin, Pb-free terminations
N987: 14-pad, 0.210" wide, schematic B, with 60/40 Sn/Pb terminations
N987LF: 14-pad, 0.210" wide, schematic B, with 100% matte tin, Pb-free terminations
N999: 16-pad, 0.210" wide, schematic A, with 60/40 Sn/Pb terminations
N999LF: 16-pad, 0.210" wide, schematic A, with 100% matte tin, Pb-free terminations
N998: 16-pad, 0.210" wide, schematic B, with 60/40 Sn/Pb terminations
N998LF: 16-pad, 0.210" wide, schematic B, with 100% matte tin, Pb-free terminations
01 = ±100ppm/°C Commercial Grade
02 = ±50ppm/°C Commercial Grade
03 = ±25ppm/°C Commercial Grade
04 = ±300ppm/°C Military Screened Characteristic M*
05 = ±100ppm/°C Military Screened Characteristic K*
06 = ±50ppm/°C Military Screened Characteristic H*
07 = ±25ppm/°C Military Screened Characteristic H*
TCR Code
Resistance Code
4-Digit resistance code
Ex: 1002 = 10KΩ; 49R9 = 49.9Ω
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%; C = ±0.25%; B = ±0.1%
Absolute Tolerance Code
Optional R1 Ratio Tolerance Code
*Special Notes:
F = ±1%; D = ±0.5%; B = ±0.1%; A = ±0.05%; Q = ±0.02%; T = ±0.01%
SON NSxx series screened per Group A MIL-PRF-55342
SON N9xx series screened per Group A MIL-PRF-83401
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
SON Series Issue January 2009 Sheet 4 of 4
