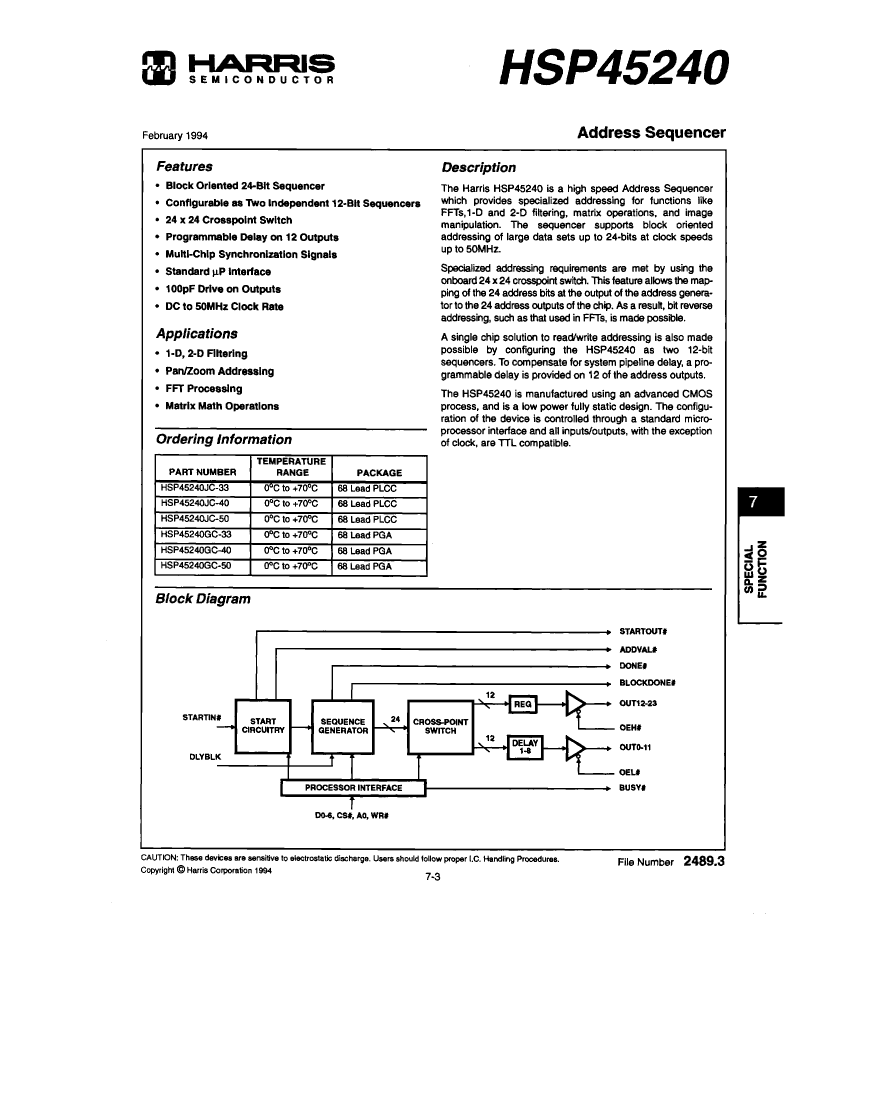

HSP45240GC-50: DescriptionAddress Sequencer, 7-Bit, CMOS, CPGA68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size561KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HSP45240GC-50 Overview

Address Sequencer, 7-Bit, CMOS, CPGA68

HSP45240GC-50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris

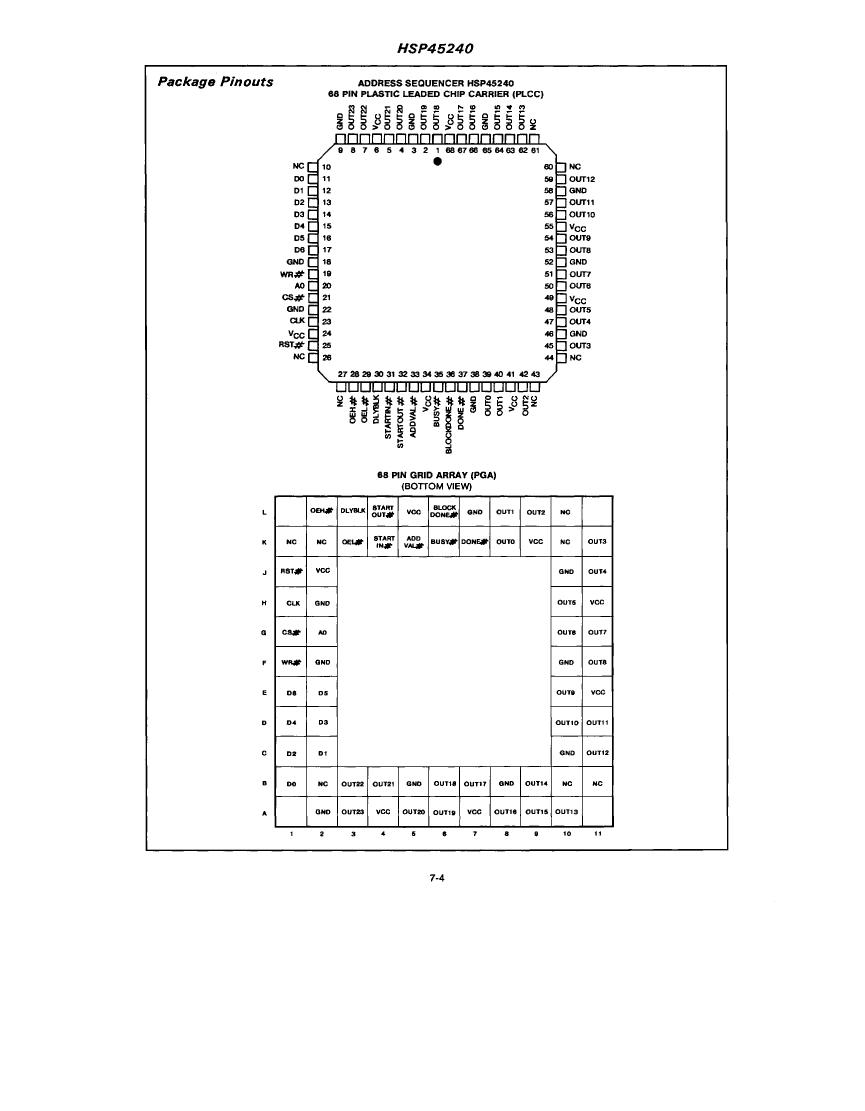

package instruction	PGA, PGA68,11X11
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Other features	24 X 24 CROSSPOINT SWITCH; ICC SPECIFIED @ 33MHZ
boundary scan	NO
maximum clock frequency	50 MHz
External data bus width	7
JESD-30 code	S-CPGA-P68
JESD-609 code	e0
low power mode	NO
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	24
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA68,11X11
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	99 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, ADDRESS SEQUENCER

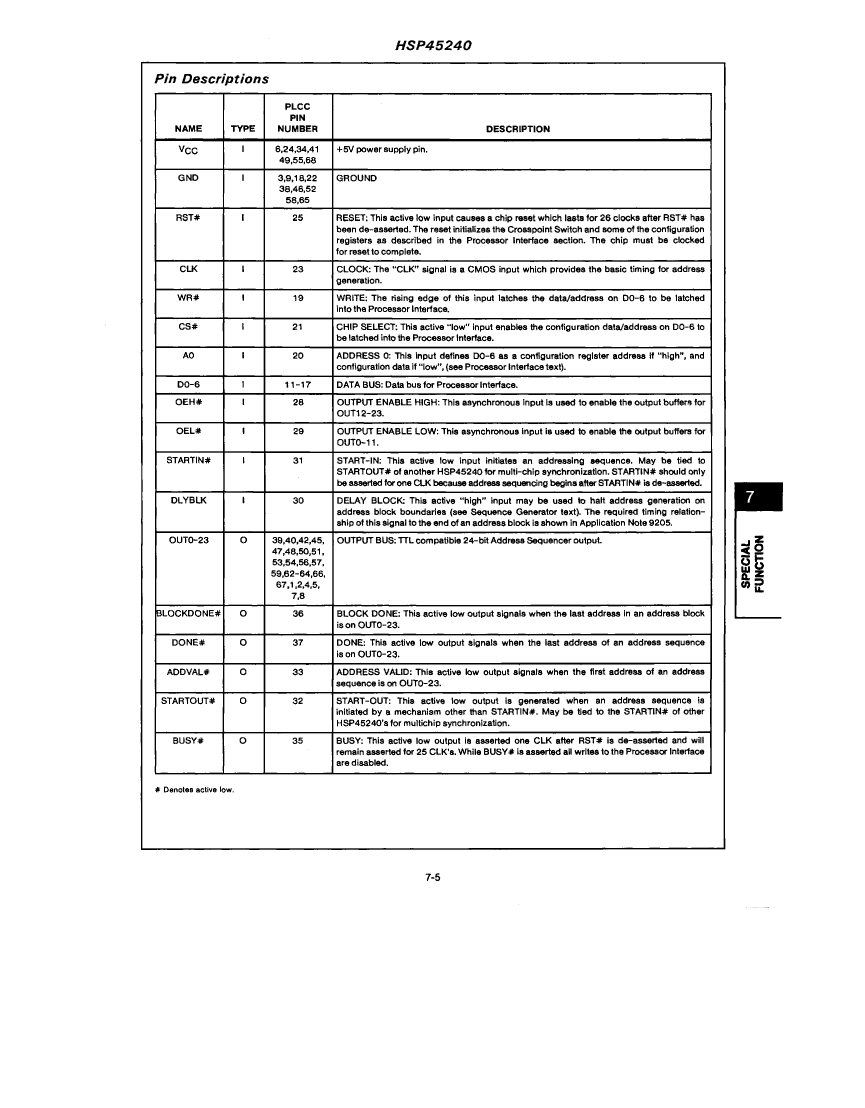

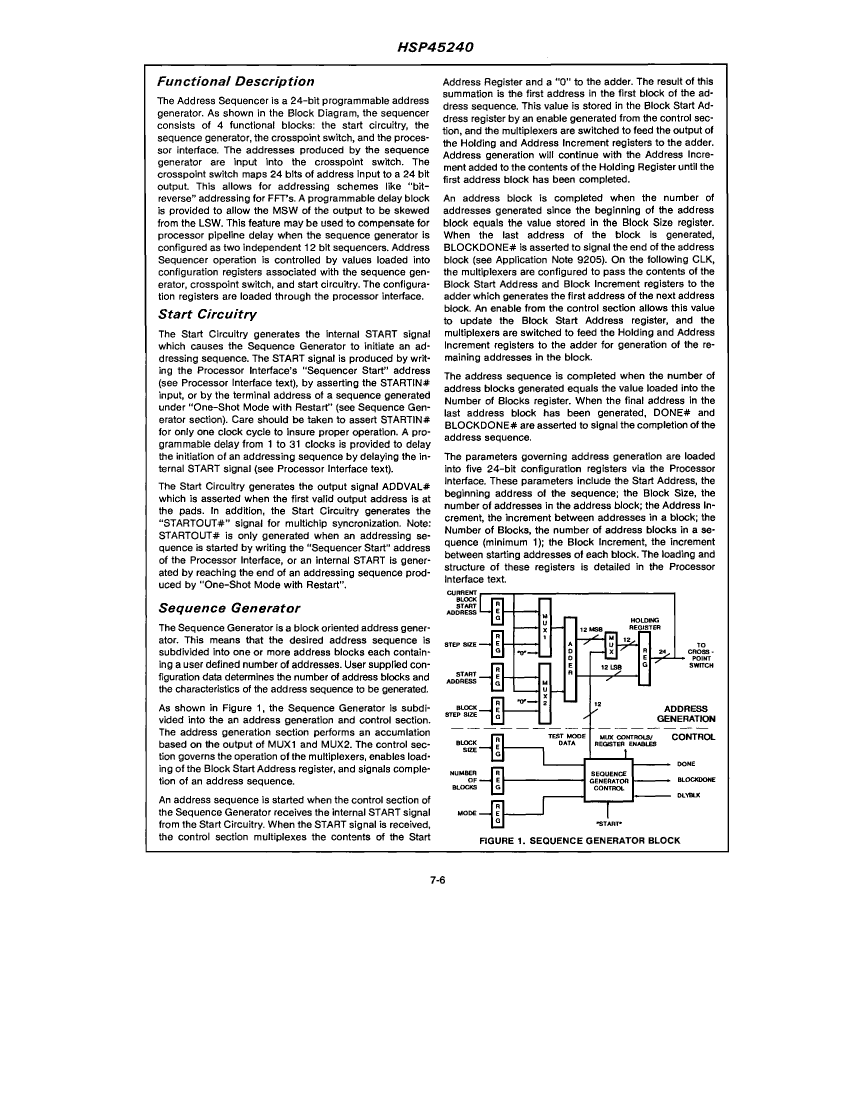

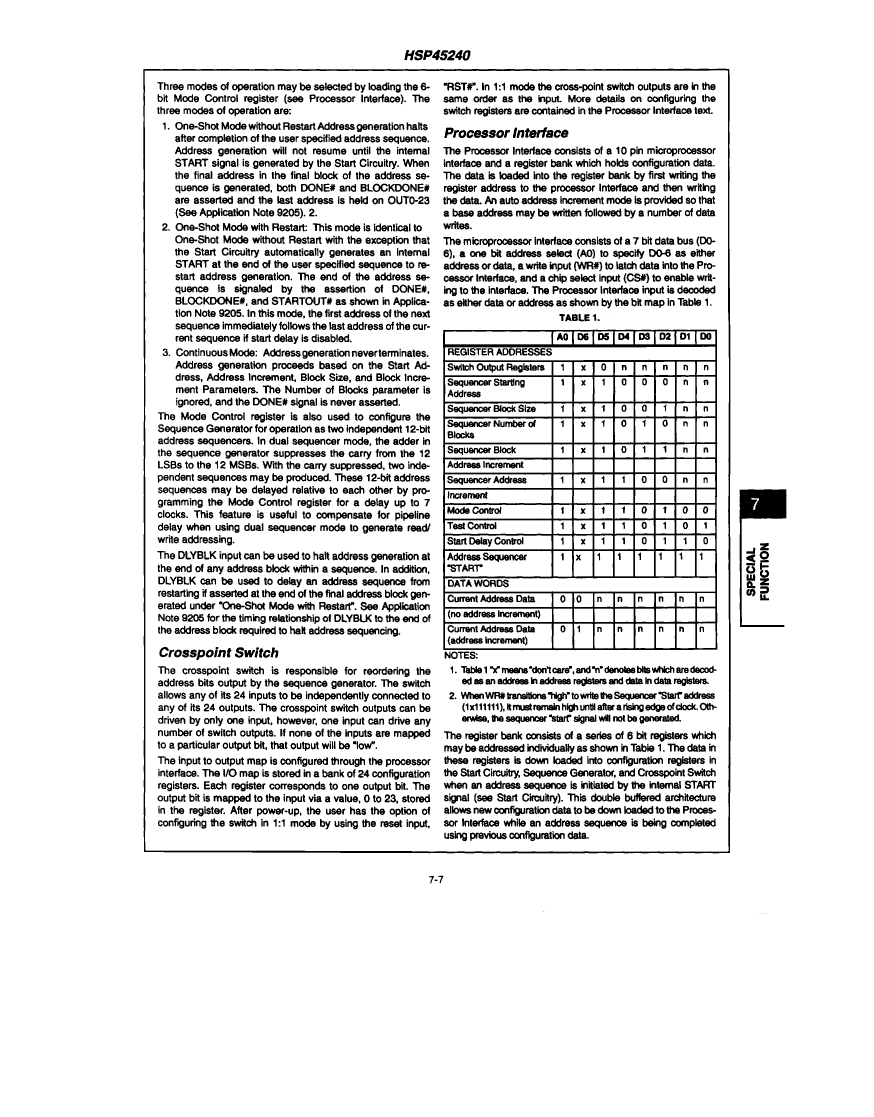

Preview

Download Datasheet

View All

HSP45240GC-50 Related Products

	HSP45240GC-50	HSP45240JC-50	HSP45240JC-33	HSP45240GC-40	HSP45240JC-40	HSP45240GC-33
Description	Address Sequencer, 7-Bit, CMOS, CPGA68	Address Sequencer, 7-Bit, CMOS, PQCC68	Address Sequencer, 7-Bit, CMOS, PQCC68	Address Sequencer, 7-Bit, CMOS, CPGA68	Address Sequencer, 7-Bit, CMOS, PQCC68	Address Sequencer, 7-Bit, CMOS, CPGA68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PGA, PGA68,11X11	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	PGA, PGA68,11X11	QCCJ, LDCC68,1.0SQ	PGA, PGA68,11X11
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.3	3A001.A.3	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Other features	24 X 24 CROSSPOINT SWITCH; ICC SPECIFIED @ 33MHZ	24 X 24 CROSSPOINT SWITCH; ICC SPECIFIED @ 33MHZ	24 X 24 CROSSPOINT SWITCH	24 X 24 CROSSPOINT SWITCH; ICC SPECIFIED @ 33MHZ	24 X 24 CROSSPOINT SWITCH; ICC SPECIFIED @ 33MHZ	24 X 24 CROSSPOINT SWITCH
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	50 MHz	50 MHz	33 MHz	40 MHz	40 MHz	33 MHz
External data bus width	7	7	7	7	7	7
JESD-30 code	S-CPGA-P68	S-PQCC-J68	S-PQCC-J68	S-CPGA-P68	S-PQCC-J68	S-CPGA-P68
JESD-609 code	e0	e0	e0	e0	e0	e0
low power mode	NO	NO	NO	NO	NO	NO
Number of terminals	68	68	68	68	68	68
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output data bus width	24	24	24	24	24	24
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	QCCJ	QCCJ	PGA	QCCJ	PGA
Encapsulate equivalent code	PGA68,11X11	LDCC68,1.0SQ	LDCC68,1.0SQ	PGA68,11X11	LDCC68,1.0SQ	PGA68,11X11
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	CHIP CARRIER	CHIP CARRIER	GRID ARRAY	CHIP CARRIER	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	99 mA	99 mA	99 mA	99 mA	99 mA	99 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	J BEND	J BEND	PIN/PEG	J BEND	PIN/PEG
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, ADDRESS SEQUENCER	DSP PERIPHERAL, ADDRESS SEQUENCER	DSP PERIPHERAL, ADDRESS SEQUENCER	DSP PERIPHERAL, ADDRESS SEQUENCER	DSP PERIPHERAL, ADDRESS SEQUENCER	DSP PERIPHERAL, ADDRESS SEQUENCER
Maker	Harris	Harris	-	Harris	Harris	Harris
