LZ2548J datasheet, PDF - EEWORLD Datasheet

LZ2548J: DescriptionCCD Sensor, Rectangular, Through Hole Mount, 1.27 MM PITCH, WINDOWED, CERAMIC, DIP-16; CategoryThe sensor Sensor/transducer; File Size579KB，20 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric View All

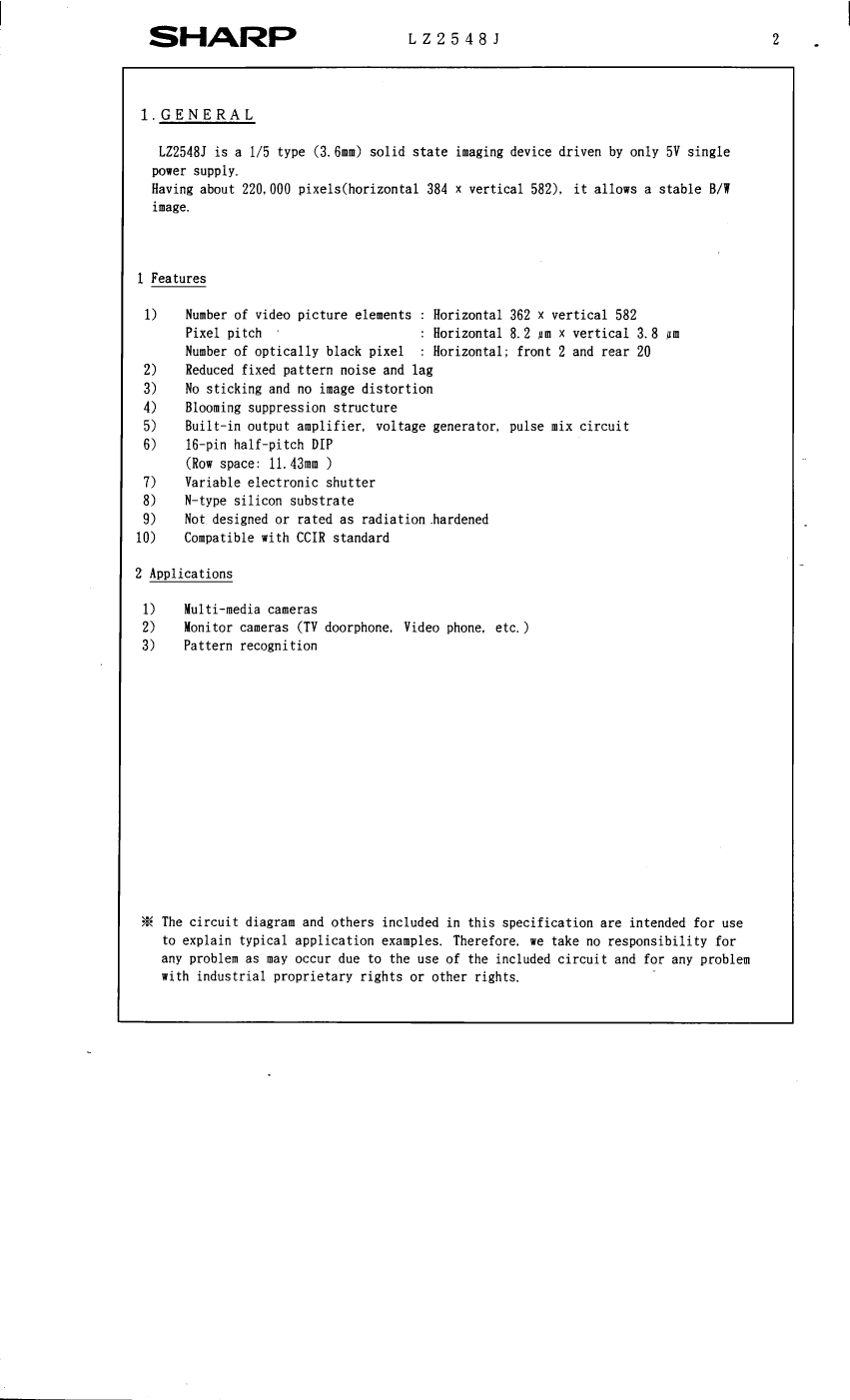

LZ2548J Overview

CCD Sensor, Rectangular, Through Hole Mount, 1.27 MM PITCH, WINDOWED, CERAMIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	1.27 MM PITCH, WINDOWED, CERAMIC, DIP-16
Reach Compliance Code	unknown
body width	11.43 mm
body height	5.29 mm
Body length or diameter	12.2 mm
shell	CERAMIC, GLASS-SEALED
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
optical format	1/5 inch
Package Shape/Form	RECTANGULAR

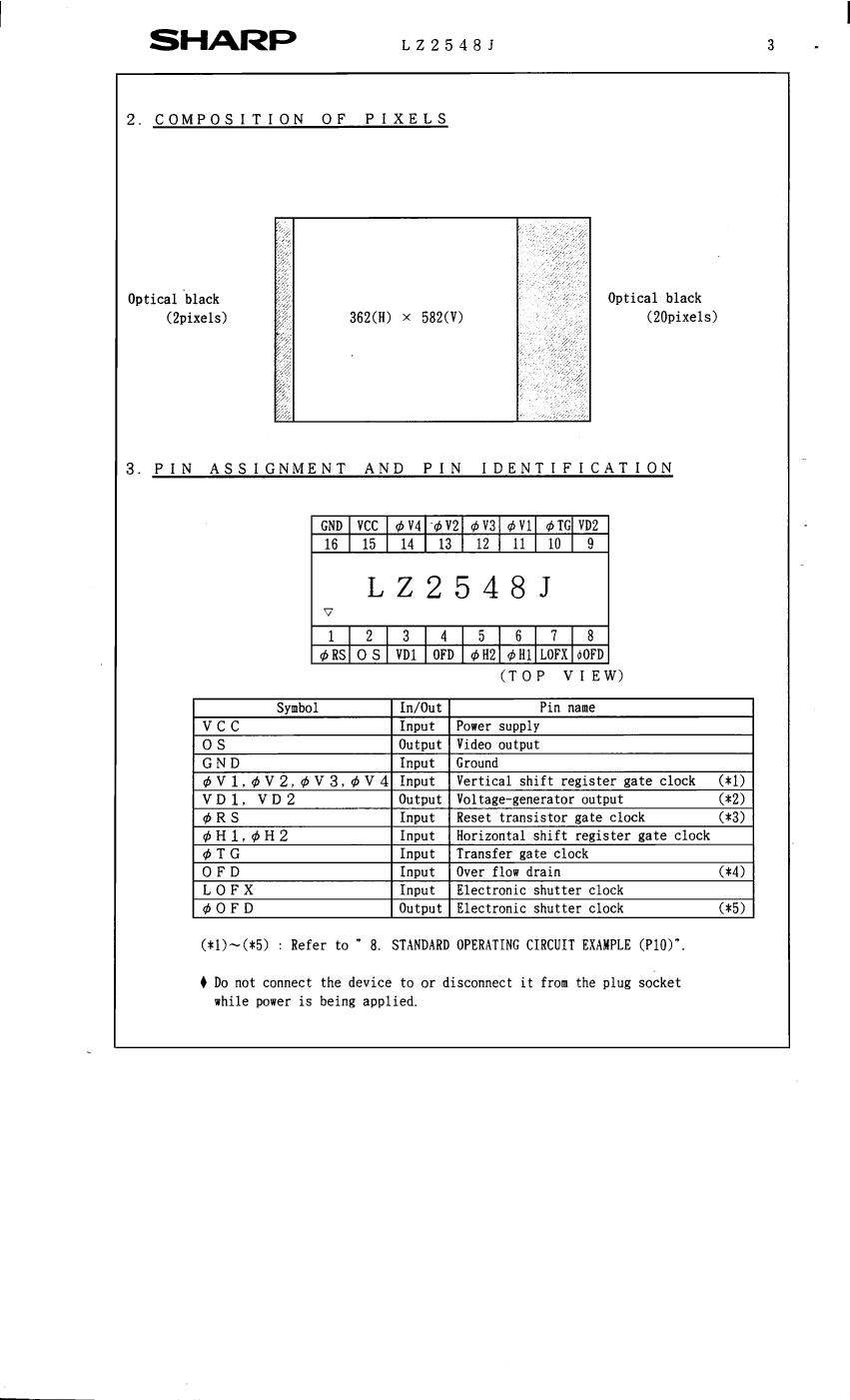

Pixel size	8.2X3.8 µm
Sensor/Transducer Type	IMAGE SENSOR,CCD
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Termination type	SOLDER
