LRPQ-980J+

Description
Combiner, 820MHz Min, 980MHz Max, 0.5dB Insertion Loss-Max, CASE QQQ569, 6 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size130KB，3 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Environmental Compliance
Download Datasheet Parametric Compare View All

LRPQ-980J+ Overview

Combiner, 820MHz Min, 980MHz Max, 0.5dB Insertion Loss-Max, CASE QQQ569, 6 PIN

LRPQ-980J+ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMini-Circuits
package instructionCASE QQQ569, 6 PIN
Reach Compliance Codeunknown
Other featuresISOLATION-MIN (DB):20
Characteristic impedance50 Ω
structureCOMPONENT
Maximum input power (CW)30 dBm
Maximum insertion loss0.5 dB
Maximum operating frequency980 MHz
Minimum operating frequency820 MHz
RF/Microwave Device TypesCOMBINER
Maximum voltage standing wave ratio1.2

Preview

Download Datasheet
Power Splitter
Notes:
•
Aqueous washable. For non-aquesous requirements, LRPS units available in case style QQQ130.
•
For Surface Mount Environmental Specifications, please click
here.
Re-flow soldering information is available in
"Surface Mount"
article.
•
Internal load dissipation: 0.125 Watt.
•
LRPQ units have bottom barrier ground plane insulated with glass barrier.
•
Matched power rating: 1 Watt.
•
Non-hermetic.
•
General Quality Control Procedures and Environmental Specifications are given in
Mini-Circuits Guarantees Quality.
Hi-Rel, MIL description are given in
Hi-Rel and MIL
•
Prices and Specifications subjects to change without notice.

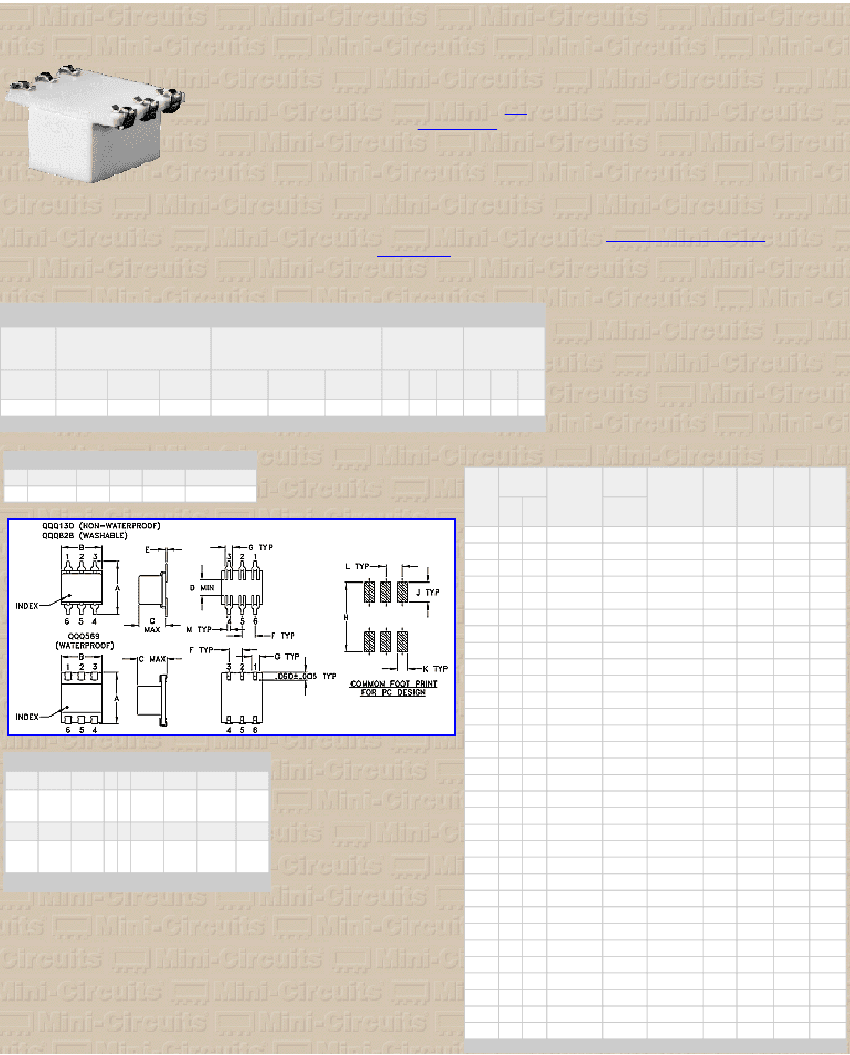

LRPQ-980J 2 Way-90°
Frequency
MHz
f
L
- f
U
Isolation, dB
Insertion Loss, dB
Avg. of Coupled Outputs less 3dB
Phase
Unbalance
Degrees
Amplitude
Unbalance, dB
L
M
U
L
M
U
L
M
U
L
M
U
Typ. Min. Typ. Min. Typ. Min. Typ. Max. Typ. Max. Typ. Max. Max. Max. Max. Max. Max. Max.
4.00
1.00
820-980
28 20
0.15 0.50
L=low range(f
L
to 10f
L
) M=mid range(10f
L
to f
U
/2) U=upper range(f
U
/2 to f
U
)
Pin Connections
Port Sum Port Port 1 Port 2 Gnd Ext 50 Ohm Term
ay
6
4
1
2,5
3
Insertion
Amplitude Isolation Phase
FREQ Loss
FREQ VSWR VSWR VSWR
Unbalance
Unbalance
(MHz) (dB) (dB)
1
2
(dB) (Degrees) (MHz) S
(dB)
S-1 S-2
1-2
820.00
824.00
828.00
832.00
836.00
840.00
844.00
848.00
852.00
856.00
860.00
864.00
868.00
872.00
876.00
880.00
884.00
888.00
892.00
896.00
900.00
904.00
908.00
912.00
916.00
920.00
924.00
928.00
932.00
936.00
2.76
2.78
2.81
2.83
2.86
2.87
2.89
2.90
2.92
2.91
2.91
2.91
2.92
2.96
3.01
3.08
3.13
3.19
3.25
3.25
3.25
3.23
3.21
3.19
3.22
3.22
3.24
3.25
3.27
3.28
3.67
3.64
3.61
3.59
3.57
3.55
3.54
3.51
3.49
3.46
3.45
3.43
3.41
3.39
3.38
3.40
3.40
3.42
3.43
3.42
3.41
3.38
3.34
3.30
3.27
3.24
3.21
3.19
3.17
3.14
0.910
0.860
0.810
0.760
0.710
0.680
0.650
0.610
0.570
0.550
0.540
0.520
0.480
0.420
0.370
0.310
0.270
0.220
0.180
0.160
0.160
0.150
0.120
0.100
0.050
0.020
0.030
0.060
0.100
0.140
0.160
25.45
25.41
25.36
25.33
25.30
25.24
25.21
25.17
25.12
25.06
25.00
24.95
24.90
24.85
24.82
24.81
24.79
24.80
24.77
24.74
24.68
24.62
24.53
24.46
24.40
24.33
24.28
24.24
24.18
24.11
24.07
90.00
90.31
90.33
90.34
90.24
90.12
90.07
89.90
89.63
89.37
89.07
88.78
88.55
88.21
88.08
87.88
87.88
87.90
88.08
88.46
88.83
89.44
89.83
90.08
90.30
90.25
90.16
89.99
89.88
89.90
89.76
820.00
824.00
828.00
832.00
836.00
840.00
844.00
848.00
852.00
856.00
860.00
864.00
868.00
872.00
876.00
880.00
884.00
888.00
892.00
896.00
900.00
904.00
908.00
912.00
916.00
920.00
924.00
928.00
932.00
936.00
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.16
1.16
1.16
1.16
1.16
1.16
1.17
1.17
1.17
1.17
1.17
1.18
1.18
1.18
1.18
1.18
1.19
1.19
1.19
1.19
1.19
1.19
1.20
1.13
1.13
1.13
1.14
1.14
1.14
1.14
1.14
1.14
1.14
1.14
1.14
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.17
1.17
1.17
1.17
1.15
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.16
1.17
1.17
1.17
1.17
1.17
1.17
1.17
1.17
1.17
1.17
1.17
1.18
1.18
1.18
1.18
Case Style - QQQ569
(inch,mm ) weight: 0.5 grams.
A
B
C
D E
F
G
H
J
.390
.31 .225
9.906 7.874 5.715
K
L
M
N P
.060 .100
1.524 2.540
Tolerance: .x ± .1 .xx ± .03 .xxx ± .015 inch.
Material and Finish:
Case material: ceramic. Lead finish: tin-lead plate or tin plate
Special Tolerances:
Lead width ±.005 inch.

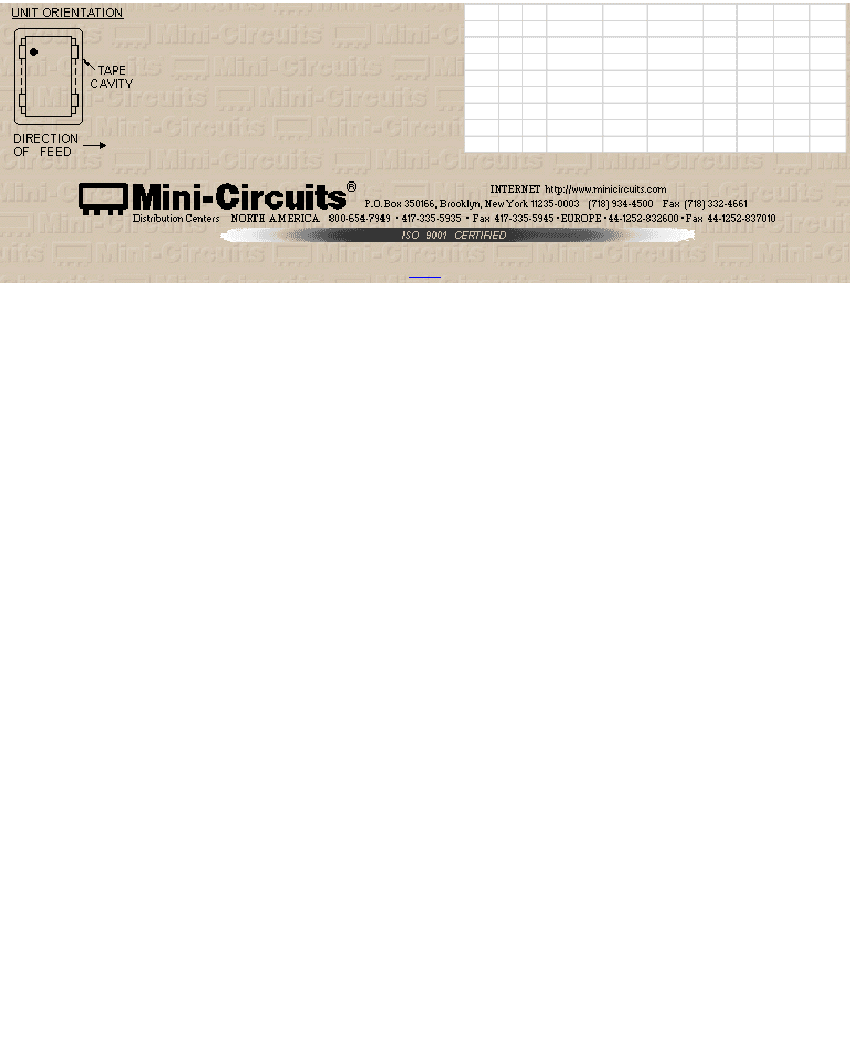

Packaging:
.100 .045
.420 .120
2.540 1.143 10.668 3.048
Q
R
S
T
940.00 3.30 3.14
940.00 1.20
