T-10405 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> T-10405

T-10405: DescriptionISDN S-Interface Transformers; CategoryPower management transformer; File Size55KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

T-10405 Overview

ISDN S-Interface Transformers

T-10405 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
application	ISDN
high	10.16 mm
Insulation voltage	2000 V
length	14.2 mm
Manufacturer's serial number	T-10405
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	14.2mm X 14.2mm X 10.16mm
Primary inductance	22000 µH
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:2
width	14.2 mm

Preview

Download Datasheet

View All

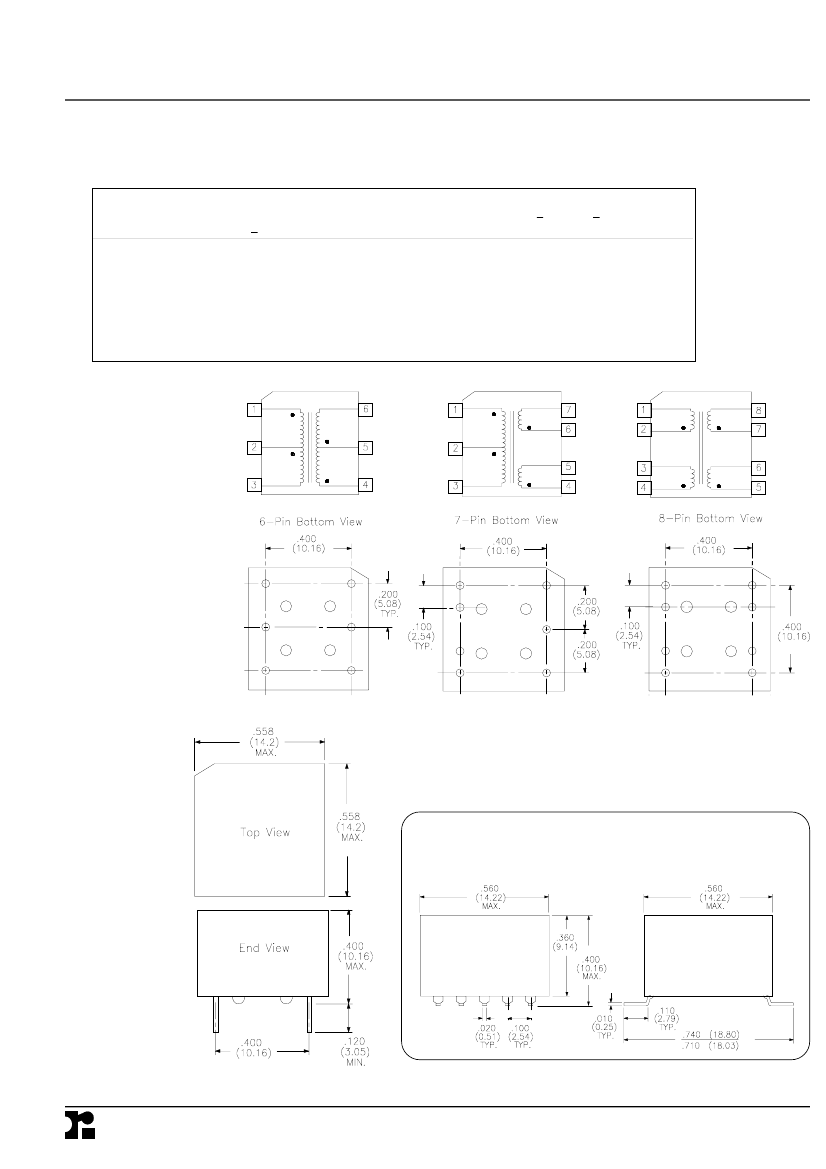

ISDN S-Interface

Transformers

Electrical Specifications

1,2,3,4

at 25

Isolation (Min.)

4000V

RMS

2000V

RMS

Part. No.

Turns OCL min.

Ratio

Pri

( + 2%)

( mH )

Meets the Pulse Waveform Template of CCITT I.430

when recommended Transformer and Chip pair are used.

Excellent Longitudinal Balance

max.

Sec.

(

µH

)

W/W

max.

( pF )

CD pri.

max.

( pF )

2kV

RMS

& 4kV

RMS

min. Isolation

DCR Pri. DCR Sec.

15%

(

Ω

)

(

Ω

)

Schem.

Style

T-10400

T-10401

T-10402

T-10403

T-10404

T-10405

T-10450

T-10451

T-10452

T-10453

T-10454

T-10455

1:1

1:1.8

1:2

1:2.5

1:2

15 / 40

100

140

150

110

180

2.4

2.5

2.3

2.5

2.4

4.2

4.0

5.8

5.0

Schematic "C"

1. Primary is Line Side

2. OCL: Primary Inductance

@10 kHz and 700 mV

3. Unbalanced current at

TE:

∆

Idc = 1 mA max.

4. Longitudinal Conversion

Loss 10KHz to 300 KHz

60dB min.

Schematic "A"

Schematic "B"

P ri

Sec

P ri

Sec

Pri

Sec

All of the above parts are

available as Surface

Mount components.

For Surface Mount part

number replace the second

digit of thru hole part

number with "3".

( i.e. T-10400 = T-13400)

NOTE: Unused Pins Omitted as per Schematic Diagrams

Surface Mount Package, T-134XX

Tape and Reel Available

Specifications subject to change without notice.

For other values & Custom Designs, contact factory.

ISDN-SNG - 9/97

Rhombus

Industries Inc.

15801 Chemical Lane, Huntington Beach, CA 92649-1595

Tel: (714) 898-0960

•

Fax: (714) 896-0971
