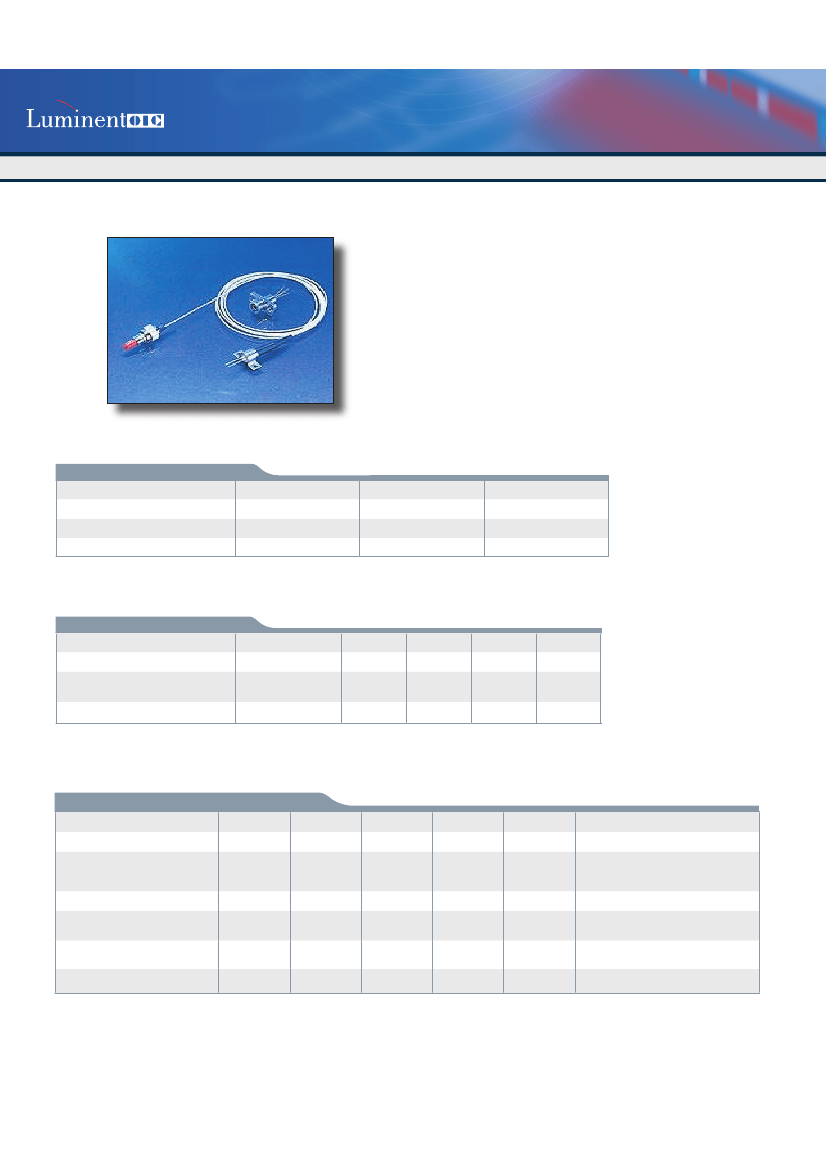

1.25Gbps PIN-TIA Receiver Module-Receptacle
(5pin-out, 3.3V)
T-11-1250M-R3-XXX-XX
Features
• InGaAs/InP PIN Photodiode with transimpedance amplifier
• High sensitivity with AGC*
• Differential ended output
• Single +3.3V operation
• -40~85
º
C operating temperature
Packaging
• FC/ST/SC receptacle packaged
Application
• 1.25Gbps SDH/SONET/ATM receivers
• RoHS Compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Symbol
V
CC
T
opr
T
stg
Value
4.5
-40 ~ 85
-40 ~ 85
Unit
V
ºC
ºC
DC Electrical Characteristics (Tc=25ºC)
Parameter
Power Supply
Differential Ouptput Voltage
Supply Current (no load)
Symbol
V
CC
V
d
I
cc
Min.
3.0
185
-
Typ.
3.3
250
26
Max.
3.6
415
50
Unit
V
mV
mA
(Operating at Vcc=3.3V , Tc=25ºC ,
λ=1310nm
, 9/125µm SM fiber, 50/125µm MM fiber)
AC/Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Detection Range
Gain@10Mbps Differential
Bandwidth (to -3dB point)
Saturation Power
Sensitivity
Output Resistance
Symbol
-
Min
1100
1.92
700
-3
-
48
Typ
1310
2.5
920
0
-26
50
Max
1650
3.4
1100
-
-23
62
Unit
nm
V/mW
MHz
dBm
dBm
ohm
Test Conditions
-
Measure differentially with 30uAp-p
signal
-
BER<10 @1.25Gbps,
PRBS 2
7
-1, Er=10dB
BER<10
-12
@1.25Gbps,
PRBS 2
7
-1, Er=10dB
-
-12
G
BW
P
sat
Sens
Rout
Note: 1. Pin assignment can be customized.
2. Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS1555-APR1106
rev. A.0
1

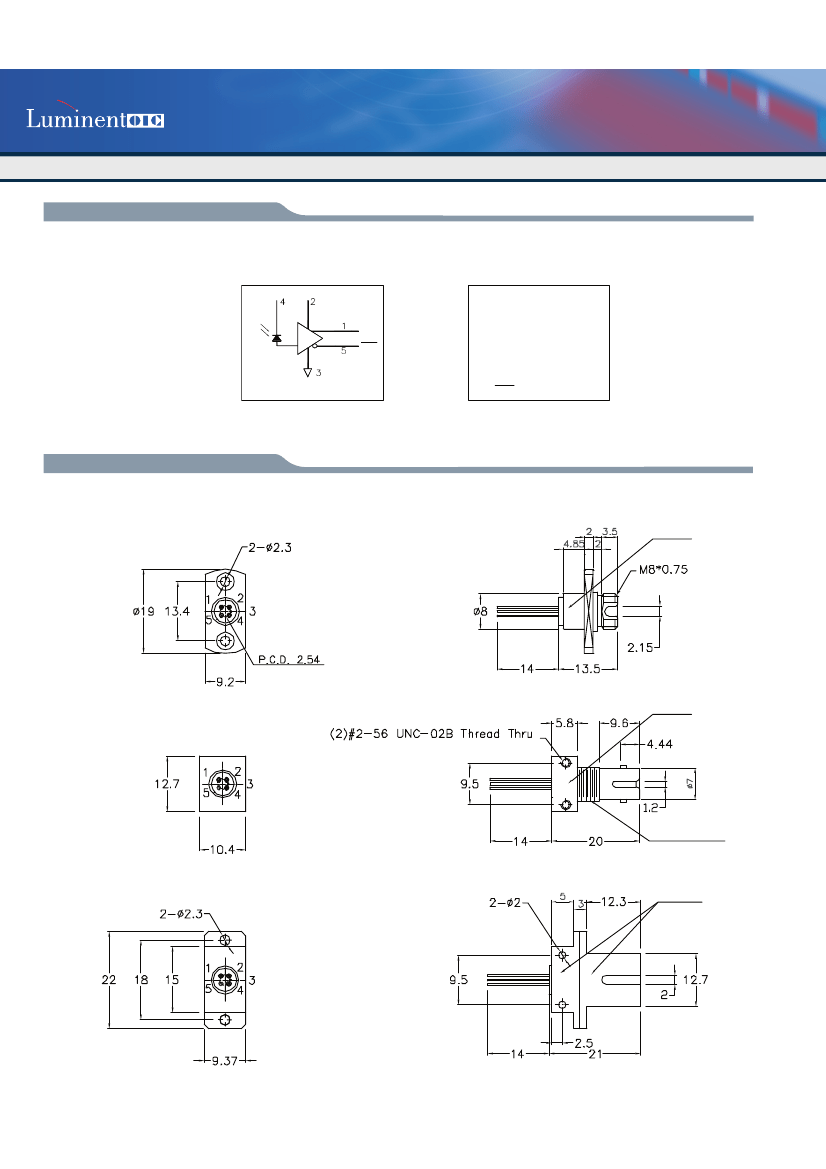

1.25Gbps PIN-TIA Receiver Module-Receptacle
(5pin-out, 3.3V)
T-11-1250M-R3-XXX-XX
Ordering Information
T-11-1250M-R3-XXX-XX
Voltage
3=3.3V
Connector
FC/SC/ST
M = with 5 pinout
Fiber Application
S=SM 9/125µm
M=MM 50/125µm
RoHS Compliant
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
-/G5/GR
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment
is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion.
Luminent warrants performance of its products to current specifications only in accordance with the company＇s standard one-year war-
ranty; however, specifications designated as “preliminary＂ are given to describe components only, and Luminent expressly disclaims
any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fit-
ness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of
Sale for further warranty information.
Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of pat-
ents, services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,
copyright, or intellectual property right, and Luminent makes no representations or warranties that the product(s) described herein
are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in
implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using
or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any
damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any
actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this
document. Customer must contact Luminent to obtain the latest version of this publication to verify, before placing any order, that
the information contained herein is current.
© LuminentOIC, Inc. 2006
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS1555-APR1106
rev. A.0
