Maximum Insulator Temperature (solder wave process only)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

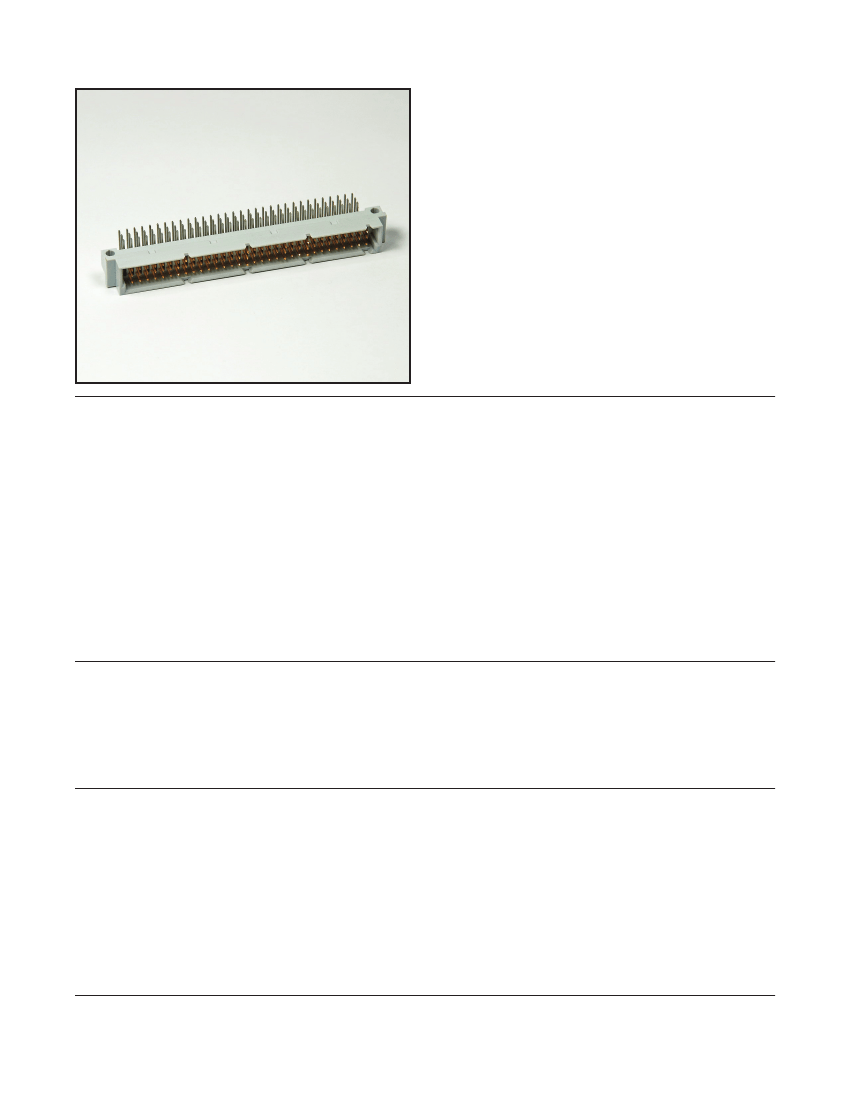

DIN C Form Plug
Right Angle, Solder Tail Termination
Table 1
Contact
Quantity
16
32
48
32
16
32
64
96
64
32
DIN 41612 Series
Part Number
DIN-016CPA-XXX-XXXX
DIN-032CPB-XXX-XXXX
DIN-048CPC-XXX-XXXX
DIN-032CPD-XXX-XXXX
DIN-016CPE-XXX-XXXX
DIN-032CPA-XXX-XXXX
DIN-064CPB-XXX-XXXX
DIN-096CPC-XXX-XXXX
DIN-064CPD-XXX-XXXX
DIN-032CPE-XXX-XXXX
A
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
54.40 [2.142]
94.00 [3.701]
94.00 [3.701]
94.00 [3.701]
94.00 [3.701]
94.00 [3.701]
B
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
44.60 [1.756]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
85.20 [3.354]
C
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
38.10 [1.500]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
78.74 [3.100]
D
48.26 [1.900]
48.26 [1.900]
48.26 [1.900]
48.26 [1.900]
48.26 [1.900]
88.90 [3.500]
88.90 [3.500]
88.90 [3.500]
88.90 [3.500]
88.90 [3.500]
4.80
[.189]
10.20
[.402]
11.10
[.437]
1
2- 2.6
[ .102]
5
10
15
20
30
32
2.54
[.100]
D
5.08
[.200]
2.54
[.100]
2.75
[.108]
6.00
[.236]
A(Max.)
B
5.08
[.200]
1.00
[.039]
PIN C1
PIN A1
PIN B1
C
mm
[inch]
2.95
[.116]
Tolerance Unless Noted
X.
mm
± 0.50
.X
± 0.38
.XX
± 0.25
[ ] Dimension for Reference Only
SR1
RR1L
WITHOUT RENTENTION CLIP WITH "B" RENTENTION CLIPS
TS-2305-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
DIN C Form Plug
Right Angle, Solder Tail Termination
DIN 41612 Series
2.54
[.100]
2.54
[.100]
Ø0.94-1.09
[.037-.043]
PLATED THROUGH HOLE
2 1
2.54
[.100]
c
b
a
5.08
[.200]
5.30
[.209]
C
D
Ø2.8-2.9
[.110-.114]
RECOMMENDED PCB LAYOUT
Ordering Information
DIN - XXXCP X - XXX - XX
Contact Quantity
SEE TABLE
A = A Row only
B = Rows A & C Filled
C = Rows A, B & C Filled
D = Rows A & B Filled
E = B Row only
Plating Options:
SH = 1 - 3 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
FJ = 10 - 20 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
KR = 30 - 40 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
HM = 3 μ” Gold on Contact, 7 μ” Min. PdNi
120 - 200 μ” Matte Tin on Terminal
KV = 30 μ” Gold on Contact, 30μ” Gold on
Terminal, 3μ” Gold on Board Termination
Termination Options:
Solder TailTermination
SR1 = 2.75 [.108]
RR1L = 2.75 [.108] With ‘B’ retention clips
• This diagram serves only for Part Number descriptive definitions.
PLEASE CONTACT YOUR LOCAL SALES REPRESENTATIVE FOR CUSTOMER SPECIFIC PRODUCT CONFIGURATIONS.
TS-2305-B
Sheet 3 of 3
