HTZ150C8K datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HTZ150C8K

Preview

HTZ150C8K: DescriptionRectifier Diode, 1 Phase, 2 Element, 3A, 8400V V(RRM), Silicon, ZC, 3 PIN; CategoryDiscrete semiconductor diode; File Size123KB，2 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

HTZ150C8K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HTZ150C8K	-	-	View	Buy Now

HTZ150C8K Overview

Rectifier Diode, 1 Phase, 2 Element, 3A, 8400V V(RRM), Silicon, ZC, 3 PIN

HTZ150C8K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IXYS
package instruction	ZC, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	HIGH VOLTAGE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	100 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	3 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	8400 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

HTZ150C Series

I

F(AV)

= 3.0 A

V

RRM

= 9600 V

High Voltage

Diode Rectifier

Module

Minimum

Avalanche

Voltage

V

(BR)R

10200

9000

7800

6600

-V

R R M

-

LARONTROL

Electronic Devices

Type

Number

HTZ150C9K

HTZ150C8K

HTZ150C7K

HTZ150C6K

CIRCUIT DIAGRAM

Repetitive

Peak

9600

8400

7200

6000

+

_

C e n tre T a p

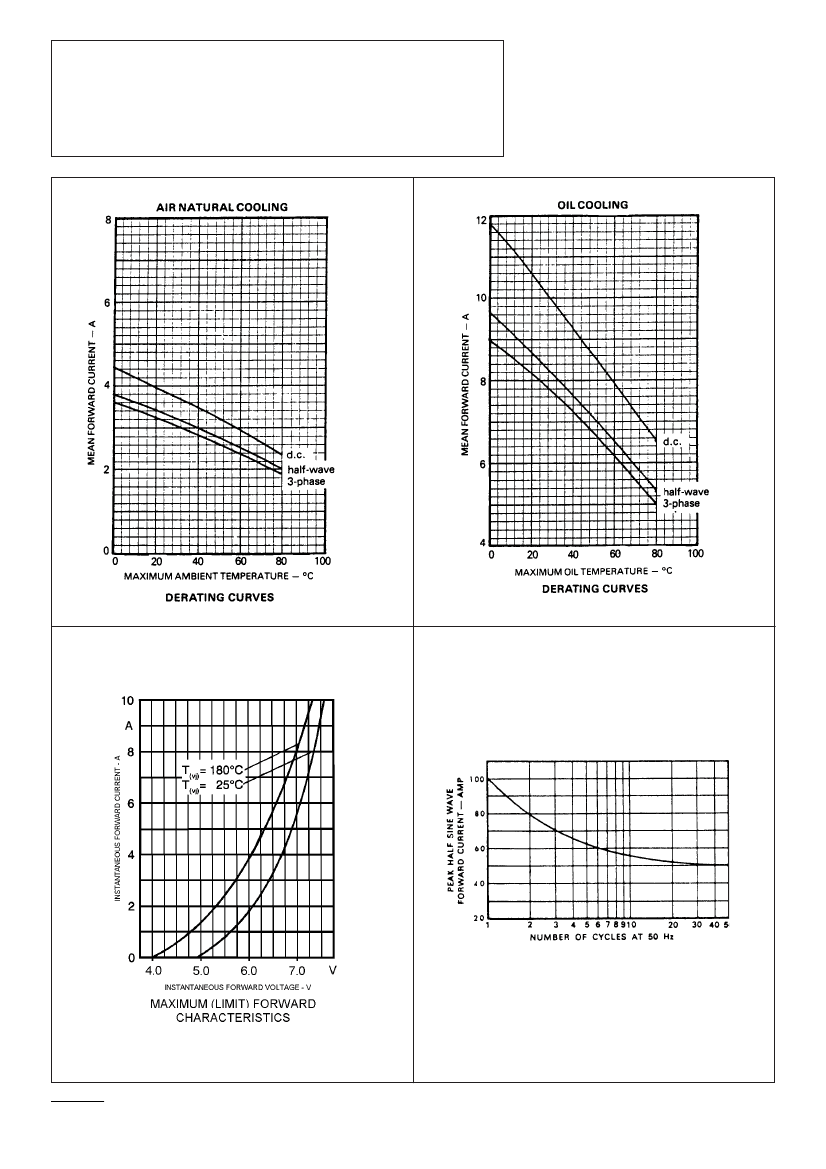

CURRENT RATINGS - AIR COOLED

I

F(AV)

Mean forward current

I

F

Continuous (direct) forward current

R

th(j-a)

Thermal resistance junction to ambient

CURRENT RATINGS - OIL COOLED

I

F(AV)

Mean forward current

I

T

Continuous (direct) forward current

R

th(j-o)

Thermal resistance junction to oil

SURGE RATINGS

I

2

t

I

2

t for fusing

I

FSM

Surge (non-repetitive) forward current

TEMPERATURE AND FREQUENCY RATINGS

T

vj

Virtual junction temperature

T

stg

f

Storage temperature range

Frequency range

Half wave resistive load T

amb

= 35ºC

T

amb

= 35ºC

3.0

A

3.6

A

6.5 ºC/W

6.5

A

7.0

A

2.0 ºC/W

50 A

2

sec

100

A

180

-40 to 100

20 to 400

max 6.0

max 0.5

ºC

Hz

V

mA

Half wave resistive load T

oil

= 60ºC

T

oil

= 60ºC

10 ms half sine T

vj

= 150ºC

T

vj

= 150ºC

Forward (conducting)

Reverse (blocking)

CHARACTERISTICS

T

case

= 25ºC unless otherwise stated

V

FM

Forward voltage

At 2 Amps peak

I

RM

Peak reverse current

At V

RRM

; T

case

= 150°C

Dimensioned Outlines

Dimensions shown are maximum in mm

45

115

90

45

Weight typ.: 0,24 Kg

32

TAPPED M5, 3 OFF

MOUNTING BUSHES

TAPPED M5, 2 OFF

31

IXYS reserves the right to change limits, test conditions and dimensions.

130

ZC

Issue 1 June 1998

Distributed by

USA

3540 Bassett Street

Santa Clara, CA 95054

Phone: (408) 982-0700

FAX: (408) 496-0670

EUROPE

IXYS Semiconductor GmbH

Lampertheim Germany

Phone: +49.6206.503.0

Fax: +49.6206.503.627

www.IXYS.net

HTZ150C8K Related Products

	HTZ150C8K	HTZ150C6K
Description	Rectifier Diode, 1 Phase, 2 Element, 3A, 8400V V(RRM), Silicon, ZC, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 3A, 6000V V(RRM), Silicon, ZC, 3 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	IXYS	IXYS
package instruction	ZC, 3 PIN	ZC, 3 PIN
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	HIGH VOLTAGE	HIGH VOLTAGE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-XUFM-X3	R-XUFM-X3
Maximum non-repetitive peak forward current	100 A	100 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	3 A	3 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	8400 V	6000 V
surface mount	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
