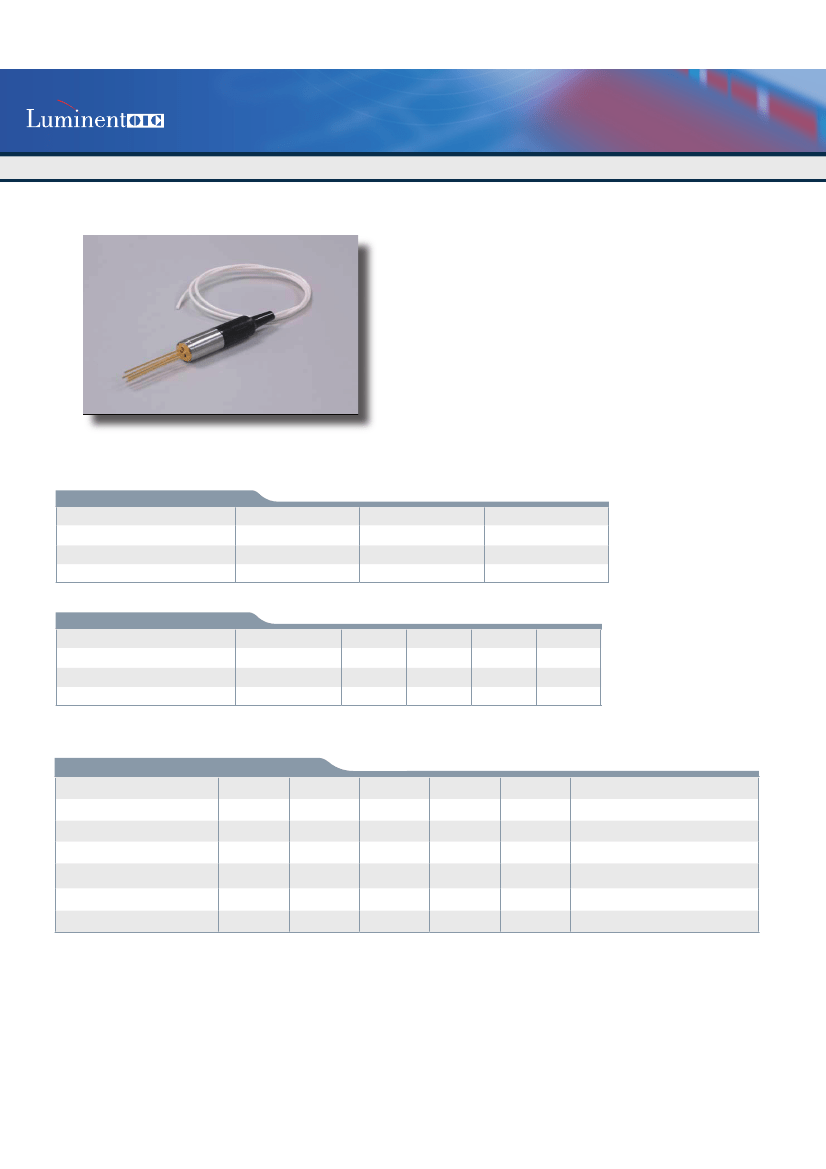

155Mbps PIN-TIA Receiver Modules
-Receptacle & Pigtailed
T-11-155-X3-XXX-AGC-XX
• InGaAs/InP PIN Photodiode with transimpedance amplifier
• High sensitivity with AGC*
• Differential ended output
• Single +3.3V operation
• -40~85
º
C operating temperature
• FC/ST/SC receptacle package
• SM/MM fiber pigtailed with optional FC/ST/SC connector
• 155Mbps SDH/SONET/ATM receivers
• RoHS Compliant available
Features
Packaging
Applcation
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Symbol
V
CC
T
opr
T
stg
Value
4.5
-40 ~ +85
-40 ~ +85
Unit
V
ºC
ºC
DC Electrical Characteristics (Tc=25ºC)
Parameter
Power Supply
Differential Ouptput Voltage
Supply Current (no load)
Symbol
V
CC
V
d
I
cc
Min.
3.0
-
-
Typ.
3.3
-
-
Max.
3.6
1
35
Unit
V
V
mA
(Operating at VCC=3.3V,Tc=25ºC,R
L
=3000Ω,
λ=1310nm,
9/125µm SM & 50/125µm MM fiber)
AC/Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Detection Range
Gain@10Mbps Differential
Bandwidth
Saturation Power
Sensitivity
Output Resistance
Symbol
G
BW
P
sat
Sens.
Rout
Min
1100
52
120
-3
-
-
Typ
1310
-
140
0
-38
50
Max
1650
70
-
-
-35
65
Unit
nm
V/mW
MHz
dBm
dBm
ohm
Test Conditions
-
λ
=
1310nm
-
λ
=
1310nm
BER=10
-10
@155Mbps
-
Note: 1.Pin assignment can be customized.
2.Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS551-FEB0707
rev. A.0
1
155Mbps PIN-TIA Receiver Modules
-Receptacle & Pigtailed
T-11-155-X3-XXX-AGC-XX
Pin Assignment
Vcc(+3.3V)
Pin assignment
Dout
PD
1~Vcc
2~Dout
3~Dout
4~GND(CASE)
Dout

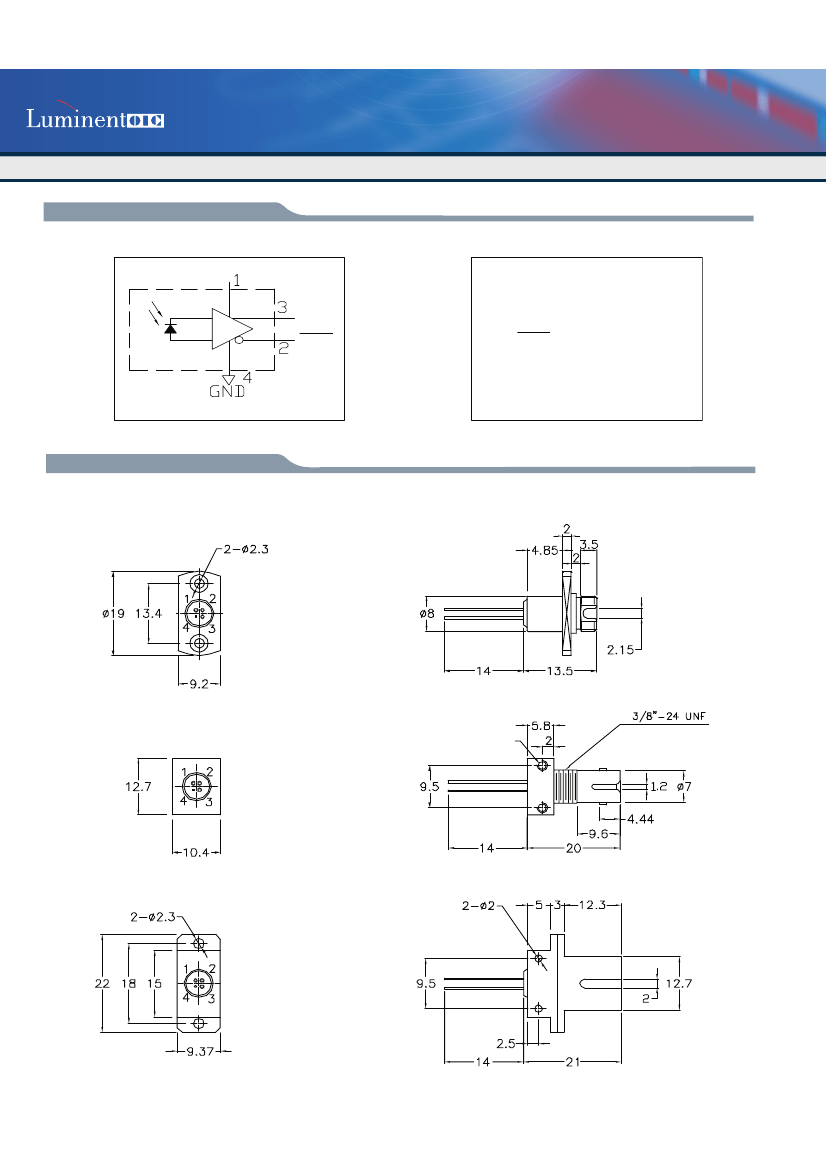

Functional Schematic
Packaging Dimension
Units in mm.
PIN TIA Receiver Module-Receptacle
Part Number : T-11-155-R3-SXX-AGC-XX
FC Receptacle
T-11-155-R3-SFC-AGC-XX
(2)#2-56 UNC-02B Thread Thru
ST Receptacle
T-11-155-R3-SST-AGC-XX
SC Receptacle
T-11-155-R3-SSC-AGC-XX
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS551-FEB0707
rev. A.0
2
155Mbps PIN-TIA Receiver Modules
-Receptacle & Pigtailed
T-11-155-X3-XXX-AGC-XX

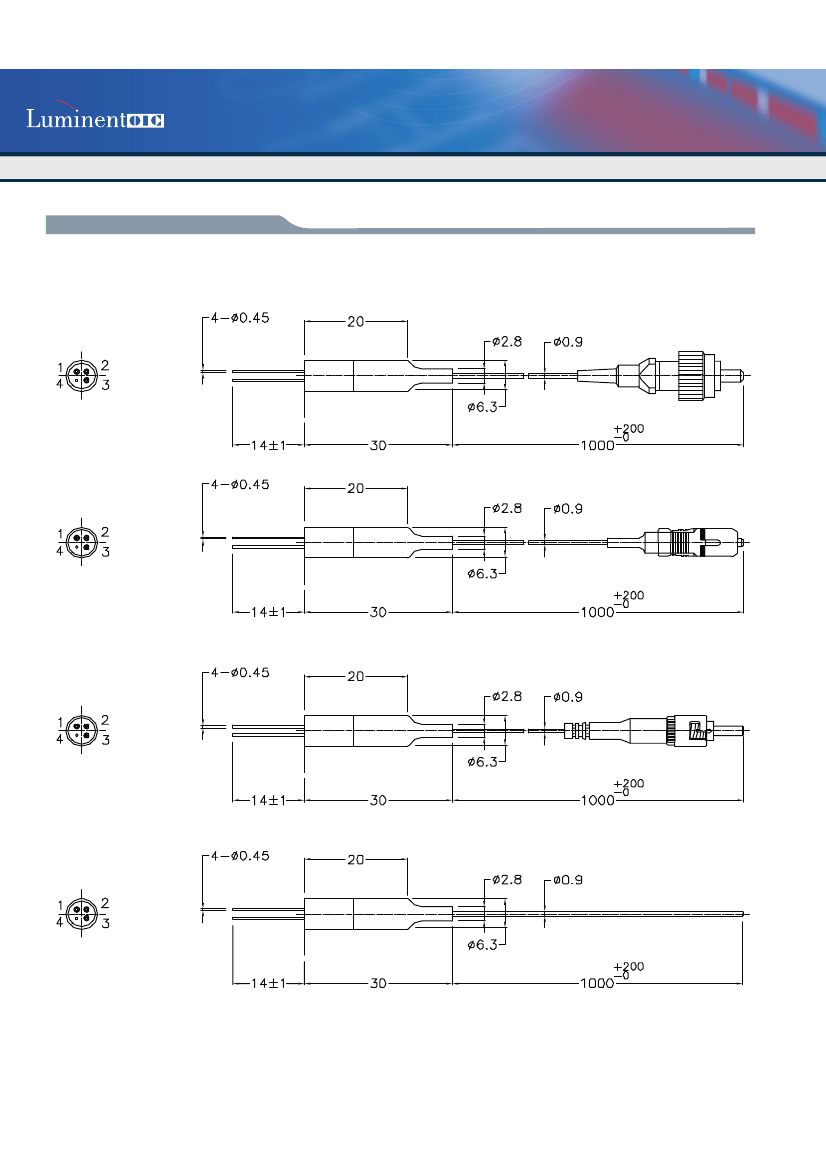

Packaging Dimension
Units in mm.
PIN TIA Receiver Module-Pigtail
Part Number : T-11-155-P3-XXX-AGC-XX
FC:FC/PC
SC:SC/PC
ST:ST/PC
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS551-FEB0707
rev. A.0
3
155Mbps PIN-TIA Receiver Modules
-Receptacle & Pigtailed
T-11-155-X3-XXX-AGC-XX
Ordering Information
T-11-155-X3-XXX-AGC-XX
Package
R=Receptacle
P=Pigtail
Connector
FC/ST/SC/ -
Voltage
3=3.3V
S=SM 9/125µm
M=MM 50/125µm
Fiber Application
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
Warnings
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent’s sole and absolute discretion. Luminent warrants perfor-
mance of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as
“preliminary” are given to describe components only, and Luminent expressly disclaims any and all warranties for said products, including express, implied,
and statutory warranties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the
company’s Terms and Conditions of Sale for further warranty information.
Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intel-
lectual property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and
Luminent makes no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights.
Products described in this document are NOT intended for use in implantation or other life support applications where malfunction may result in injury or
death to persons. Luminent customers using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify
Luminent for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual, con-
sequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact
Luminent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© LuminentOIC, Inc. 2007
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS551-FEB0707
rev. A.0
