UFZT869TA

Description
Power Bipolar Transistor, 7A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin
CategoryDiscrete semiconductor    The transistor
File Size115KB,3 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

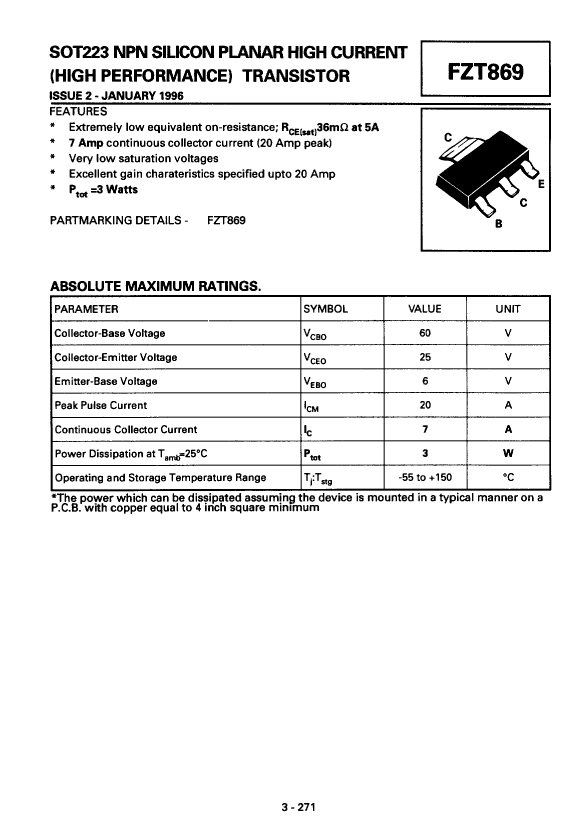

UFZT869TA Overview

Power Bipolar Transistor, 7A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin

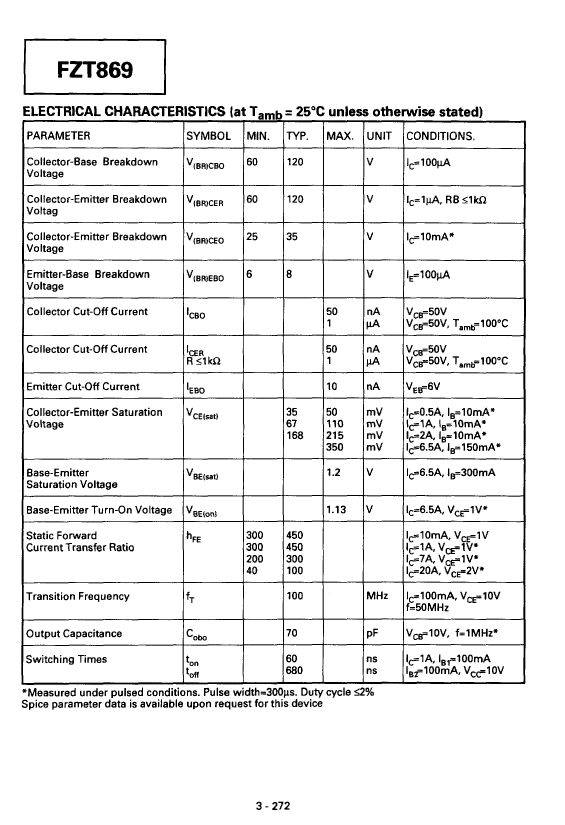

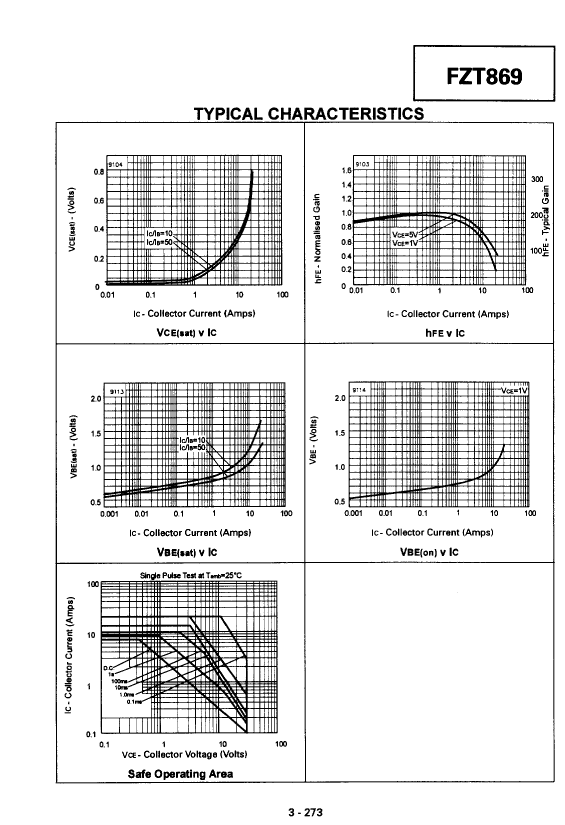

UFZT869TA Parametric

Parameter NameAttribute value
MakerDiodes
package instructionSMALL OUTLINE, R-PDSO-G4
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)7 A
Collector-emitter maximum voltage25 V
ConfigurationSINGLE
Minimum DC current gain (hFE)300
JESD-30 codeR-PDSO-G4
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals4
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz

UFZT869TA Related Products

UFZT869TA UFZT869TC
Description Power Bipolar Transistor, 7A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin Power Bipolar Transistor, 7A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin
Maker Diodes Diodes
package instruction SMALL OUTLINE, R-PDSO-G4 SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 7 A 7 A
Collector-emitter maximum voltage 25 V 25 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 300 300
JESD-30 code R-PDSO-G4 R-PDSO-G4
JESD-609 code e3 e3
Humidity sensitivity level 1 1
Number of components 1 1
Number of terminals 4 4
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260
Polarity/channel type NPN NPN
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal surface MATTE TIN MATTE TIN
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 40 40
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz
