B130 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B130

B130: DescriptionRectifier Diode, Schottky, 1 Element, 1A, 30V V(RRM); CategoryDiscrete semiconductor diode; File Size648KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

B130 Overview

Rectifier Diode, Schottky, 1 Element, 1A, 30V V(RRM)

B130 Parametric

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

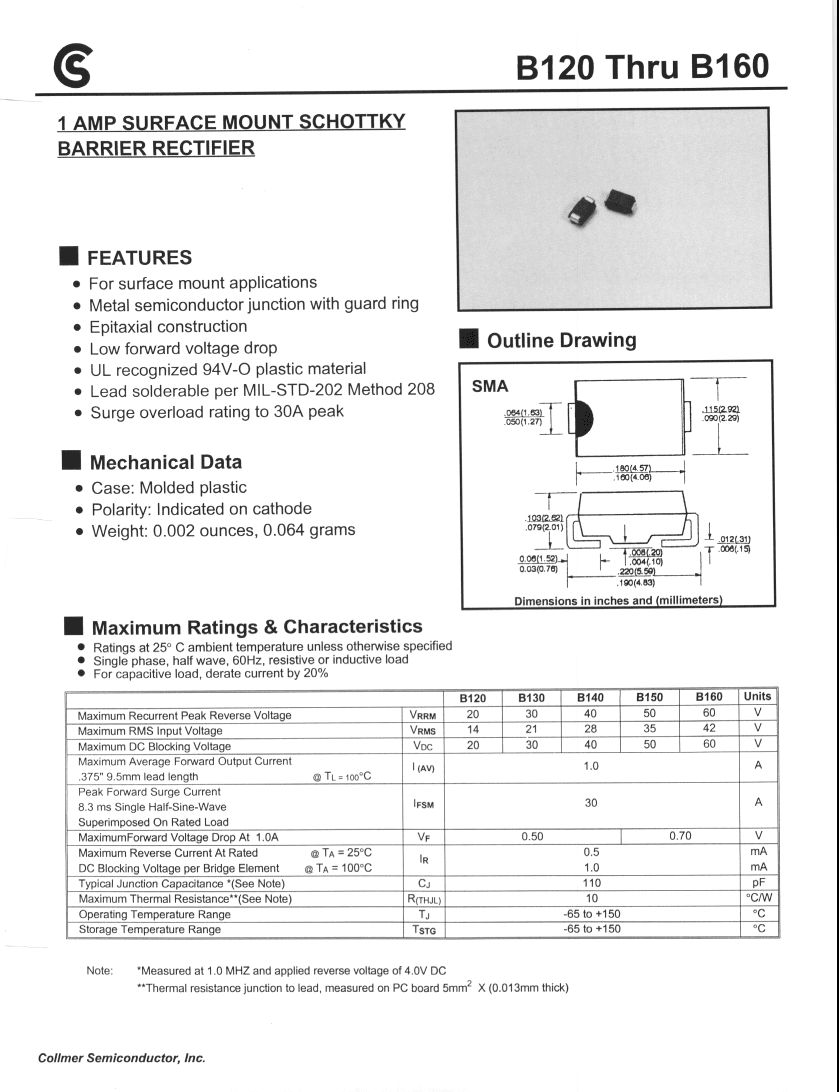

Preview

Download Datasheet

View All

B130 Related Products

	B130	B120	B140	B160	B150
Description	Rectifier Diode, Schottky, 1 Element, 1A, 30V V(RRM)	Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, PLASTIC, SMA, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM)	Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM)	Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM)
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
Contacts	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	30 V	60 V	40 V	60 V	50 V
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-	R-PDSO-C2
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED
Diode component materials	SILICON	SILICON	SILICON	-	SILICON
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-	R-PDSO-C2
Number of terminals	2	2	2	-	2
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-	-65 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Terminal form	C BEND	C BEND	C BEND	-	C BEND
Terminal location	DUAL	DUAL	DUAL	-	DUAL
