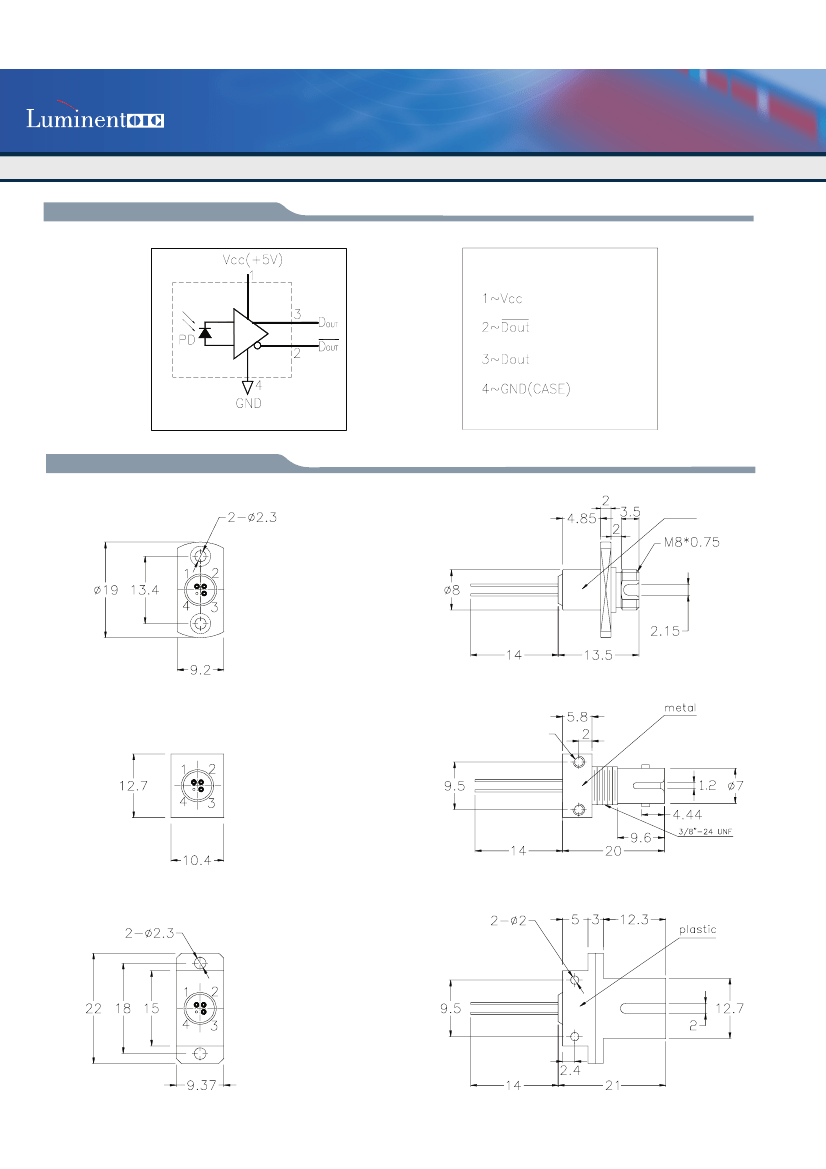

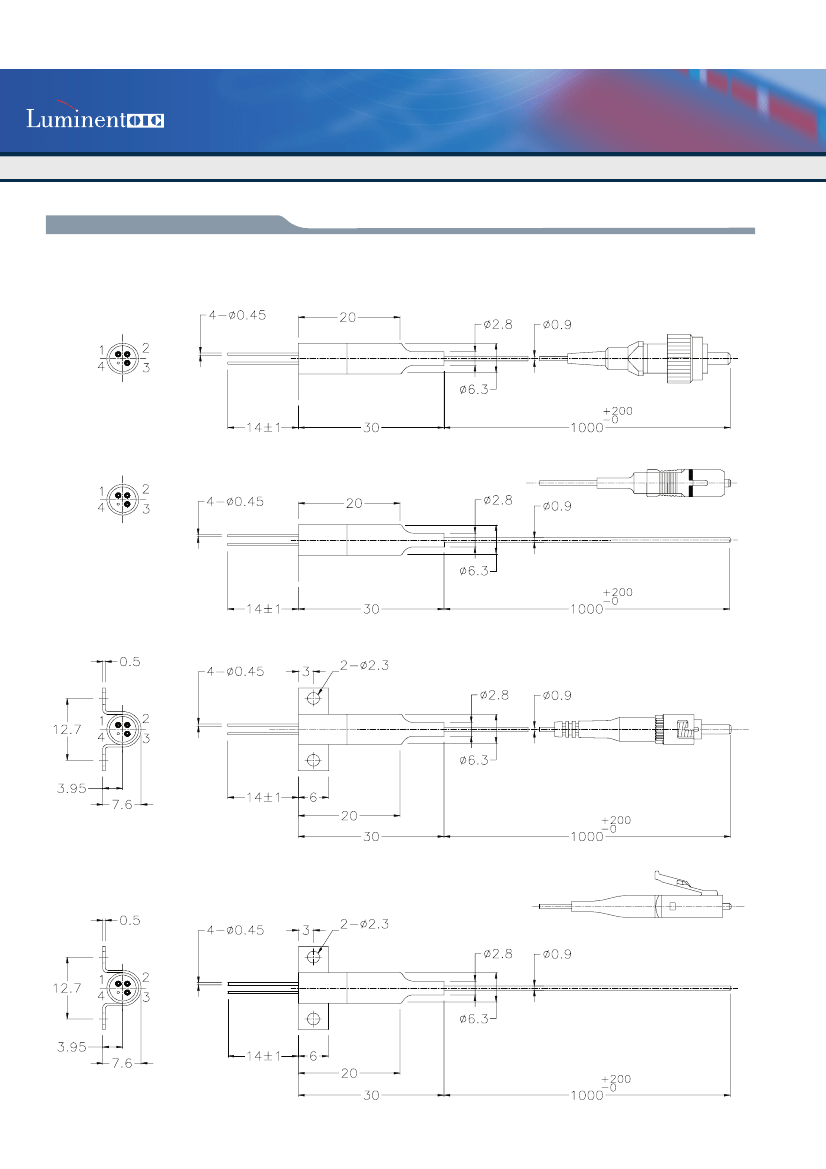

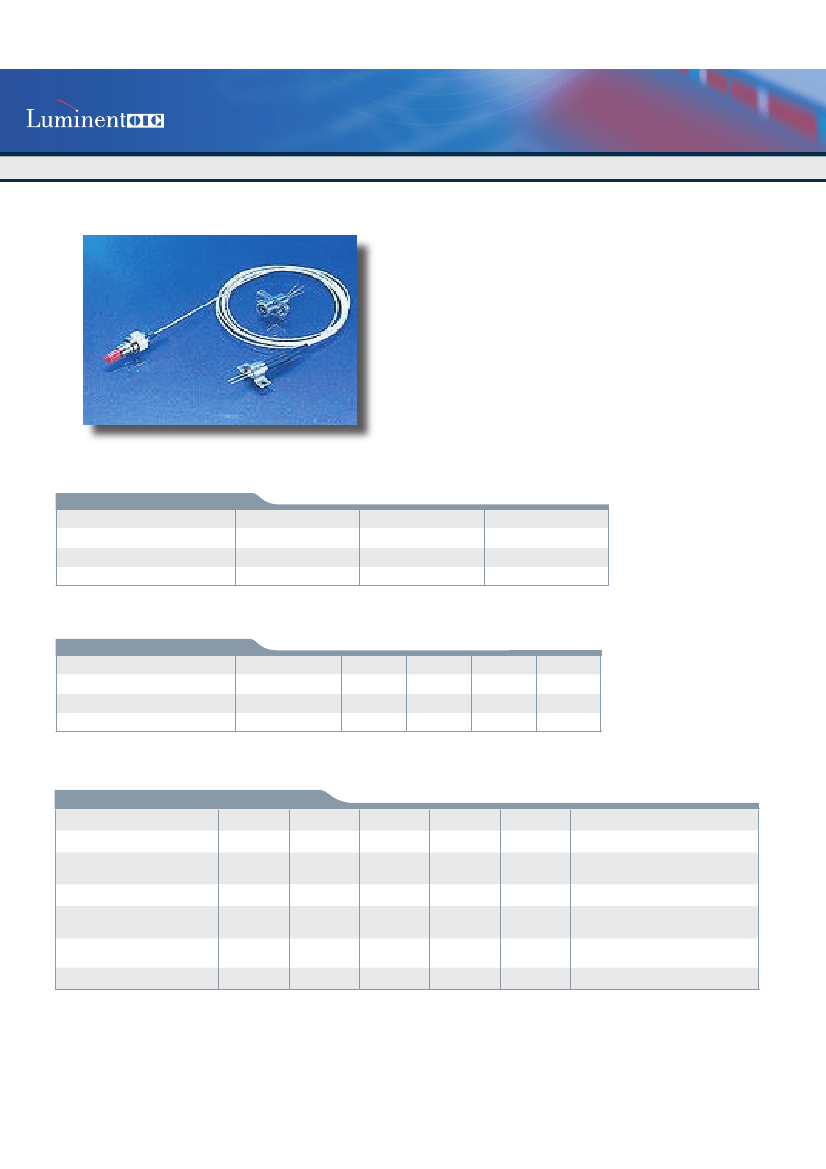

622Mbps PIN-TIA Receiver Modules (5V)

T-11-622-X-XXX-X-XX

• InGaAs/InP PIN Photodiode with transimpedance ampliﬁer

• High sensitivity with AGC*

• Differential ended output

• Single +5V operation

• -40~85

C operating temperature

• FC/ST/SC receptacle package

• SM/MM ﬁber pigtailed with optional FC/ST/SC/LC connector

• 622Mbps SDH/SONET/ATM receivers

• RoHS Compliant available

Features

Packaging

Applcation

Absolute Maximum Ratings (Tc=25ºC)

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

Symbol

opr

stg

Value

6.5

-40 ~ +85

Unit

ºC

DC Electrical Characteristics (Tc=25ºC)

Parameter

Power Supply

Differential Ouptput offset Voltage

Supply Current (no load)

Symbol

Min.

4.5

Typ.

260

Max.

5.5

450

Unit

(Operating at Vcc=5V,Tc=25ºC,λ=1310nm, 9/125µm SM & 50/125µm MM ﬁber)

AC/Optical and Electrical Characteristics (Tc=25ºC)

Parameter

Detection Range

Gain@10Mbps Differential

Bandwidth

Saturation Power

Sensitivity

Output Resistance

Symbol

sat

Sens.

Rout

Min

1100

404

-7

Typ

1310

470

-6

-33

Max

1650

-30

Unit

V/mW

MHz

dBm

ohm

Test Conditions

Measure differentially,AC

coupled,RL=50Ω

BER<10

-10

@622Mbps, PRBS2

-1

Er=10dB

BER<10

-10

@622Mbps, PRBS2

-1

Er=10dB

Note: 1.Pin assignment can be customized.

2.Speciﬁcations subject to change without notice.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1508-MAR0106

rev. A.1

622Mbps PIN-TIA Receiver Modules (5V)

T-11-622-X-XXX-X-XX

Ordering Information

T-11-622-X-XXX-X-XX

Package

P=Pigtail

R=Receptacle

Connector

FC/ST/SC/LC/-

"O" : O Type flange

" - " : No flange

Flange

S= 9/125µm

M= 50/125µm

Fiber Application

-/G5/GR

Blank = RoHS non-compliant product

G5 = RoHS 5/6-compliant product (lead exemption)

GR = Full RoHS compliant product (no exemption)

RoHS Compliant

Warnings

Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.

Follow guidelines according to proper ESD procedures.

Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminent’s sole and absolute discretion. Luminent warrants perfor-

mance of its products to current speciﬁcations only in accordance with the company’s standard one-year warranty; however, speciﬁcations designated as

“preliminary” are given to describe components only, and Luminent expressly disclaims any and all warranties for said products, including express, implied,

and statutory warranties, warranties of merchantability, ﬁtness for a particular purpose, and non-infringement of proprietary rights. Please refer to the

company’s Terms and Conditions of Sale for further warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intel-

lectual property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and

Luminent makes no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights.

Products described in this document are NOT intended for use in implantation or other life support applications where malfunction may result in injury or

death to persons. Luminent customers using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify

Luminent for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual, con-

sequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact

Luminent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1508-MAR0106

rev. A.1
