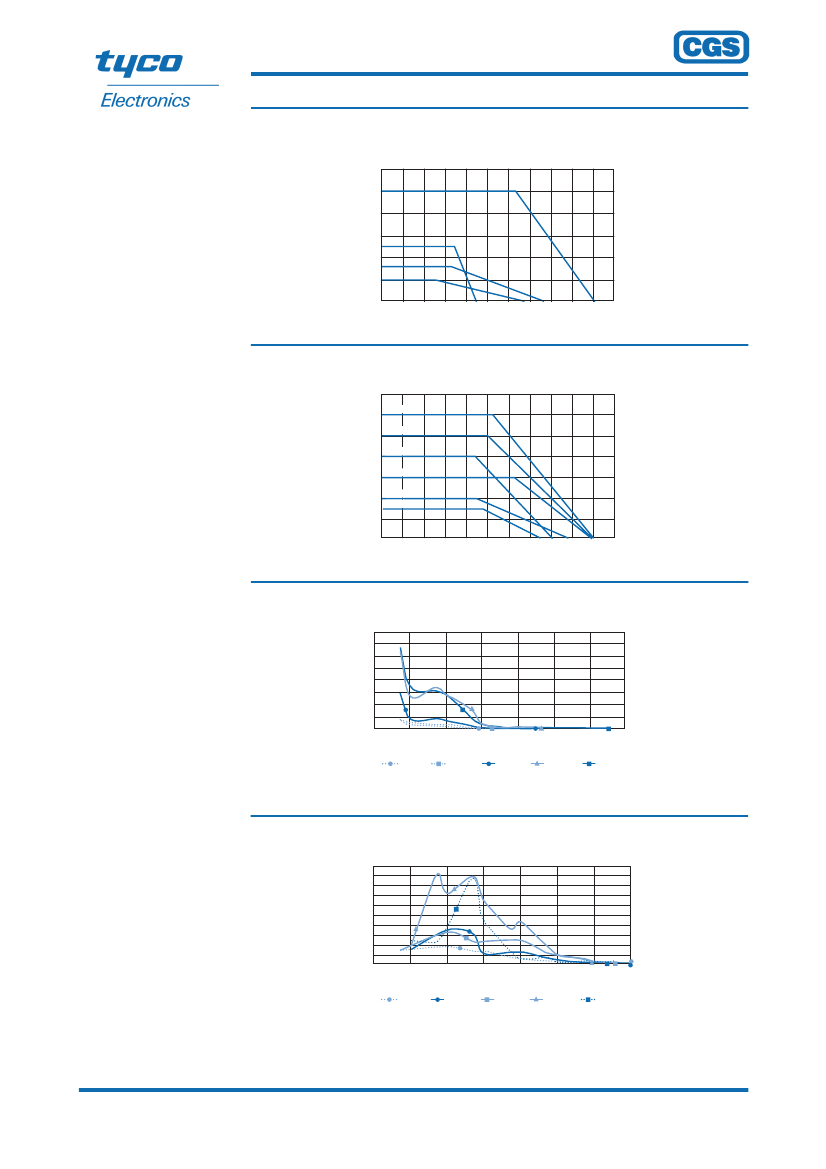

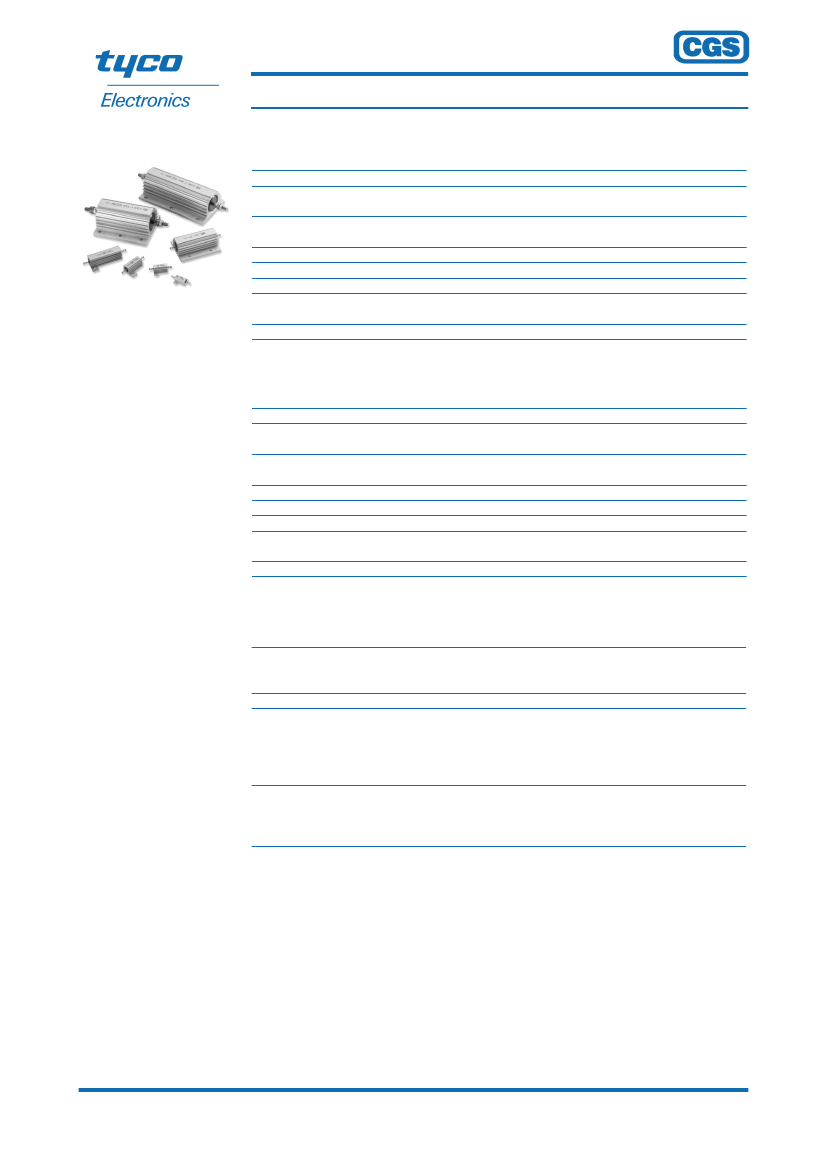

Aluminium Housed Power Resistors
Type HS Series
Type HS Series
Characteristics - Electrical
HSA & HSC - 5 Watts to 75 Watts
Dissipation @ 25°C with Heatsink (Watts):
Without Heatsink:
Ohmic Value Min (Ohms):
Max:
Maximum Working Voltage (DC or ACrms) Volts:
Dielectric Strength (AC Peak) Volts:
Stability (% resistance change, 1000 hours) (%):
Standard Heatsink - Area (mm
2
):
Thickness (mm):
Number of Mounting Holes:
HSA5
10
5.5
R01
10K
160
1400
1
41500
1
2 hole
HSA10
16
8
R01
15K
265
1400
1
41500
1
2 hole
HSA25
25
12.5
R01
36K
550
2500
1
53500
1
2 hole
HSA50
50
20
R01
100K
1250
2500
1
53500
1
2 hole
HSC75
75
45
R05
50K
1400
5000
2
99500
3
4 hole
Tyco are the leading European
supplier of standard and custom
designed
aluminium
housed
resistors for general-purpose use,
power supplies, power generation
and the traction industry.
The HS is a range of extremely
stable, high quality wire wound
resistors capable of dissipating high
power in a limited space with
relatively low surface temperature.
The power is rapidly dissipated as
heat through the aluminium housing
to a specified heatsink.
The resistors are made from quality
materials for optimum reliability and
stability. Tyco can test resistors to
conform to relevant international, MIL
or customer specifications.
Tyco are happy to advise on the use
of resistors for pulse applications
and to supply information for high
voltage
use
and
low-ohmic
value, alternative mountings and
termination type.
Characteristics - Electrical
HSC - 100 Watts to 300 Watts
Dissipation @ 25°C with Heatsink (Watts):
Without Heatsink:
Ohmic Value Min (Ohms):
Max:
Maximum Working Voltage (DC or ACrms) Volts:
Dielectric Strength (AC Peak) Volts:
Stability (% resistance change, 1000 hours) (%):
Standard Heatsink - Area (mm
2
):
Thickness (mm):
Number of Mounting Holes:
HSC100
100
50
R05
100K
1900
5000
2
99500
3
4 hole
HSC150
150
55
R10
100K
2500
5000
2
99500
3
4 hole
HSC200
200
50
R10
50K
1900
5600
3
375000
3
6 hole
HSC250
250
60
R10
68K
2200
5600
3
476500
3
6 hole
HSC300
300
75
R10
82K
2500
5600
3
578000
3
6 hole
Key Features
I
I
I
I
I
Established product with
proven reliability
•
Leading the way with
over 50 years of design
and manufacturing
experience
5 Watts to 300 Watts
(500 Watt and 1000 Watt
versions available)
•
Largest range on the
market
Versatile product
•
Bench mark in every
industry
Custom designs
•
Windings, terminations,
mountings - We have
a solution for your
application
Low resistance, low
inductance and higher
voltage versions available
•
Specialising the
standard
Braking Resistor
Balancing Resistor
Capacitor Charging &
Discharging
Crowbar
Filter
Electrical Machinery
general use
Available through
Distribution
Characteristics -
Electrical
Long Term Stability:
For improvements in long-term stability, resistors must be derated as follows;
for 50% of stated
∆R
maximum dissipation must not exceed 70% of rating;
for 25% of stated
∆R
maximum, dissipation must not exceed 50% of rating
Dry: 10,000MΩ minimum. After moisture test: 1000MΩ minimum.
Although the use of proprietary heat sinks with lower thermal resistance is
acceptable, up rating is not recommended.
The use of proprietary heat sink compound to improve thermal conductivity is
recommended for optimum performance of all sizes but essential for
HSC200, HSC250 & HSC300
Temperature coefficient below 100R, 50ppm/°C
Temperature coefficient above 100R, 30ppm/°C
Tolerance, 5% standard: 10%, 3%, 2%, 0.5% & 0.25% available
Tolerance for values below R10, 10% standard
Insulation Resistance:
Heat Dissipation:
Specification:
Applications
I
I
I
I
I
I
I
Literature No. 1773035
Issued: 11-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
Aluminium Housed Power Resistors
Type HS Series
Power Overload
30
Multiples of Rated Power
25
20
15
10
5
0
0.1 1
2
3
4
5
6 7 8 9 10 11 12 13 14 20 25 30 40 60
Duration of Overload (secs)
This graph indicates the amount that the rated power (at 20°C) of the standard HS
Series resistor may be increased for overloads of 100mS to 60S
Surface Temperature Rise
200
HSC300
HSC250
Surface Temp. Rise (°C)
HSA50
HSA25
HSC100
HSC75
HSA10
HSA5
HSC150
HSC200
100
0
0 20
60
100
150
200
250
300
Power Dissipation (Watts)
For resistor mounted on standard heatsink, related to power dissipation
How to Order
HS
Common Part
HS- Standard
NHS - Low
Inductance
A
Mounting Style
A - Single Opposing
mounting Feet
B - Flange One Side
C - Flange Two Sides
50
Power Rating
10 Watt = HSA5
16 Watt = HSA10
25 Watt = HSA25
50 Watt = HSA50
75 Watt = HSA75
etc
680R
Resistance Value
0.1ohm
(100 mille ohms)
R10
1ohm
(1000 mille ohms)
1R0
1K
(1000 ohms)
1KO
J
Tolerance
F - 1%
G - 2%
E - 3%
J - 5%
K - 10%
Literature No. 1773035
Issued: 11-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
