MHP10-05D05-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MHP10-05D05-S

MHP10-05D05-S: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 7W, Hybrid; CategoryPower/power management The power supply circuit; File Size41KB，3 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

MHP10-05D05-S Overview

DC-DC Regulated Power Supply Module, 2 Output, 7W, Hybrid

MHP10-05D05-S Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	9 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-MDMA-P6
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.1 V
Minimum output voltage	4.9 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	7 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

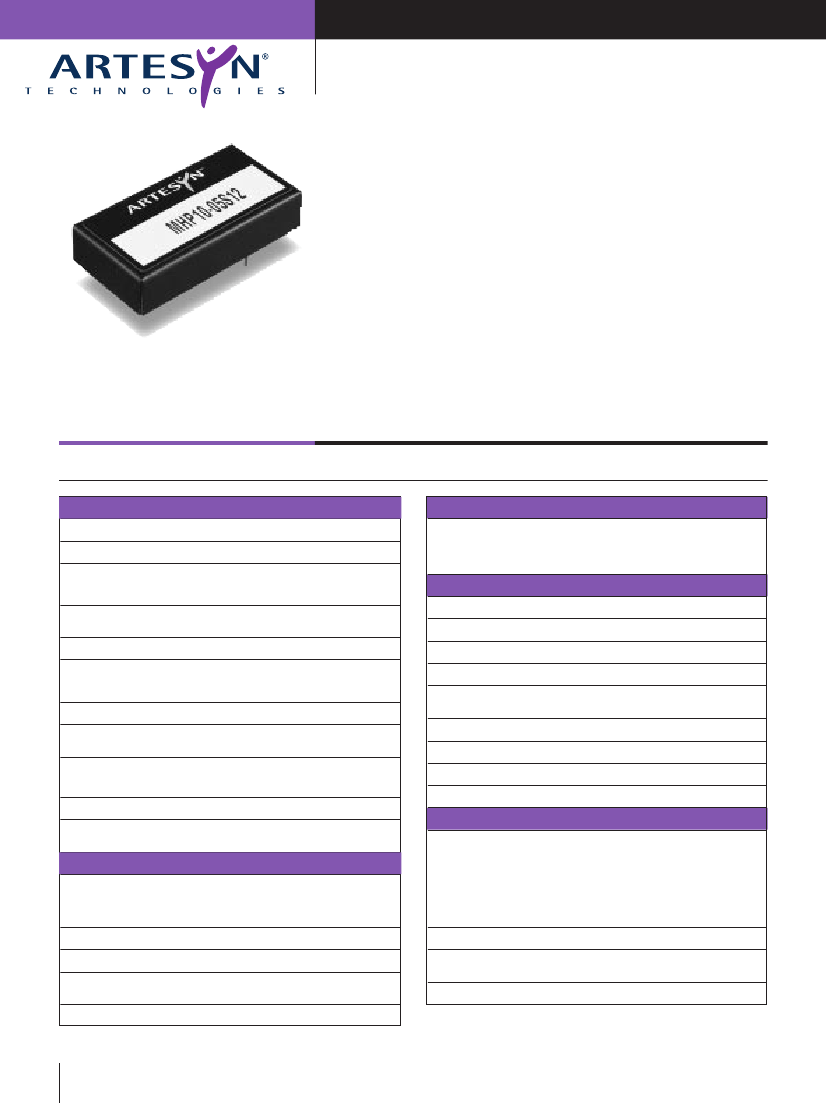

MHP10 SERIES

Single and dual output

•

2 x 1 x 0.4 inch package

12.5 Watts/in

power density

32 models including 3.3VDC and 2.1VDC

Designed to meet EN60950

Indefinite short circuit protection

Optional remote ON/OFF

Optional trim output

The MHP10 series of DC/DC converters, comprising 32 different models, has

been designed for a wide range of applications including communications,

industrial systems and mobile battery powered systems. Packing 10 Watts of

power into a 2 x 1 x 0.4 inch package, with efficiencies as high as 80% the

MHP10 has wide input ranges of 4.5-9VDC, 9-18VDC, 18-36VDC and 36-

72VDC and is available in both single and dual output versions. Other features

include indefinite short circuit protection with automatic recovery and remote

on/off, all of which minimize the need for external circuitry and make the MHP10

a recommended component in distributed power systems.

[ 2 YEAR WARRANTY ]

SPECIFICATION

OUTPUT SPECIFICATIONS

Voltage adjustability

Line regulation

Load regulation

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

INPUT SPECIFICATIONS CONTINUED

±10%

±0.1%

±1.0%

5.0% max.

±2.0%

Remote ON/OFF

Logic compatibility

OFF

GENERAL SPECIFICATIONS

Efficiency

Isolation voltage

Isolation capacitance

Switching frequency

Approvals and

standards (pending)

Case material

Material flammability

Weight

MTBF

MIL-HDBK-217F

Input/output

Fixed

Safety

78% typ.

500VDC

1nF

200 to 275kHz

VDE0805, EN60950, IEC950

UL1950, CSA C22.2 No. 950

Black coated, metal case

UL94V-0

27g (0.95oz)

300,000 hours

CMOS/TTL, See Note 4

3.5VDC min. or open

0.8VDC max.

See Note 3

LL to HL, all outputs

ML to FL

Single outputs

Dual outputs

Asymmetrical load

25% / 100% FL

Cross regulation

Voltage accuracy

Minimum load

2.1V, 3.3V, 5V

Single 12V, 15V

Duals: each output

At start-up

20MHz bandwidth

25% load step

50mA max.

80mA max.

10% FL

3.0% max.

1.5% pk-pk, max.

20mV rms

Overshoot

Ripple and noise

Transient response

±10% typ. max. dev.,

0.5ms recovery

to within ±1.0%

±0.02%/°C

Temperature coefficient

Short circuit protection

Hiccup mode

See Note 5

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating ambient

-25°C to +60°C

(See derating curve)

Extended temp.,

-40°C to +60°C

option, See Note 1

Non-operating amb.

-40°C to +95°C

Case

+95°C max.

Derating

See derating curve

Cooling

Free air convection cooled

Non-condensing

Operating

Non operating

5Hz to 500Hz

30% to 95%

10,000 feet max.

40,000 feet max.

2.5G rms (approx.)

Continuous

automatic recovery

INPUT SPECIFICATIONS

Input voltage range

5VDC, nominal, FL

12VDC nominal, FL

24VDC nominal, FL

48VDC nominal, FL

4.5 to 9VDC

9 to 18VDC

18 to 36VDC

36 to 72VDC

Pi filter

See table

Single output

Dual outputs

200mA

500ms

Relative humidity

Altitude

Vibration

Input filter

Input current

Input reflected ripple

Start-up time

PAGE 1
