T-16213 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> T-16213

T-16213: DescriptionT1 / CEPT / ISDN-PRI SMD 40 Pin Quad Modules 4 Transformers Per Part; CategoryPower management transformer; File Size75KB，2 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

T-16213 Overview

T1 / CEPT / ISDN-PRI SMD 40 Pin Quad Modules 4 Transformers Per Part

T-16213 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Objectid	1514849038
Reach Compliance Code	unknow
ECCN code	EAR99
compound_id	71650064
Other features	TAPE & REEL AVAILABLE ON REQUEST
Certification	UL
high	5.84 mm
length	28.45 mm
Manufacturer's serial number	T-16213
Installation features	SURFACE MOUNT
method of packing	TUBE
physical size	28.45mm X 12.32mm X 5.84mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	12.32 mm

Preview

Download Datasheet

View All

New!

T1 / CEPT / ISDN-PRI

SMD 40 Pin Quad Modules 4

Transformers Per Part

Electrical Specifications

Part

Number

T-16200

T-16201

T-16202

T-16203

T-16204

T-16205

T-16206

T-16207

T-16208

T-16209

T-16210

T-16211

T-16212

T-16213

T-16214

T-16215

T-16216

T-16217

at 25

Turns

Ratio

1, 2

For T1/CEPT/PRI Telecom Applications

Designed to meet CCITT and FCC

Requirements

1500 VRMS Minimum Isolation

OCL

Min.

( mH )

1.2

W/W

max.

( pF )

max.

(

µH

)

0.6

0.4 / 0.5

0.6

DCR Pri.

max.

(

Ω

)

0.7

0.8

0.7

0.8

0.7

0.8

0.7

0.8

0.7 / 1.0

DCR Sec.

max.

(

Ω

)

0.9

1.8

0.8 / 1.8

0.8

1.4

1.8 / 0.8

0.9

1.8 / 0.8

0.9

1.0

0.8 / 1.8

1.8

1.0 / 0.7

Schem.

Style

"3"

"2"

"1"

"3"

"8"

"2"

"6"

"7"

"3"

"1"

"5"

"1"

"4"

"5"

"3"

1:1.36CT & 1:2CT

1:2CT & 1:2CT

1:1:1.26 & 1:2CT

1:1.15 & 1:2CT

1:1CT & 1:1CT

1CT:2CT & 1CT:2CT

1:2CT & 1:1CT

1CT:2CT & 1:1

1:2CT & 1:1.36

1:1.14CT & 1:2CT

1:1.36 & 1:2CT

1:1.36 & 1:1.36CT

1:1.15 & 1:1.15

1:1.14 & 1:1.14CT

1:2 & 1:2CT

1:2 & 1:2

1CT:1.41 & 1CT:1.41

1:2CT & 1CT:2

P/N

T-16200

T-16201

T-16202

T-16203

T-16204

T-16205

T-16206

T-16207

T-16208

T-16209

T-16210

T-16211

T-16212

T-16213

T-16214

T-16215

T-16216

T-16217

Primary Pins

28-30, 38-40 / 6-8, 16-18

6-8, 16-18 / 28-30, 38-40

1-3, 11-13 / 23-25, 33-35

6-8, 16-18 / 28-30, 38-40

1-3, 11-13 / 23-25, 33-35

28-30, 38-40 / 6-8, 16-18

1-3, 11-13 / 23-25, 33-35

1-3, 11-13 / 6-8, 16-18

1-3, 11-13 / 23-25, 33-35

1-3, 16-18 / 28-30, 33-35

1-3, 11-13 / 6-8, 16-18

1-3, 11-13 / 23-25, 33-35

6-8, 16-18 / 1-3, 11-13

OCL Tested at 100kHz 50mV

Flammability: Materials used in

the production of these units

meet requirements of UL94-VO

and IEC 695-2-2 needle flame

test.

Dual Port design

Parts shipped in anti-static

tubes.

Custom Designs Available

Other Configurations and Packages

Available See Our Web Page Under

Data Communications/T1

Tape & Reel

Available

Specifications subject to change without notice.

For other values & Custom Designs, contact factory.

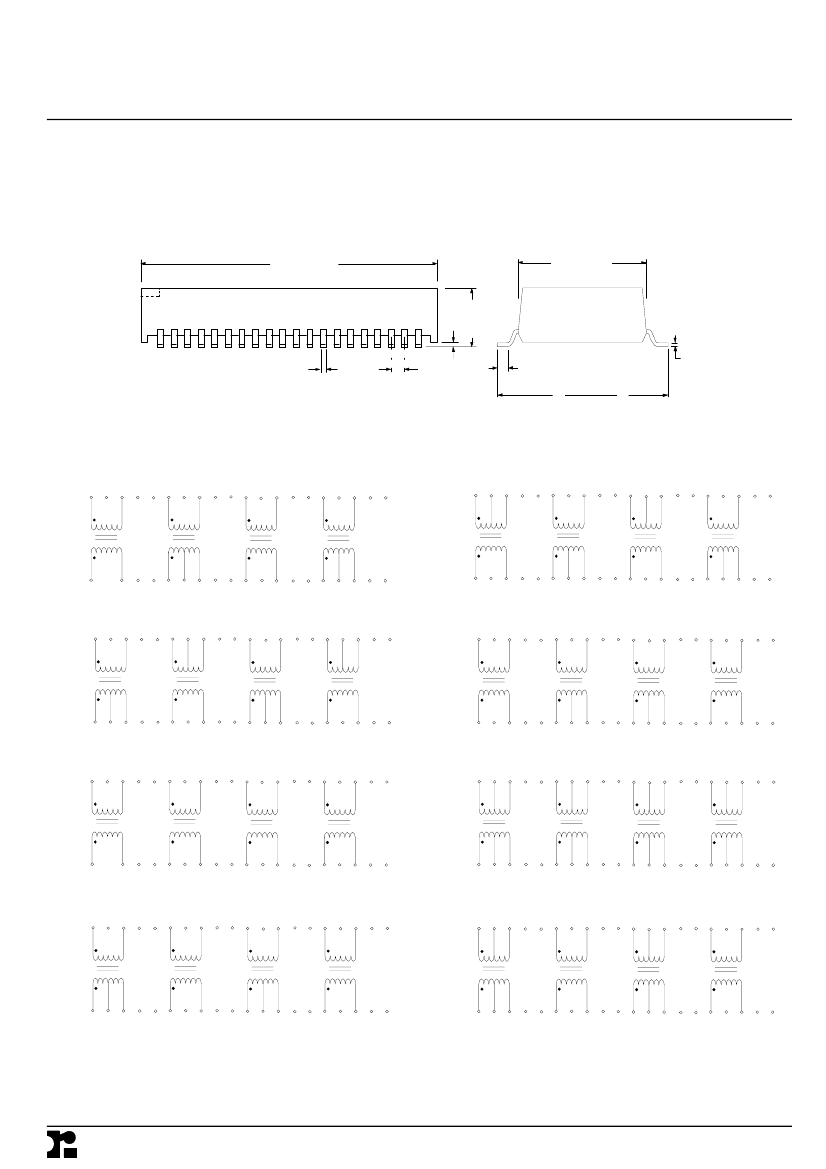

T1-DP40

Rhombus

Industries Inc.

www.rhombus-ind.com

15801 Chemical Lane, Huntington Beach, CA 92649-1595

Tel: (714) 898-0960

•

Fax: (714) 896-0971
