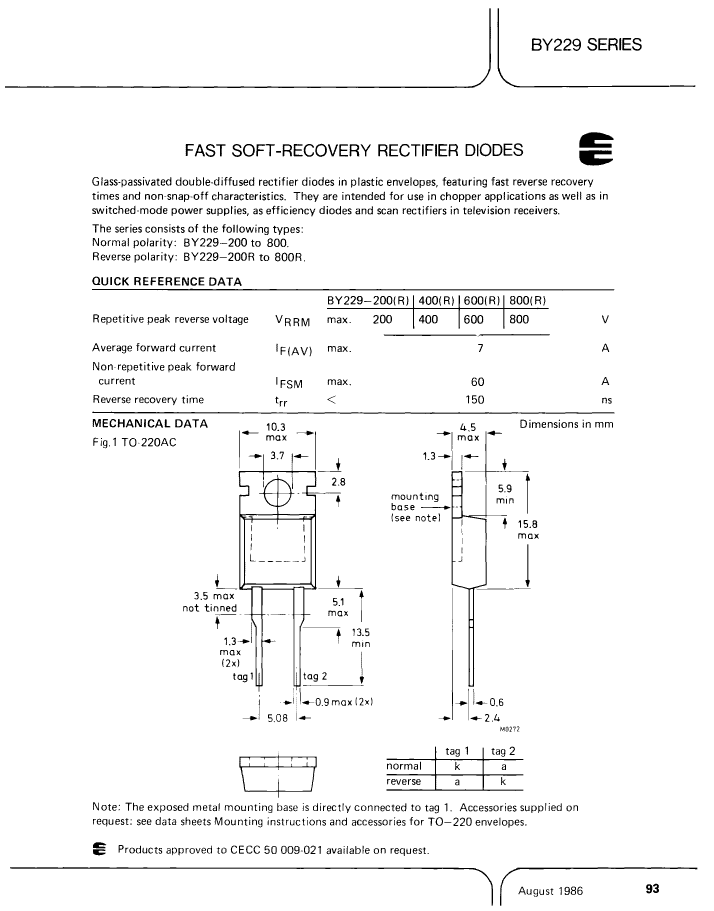

Rectifier Diode, 1 Phase, 1 Element, 7A, 600V V(RRM), Silicon,
| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | R-PSFM-T2 |
| Reach Compliance Code | unknown |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | FAST SOFT RECOVERY |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.85 V |
| JESD-30 code | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 60 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 7 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Guideline | CECC50009-021 |

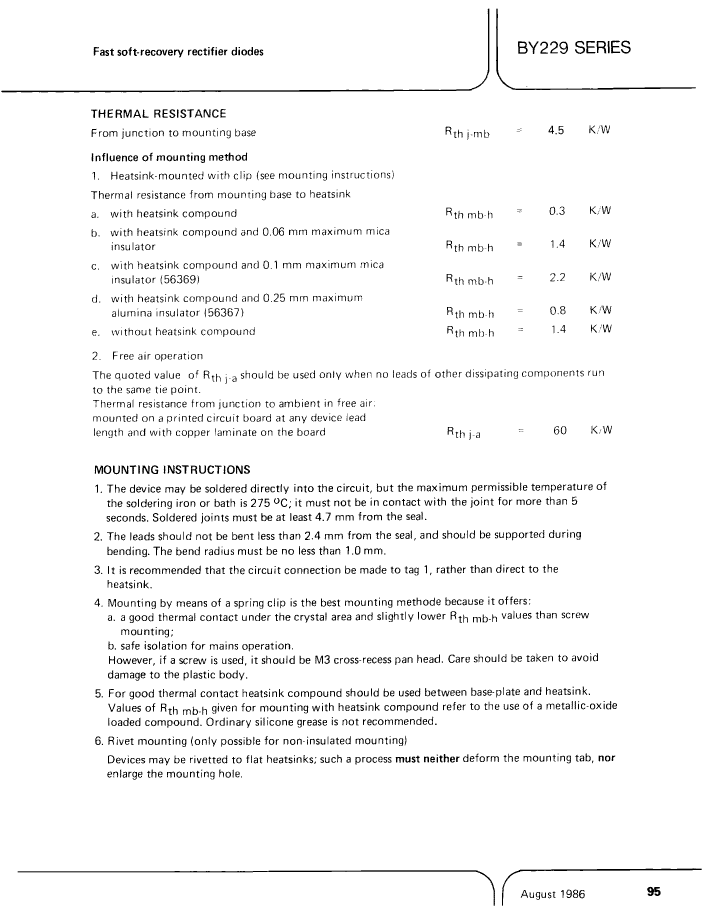

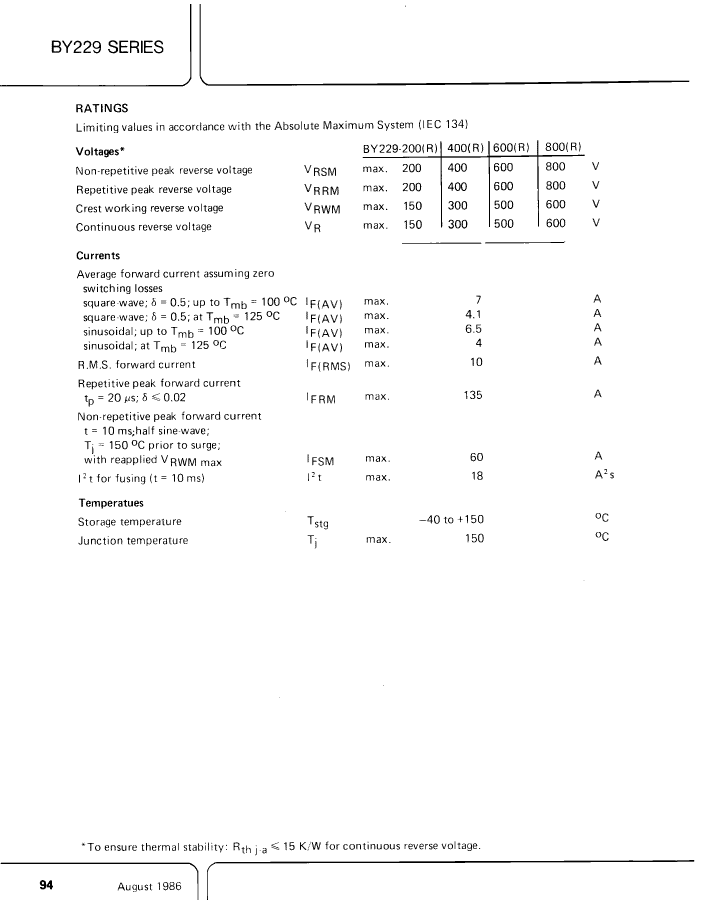

| Maximum repetitive peak reverse voltage | 600 V |
| Maximum reverse current | 400 µA |

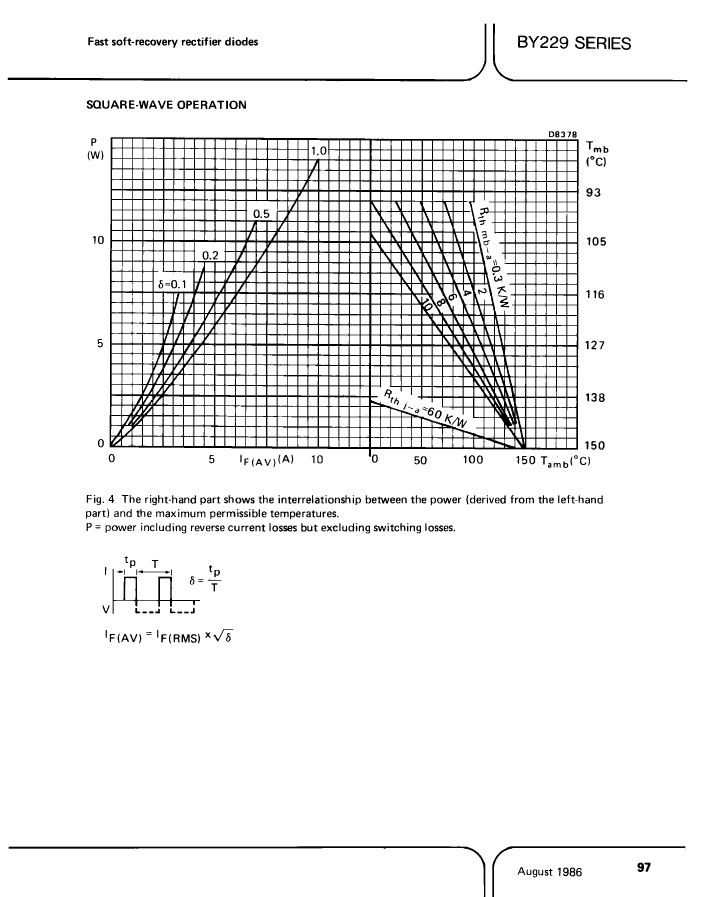

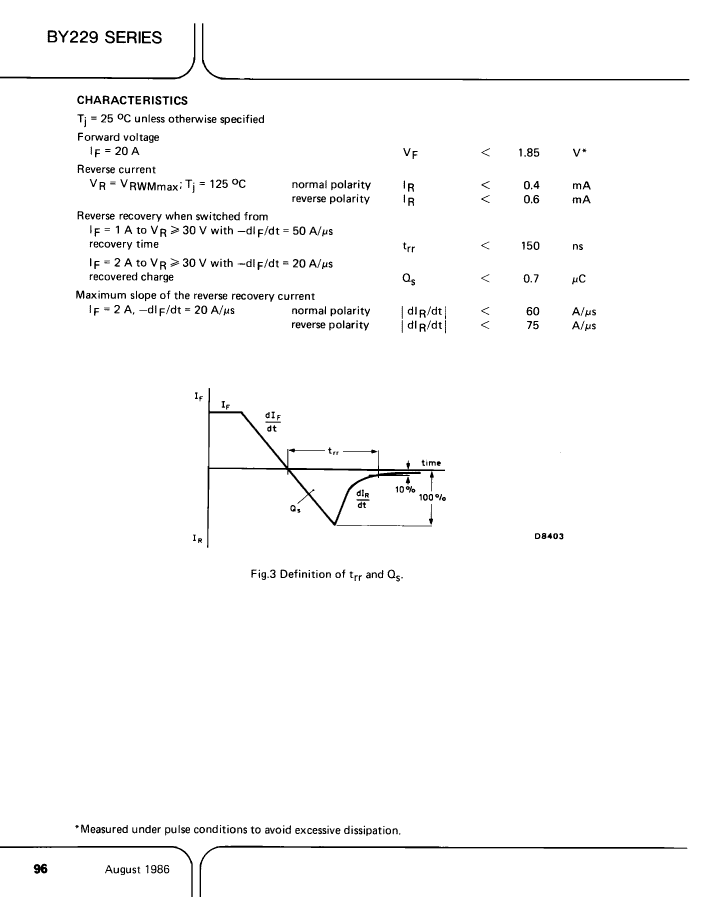

| Maximum reverse recovery time | 0.15 µs |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| BY229-600 | BY229-800R | BY229-800 | BY229-600R | BY229-200 | BY229-200R | BY229-400 | BY229-400R | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 7A, 600V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 7A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 7A, 800V V(RRM), Silicon | Rectifier Diode, 1 Phase, 1 Element, 7A, 600V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 7A, 200V V(RRM), Silicon | Rectifier Diode, 1 Phase, 1 Element, 7A, 200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 7A, 400V V(RRM), Silicon | Rectifier Diode, 1 Phase, 1 Element, 7A, 400V V(RRM), Silicon, |
| package instruction | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY | FAST SOFT RECOVERY |
| Shell connection | CATHODE | ANODE | CATHODE | ANODE | CATHODE | ANODE | CATHODE | ANODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.85 V | 1.85 V | 1.85 V | 1.85 V | 1.85 V | 1.85 V | 1.85 V | 1.85 V |
| JESD-30 code | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 60 A | 60 A | 60 A | 60 A | 60 A | 60 A | 60 A | 60 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum output current | 7 A | 7 A | 7 A | 7 A | 7 A | 7 A | 7 A | 7 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Guideline | CECC50009-021 | CECC50009-021 | CECC50009-021 | CECC50009-021 | CECC50009-021 | CECC50009-021 | CECC50009-021 | CECC50009-021 |
| Maximum repetitive peak reverse voltage | 600 V | 800 V | 800 V | 600 V | 200 V | 200 V | 400 V | 400 V |
| Maximum reverse current | 400 µA | 600 µA | 400 µA | 600 µA | 400 µA | 600 µA | 400 µA | 600 µA |
| Maximum reverse recovery time | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs | 0.15 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maker | YAGEO | - | - | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
