FBM0805-202P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FBM0805-202P

FBM0805-202P: DescriptionFerrite Bead, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805; CategoryAnalog mixed-signal IC filter; File Size3MB，15 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

FBM0805-202P Overview

Ferrite Bead, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805

FBM0805-202P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	VENKEL LTD
package instruction	0805
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days
shell code	0805
structure	Chip Bead
Maximum DC resistance	0.7 Ω
filter type	FERRITE CHIP
maximum frequency	70 MHz
minimum frequency	70 MHz
high	0.9 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	2000 OHM Ω
method of packing	TR, PAPER, 7 INCH
physical size	L2XB1.25XH.9 (mm)/L.0787XB.0492XH.0354 (inch)
Rated current	0.2 A
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm

Preview

Download Datasheet

View All

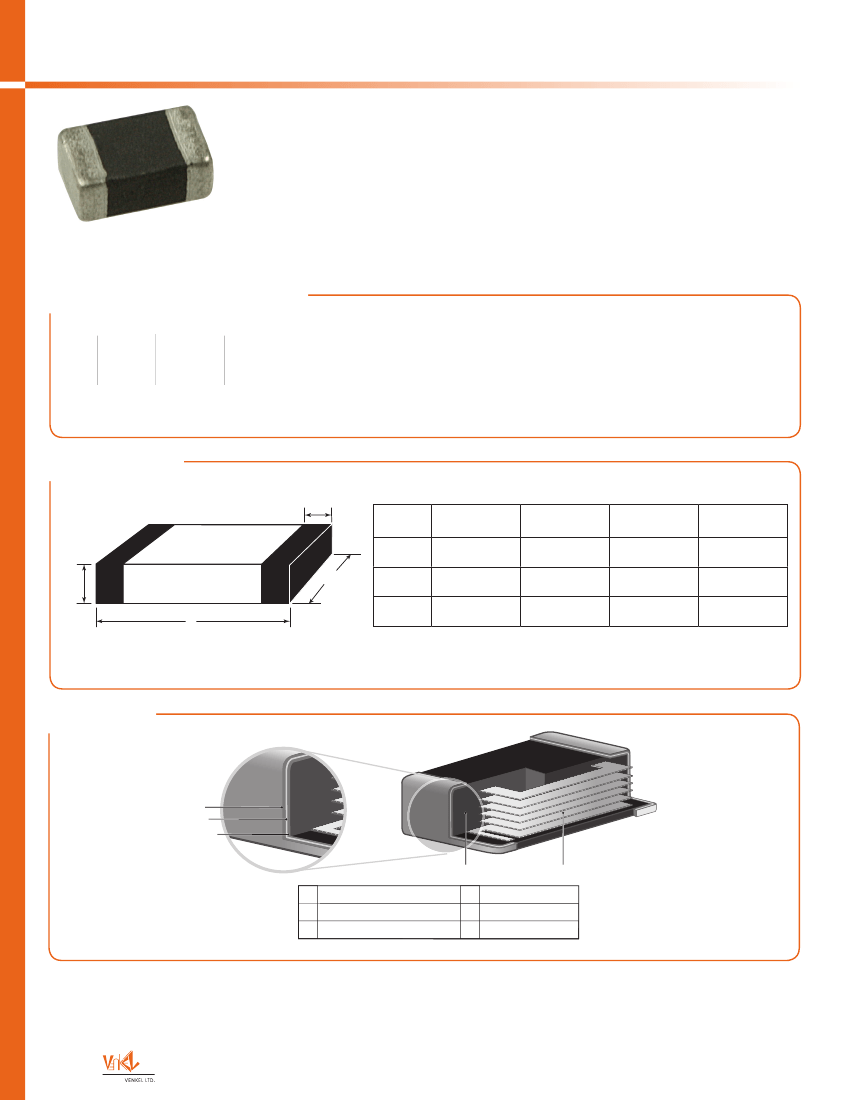

General Purpose Multilayer Ferrite Beads

(FBM Series)

Features:

• Closed magnetic circuit configuration avoids crosstalk

• Suitable for high density PCBs

• Size range: 0402 to 0805

• Value range: 10Ω to 2700Ω

• Stable performance characteristics

• Temperature range: -55°C to +125°C

• Good for automatic mounting with no directionality

Part Number Structure

FBM

Series

0805

Size

0402

0603

0805

- 121

Impedance

121 = 120Ω

102 = 1000Ω

Packaging

P = Paper Tape

E = Embossed Tape

Example P/N:

FBM0805-121P

Standard Termination is 100% matte Tin over Nickel.

Dimensions

Unit: mm (inches)

Size

(inches)

0402

1.0 ± 0.05

(0.040 ± 0.002)

1.6 ± 0.15

(0.063 ± 0.006)

2.0 ± 0.2

(0.079 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002)

0.8 ± 0.15

(0.031 ± 0.006)

1.25 ± 0.2

(0.050 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002)

0.8 ± 0.15

(0.031 ± 0.006)

0.9 ± 0.2

(0.036 ± .008)

0.25 ± 0.1

(0.010 ± 0.004)

0.3 ± 0.2

(0.012 ± 0.008)

0.5 ± 0.3

(0.020 ± 0.012)

0603

0805

Structure

Ferrite Core

Internal Electrode

Terminal Electrode (Ag)

Nickel Plating

Tin Plating

140

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev. 04/2014-C
