Edal
SERIES T

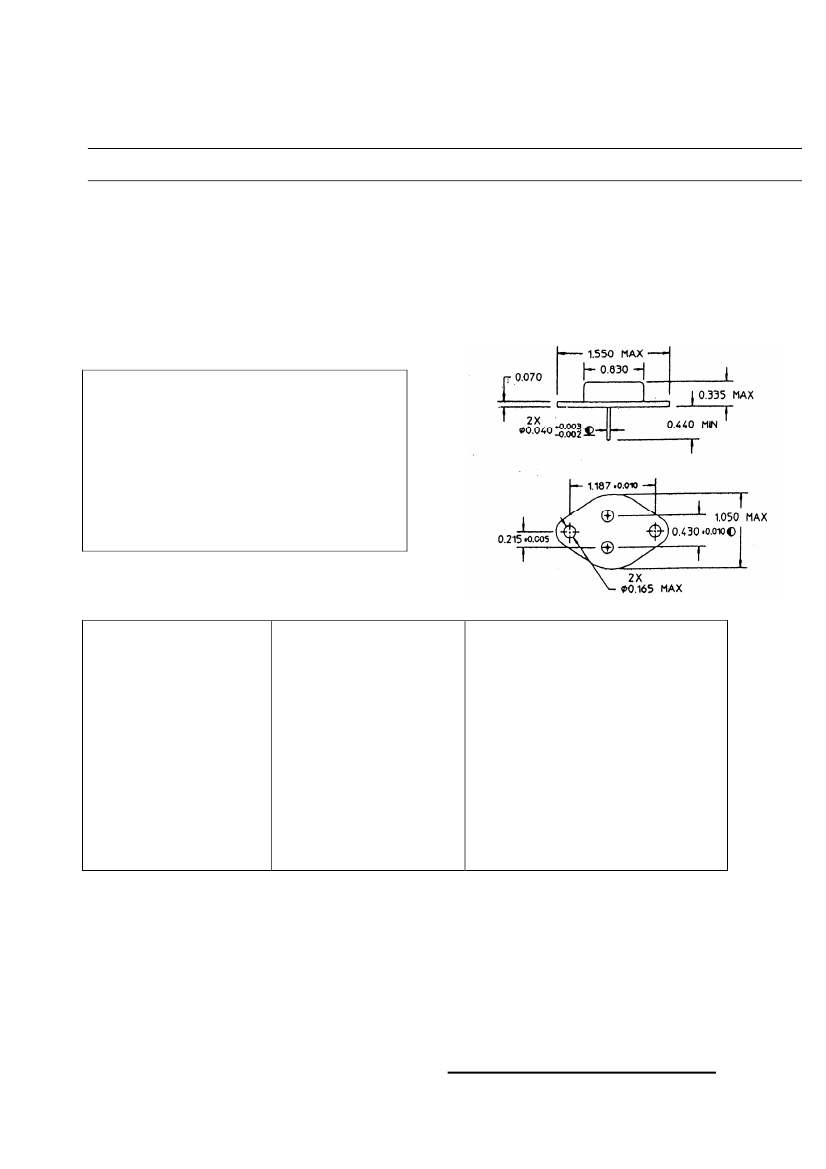

Silicon T03 Miniature Power Circuits
Edal’s Miniature power design offers optional configurations in one standard package. A sharp reduction in space
requirements, simplified purchasing, reduced inventory, fewer lead connections and faster assembly by eliminating
the need of soldering many diodes to achieve equivalent circuitry are substantial advantages. Low unit cost and
increased reliability are proven results of Edal multiple circuits, now available in half wave, and center tap circuits.
Ratings for the circuits that are listed below point out the high temperature resistance, low leakage current and low
forward voltage drop. Units utilize double diffused passivated junctions. Through Quality Control program results
in high unit reliability. Available in Fast Recovery and/or Bulk Avalanche devices.
Electrical Ratings (Per Section)
Maximum Output Current
Case Temp 130 o C Io see Chart
Maximum Single Cycle Surge Current
Maximum Forward Voltage Drop:
at Io 25 o C Case
Maximum Reverse Current:
at PIV
Maximum I 2 t
250 amps
1.5 volts
50 ua
250 amps2 sec
SERIES T PER SECTION SPECIFICATIONS
CURRENT
PIV
CODE
AMPS
CODE
(VOLTS)
CODE
CIRCUIT
10
10
A
50
1
Half Wave
15
15
B
100
2
Center Tap, Case Pos.
20
20
C
200
3
Center Tap, Case Neg.
D
300
E
400
F
500
G
600
H
700
K
800
M
1000
N
1200
T
10
B
2
First code represents series, second current, third PIV, fourth the circuit. Series T10B2, for
Example is a 10 amp 100 PIV Center Tap Case Positive.
(203) 467-2591 TEL
(203) 469-5928 FAX
Email: info@edal.comInternet: http://www.edal.com
EDAL
industries, inc.
51 Commerce St. East Haven, CT 06512
