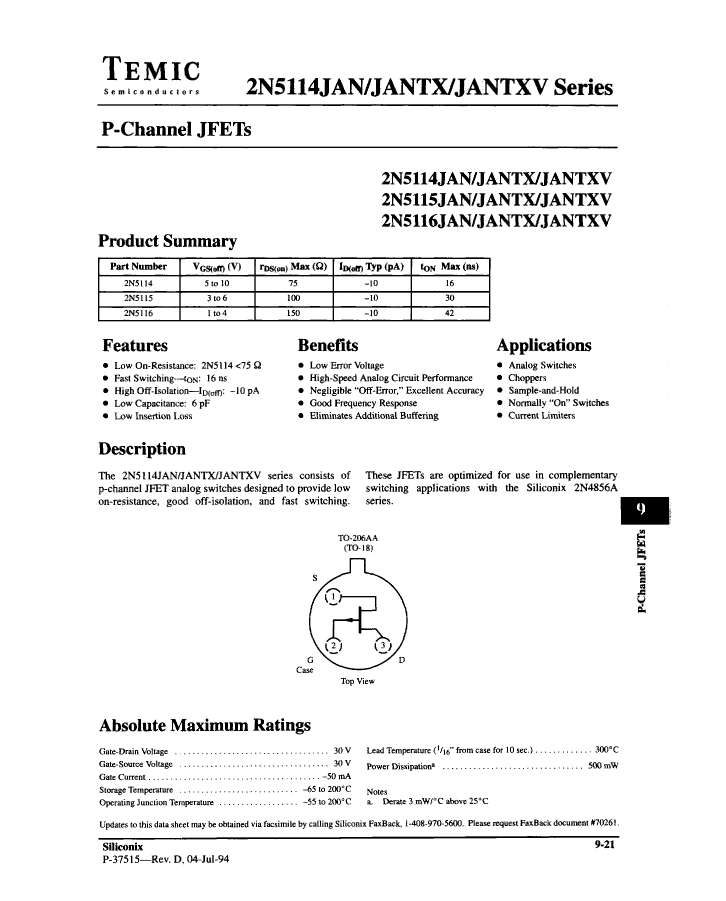

Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA,

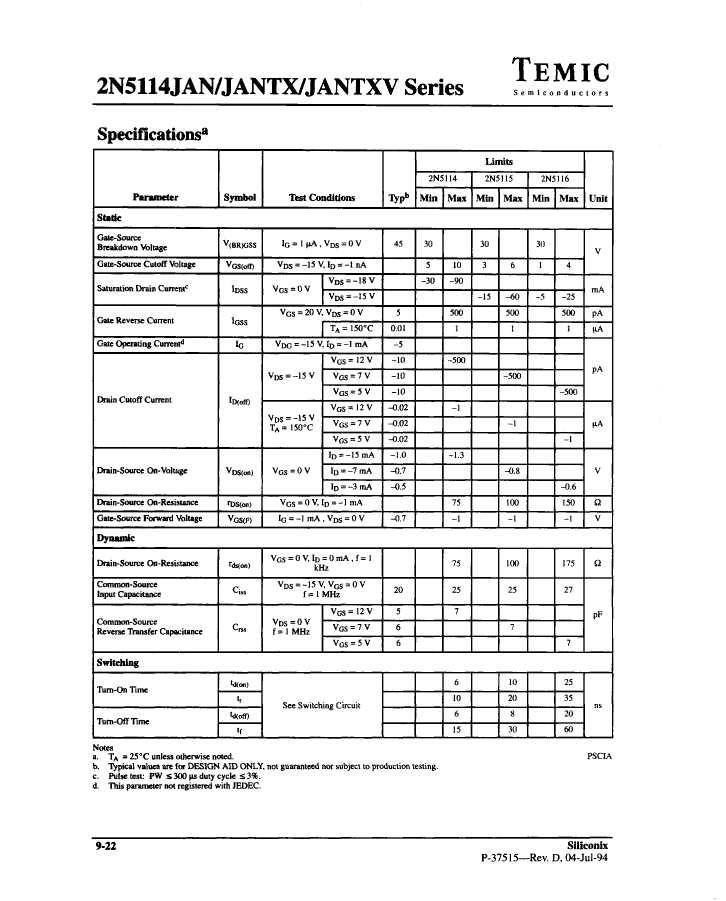

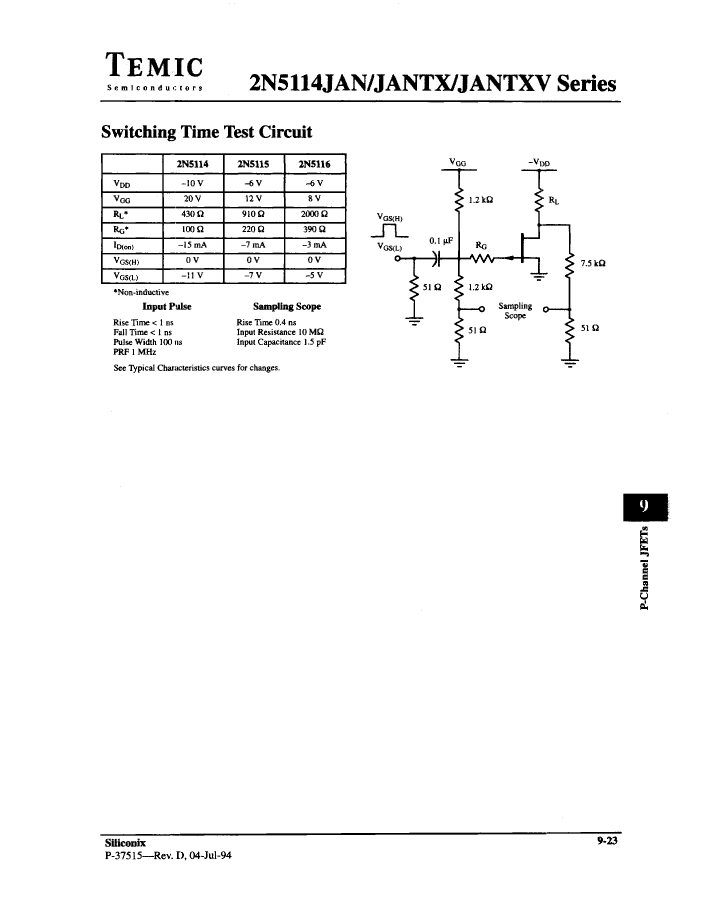

| Parameter Name | Attribute value |
| Maker | TEMIC |
| Reach Compliance Code | unknown |
| Shell connection | GATE |
| Configuration | SINGLE |
| Maximum drain-source on-resistance | 100 Ω |
| FET technology | JUNCTION |
| Maximum feedback capacitance (Crss) | 7 pF |
| JEDEC-95 code | TO-206AA |
| JESD-30 code | O-MBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | DEPLETION MODE |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | P-CHANNEL |
| Certification status | Not Qualified |
| Guideline | MIL |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| JANTX2N5115 | JAN2N5116 | JAN2N5114 | JANTX2N5114 | JAN2N5115 | JANTX2N5116 | JANTXV2N5115 | JANTXV2N5114 | JANTXV2N5116 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, | Small Signal Field-Effect Transistor, 1-Element, P-Channel, Silicon, Junction FET, TO-206AA, |
| Maker | TEMIC | TEMIC | TEMIC | TEMIC | TEMIC | TEMIC | TEMIC | TEMIC | TEMIC |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Shell connection | GATE | GATE | GATE | GATE | GATE | GATE | GATE | GATE | GATE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum drain-source on-resistance | 100 Ω | 150 Ω | 75 Ω | 75 Ω | 100 Ω | 150 Ω | 100 Ω | 75 Ω | 150 Ω |
| FET technology | JUNCTION | JUNCTION | JUNCTION | JUNCTION | JUNCTION | JUNCTION | JUNCTION | JUNCTION | JUNCTION |
| Maximum feedback capacitance (Crss) | 7 pF | 7 pF | 7 pF | 7 pF | 7 pF | 7 pF | 7 pF | 7 pF | 7 pF |
| JEDEC-95 code | TO-206AA | TO-206AA | TO-206AA | TO-206AA | TO-206AA | TO-206AA | TO-206AA | TO-206AA | TO-206AA |
| JESD-30 code | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Operating mode | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL | P-CHANNEL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Guideline | MIL | MIL | MIL | MIL | MIL | MIL | MIL | MIL | MIL |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
