LD-001VR3F: DescriptionSingle Color LED, Red, Tinted, 9.5mm,; CategoryLED optoelectronic/LED photoelectric; File Size48KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

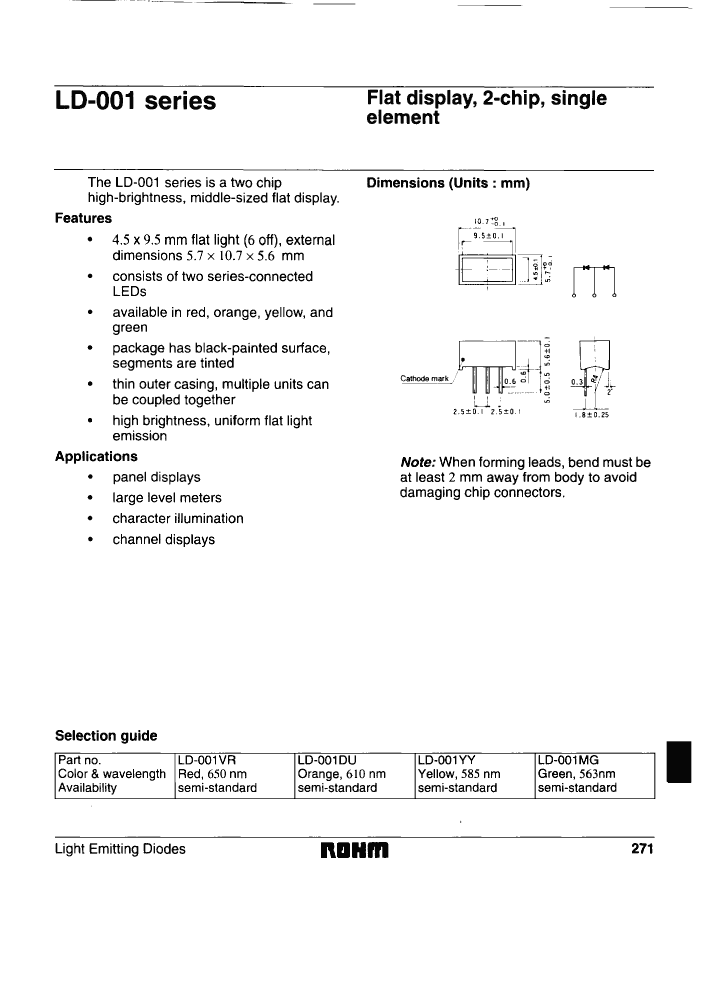

LD-001VR3F Overview

Single Color LED, Red, Tinted, 9.5mm,

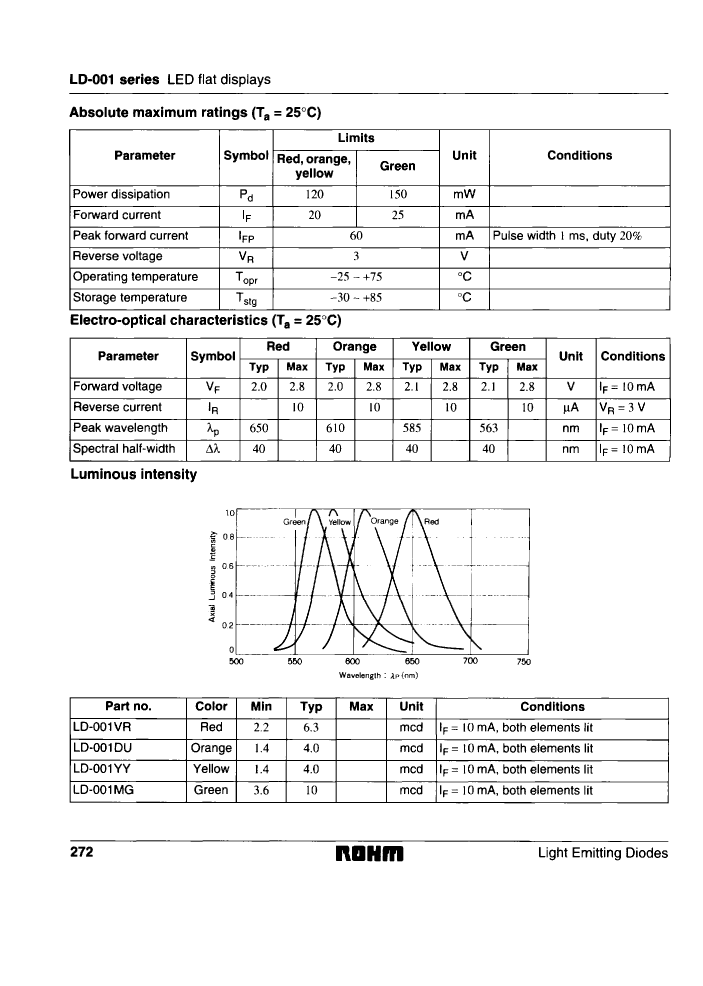

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	compliant
color	RED
Configuration	SERIES CONNECTED WITH CENTER TAP, 2 ELEMENTS
Maximum forward current	0.02 A
JESD-609 code	e1
Lens type	TINTED
Nominal luminous intensity	6.3 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5 mm
method of packing	BULK
peak wavelength	650 nm
shape	RECTANGULAR
size	9.5 mm
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm

	LD-001VR3F	LD-001MG3F	LD-001DU3F	LD-001YY3F
Description	Single Color LED, Red, Tinted, 9.5mm,	Single Color LED, Green, Tinted, 9.5mm,	Single Color LED, Orange, Tinted, 9.5mm,	Single Color LED, Yellow, Tinted, 9.5mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	compliant	compliant	compliant	compliant
color	RED	GREEN	ORANGE	YELLOW
Configuration	SERIES CONNECTED WITH CENTER TAP, 2 ELEMENTS	SERIES CONNECTED WITH CENTER TAP, 2 ELEMENTS	SERIES CONNECTED WITH CENTER TAP, 2 ELEMENTS	SERIES CONNECTED WITH CENTER TAP, 2 ELEMENTS
Maximum forward current	0.02 A	0.025 A	0.02 A	0.02 A
JESD-609 code	e1	e1	e1	e1
Lens type	TINTED	TINTED	TINTED	TINTED
Nominal luminous intensity	6.3 mcd	10 mcd	4 mcd	4 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5 mm	5 mm	5 mm	5 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	650 nm	563 nm	610 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	9.5 mm	9.5 mm	9.5 mm	9.5 mm
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm
