L-934SYD: DescriptionSingle Color LED, Super Bright Yellow, Diffused Yellow, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size509KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-934SYD Overview

Single Color LED, Super Bright Yellow, Diffused Yellow, T-1, 3mm,

L-934SYD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	SUPER BRIGHT YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	DIFFUSED YELLOW
minimum luminous intensity	60 cd
Nominal luminous intensity	250.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

Kingbright

Features

®

T- 1 (3mm) SUPER BRIGHT LED LAMPS

L-934SE SUPER BRIGHT ORANGE

L-934SY SUPER BRIGHT YELLOW

Package Dimensions

BRIGHTNESS.

l

DIFFUSED, WATER CLEAR AND TRANSPARENT

LENS ARE AVAILABLE.

l

OUTSTANDING MATERIAL EFFICIENCY.

l

RELIABLE AND RUGGED.

l

IC COMPATIBLE/LOW CURRENT CAPABILITY.

l

ULTRA

Description

The Super Bright Orange source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

The Super Bright Yellow source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

Selection Guide

Part No.

L-934SEC

L-934SET

L-934SED

L-934SYC

L-934SYT

L-934SYD

SUPER BRIGHT YELLOW (InGaAlP)

SUPER BRIGHT ORANGE (InGaAlP)

Notes:

1. All dimensions are in millimeters (inches).

.25(0.01") unless otherwise noted.

2. Tolerance is

3. Lead spacing is measured where the lead emer-

ge package.

4. Specifications are subjected to change without notice.

Dice

Lens Type

WATER CLEAR

ORANGE TRANS.

ORANGE DIFFUSED

WATER CLEAR

YELLOW TRANS.

YELLOW DIFFUSED

Iv (mcd)

@ 20 mA

Min.

Max.

500

200

100

2000

700

1300

400

Viewing

Angle

2θ1/2

50°

60°

50°

60°

Note:

1.

θ

1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

2-L934SE-1

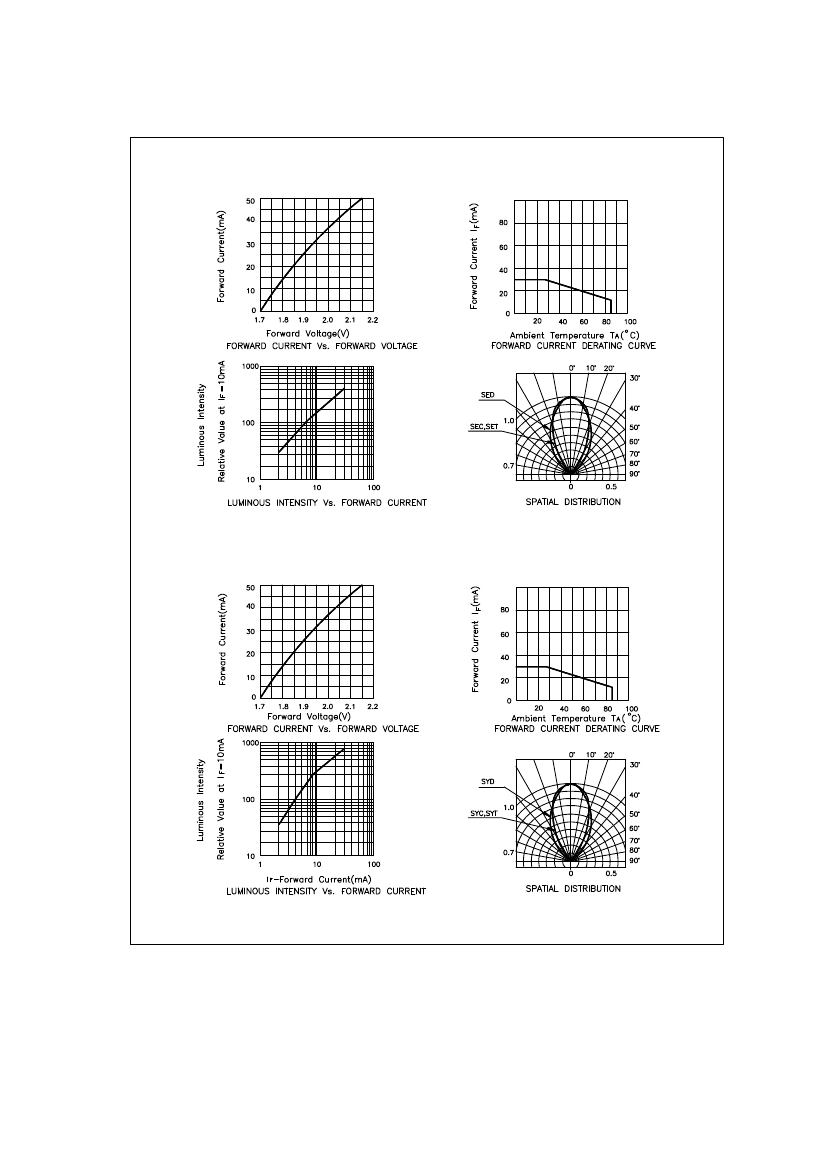

L-934SYD Related Products

	L-934SYD	L-934SYT	L-934SEC	L-934SET	L-934SED
Description	Single Color LED, Super Bright Yellow, Diffused Yellow, T-1, 3mm,	Single Color LED, Super Bright Yellow, Yellow Transparent, T-1, 3mm,	Single Color LED, Super Bright Orange, Water Clear, T-1, 3mm,	Single Color LED, Super Bright Orange, Orange Transparent, T-1, 3mm,	Single Color LED, Super Bright Orange, Diffused Orange, T-1, 3mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	SUPER BRIGHT YELLOW	SUPER BRIGHT YELLOW	SUPER BRIGHT ORANGE	SUPER BRIGHT ORANGE	SUPER BRIGHT ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED YELLOW	YELLOW TRANSPARENT	WATER CLEAR	ORANGE TRANSPARENT	DIFFUSED ORANGE
Nominal luminous intensity	250.0 mcd	700.0 mcd	1300.0 mcd	1300.0 mcd	800.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
method of packing	TAPE AND REEL	BULK	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	590 nm	590 nm	610 nm	610 nm	610 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	50 deg	50 deg	50 deg	60 deg
