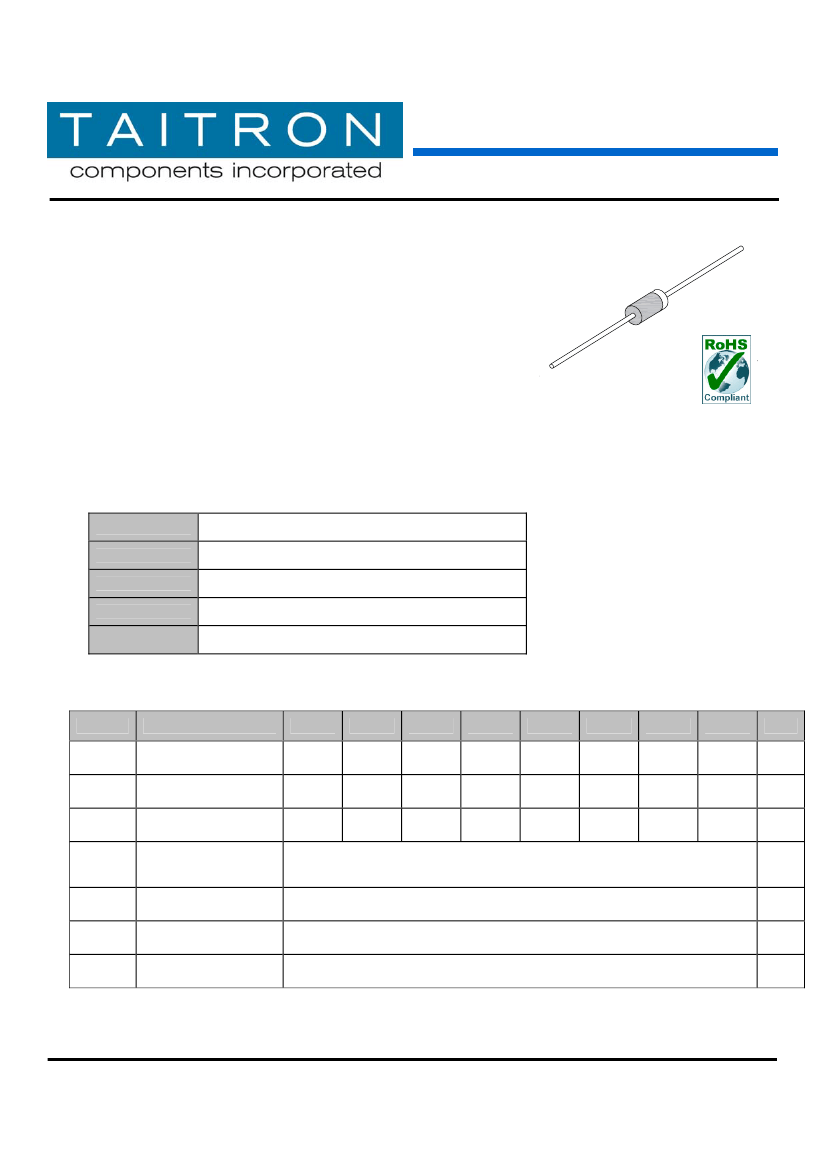

2.0A Standard Rectifier
T2A05 - T2A130
2.0A Standard Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
High Current Capability
High Surge Current Capability
High Reliability
DO-15
•
High Temperature Soldering Guaranteed 260°C/10 seconds
/.375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS compliant
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
Molded Plastic
Meets UL 94V-0 flammability rating
Axial leads, solderable per MIL-STD-202, Method 208
Cathode indicated by color band
0.014 Ounce, 0.39 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current @Ta=75° C
Peak Forward Surge
Current (Note1)
Operating Junction
Temperature Range
Storage Temperature
Range
T2A05
50
35
50
T2A10
100
70
100
T2A20
200
140
200
T2A40
400
280
400
2.0
70
-55 to +125
-55 to +150
T2A60
600
420
600
T2A80
800
560
800
T2A100
1000
700
1000
T2A130
1300
910
1300
Unit
V
V
V
A
A
°C
°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
T
STG
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFA
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2008-06-19
Page 1 of 4
2.0A Standard Rectifier
T2A05 - T2A130
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum
Forward Voltage
@
I
F=2.0A
Maximum DC
Reverse Current
at Rated DC
Blocking Voltage
Typical Junction
Capacitance
(Note2)
Maximum
Thermal
Resistance
(Note3)
T2A05
T2A10
T2A20
T2A40
1.0
T2A60
T2A80
T2A100
T2A130
Unit
V
µA
µA
pF
V
F
I
R
T
A=25° C
T
A=100° C
5.0
50
20
C
J
R
θ-JA
50
° C/W
Note:
1. 8.3ms single half sine-wave superimposed on rated load (JEDEC method)
2. Measured at 1MHz and applied reverse voltage of 4.0Volts D.C.
3. Thermal resistance from junction to ambient at .375" (9.5mm) lead length.
Typical Characteristics Curves
I
FSM
Instantaneous
Forward Current
(A)

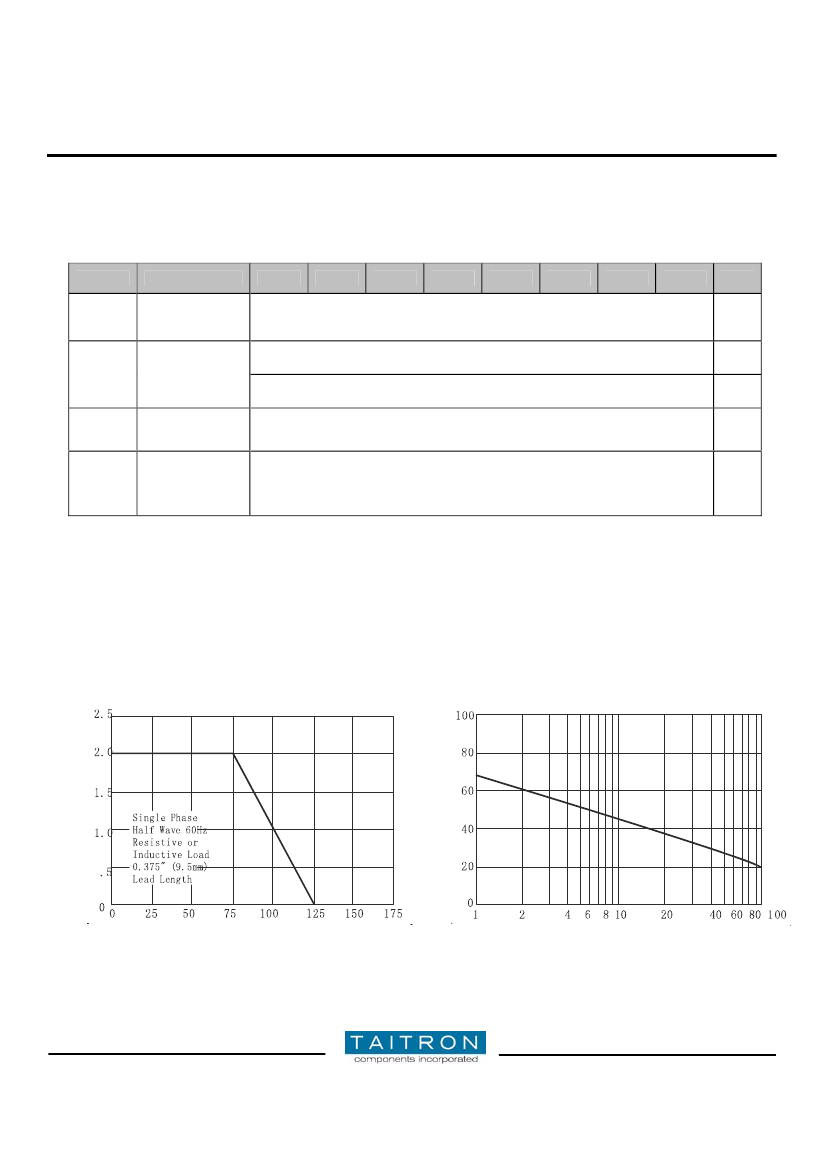

Fig.1- Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
I
F(AV)
Average Forward Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. B/AH 2008-06-19
www.taitroncomponents.com
Page 2 of 4
2.0A Standard Rectifier
T2A05 - T2A130

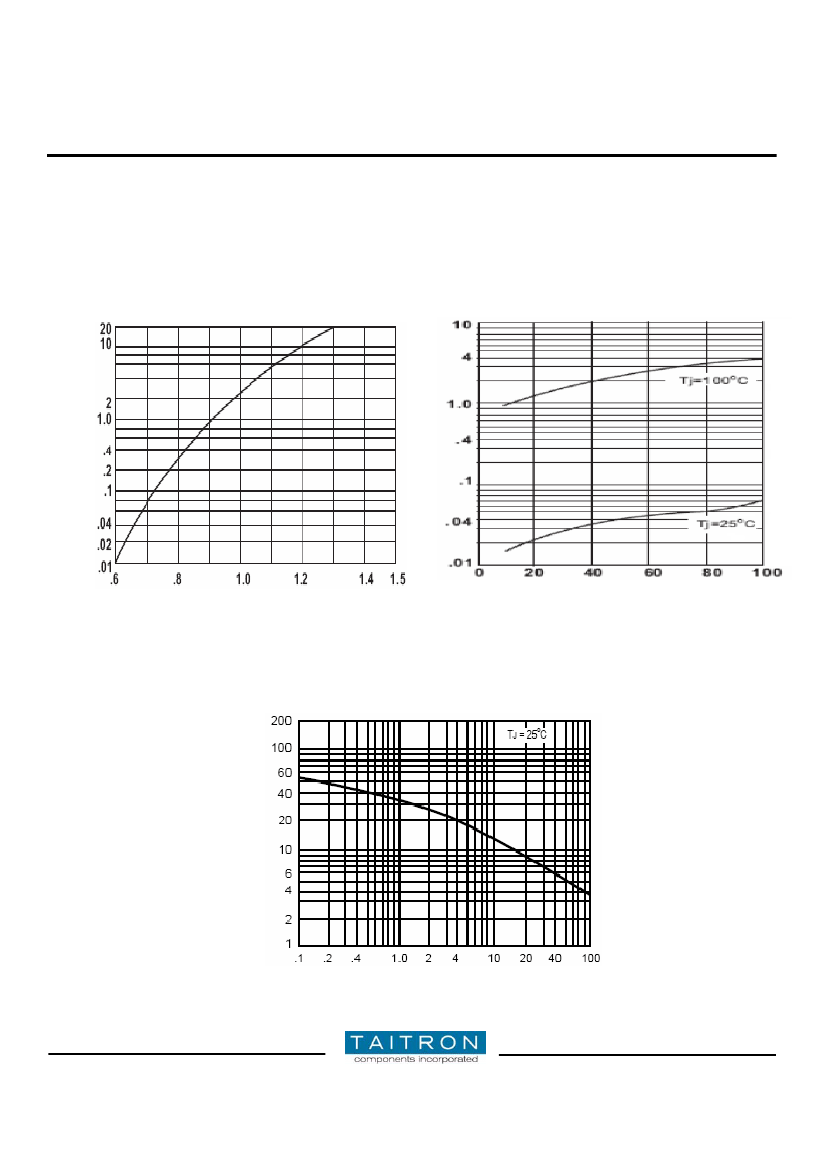

Fig.3-Typical Instantaneous Forward
Characteristics
I
R
Instantaneous Reverse Current (µA)
I
F
Instantaneous Forward Current (A)
Fig.4- Typical Reverse Characteristics
V
F
Instantaneous Forward Voltage (V)
Percentage of Peak Reverse Voltage (%)
Fig.5-Typical Junction Capacitance
C
J
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. B/AH 2008-06-19
www.taitroncomponents.com
Page 3 of 4
2.0A Standard Rectifier
T2A05 - T2A130
Dimensions in inches (mm)
DO-15
