BDE0500G-TR

Description
Analog Voltage Output Sensor, 1.716V Min, 1.79V Max, 3.5Cel, Rectangular, 5 Pin, Surface Mount, 2.90 X 2.80 MM, 1.25 MM HEIGHT, SSOP-5
CategoryThe sensor    Sensor/transducer
File Size269KB，9 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BDE0500G-TR Overview

Analog Voltage Output Sensor, 1.716V Min, 1.79V Max, 3.5Cel, Rectangular, 5 Pin, Surface Mount, 2.90 X 2.80 MM, 1.25 MM HEIGHT, SSOP-5

BDE0500G-TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
package instructionTSOP5/6,.11,37
Reach Compliance Codecompliant
Maximum accuracy (Celsius)3.5 Cel
body width1.6 mm
body height1.25 mm
Body length or diameter2.9 mm
Installation featuresSURFACE MOUNT
Number of terminals5
Maximum working current0.02 mA
Maximum operating temperature130 °C
Minimum operating temperature-30 °C
Maximum output voltage1.79 V
Minimum output voltage1.716 V
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeTSOP5/6,.11,37
Package Shape/FormRECTANGULAR
power supply3 V
Sensor/Transducer TypeTEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT
Maximum supply voltage5.5 V
Minimum supply voltage2.9 V
surface mountYES
Termination typeSOLDER

Preview

Download Datasheet
Small and High Accuracy Temperature Sensor IC Series
Detect TemperatureChangeable
Thermostat Output Temperature Sensor IC
BDE□□□0G Series
No.09047EAT03
●Description
Low quiescent current (16µA), high accuracy thermostat (temperature switch) ICs. Built in temperature sensor, reference
voltage regulator, D/A converter, and comparator. Detecting temperature by itself, OS terminal state is changed at logically.
Open Drain Output ( Active L ) is available in BDE□□□0G series.
●Features
1) Detection Temperature Range -25½+125℃ by 15 products.
2) ±5℃ Step Selectable Detection Temperature with CTRL.
3) Hysteresis Temperature ( typically 10℃ )
4) High Accuracy Analog Output ( typically ±3.5℃@Ta=30℃ )
5) Analog Output Temperature Sensitivity ( typically -10.8mV/℃ )
6) Low Supply Current ( typically 16µA )

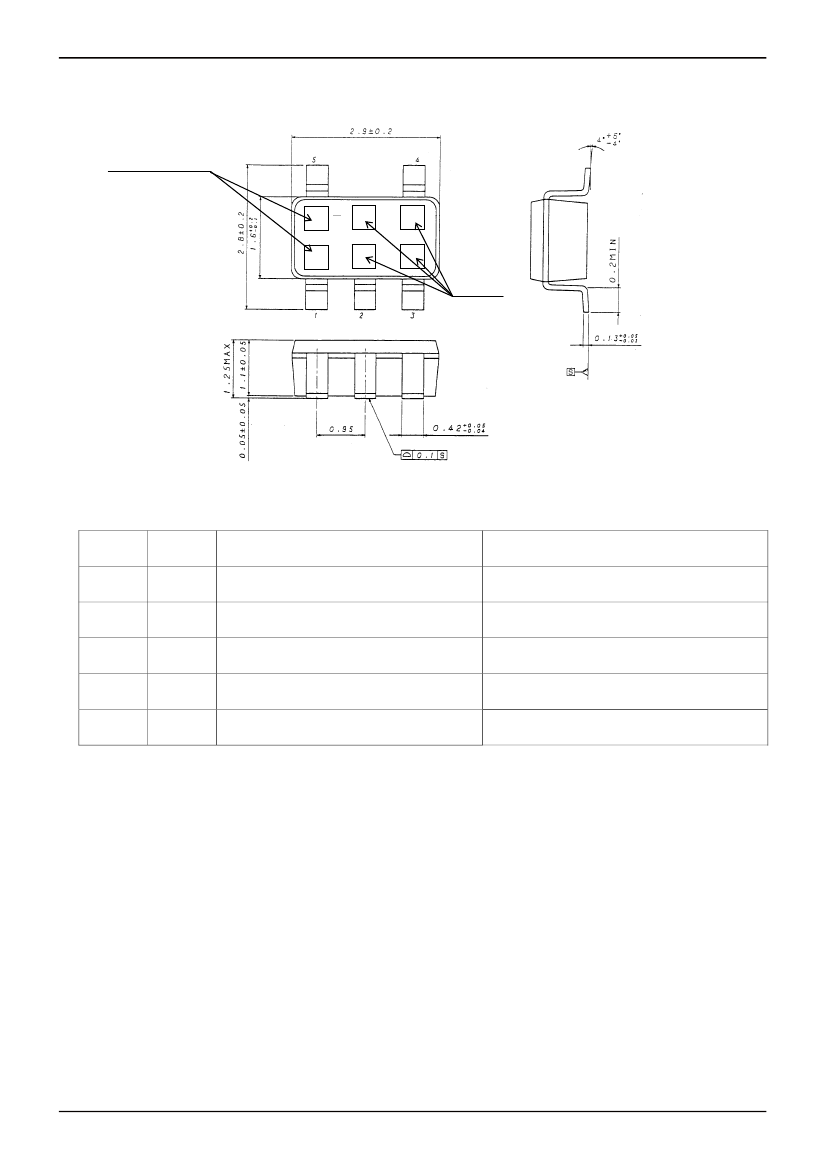

7) Small Package ( typically 2.90mm×2.80mm×1.25mm )
8) ESD Rating 8kV ( HBM )
9) Excellent Ripple Rejection Characteristic
●Applications
Thermal Protection for Electrical Equipment (NoteBook PC, Cell phone, FPD-TV, etc.) FAN Control for Thermal Management
●Products
Line up
BDE
□□□
Detection Temperature
(Center Temperature)
120:120℃
040: 40℃
110:110℃
030: 30℃
100:100℃
020: 20℃
090: 90℃
010: 10℃
080: 80℃
000: 0℃
070: 70℃
910:-10℃
060: 60℃
920:-20℃
050: 50℃
0
Output Format
(OpenDrain, Active Low)
G
Package
(SSOP5)
Temperature / Output Format Table
CTRL status description ( L : Low, O : Open,
Product
Name
BDE1200G
BDE1100G
BDE1000G
BDE0900G
BDE0800G
BDE0700G
BDE0600G
BDE0500G
Detection
Temperature (℃)
CTRL
L
115
105
95
85
75
65
55
45
H
120
110
100
90
80
70
60
50
O
125
115
105
95
85
75
65
55
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Active L
Active L
Active L
Active L
Active L
Active L
Active L
Active L
Marking
eA
eB
eC
eD
eE
eF
eG
eH
OS Output Format
Product
Name
BDE0400G
BDE0300G
BDE0200G
BDE0100G
BDE0000G
BDE9100G
BDE9200G
H : High )
Detection
Temperature (℃)
CTRL
L
35
25
15
5
-5
-15
-25
H
40
30
20
10
0
-10
-20
O
45
35
25
15
5
-5
-15
Marking
OS Output Format
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Open Drain
Active L
Active L
Active L
Active L
Active L
Active L
Active L
eJ
eK
eL
eM
eN
eP
eQ
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
1/8
2009.06 - Rev.A
