5962-8766101YA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8766101YA

5962-8766101YA: DescriptionUVPROM, 16KX8, 90ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32; Categorystorage storage; File Size323KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-8766101YA Overview

UVPROM, 16KX8, 90ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32

5962-8766101YA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	QFJ
package instruction	WQCCN, LCC32,.45X.55
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	90 ns
I/O type	COMMON
JESD-30 code	R-CQCC-N32
JESD-609 code	e0
length	13.97 mm
memory density	131072 bit
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER, WINDOW
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	12.5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.556 mm
Maximum standby current	0.0003 A
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm

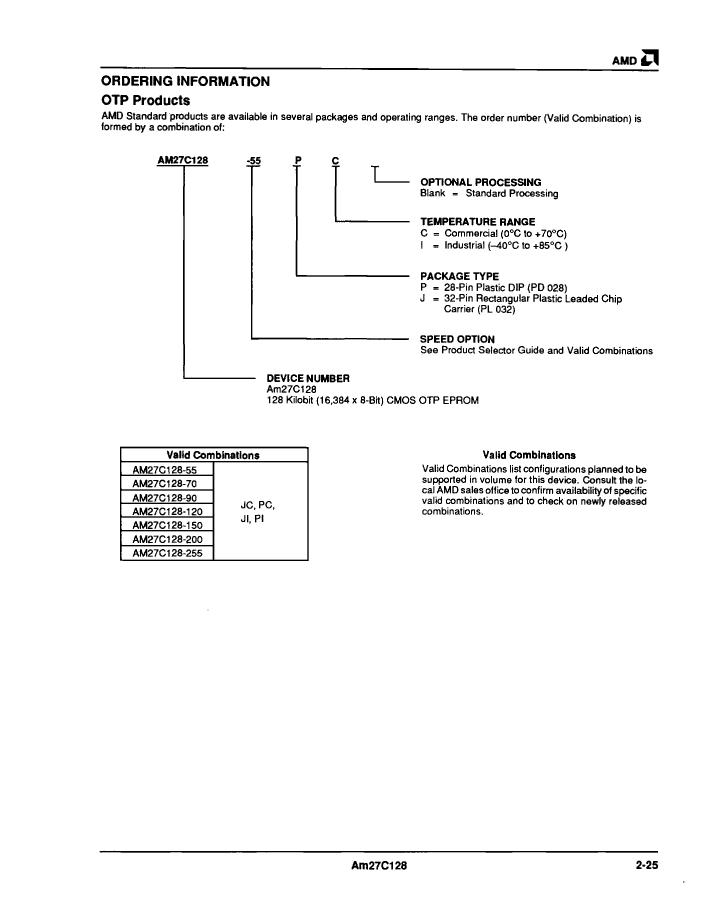

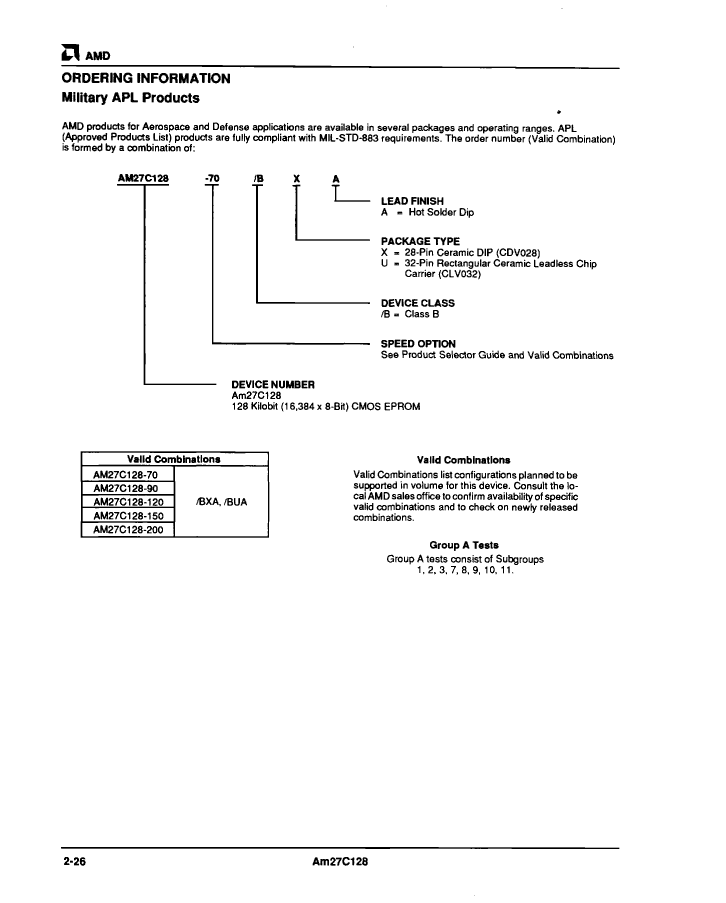

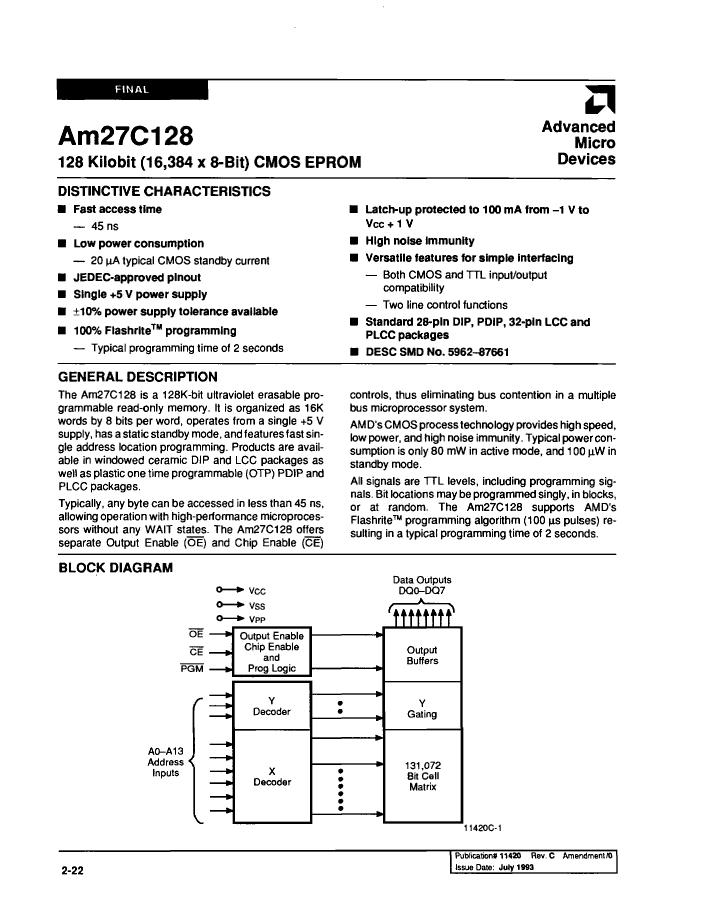

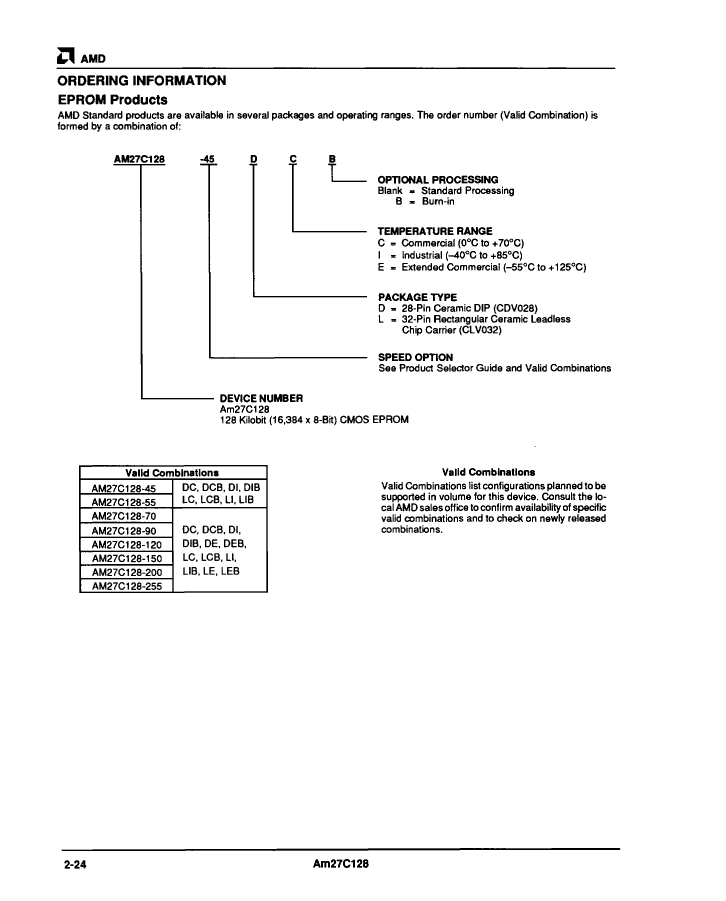

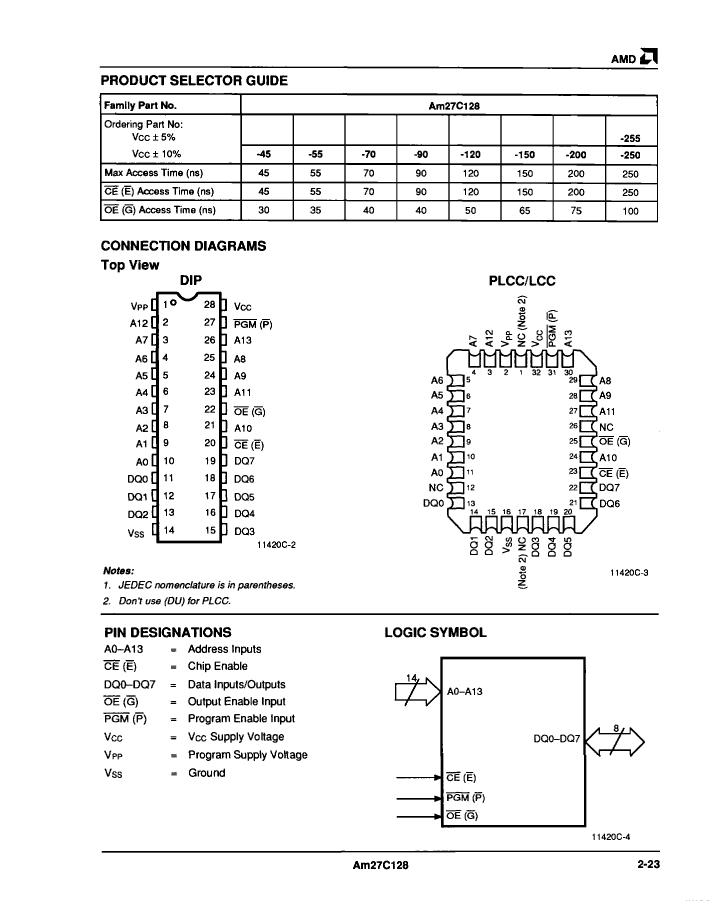

Preview

Download Datasheet

View All

5962-8766101YA Related Products

	5962-8766101YA	FM1DF47P2158MLF	5962-8766101XA	5962-8766105XA	5962-8766106XA	5962-8766102YA	5962-8766102XA	5962-8766106YA	5962-8766103YA	5962-8766105YA
Description	UVPROM, 16KX8, 90ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	Cable Assembly,	UVPROM, 16KX8, 90ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 16KX8, 200ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 16KX8, 250ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 16KX8, 120ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 16KX8, 120ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 16KX8, 250ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 16KX8, 150ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 16KX8, 200ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
length	13.97 mm	58 mm	37.1475 mm	37.1475 mm	37.1475 mm	13.97 mm	37.1475 mm	13.97 mm	13.97 mm	13.97 mm
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-20 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maker	AMD	-	AMD	AMD	-	-	AMD	AMD	AMD	AMD
Parts packaging code	QFJ	-	DIP	DIP	DIP	QFJ	DIP	QFJ	QFJ	QFJ
package instruction	WQCCN, LCC32,.45X.55	-	WDIP, DIP28,.6	WDIP, DIP28,.6	WDIP, DIP28,.6	WQCCN, LCC32,.45X.55	WDIP, DIP28,.6	WQCCN, LCC32,.45X.55	WQCCN, LCC32,.45X.55	WQCCN, LCC32,.45X.55
Contacts	32	-	28	28	28	32	28	32	32	32
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	90 ns	-	90 ns	200 ns	250 ns	120 ns	120 ns	250 ns	150 ns	200 ns
I/O type	COMMON	-	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-CQCC-N32	-	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-CQCC-N32	R-GDIP-T28	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0	e0
memory density	131072 bit	-	131072 bit	131072 bit	131072 bit	131072 bit	131072 bit	131072 bit	131072 bit	131072 bit
Memory IC Type	UVPROM	-	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
memory width	8	-	8	8	8	8	8	8	8	8
Number of functions	1	-	1	1	1	1	1	1	1	1
Number of terminals	32	-	28	28	28	32	28	32	32	32
word count	16384 words	-	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	-	16000	16000	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	16KX8	-	16KX8	16KX8	16KX8	16KX8	16KX8	16KX8	16KX8	16KX8
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN	-	WDIP	WDIP	WDIP	WQCCN	WDIP	WQCCN	WQCCN	WQCCN
Encapsulate equivalent code	LCC32,.45X.55	-	DIP28,.6	DIP28,.6	DIP28,.6	LCC32,.45X.55	DIP28,.6	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER, WINDOW	-	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Parallel/Serial	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	12.5 V	-	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	3.556 mm	-	5.588 mm	5.588 mm	5.588 mm	3.556 mm	5.588 mm	3.556 mm	3.556 mm	3.556 mm
Maximum standby current	0.0003 A	-	0.0003 A	0.0003 A	0.0003 A	0.0003 A	0.0003 A	0.0003 A	0.0003 A	0.0003 A
Maximum slew rate	0.07 mA	-	0.07 mA	0.025 mA	0.025 mA	0.06 mA	0.06 mA	0.025 mA	0.025 mA	0.025 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	-	NO	NO	NO	YES	NO	YES	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	-	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	NO LEAD	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	-	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD	QUAD	QUAD
width	11.43 mm	-	15.24 mm	15.24 mm	15.24 mm	11.43 mm	15.24 mm	11.43 mm	11.43 mm	11.43 mm
Base Number Matches	-	-	1	1	1	1	1	1	1	-
