T-1 (3mm) SUPER BRIGHT LED LAMPS
L-7104SGx SUPER BRIGHT GREEN
L-7104SRx SUPER BRIGHT RED
Features
!
ULTRA
!
BOTH
Description
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
BRIGHTNESS.
DIFFUSED AND WATER CLEAR LENS ARE
MATERIAL EFFICIENCY.
AVAILABLE.
!
OUTSTANDING
!
RELIABLE
!
IC
AND RUGGED.
COMPATIBLE/LOW CURRENT CAPABILITY.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0296
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 1 OF 4
Selection Guide
Par t No .
L-7104SGC
L-7104SGD
L-7104SRC-D
L-7104SRC-E
L-7104SRC-F
L-7104SRC-G
L-7104SRC-H
L-7104SRC-J
L-7104SRD-D
L-7104SRD-E
L-7104SRD-F
L-7104SRD-G
L-7104SRD-H
L-7104SRD-J
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Dic e
SUPER BRIGHT GREEN (GaP)
SUPER BRIGHT GREEN (GaP)
L en s Ty p e
WATER CLEAR
GREEN DIFFUSED
Iv (m c d )
@ 20 m A
Min .
80
20
500
700
10 0 0
1200
1400
1800
100
200
300
400
600
10 0 0
Ty p .
150
40
60 0
90 0
1100
1300
1700
230 0
15 0
25 0
35 0
50 0
90 0
12 0 0
V i ew i n g
An g l e
2θ1/2
3 4°
40 °
SUPER BRIGHT RED (GaAlAs)
WATER CLEAR
34°
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
40°
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
D ev i c e
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Ty p .
660
565
640
568
20
30
45
15
1.85
2.2
2.5
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
Super Bright R d
Spectral Line Halfwidth Super Bright Geeen
r
Capacitance
Forward Voltage
Reverse Current
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
All
SPEC NO: KDA0296
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 2 OF 4
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
S u p er B r i g h t R ed
10 0
30
15 5
5
Su p er B r ig h t Gr een
105
25
140
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
Super Bright Green L-7104SGC,L-7104SGD
SPEC NO: KDA0296
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 3 OF 4

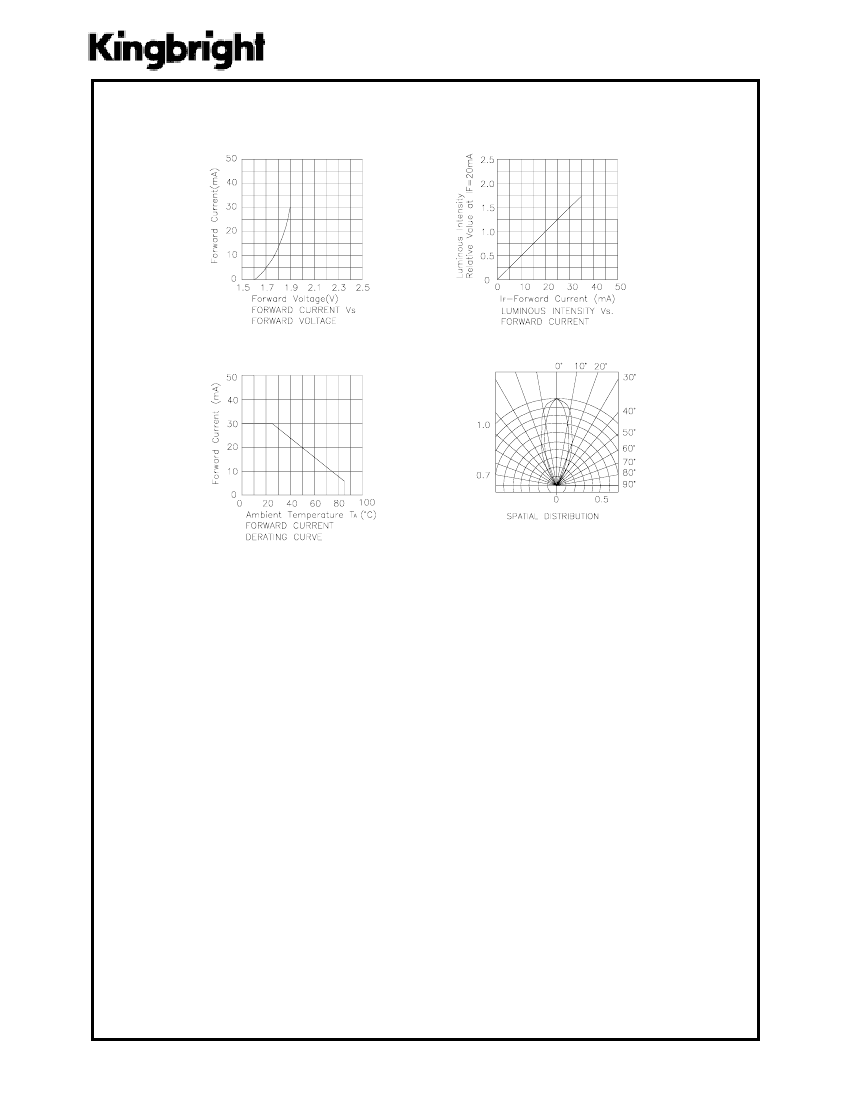

Super Bright Red L-7104SRC-x,L-7104SRD-x
SPEC NO: KDA0296
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 4 OF 4
