DBCPHC1536AT1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DBCPHC1536AT1

Preview

DBCPHC1536AT1: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCPHC1536AT1 Overview

Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

DBCPHC1536AT1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DUBILIER
Reach Compliance Code	unknown
body width	0.1 inch
subject depth	0.1 inch
body length	3.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C15
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

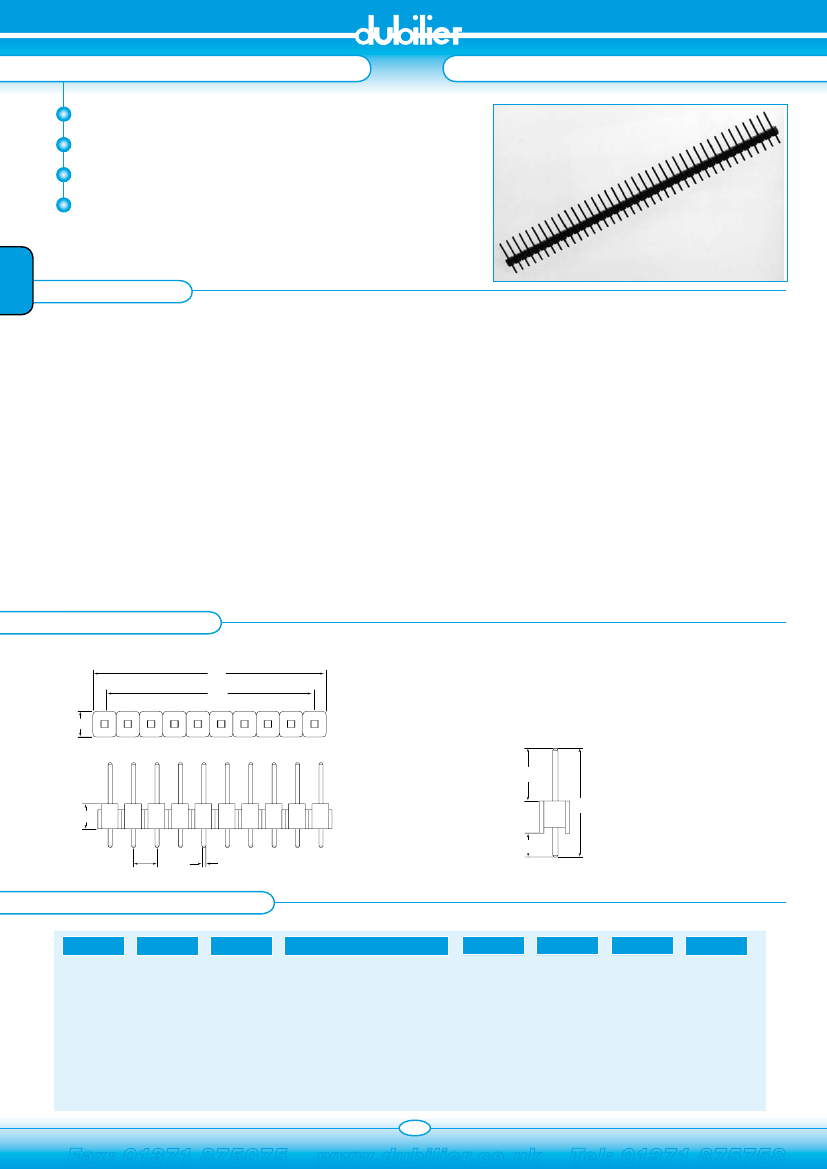

PIN HEADERS

Industry compatible

Competitively priced

Various plated contacts available

2.54mm pitch

SINGLE ROW STRAIGHT

SECTION 8

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL94V-0

1 A DC

30M Ω Max at 6V DC 0.3A

1000M Ω Min at 500V DC

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

Operating Temperature:

OUTLINE DRAWING

A

B

2.54 2.54

2.54

A

B

A

B

A = 2.54 x N° of Positions

B = (2.54 x N° of Positions)-1

E

6

E

F

3

F

G G

11.54

G

mm mm

E

2.54 2.54

2.54

F

mm

mm mm

G

mm

2.54 2.54 0.64 0.64

mm mm

F

ORDERING INFORMATION

2.54

0.64

DBC

Dubilier

Connectors

mm

For other dimension variations please consult office

PH

Pin Header

Connector

C15

Series

04

Nº of Ways

02=02way

Thro to

40=40way

A

Contact Material

A=Brass

G

Contact Plating

G= Gold Flash

S=Selective

T=Tin Plated

other plating

Available

1

Colour

1=Black

-XXX

Unique Special

Code

*See Below

*Dubilier will allocate a special code to

distinguish pin lengths if required

170

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
