ISM66-2659AH-156.250MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM66-2659AH-156.250MHZ

ISM66-2659AH-156.250MHZ: DescriptionLVPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size45KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ISM66-2659AH-156.250MHZ Overview

LVPECL Output Clock Oscillator,

ISM66-2659AH-156.250MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 13 INCH
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	14.3mm x 10.2mm x 6.0mm
longest rise time	0.6 ns
Maximum supply voltage	2.835 V
Minimum supply voltage	2.565 V
Nominal supply voltage	2.7 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

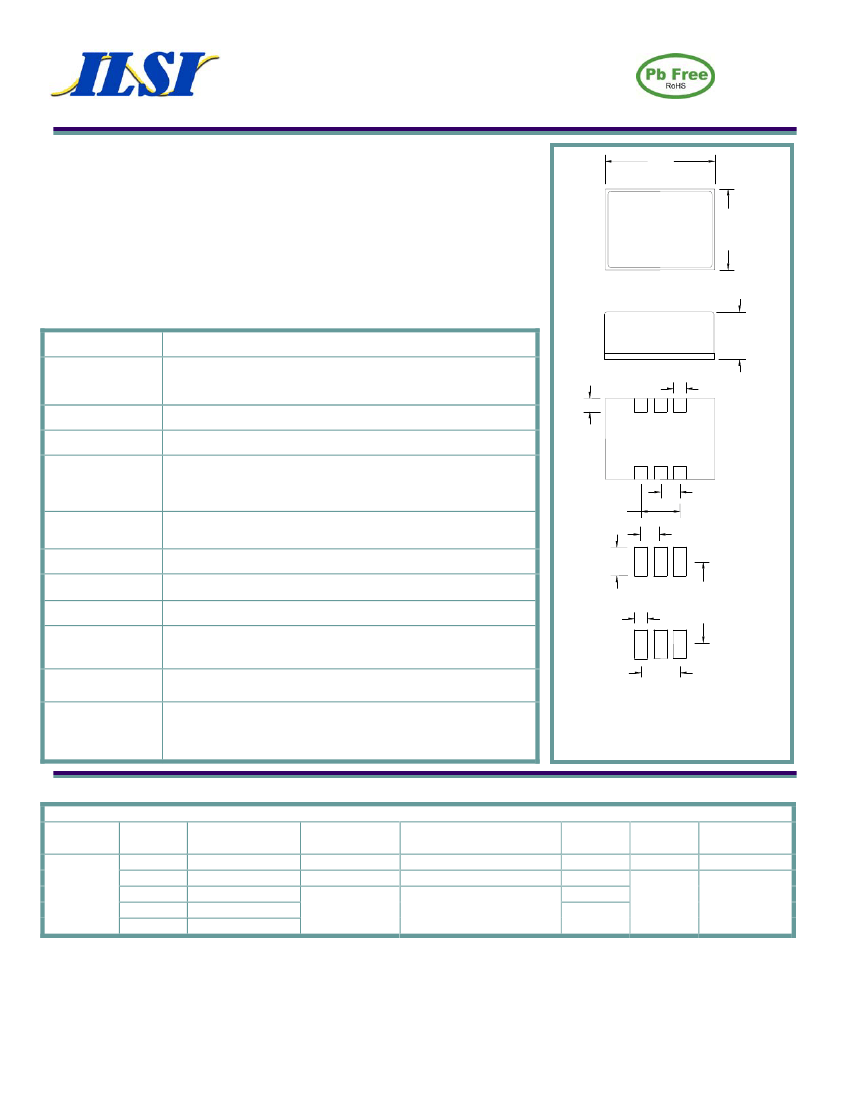

9 mm x 14 mm FR-4 Package SMD Oscillator, LVPECL / LVDS

ISM66 Series

14.3

Max.

Product Features:

Surface Mount Package

Reflow Compatible

Compatible with Leadfree Processing

Applications:

Test Equipment

Server & Storage

Sonet /SDH

10.2 Max.

Frequency

Output Level

LVDS

LVPECL

Duty Cycle

Rise / Fall Time

Output Load

LVDS

LVPECL

Frequency Stability

Start-up Time

Enable / Disable

Time

Supply Voltage

Current

50 MHz to 750.000 MHz

Vod = 393 mV Typ., 475 mV Max.

‘0’ = Vcc - 1.63 V Max.

‘1’ = Vcc - 1.02 V Min.

Specify 50% ±10% or ±5% See Table in Part Number Guide

6.0 Max.

1.7

0.6 nS Max.

100

Differential

to Vcc - 2.0 VDC

See Frequency Stability Table in Part Numbering Guide (Includes room

temperature tolerance and stability over operating temperature)

10 mS Max.

100 nS Max.

See Input Voltage Table, tolerance ±5 %

LVDS = 90 mA Max.,***

LVPECL = 130 mA Max.***

1.7

Bottom

View

2.54

5.08

2.54

2.4

1.7

10.0

Operating

Storage

See Operating Temperature Table in Part Number Guide

-55

C to +125

Pin Connection

N.C.

Enable

GND

5.08

Connection

Output

Comp. Output

Vcc

Dimension Units: mm

Part Number Guide

Package

Input

Voltage

3 = 3.3 V

7 = 3.0 V

ISM66 -

2 = 2.7 V

6 = 2.5 V

Sample Part Number:

Operating

Temperature

1 = 0° C to +70° C

6 = -10° C to +70° C

3 = -20° C to +70° C

4 = -30° C to +75° C

2 = -40° C to +85° C

ISM66 - 3159BH - 156.250

Output

8 = LVDS

9 = LVPECL

Symmetry

(Duty Cycle)

5 = 45 / 55 Max.

6 = 40 / 60 Max.

Stability

(in ppm)

**A =

±25

B =

±50

C =

±100

Enable /

Disable

H = Enable

Frequency

- 156.250 MHz

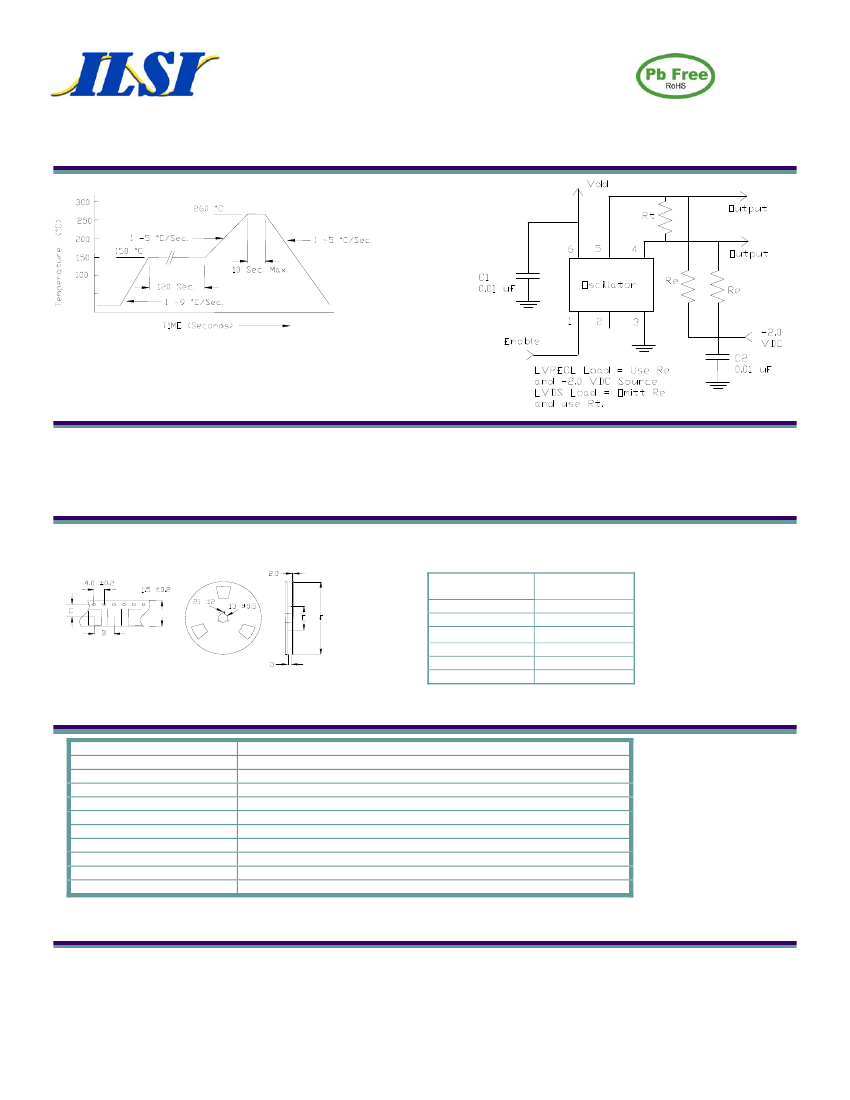

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 6) and GND (pin 3) to minimize power supply noise.

** Not available for all temperature ranges. *** Frequency, supply, and load related parameters.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

10/10

Specifications subject to change without notice

Page 1
