89057-201 datasheet, PDF - EEWORLD Datasheet

89057-201: DescriptionBoard Connector, 26 Contact(s), 4 Row(s), IDC Terminal; CategoryThe connector The connector; File Size153KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89057-201 Overview

Board Connector, 26 Contact(s), 4 Row(s), IDC Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (79) OVER NICKEL
Contact completed and terminated	TIN LEAD (157) OVER NICKEL
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	89057
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	4
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	26

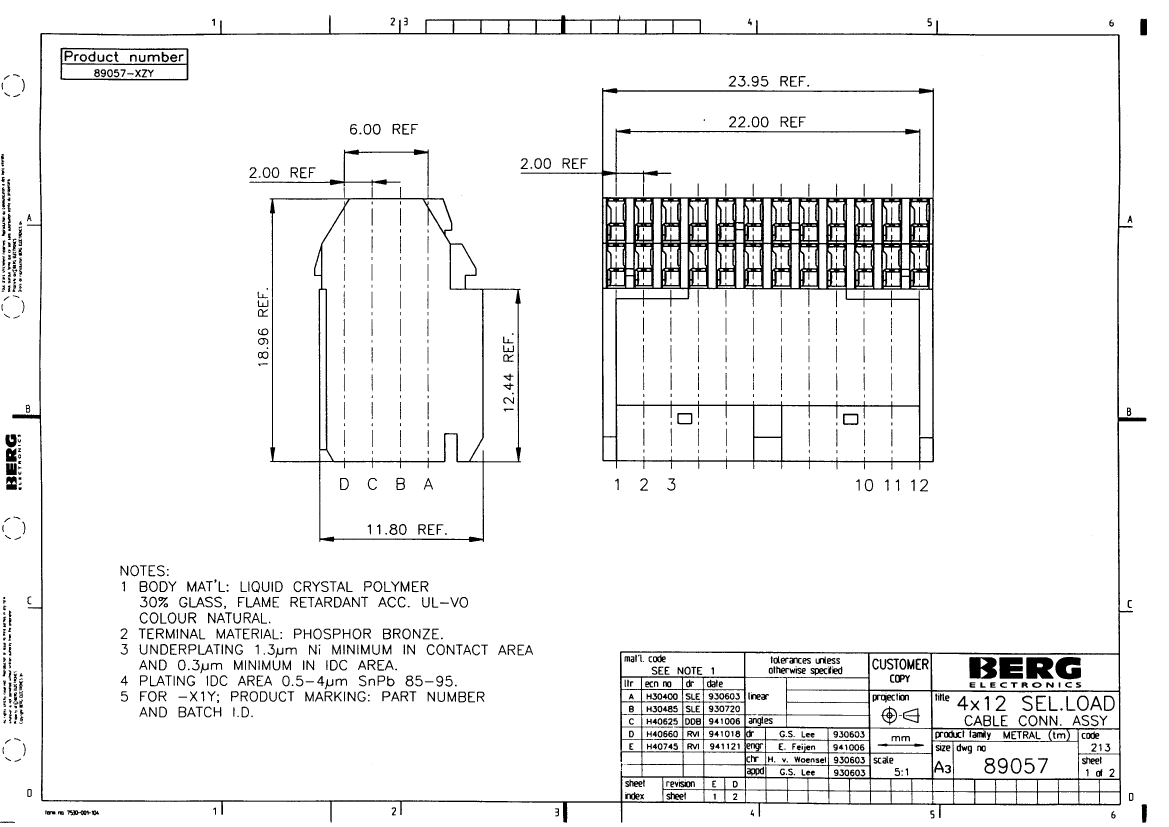

PDM: Rev:E

STATUS:

Released

Printed: Jul 29, 2010

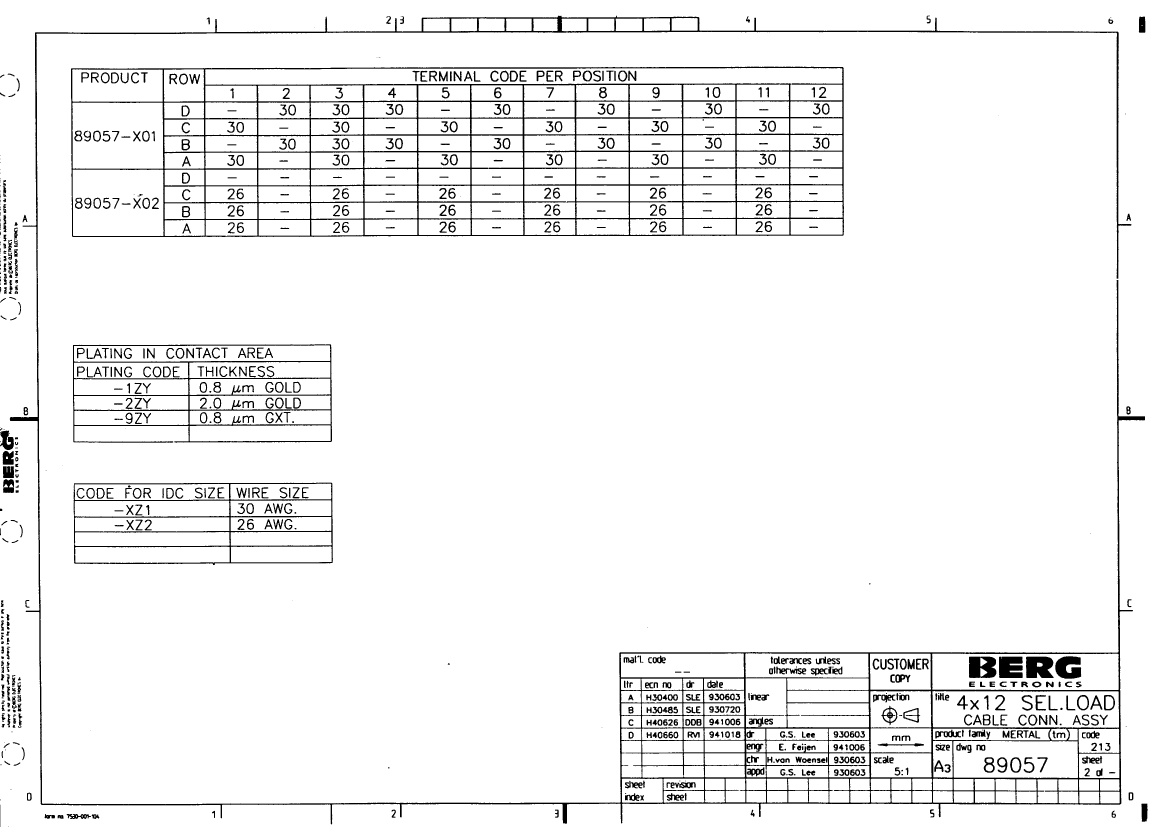

	89057-201	89057-102	89057-101	89057-902	89057-901	89057-202
Description	Board Connector, 26 Contact(s), 4 Row(s), IDC Terminal	Board Connector, 18 Contact(s), 4 Row(s), IDC Terminal	Board Connector, 26 Contact(s), 4 Row(s), IDC Terminal	Board Connector, 18 Contact(s), 4 Row(s), IDC Terminal	Board Connector, 26 Contact(s), 4 Row(s), IDC Terminal	Board Connector, 18 Contact(s), 4 Row(s), IDC Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (79) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD FLASH (31) OVER PALLADIUM NICKEL	GOLD FLASH (31) OVER PALLADIUM NICKEL	GOLD (79) OVER NICKEL
Contact completed and terminated	TIN LEAD (157) OVER NICKEL	TIN LEAD (157) OVER NICKEL	TIN LEAD (157) OVER NICKEL	TIN LEAD (157) OVER NICKEL	TIN LEAD (157) OVER NICKEL	TIN LEAD (157) OVER NICKEL
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	89057	89057	89057	89057	89057	89057
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	26	18	26	18	26	18
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol
Base Number Matches	-	1	1	1	1	-
