AZ954Y-1C-24DME datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ954Y-1C-24DME

AZ954Y-1C-24DME: DescriptionPower/Signal Relay, 1 Form C, SPDT, Latched, 40VDC (Coil), 360mW (Coil), 2A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size75KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ954Y-1C-24DME Overview

Power/Signal Relay, 1 Form C, SPDT, Latched, 40VDC (Coil), 360mW (Coil), 2A (Contact), 150VDC (Contact), DC Input, Random, AC/DC Output,

AZ954Y-1C-24DME Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10.75 mm
body height	11.81 mm
Body length or diameter	15.75 mm
Coil operating voltage (DC)	18 V
Coil power	360 mW
Coil resistance	1600 Ω
Maximum coil voltage (DC)	40 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	250VA@300VAC
Contact (AC) maximum rated R load	2A@300VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	30W@150VDC
Contact (DC) maximum rated R load	2A@150VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	300 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1250 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Number of terminals	6
operating hours	5 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB hole count	6
physical size	15.75mm x 10.75mm x 11.81mm
Guideline	CUR; UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	1 ms
seal	EPOXY
Terminal surface	Tin
Terminal length	0.0032 inch
Termination type	SOLDER
weight	3.5 g

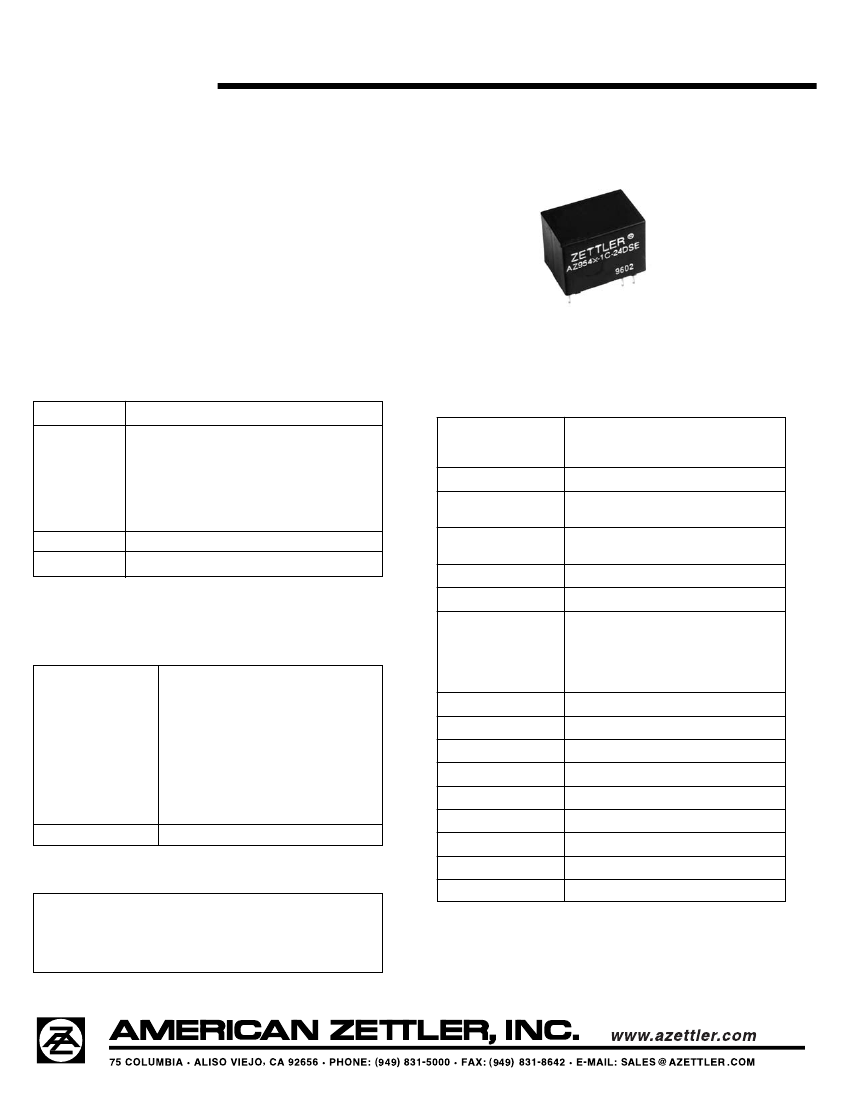

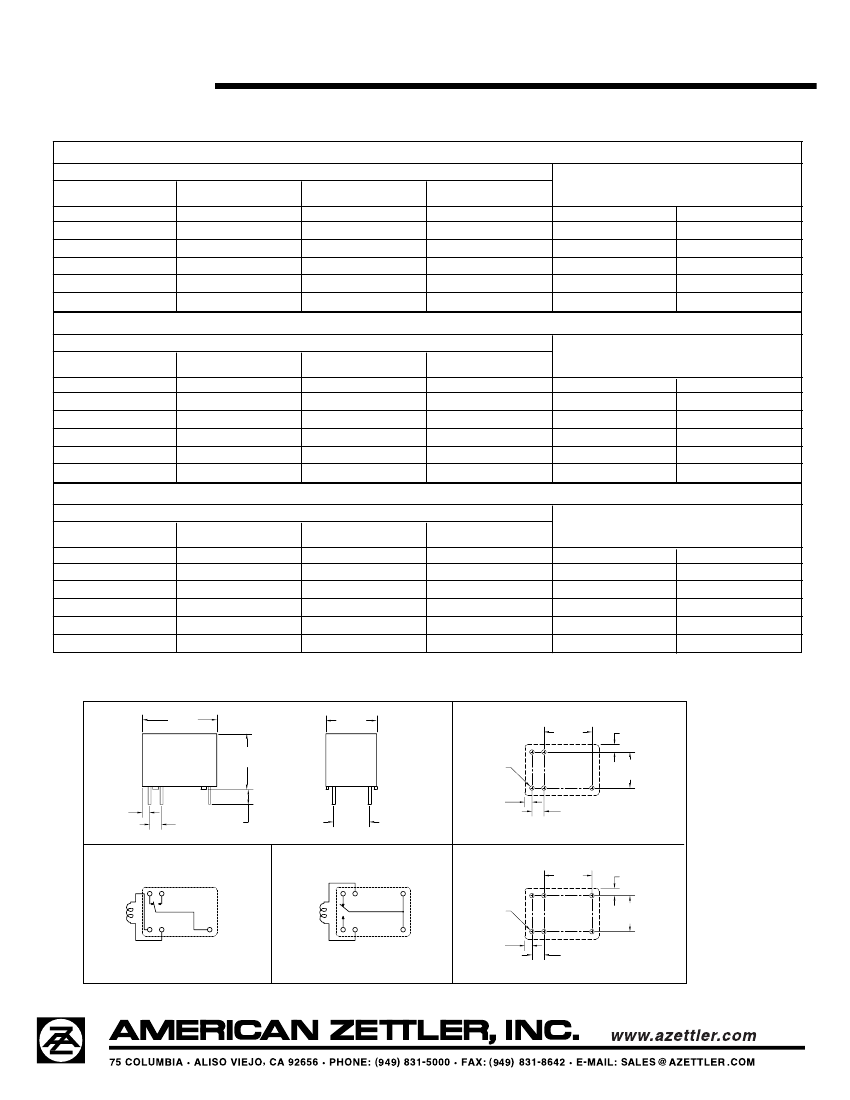

Preview

Download Datasheet

View All

AZ954

SUBMINIATURE

POWER RELAY

FEATURES

•

Subminiature size for high density packaging

Coil sensitivity to 114 mW

Extremely low cost

Coils to 24 VDC

Epoxy sealed versions available

2 Amp contacts

Class B insulation standard

Life expectancy to 10 million operations

UL, CUR file E43203

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 2 A 120 VAC Res.

5 ms at nominal coil voltage

1 ms at nominal coil voltage

(with no coil suppressions)

CONTACTS

Arrangement

Ratings

SPDT (1 Form C)

Resistive load:

Max. switched power: 30 W or 250 VA

Max. switched current: 2 A

Max. switched voltage: 150 VDC* or 300 VAC

UL Rating: 2 A at 125 VAC General Use

1 A at 240 VAC General Use

1 A at 30 VDC Resistive

Material

Resistance

Silver nickel, gold plated

< 100 milliohms initially

Insulation Resistance

Dropout

Ambient Temperature

Operating

100 megohms min. at 20°C, 500 VDC

Greater than 10% of nominal coil voltage

At nominal coil voltage

0.45W: -25°C (-13°F) to 75°C (167°F)

0.36W: -25°C (-13°F) to 85°C (185°F)

0.2W:

-25°C (-13°F) to 95°C (203°F)

-25°C (-13°F) to 130°C (266°F)

0.062" DA at 10–55Hz

15 g

P.B.T. polyester

Tinned copper alloy

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

3.5 grams

Dielectric Strength

1250 Vrms coil to contact

(at sea level for 1 min.)

750 Vrms between open contacts

COIL

Power

At Pickup Voltage

(typical)

Max Continuous

Dissipation

Temperature Rise

0.45 W coil: 253 mW

0.36 W coil: 203 mW

0.2 W coil: 114 mW

1.0 W at 20°C (68°F) ambient

At nominal coil voltage:

0.45W: 54°C (97°F)

0.36W: 44°C (79°F)

0.2W: 30°C (54°F)

130°C (266°F)

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Max. Temperature

NOTES

Weight

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Other coil resistances and sensitivities available upon request.

4. Specifications subject to change without notice.
