Type T495
Solid Tantalum Chip Capacitors
Low ESR, High Ripple Current, Solid Tantalum Chip Capacitors

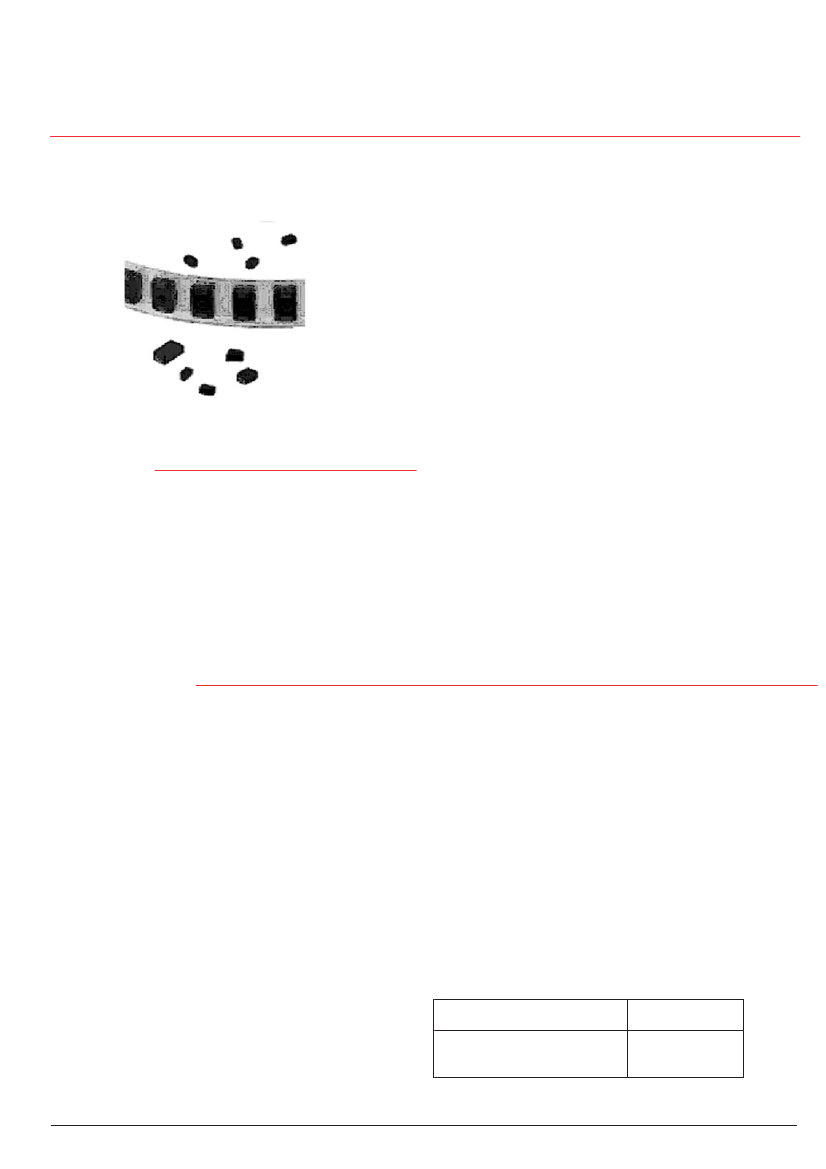

Like the T491 standard tantalum capacitors the Type T495’s
physical outline and dimensions conform to the global
standard for tantalum capacitor chips and exceed the
requirements for EIA standard 535BAAC, but performance
sets the T495 apart. The very low ESR, high ripple current
capability, capacitance stability, and ability to withstand high
inrush currents makes the T495 ideal for output filtering in
switch-mode power supplies and DC-DC converters and
in battery-stiffening filters. This capability is from unique
design and high-stress, low impedance electrical condition
ing. Reliability and thermal stability are assured by lead-
frame attachments to the tantalum pellet made by micropro
cessor-controlled welding and high temperature silver
epoxy adhesive. Standard packaging is compatible with all
tape-fed placement units and with EIA 481-1 tape and reel
specifications
Highlights
♦
♦
♦
♦
♦
♦
Designed for very low ESR
High ripple current capability
High surge current capability
Taped and reeled per EIA RS 481-1
Low ESL (<2.5 nH ESL)
High operating temperature +125 ºC
Specifications
Capacitance Range:
4.7 µF to 470 µF
Tolerance:
±10% standard, ±20% available
Voltage Range:
6 Vdc to 50 Vdc
Operating Temperature:
–55 ºC to +125 ºC (with proper derating)
Cap Change From Initial Limit:
–10% @ –55 ºC; +10% @ +85 ºC
+12% @ +125 ºC
DC Leakage:
At 25 ºC — See Ratings
At 85 ºC — 10 x 25 ºC Limit
At 125 ºC — 12 x 25 ºC Limit
Dissipation Factor:
0.1 µF to 1.0 µF — 4%
1.5 µF to 68 µF — 6%
100 µF to 220 µF — 8%
Standard Packaging Tape and Reel:
EIA RS-481-1
Case
Code
D
X
V
EIA
IECQ
7343
7343H
7343L
Qty per
7" Reel
500
500
2,500
Tape
Width
Pitch
12mm
8mm
12mm
8mm
8mm
4mm
13” Reels Available on Special Order
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830•
www.cde.com
Type T495
Solid Tantalum Chip Capacitors
Capacitor Outline Drawing
Cathode (–) End
View
W
H
K
X
S
T
G
S
R
P
Notch at
Supplier’s Option
Side View
B
B
Anode (+) End
View
Bottom View
A
E
F
L
Dimensions
EIA/
CDE
D
X
IECQ
7343-31
7343-43
L
7.3 ± 0.3
(.287 ± .012)
7.3 ± 0.3
(.287 ± .012)
W
4.3 ± 0.3
(.169 ± .012)
4.3 ± 0.3
(.169 ± .012)
H
2.8 ± 0.3
(.110 ± .012)
4.0 ± 0.3
(.157 ± .012)
K
1.5 ± 0.2
(.059 ± .008)
2.3 ± 0.2
(.091 ± .008)
F
2.4 ± 0.1
(.094 ± .004)
2.4 ± 0.1
(.094 ± .004)
S
1.3 ± 0.3
(.051 ± .012)
1.3 ± 0.3
(.051 ± .012)
Millimeters (Inches)
B
(Ref)
0.5 ± 0.15
0.5 ± 0.15
X
(Ref)
0.10 ± 0.10
0.10 ± 0.10
P
(Ref)
0.9
1.7
R
(Ref)
1
1
T
(Ref)
0.13
(0.005)
0.13
(0.005)
A
(Min)
3.8
3.8
G
(Ref)
3.5
3.5**
E
(Ref)
3.5
(0.138)
3.5**
(0.138)
(.020 ± .006) (.004 ± .004)
(.020 ± .006) (.004 ± .004)
(0.035) (0.039)
(0.067) (0.039)
(0.150) (0.138)
(0.150) (0.138)
Notes:
1 Metric dimensions gover
2 (Ref) - Dimensions provided for reference onl
** Round Glue Pad 2.9 ±0.1mm (.114 ±.004) in diameter at Supplier's option
Low Profile Capacitor Dimensions
EIA/
CDE
V
IECQ
7343-20
L
7.3 ±0.3
W
4.3 ±0.3
HMax.
2.0
(0.079)
K Min.
1.1
(0.043)
F ±0.1
2.4
(0.094)
S ±0.3
1.3
(0.051)
X
(Ref)
0.05
(0.002)
T
(Ref)
0.13
(0.005)
Millimeters (Inches)
A
(Min)
3.8
(.150)
G
(Ref)
3.5
(0.138)
E
(Ref)
3.5
(0.138)
(.287 ±0.012) (.169 ±0.012)
Notes:
1 Metric dimensions gover
2 (Ref) - Dimensions provided for reference onl
3 No dimensions provided for B, P or R because low profile cases do not have a bevel or notch
Part Numbering System
T495
Se rie s
T495
D
Ca se
D
X
V
685
Ca pa cita nce
685
= 6.8 µF
226
= 22 µF
227
= 220 µF
K
Tole ra nce
K
= ±10%
M
= ±20%
035
Volta ge
006
= 6 Vdc
035
= 35 Vdc
A
Fa ilure Ra te
Le ve l
A
= Not Applicable
S
Te rmina tion
Pla ting
S
= Tin-Lead (Sn/Pb)
T
= 100% Matte Tin
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830•
www.cde.com
