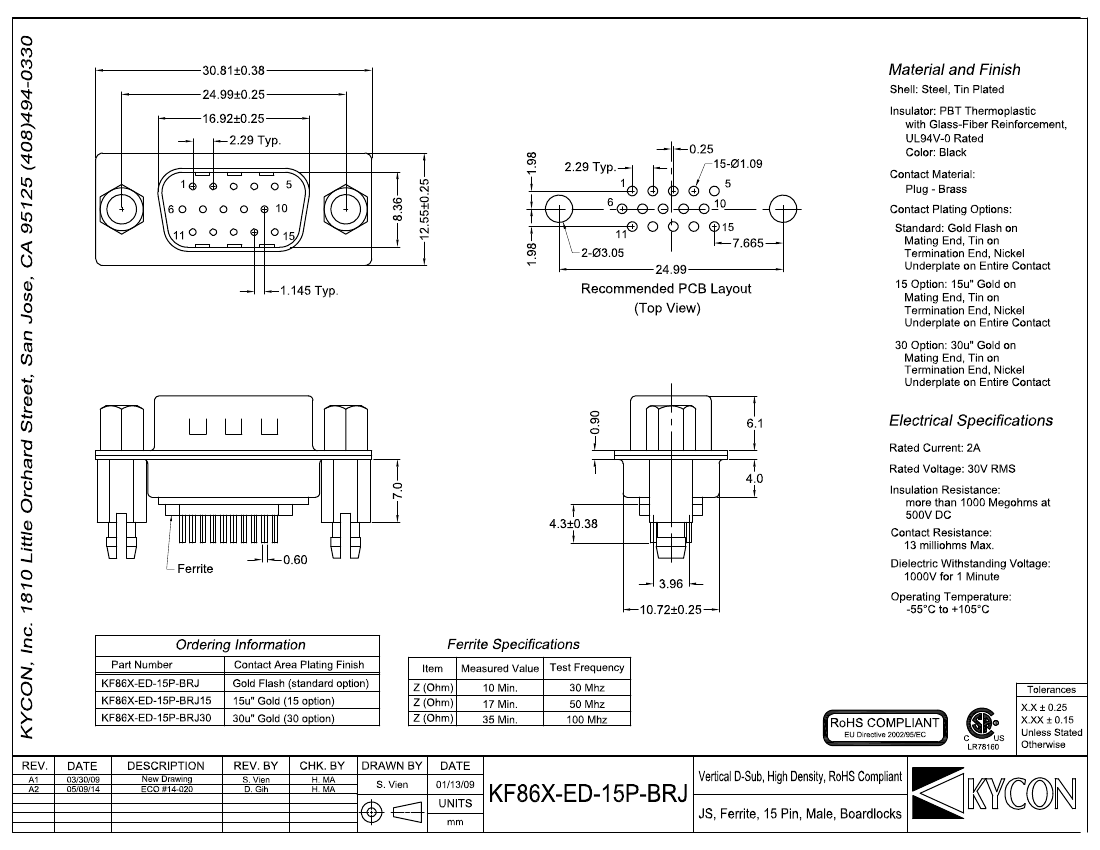

KF86X-ED-15P-BRJ15 datasheet, PDF

KF86X-ED-15P-BRJ15: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Plug, HIGH DENSITY D-SUBNIMIATURE CONNETOR; CategoryThe connector The connector; File Size248KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KF86X-ED-15P-BRJ15 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Plug, HIGH DENSITY D-SUBNIMIATURE CONNETOR

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	HIGH DENSITY D-SUBNIMIATURE CONNETOR
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
