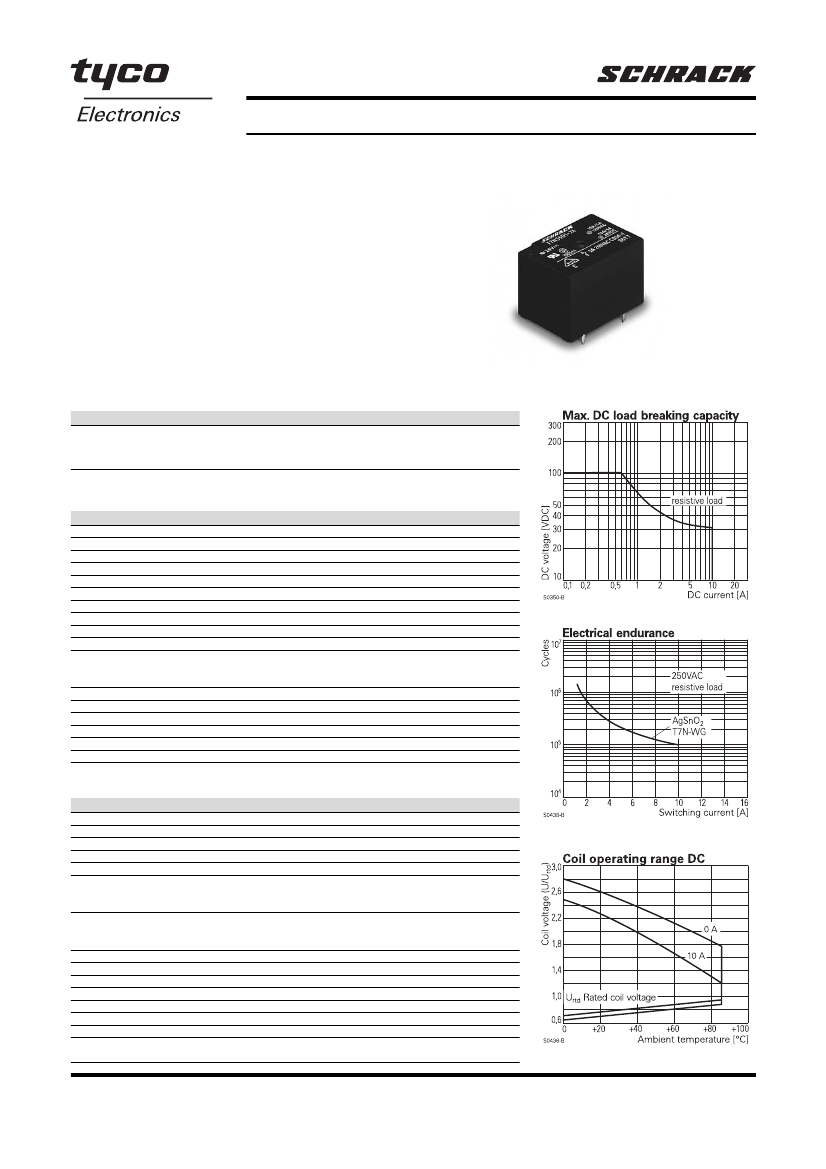

General Purpose Relays
Miniature Power PCB Relay T7N / T7N-WG
I
I
I
I
1pole 10 A, 1CO or 1NO contact
Version T7N-WG with tracking resistance CTI 325
WG version: Product in accordance to IEC60335-1
RoHS compliant (Directive 2002/95/EC)
as per product date code 0424
Applications
Domestic appliances, heating control, building control,
measurement&control
F0189-B
Approvals
V
REG.-Nr. 6175,
Z
E214025;
T7N-WG:
V
REG.-Nr. 119012,
Z
E214025
T7N:
Technical data of approved types on request
Contact data
T7N
T7N-WG
1 CO or 1 NO
single contact
micro-disconn.
10 A
240/400 VAC
2500 va
35 A
AgSnO
2
10x10
6
cycles
30/300 min
-1
Contact configuration
1 CO or 1 NO
Contact set
single contact
Type of interruption
micro-disconn.
Rated current
10 A
Rated voltage / max.switching voltage AC
240/400 VAC
Maximum breaking capacity AC
2500 VA
Limiting making capacity, max 4 s, duty factor 10% 35 A
Contact material
AgSnO
2
/ AgCdO
Mechanical endurance
10x10
6
cycles
Rated frequency of operation with / without load 30/300 min
-1
Contact ratings
Type
Load
T7N-WG CO (NO tested): 10 A, 250 V, 85 °C, resistive, EN61810-1
T7N-WG CO (NC tested),: 6 A, 250 V, 85 °C, resistive, EN61810-1
T7N (AgSnO
2
): 10 A, 250 V, 85 °C, resistive, EN61810-1
T7N (AgSnO
2
): 5 A, 250 V, 85 °C, resistive, EN61810-1
T7N (AgCdO): 5 A, 250 V, 85 °C, resistive, EN61810-1
Cycles
100x10
3
50x10
3
10x10
3
100x10
3
100x10
3
Coil data
Rated coil voltage range DC coil
Coil power DC coil
Operative range
Non-release voltage, % of rated coil voltage
Coil insulation system according UL1446
T7N
3...48 VDC
typ. 360 mW
2
50%
class F
T7N-WG
5...48 VDC
typ. 360 mW
2
50%
class F
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
05
5
3.5
0.5
70+10%
357
06
6
4.2
0.6
100+10%
360
09
9
6.3
0.9
225+10%
360
12
12
8.4
1.2
400+10%
360
24
24
16.8
2.4
1600+10%
360
36
36
25.2
3.6
3600+10%
360
48
48
33.6
4.8
6400+10%
360
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Miniature Power PCB Relay T7N / T7N-WG
(Continued)
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
T7N
2500 V
rms
1000 V
rms
W
2/3 mm
IIIa
CTI 225
basic
functional
250 V
2
240 V
II
T7N-WG
2500 V
rms
1000 V
rms
W
2,5 / 3,5 mm
IIIa
CTI 325
basic
functional
250 V
2
240 V
II
PCB layout / terminal assignment
Bottom view on solder pins
S0260-AA
Other data
T7N
T7N-WG
RoHS - Directive 2002/95/EC
compliant as per product date code 0424
Flammability class according to UL94
V0
V0
For WG version: GWFI to IEC 60695-2-12
-
850°C
GWIT to IEC 60695-2-13
-
775°C
Ambient temperature range
-40...85°C
-40...85°C
Operate- / release time
typ. 10/5 ms
typ. 10/5 ms
Vibration resistance (function) NO / NC contact
>14 / 8 g, 30...400 Hz
Shock resistance (destruction)
100 g
100 g
Category of protection
RTIII - wash tight
RTII - flux proof
(RTII - flux proof)
RTIII - wash tight
Mounting
PCB
PCB
Resistance to soldering heat flux-proof version
270°C / 10 s
270°C / 10 s
wash-tight version
260°C
/
5 s
260°C / 5 s
Relay weight
11 g
11 g
Packaging unit
25/1000 pcs
25/1000 pcs
S0260-AB
S0260-AC
Dimensions
S0349-A
Product key
T 7 N
Type
Version
S
wash tight
V
flux proof
Contact configuration
1
1 NO contact
5
1 CO contact
Coil version
H
DC coil 450 mW
D
DC coil 360 mW
Contact material
1
AgCdO
4
AgSnO
2
Coil
Coil code: please refer to coil versions table
Version
Blank
T7N standard version, CTI 225
WG
CTI 325 version, product in accordance with IEC 60335-1
WG-A
CTI 325 for relay base only
Other types on request
2
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Miniature Power PCB Relay T7N / T7N-WG
(Continued)
Product key
T7NS1D4-05
T7NS1D4-06
T7NS1D4-09
T7NS1D4-12
T7NS1D4-24
T7NS1D4-36
T7NS1D4-48
T7NS5D4-05
T7NS5D4-06
T7NS5D4-09
T7NS5D4-12
T7NS5D4-24
T7NS5D4-36
T7NS5D4-48
T7NV1D4-05-WG
T7NV1D4-06-WG
T7NV1D4-09-WG
T7NV1D4-12-WG
T7NV1D4-24-WG
T7NV1D4-36-WG
T7NV1D4-48-WG
T7NV5D4-05-WG
T7NV5D4-06-WG
T7NV5D4-09-WG
T7NV5D4-12-WG
T7NV5D4-24-WG
T7NV5D4-36-WG
T7NV5D4-48-WG
T7NV1D4-05-WG-A
T7NV1D4-06-WG-A
T7NV1D4-09-WG-A
T7NV1D4-12-WG-A
T7NV1D4-24-WG-A
T7NV1D4-36-WG-A
T7NV1D4-48-WG-A
T7NV5D4-05-WG-A
T7NV5D4-06-WG-A
T7NV5D4-09-WG-A
T7NV5D4-12-WG-A
T7NV5D4-24-WG-A
T7NV5D4-36-WG-A
T7NV5D4-48-WG-A
Version
wash tight
CTI 225
Cont. material
AgSnO
2
Cont.configuration
1 NO contact
1 CO contact
flux proof
CTI 325
according
IEC 60335-1
1 NO contact
1 CO contact
flux proof
relay base
CTI 325
1 NO contact
1 CO contact
Coil
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
36 VDC
48 VDC
Part number
6-1440006-9
7-1440006-0
7-1440006-1
7-1440006-2
7-1440006-4
7-1440006-5
7-1440006-6
5-1440005-2
6-1440006-1
6-1440006-2
6-1440006-3
6-1440006-5
6-1440006-6
6-1440006-7
0-1649336-8
0-1649336-9
1-1649336-0
1-1649336-1
1-1649336-2
1-1649336-3
1-1649336-4
0-1649305-8
0-1649305-9
1-1649305-0
1-1649305-1
1-1649305-2
1-1649305-3
1-1649305-4
2-1649280-0
2-1649280-1
2-1649280-2
2-1649280-3
2-1649280-4
2-1649280-5
2-1649280-6
1-1649324-0
1-1649324-1
1-1649324-2
1-1649324-3
1-1649324-4
1-1649324-5
1-1649324-6
3
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
