LN1005-R-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LN1005-R-A

Preview

LN1005-R-A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 12.7mm; CategoryLED optoelectronic/LED photoelectric; File Size16KB，1 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

LN1005-R-A Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm

LN1005-R-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Reach Compliance Code	compliant
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	12.7 mm
Number of functions	1
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

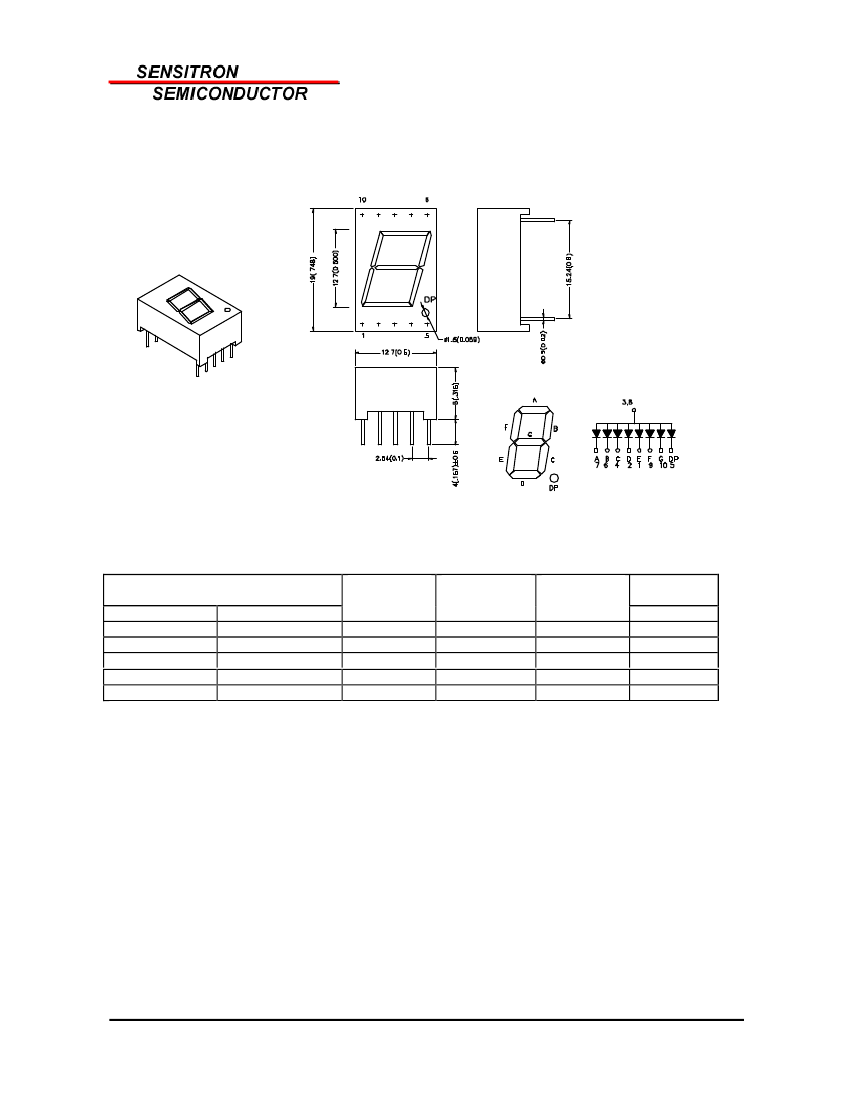

Numerical display

0.5”, single digit

LN1005

Notes: All dimensions are in mm (inch)

Tolerance is

±

0.25 mm (0.01”) unless otherwise specified

Electro-optical Characteristic: (T

a

=25

°C)

Part No.

Common Anode

LN1005-R-A

LN1005-RE-A

LN1005-G-A

LN1005-YE-A

LN1005-RS-A

Common Cathode

LN1005-R-C

LN1005-RE-C

LN1005-G-C

LN1005-YE-C

LN1005-RS-C

Chip

Material

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAIAs

Emitting

Color

Red

Green

Yellow

Red

Wavelength

(nm)

700

635

565

585

660

Iv (µcd)

@10mA

Typical

650

2000

1600

21000

Features

•

0.5 inch digit height

Uniformly illuminated segments

Low power requirement

Wide viewing angle

IC compatible

Easy mounting on PCB or socket

Different sizes and number of digit are availble

Description

Devices have choice of gray and black face to contrast with white segments.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone: (631) 586-7600

•

Fax: (631) 242-9798

•

http://www.sensitron.com

•

E-Mail: sales@sensitron.com

LN1005-R-A Related Products

	LN1005-R-A	LN1005-RS-C	LN1005-G-C	LN1005-R-C	LN1005-RE-A	LN1005-YE-A	LN1005-RE-C	LN1005-G-A	LN1005-YE-C
Description	Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Green, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Red, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Green, 12.7mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 12.7mm
Is it lead-free?	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	RED	RED	GREEN	RED	RED	YELLOW	RED	GREEN	YELLOW
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Number of functions	1	1	1	1	1	1	1	1	1
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	SENSITRON	-	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON
Base Number Matches	-	1	1	1	1	1	-	-	-
