Tachometer electronic
Ratio display, 2 limits, analogue output
Large 14 mm display LED, 6-digits, programmable

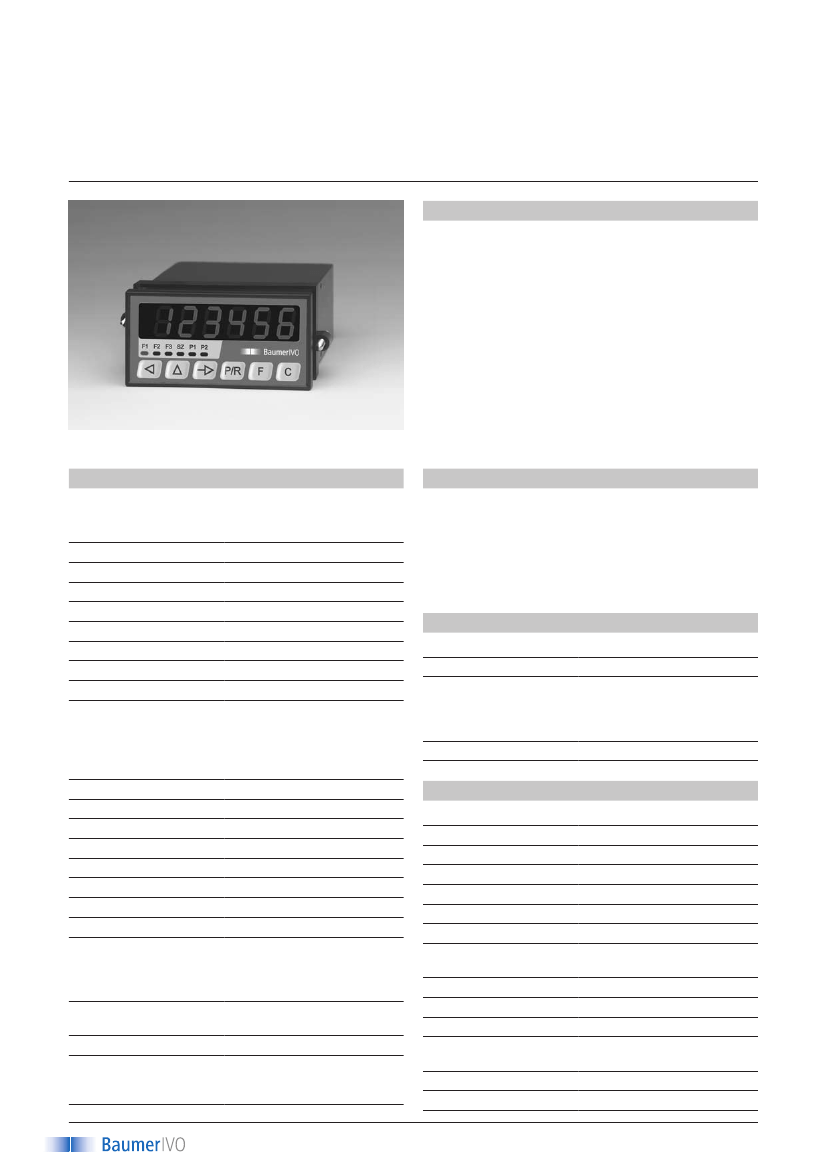

TA202
Features
– Tachometer for 2 rotation speeds/velocities
– Display 6-digits
– Connection: Two one-channel digital sensors or
potential-free contact
– Two limits
– Ratio display, peak value memory
– Impulse evaluation programmable
– Input F1 with phase evaluation
– Interface RS232, RS422 or RS485
TA202 - LED-Tachometer
Technical data - electrical ratings
Voltage supply
115/230 VAC ±10 % (50/60 Hz)
24/48 VAC ±10 % (50/60 Hz)
24 VDC ±10 %
7 VA, 5 W
12...26 VDC / max. 100 mA
LED, 7-segment display
6-digits
14 mm
1/s, 1/min, 1/h programmable
Tachometer, ratio display
Period duration measurement
Difference F1-F2
Ratio F1:F2
Stretch-/shrinking (F2-F1):F1
Flow
Pulse rate measurement
Comparator inputs
NPN / PNP
2 Inputs
Start, Stop
F1: 10 kHz / F2: 25 Hz, 40 kHz
0.0001...9999.99
>10 years in EEPROM
Optocoupler
2 analogue outputs
0(2)...10 V, 0(4)...20 mA
Resolution 12 bit
Temp. coeffic. typ. ±20 ppm/°C
Potential-free change-over
contact
RS232, RS422, RS485
Protection class II
Overvoltage category II
Pollution degree 2
Description
Two limits „P1“/„P2“ that can be assigned at will enable
monitoring of production processes. Two tachos to capture
and display rotation speed and velocity as “F1” and “F2”.
“F3” allows recall and display of a programmed calculating
function, for example ratio, difference, stretching/shrinking,
flow, time elapsed with start and stop signal, impulse rate
measurement, period or impulse duration.
Technical data - electrical ratings
Emitted interference
Interference immunity
Programmable
parameters
DIN EN 61000-6-3
DIN EN 61000-6-2
Assignment F1, F2 or F3
Calculating functions
2 limits, analogue output
Slave pointer
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
Power consumption
Sensor supply
Display
Number of digits
Digit height
Unit displayed
Function
Measuring principle
Calculating functions
Approvals
UL/cUL, CE conform
Signal inputs
Input logic
Control inputs
Control functions
Counting frequency
Scaling factor
Data memory
Outputs electronic
Analogue output
Technical data - mechanical design
Operating temperature
Storing temperature
Relative humidity
E-connection
Core cross-section
Protection DIN EN 60529
Operation / keypad
Housing type
Dimensions W x H x L
Cutout dimensions
Installation depth
Mounting
Weight approx.
Material
1
0...+50 °C
-20...+70 °C
80 % non-condensing
Plug-in screw terminals
1.5 mm²
IP 65 face with seal
Membrane with softkeys
Housing for control panel
installation
96 x 48 x 124 mm
97 x 45 mm (+0.6)
123.75 mm
Front panel installation by clip
frame
350 g (AC), 250 g (DC)
Housing: Makrolon 6485 (PC)
www.baumerivo.com
Outputs relay
Interfaces
Standard
DIN EN 61010-1
Ratio display, 2 limits, analogue output
Large 14 mm display LED, 6-digits, programmable
Tachometer electronic
TA202
Connection diagram
30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
(-)
(+)
RxD+
RU
RI
2
Limit value
max. 250 V
terminal - terminal /
- terminal
1
TxD+
RxD-
TxD-
Br.
F1 A
F1 B
TxD
F2
Start
Supply voltage
Block circuit diagram
Voltage
supply
-
+
Sensor
supply
-
+
2
3
6
7
8
A 90° B
Measuring value F1
Measuring value F2
4
5
RS422
GND
RxD
RS232
15 14 13 12 11 10
T,R+
9
8
7
6
F1 A
5
4
3
2
1
Measuring value F3
Ratio F1 : F2
Difference F1 – F2
Stretching
Shrinking
Run time (measuring
value 1 not active)
Stop
9
Time (measuring
value 2 not active)
Limit 1
20
21
Measuring value
Limit 2
F1 / F2 / F3
T,R-
14
Interface
RS485
22
23
24
25
10
11
12
13
Output
P1
P2
F2
Start
F1 B
2
1
Limit value
+24V
T,R-
Stop
RS485
Signal
Sensor
supply
0V
P1
P2
T,R+ 15
TxD+ 16
TxD- 17
RxD+ 18
RxD- 19
TxD
RxD
16
18
Interface
RS422
Interface
RS232
Measuring value
Analog output
F1 / F2 / F3
GND 19
27 Analog
output
28
0(2)-10 V
29 0(4)-20 mA
30
Trigger level
Comparator inputs
Inputs
Input level
Input level Low
Input level High
Input resistance
Relay outputs
Switching voltage max.
Switching current max.
Switching capacity max.
Relay responding time
Electronical outputs
Switching voltage max.
Switching current max.
Residual voltage
Input circuit
PNP- / NPN-logic
Programmable
3...40 VDC
3 kΩ
Output circuit
250 VAC / 110 VDC
1A
150 VA / 30 W
5 ms
Output circuit
Optocoupler short-circuit proof
40 V
15 mA
<1 V
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
0...2 VDC
2
www.baumerivo.com
Tachometer electronic
Ratio display, 2 limits, analogue output
Large 14 mm display LED, 6-digits, programmable
TA202
Part number
TA202.
AXA1
Voltage supply
1 24 / 48 VAC
2 115 / 230 VAC
3
24 VDC
Outputs
0
Optocoupler outputs
1
Relay and optocoupler outputs
2
Relay and optocoupler outputs /
analogue output
0
1
2
3
Dimensions
96
123.75
7
Interface
Without interface
RS485
RS422
RS232
48
109
19.75
1-10
3
www.baumerivo.com
30/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
