LM138K/883 datasheet, PDF - EEWORLD Datasheet

LM138K/883: DescriptionIC VREG 1.2 V-32 V ADJUSTABLE POSITIVE REGULATOR, MBFM2, METAL, TO-3, 2 PIN, Adjustable Positive Single Output Standard Regulator; CategoryPower/power management The power supply circuit; File Size82KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

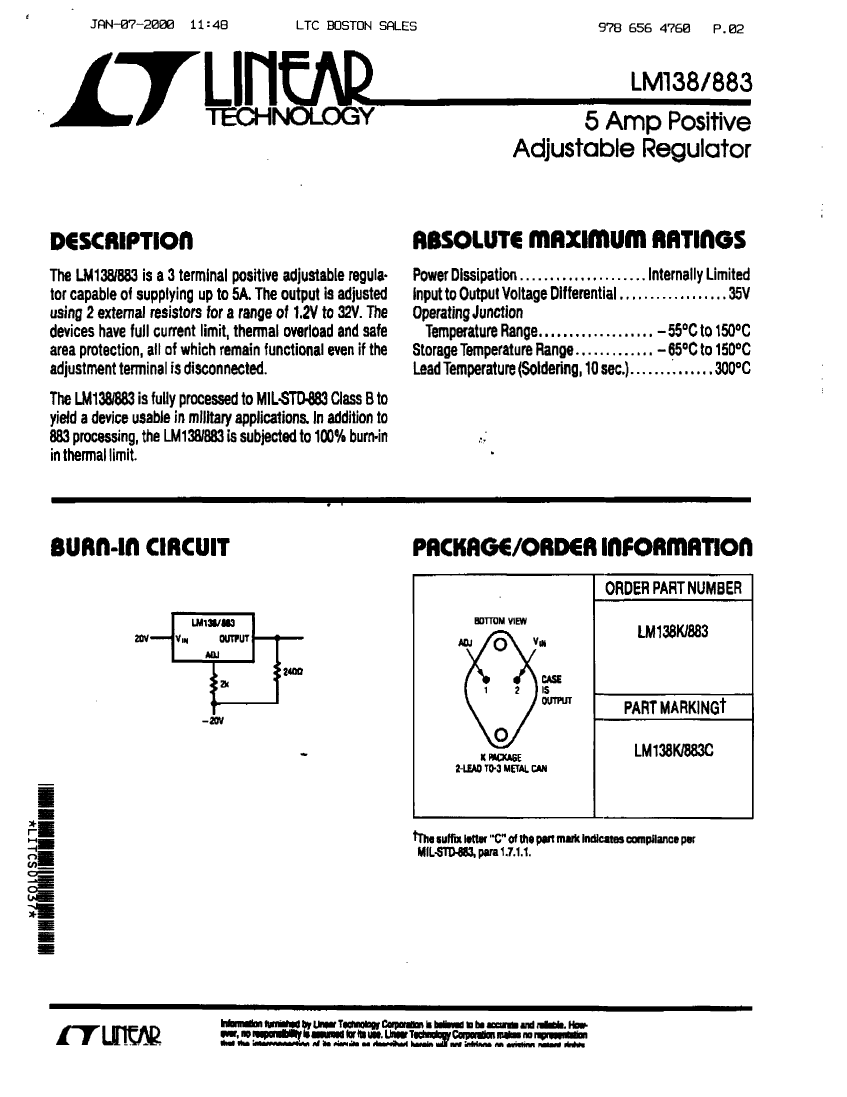

LM138K/883 Overview

IC VREG 1.2 V-32 V ADJUSTABLE POSITIVE REGULATOR, MBFM2, METAL, TO-3, 2 PIN, Adjustable Positive Single Output Standard Regulator

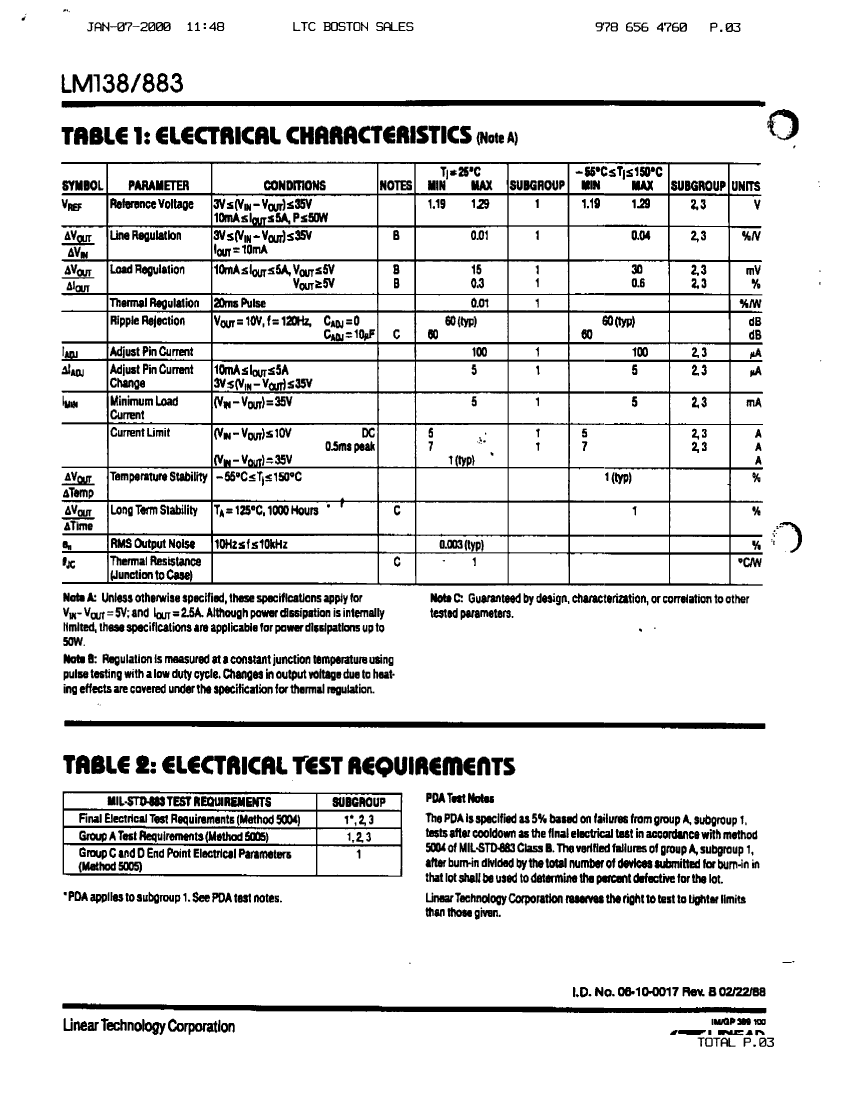

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	TO-204AA
package instruction	, TO-204/-3
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	ADJUSTABLE
Nominal dropback voltage 1	3 V
Maximum Differential Input-Output Voltage	35 V
Minimum Differential Input-Output Voltage	3 V
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Maximum grid regulation rate (%/V)	0.04
Maximum load regulation (%)	0.6%
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	5 A
Maximum output voltage 1	32 V
Minimum output voltage 1	1.2 V
Package body material	METAL
Encapsulate equivalent code	TO-204/-3
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
