LM-1256LB: Description16 X 16 Dot Matrix LED Display, 1-Character, Red, 31.6mm; CategoryLED optoelectronic/LED photoelectric; File Size110KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LM-1256LB Overview

16 X 16 Dot Matrix LED Display, 1-Character, Red, 31.6mm

LM-1256LB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	compliant
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, 1 DIGIT
Display height	31.6 mm
Maximum forward current	0.015 A
JESD-609 code	e1
Number of characters	1
Number of functions	1
Maximum operating temperature	50 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	16 X 16 DOT MATRIX LED DISPLAY
peak wavelength	660 nm
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

LED displays

16

16 matrix displays

FExternal

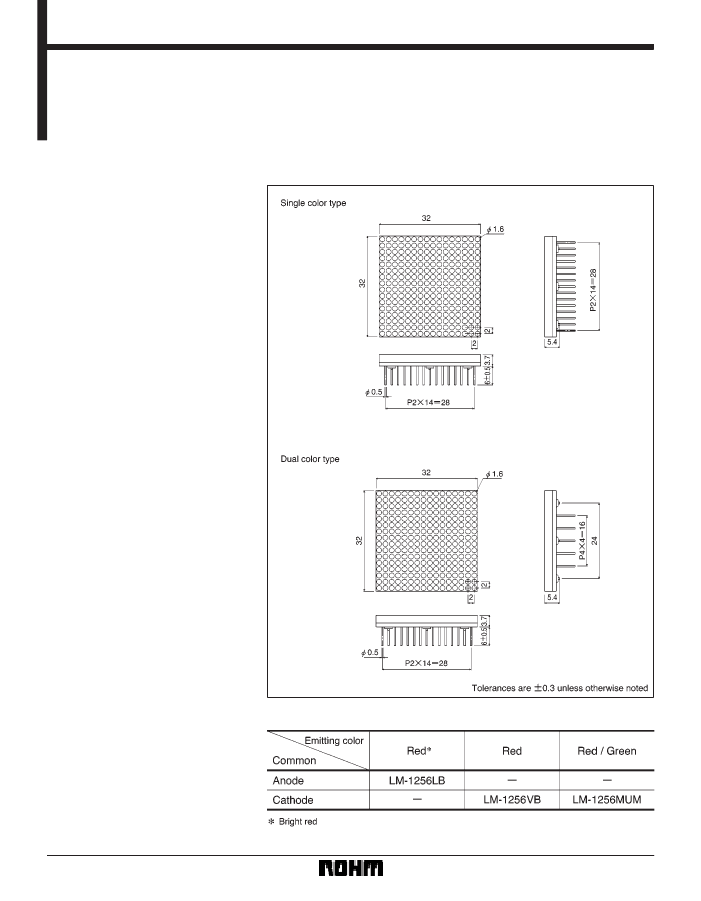

dimensions (Units: mm)

LM-1256 Series

The LM-1256 series are 16 16 matrix

displays which can be used in a wide

variety of applications, including alpha-

bet, numeric, symbol, and graphic dis-

plays. Bright red and red are available,

as well as a dual-color red / green type.

FApplications

Light sources for displays

FFeatures

1) 16

16 dot matrix

Circular emitters.

2) External dimensions: 32

32

5.4 mm

3) Emitters: Circular, 1.6 mm diameter

4) Black package.

FSelection

guide

247

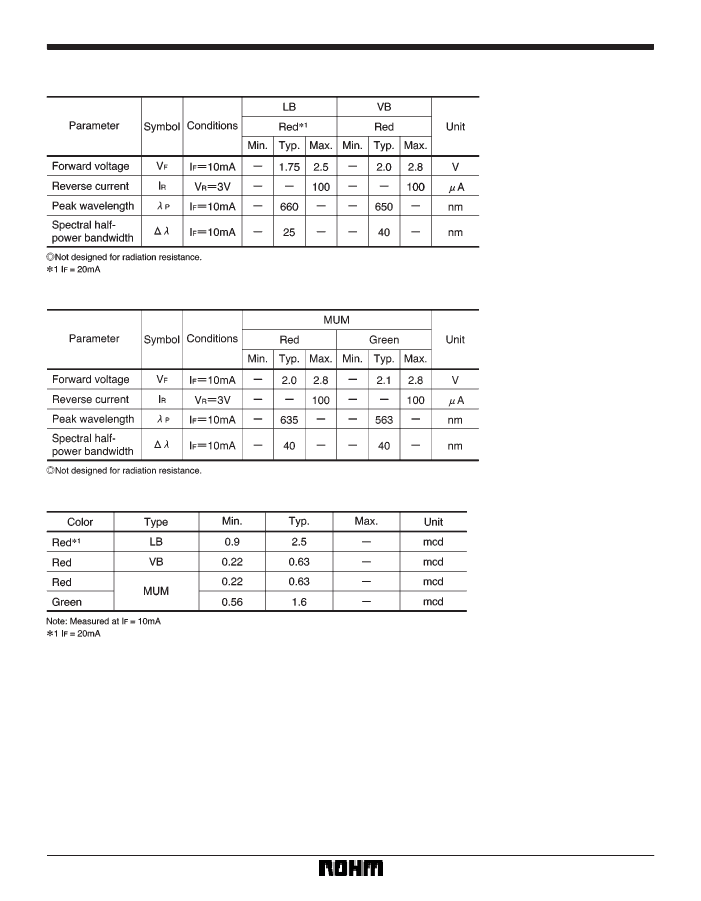

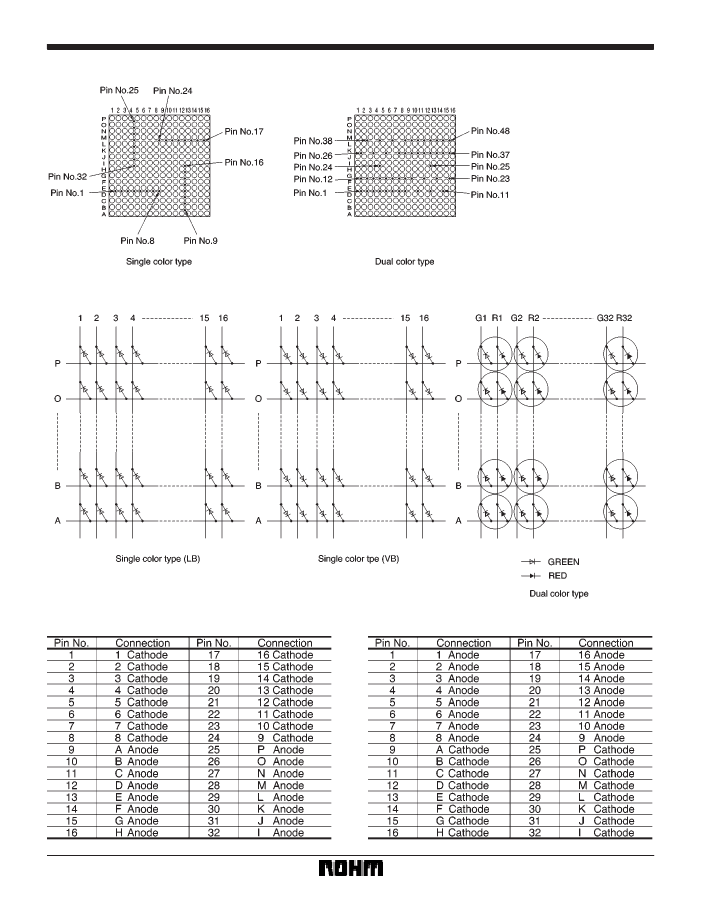

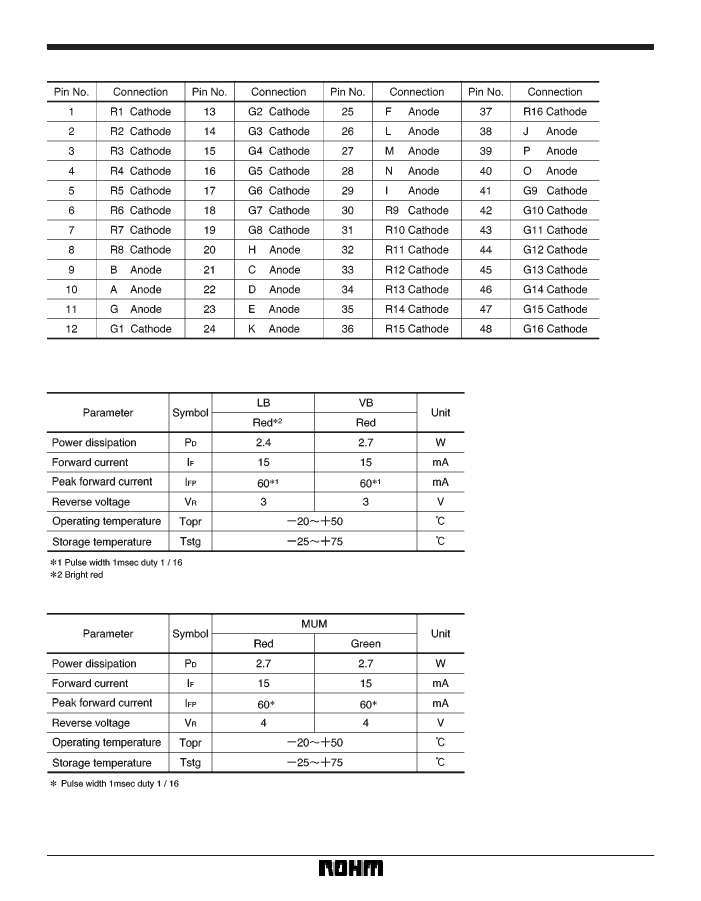

LM-1256LB Related Products

	LM-1256LB	LM-1256VB	LM-1256MUM
Description	16 X 16 Dot Matrix LED Display, 1-Character, Red, 31.6mm	16 X 16 Dot Matrix LED Display, 1-Character, Green, 31.6mm	16 X 16 Dot Matrix LED Display, 1-Character, Red/green, 31.6mm
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	compliant	compliant	compliant
color	RED	GREEN	RED/GREEN
color@wavelength	Red	Red	Green/Red
Configuration	COMMON ANODE, 1 DIGIT	COMMON CATHODE, 1 DIGIT	COMMON ANODE, 1 DIGIT
Display height	31.6 mm	31.6 mm	31.6 mm
Maximum forward current	0.015 A	0.015 A	0.015 A
JESD-609 code	e1	e1	e1
Number of characters	1	1	1
Number of functions	1	1	1
Maximum operating temperature	50 °C	50 °C	50 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Optoelectronic device types	16 X 16 DOT MATRIX LED DISPLAY	16 X 16 DOT MATRIX LED DISPLAY	16 X 16 DOT MATRIX LED DISPLAY
peak wavelength	660 nm	650 nm	650 nm
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
