IDT74LVC27APG8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> IDT74LVC27APG8

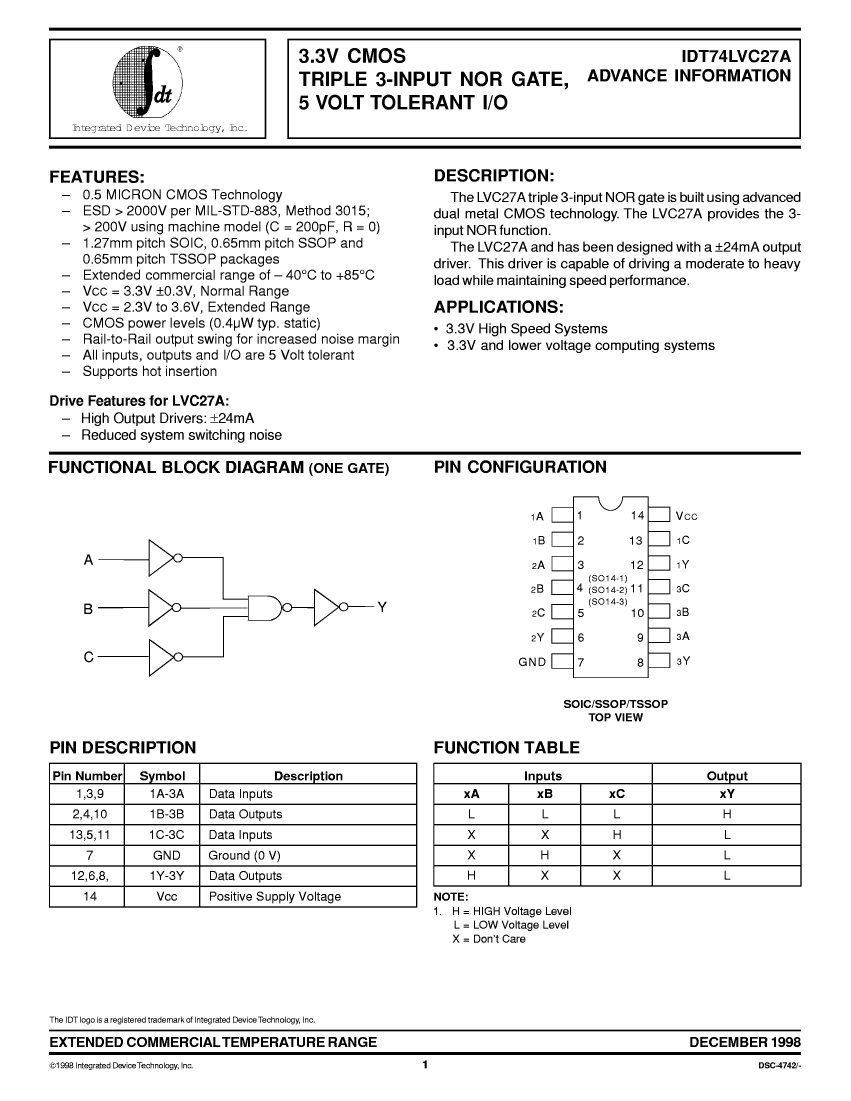

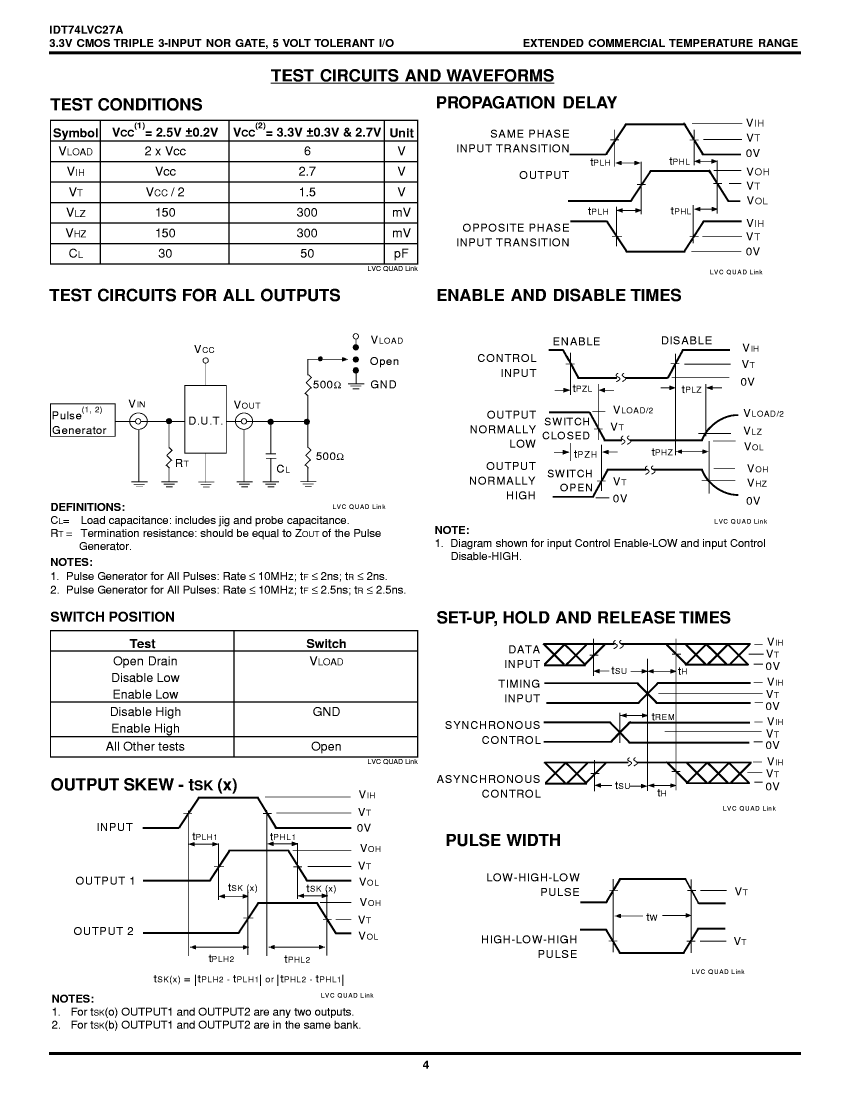

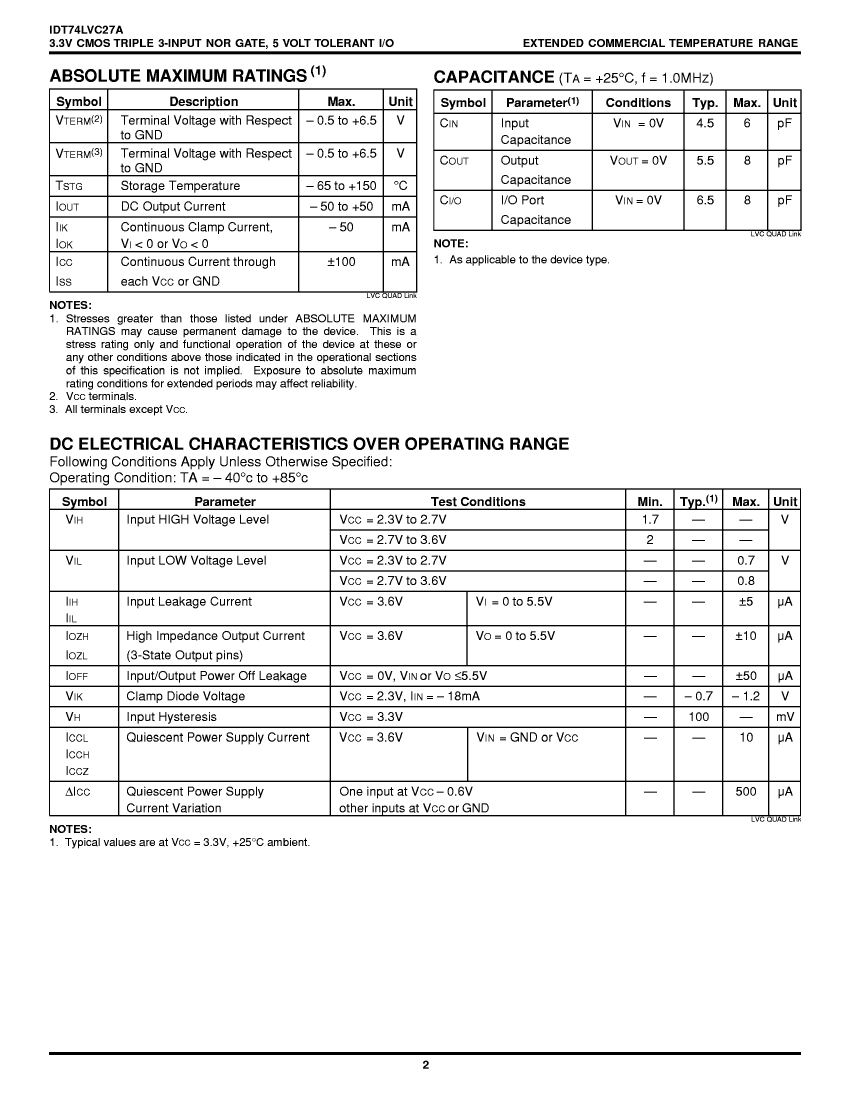

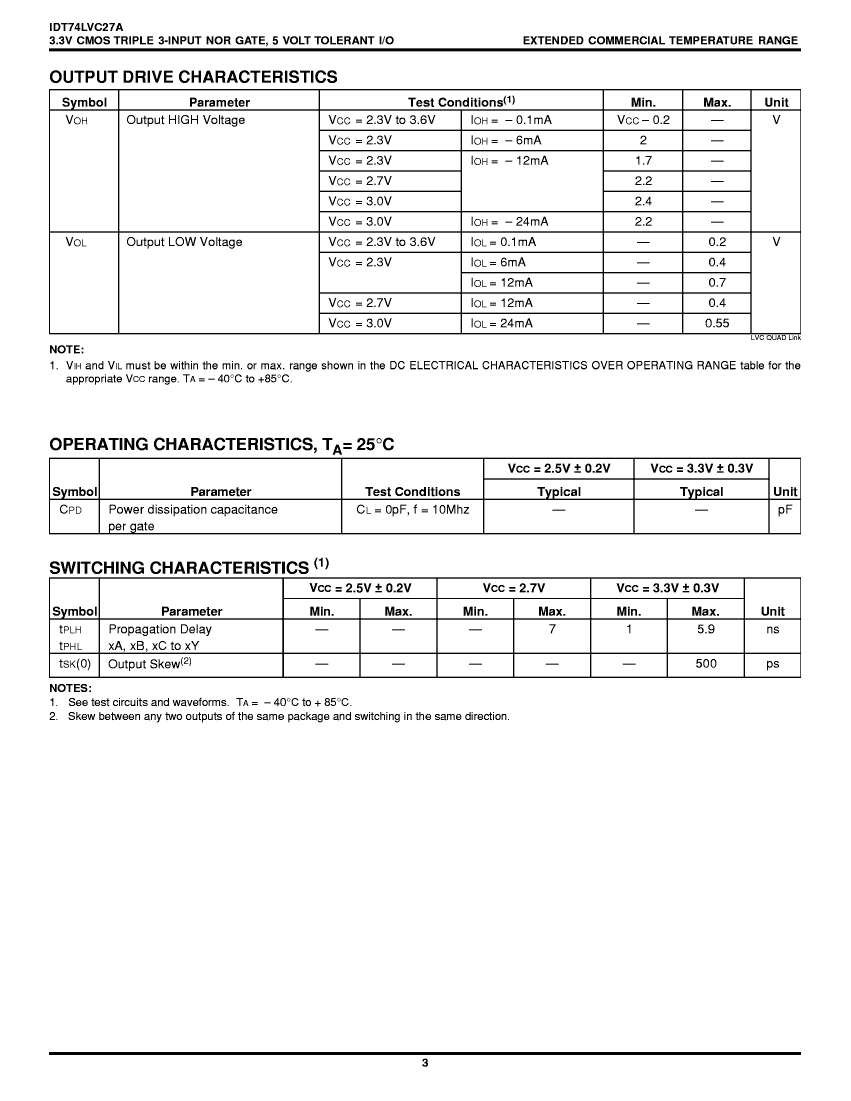

IDT74LVC27APG8: DescriptionNOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14; Categorylogic logic; File Size139KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74LVC27APG8 Overview

NOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14

IDT74LVC27APG8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	14
Reach Compliance Code	compliant
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	5 mm
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

Preview

Download Datasheet

View All

IDT74LVC27APG8 Related Products

	IDT74LVC27APG8	IDT74LVC27ADCG8	IDT74LVC27ADC8	IDT74LVC27APY8
Description	NOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14	NOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 1.27 MM PITCH, SOIC-14	NOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 1.27 MM PITCH, SOIC-14	NOR Gate, LVC/LCX/Z Series, 3-Func, 3-Input, CMOS, PDSO14, 0.65 MM PITCH, SSOP-14
Is it lead-free?	Contains lead	Lead free	Contains lead	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	TSSOP	SOIC	SOIC	SSOP
package instruction	TSSOP,	SOP,	SOP,	SSOP,
Contacts	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e3	e0	e0
length	5 mm	8.65 mm	8.65 mm	6.2 mm
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE
Number of functions	3	3	3	3
Number of entries	3	3	3	3
Number of terminals	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	SOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	7 ns	7 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.75 mm	1.75 mm	2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	40	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	3.9 mm	3.9 mm	5.3 mm
