REVISIONS
DESCRIPTION
ECN 3779: DEFINED COLOR TO LIGHT GRAY, NEW FORMAT
1
DATE
1/6/09
CHANGED BY
D.FRISIELLO
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.

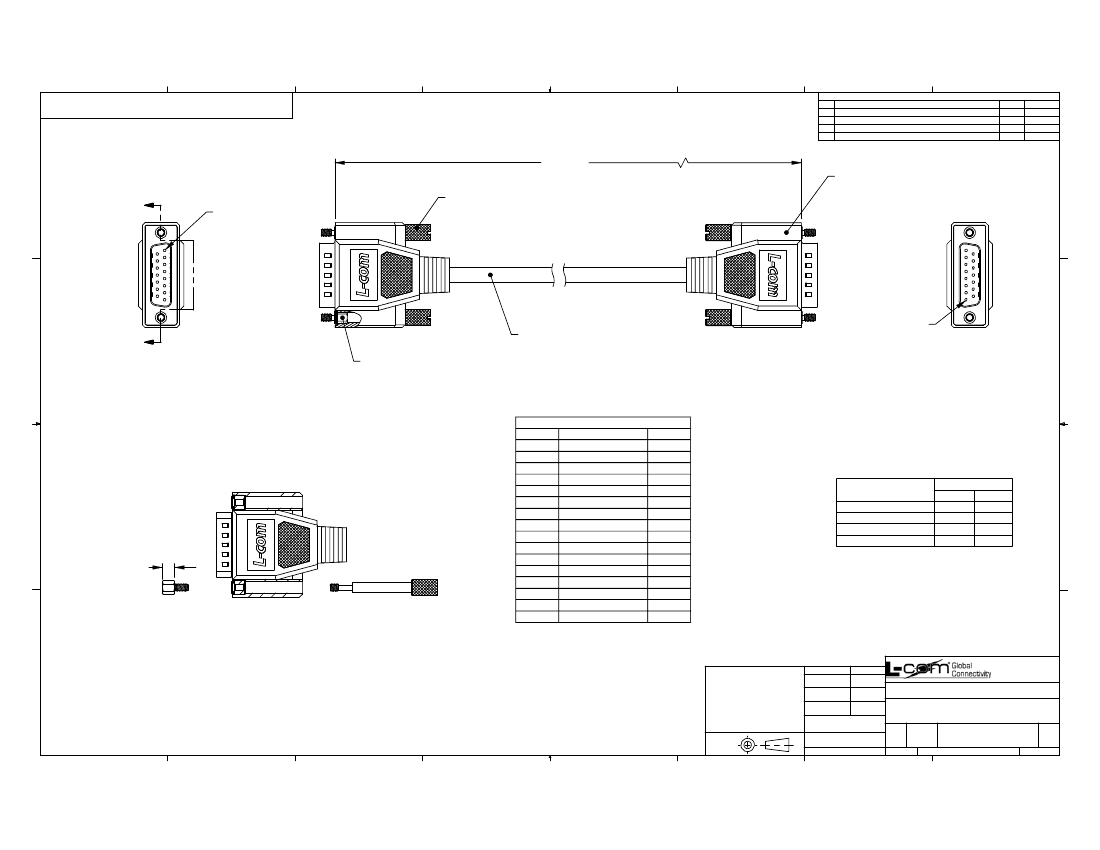

D
LENGTH
4X 4-40UNC-2A
THUMBSCREW
2X MOLDED PVC STRAIN RELIEF
WITH 360° METAL FOIL SHIELD
COLOR: LIGHT GRAY
D
A
POSITION 1
"P1"
"P2"
C
A
2X 15-PIN MALE
D-SUB CONNECTOR
GOLD PLATED PINS
4X, 4-40 UNC-2B
CAPTIVE NUT
UL STYLE 2464
15 CONDUCTOR CABLE
PVC JACKET, COLOR: LIGHT GRAY
POSITION 1
C
B
H
SECTION A-A
"P1"
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SHELL
WIRING MAP
WIRE COLOR
BLACK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
PURPLE
GRAY
WHITE
PINK
LIGHT GREEN
BLACK / WHITE
BROWN / WHITE
RED / WHITE
DRAIN WIRE
"P2"
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SHELL
PART NUMBER
CRMN15MM-2.5
CRMN15MM-5.0
CRMN15MM-10.0
CRMN15MM-15.0
FEET
5.0
10.0
15.0
2.5
LENGTH
METERS
.76
1.52
3.05
4.57
B
RoHS Compliant
A
SUPPLIED WITH THUMBSCREWS IN PLACE
NOTE: SUPPLIED WITH OPTIONAL USE HARDWARE AND INSTRUCTIONS
CABLE INTERCONNECTION HARDWARE: (4) SCREWLOCKS, H= .191"
PANEL MOUNT HARDWARE: (4) SCREWLOCKS, H= .160"
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED,
APPROVALS
DIMENSIONS ARE IN INCHES [mm]
DRAWN BY
OVERALL CABLE LENGTH TOLERANCE:
≤12
[305] = +1 [25] / -0
>12 [305]
≤60
[1524] = +2[51] / -0
>60 [1524]
≤120
[3048] = +4 [102] / -0
>120 [3048]
≤300
[7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
T CLARK
CHECKED BY
D PARHAM
APPROVED BY
C McCORMICK
DATE
3/10/2004
3/30/2004
PRODUCT DESCRIPTION
3/31/2004
CATEGORY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
DATA CABLING
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
CABLE, DB25M/M REVERSIBLE HDWR
SIZE
B
FSCM NO.
DWG. NO.
REV.
43321
CRMN15MM
1
D
SHEET 1 OF 1
3
CRMN-FS01
2
SCALE: 1:1
CAD FILE: CRMN15MM.SLDDRW
