Limit Switches
ARCT1B272E ’06.9
Matsushita Electric Works, Ltd.

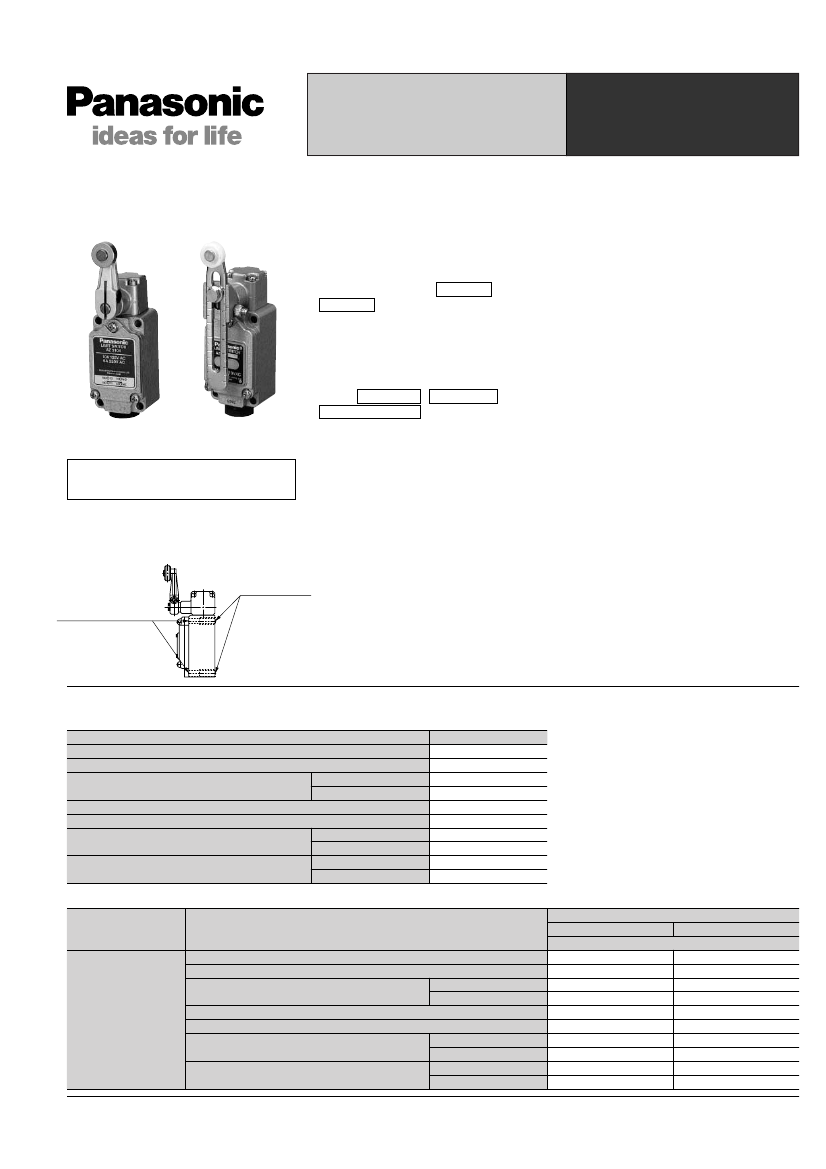

VERTICAL TYPE
LIMIT SWITCHES
(INCLUDES LAMP TYPE)
AZ5
Limit Switches
General use vertical limit switch. Type with a lamp which makes maintenance
convenient; either a neon AC powered lamp or an LED DC powered lamp.
2. Lamps that can be used with a wide
range of voltages
• Neon lamp
Comes in two types: 100V AC and
200V AC , sufficient luminosity is
achieved through the diamond-cut lens.
Also with a long lifespan of more than 20
thousand hours.
• LED lamp
Covers 6V to 48V and comes in three
types, 6V AC/DC , 12V AC/DC , and
24 to 48V AC/DC . Uses two highly lumi-
nescent LEDs and in addition, sufficient
luminosity is achieved through the dia-
mond-cut lens.
3. Lamp connection can be either
spring type or lead wire type
• Spring type (wiring unnecessary)
(With neon or LED lamp type)
Wiring is unnecessary because the lamp
is directly connected to the terminals. By
simply changing the direction of the lamp
cover, it is possible to display both lights
during operation (normally closed side)
and no operation (normally open side.)
• Lead wiring type <Current leakage: 0>
(LED type only)
Because the wiring can be made parallel
to the load, current leakage from the
lamp can be reduced to 0. Even with a
slight leak, the electronic circuit incurring
the leak can be used safely.
4. Corrosion-proof, oil-resistant con-
struction
The protective construction is corrosion-
proof (conforms to IP67.) Also, the lens
and cover are formed simultaneously
with the lamp type, and moreover, a
nameplate is affixed to the upper sur-
face, thereby improving the already-
excellent waterproof capabilities.
Standard type
Roller arm
With lamps
Adjustable roller arm
RoHS Directive compatibility information
http://www.nais-e.com/
TYPICAL APPLICATIONS
Conveyer equipment, conveyer belts,
plant facilities, cranes, cleaning plants,
etc. The LED lamp type is also compati-
ble with both PC and computer direct
current low voltage control circuits.
FEATURES
1. Can be mounting either front or
back.
4-M6 (P=1.0)
4-5.2
.205
diahole.
Through-hole for the M5
attachment bolt
Tapping for the M6
attachment bolt
PRODUCT TYPE
1. Standard type
Actuator
Push plunger
Roller plunger
Roller arm
Yoke
Flexible
Adjustable rod
Adjustable roller arm
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Part No.
AZ5101
AZ5102
AZ5104
AZ5124
AZ5105
AZ5106
AZ5107
AZ5127
AZ5108
AZ5128
2. With neon lamp
Lamp rating
Lamp connection
Push plunger
Roller plunger
Roller arm
Spring type
Yoke
Flexible
Adjustable rod
Adjustable roller arm
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Actuator
100V AC
Part No.
AZ510141
AZ510241
AZ510441
AZ512441
AZ510541
AZ510641
AZ510741
AZ512741
AZ510841
AZ512841
AZ510142
AZ510242
AZ510442
AZ512442
AZ510542
AZ510642
AZ510742
AZ512742
AZ510842
AZ512842
200V AC
61
AZ5
3. With LED
Lamp rating
Lamp connection
Push plunger
Roller plunger
Roller arm
Spring type
Yoke
Flexible
Adjustable rod
Adjustable roller arm
Push plunger
Roller plunger
Roller arm
Lead wire type
Yoke
Flexible
Adjustable rod
Adjustable roller arm
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Standard type
O.T. amplified type
Actuator
12V DC
Part No.
AZ5101161
AZ5102161
AZ5104161
AZ5124161
AZ5105161
AZ5106161
AZ5107161
AZ5127161
AZ5108161
AZ5128161
AZ5101661
AZ5102661
AZ5104661
AZ5124661
AZ5105661
AZ5106661
AZ5107661
AZ5127661
AZ5108661
AZ5128661
AZ510116
AZ510216
AZ510416
AZ512416
AZ510516
AZ510616
AZ510716
AZ512716
AZ510816
AZ512816
AZ510166
AZ510266
AZ510466
AZ512466
AZ510566
AZ510666
AZ510766
AZ512766
AZ510866
AZ512866
24 to 48V DC
Note) Cadmium free contact types are available on a custom-made basis. Please add an “F” to the end of the part number when ordering.
LED rating 6V DC type is available. When ordering, add suffix 162 (spring type) or 662 (lead wire type) to the standard part No..
SPECIFICATIONS
1. Rating
1) Standard type
Types of Resistive Inductive Motor or lamp load
load
load
load
N.C.
N.O.
Rated load
(cos
φ
]1)
(cos
φ
]0.4)
contact contact
125V AC
10A
6A
4A
2A
250V AC
4A
2.5A
1.2A
6A
500V AC
1.2A
0.75A
0.5A
2A
125V DC
0.1A
–
–
0.8A
2. Characteristics
Contact arrangement
Initial contact resistance, max.
Contact material
Initial insulation resistance (At 500V DC)
Initial breakdown voltage
Shock resistance
Vibration resistance
1 Form A 1Form B
15mΩ (By voltage drop 6 to 8V DC 1A)
Silver
Min. 100MΩ
1,000Vrms for 1 min Between non-consective terminals
2,000Vrms for 1 min Between dead metal parts and each terminal
2,000Vrms for 1 min Between ground and each terminal
294m/s
2
{30G}
Standard type: Max. 55Hz
Type with indicator: 10 to 50 Hz, double amplitude of 1.5mm
10
7
(at 60 cpm)
5
10
5
(at 20 cpm, rated load)
Standard type: –5 to +80°C
+23 to +176°F
With indicator: –5 to +60°C
+23 to +140°F
Max. 95%R.H.
120 cpm
2) Type with lamp
Rated con- Resistive load Inductive load
trol voltage (cos
φ
]1)
(cos
φ
]0.4)
125V AC
6A
10A
240V AC
6A
4A
24V DC
6A
–
Expected life
(Min. operations)
Ambient temperature
Ambient humidity
Max. operating speed
Mechanical
Electrical
With neon
lamp
With LED
3. Operating characteristics
Characteristics
Actuator
Push plunger
Roller plunger
Standard type
Roller arm
O.T. amplified type
Yoke
Flexible*
2
Adjustable Standard type
rod*
3
O.T. amplified type
Adjustable Standard type
roller arm*
4
O.T. amplified type
O.F. (N
{gf}) max.
26.67 {2,720}
26.67 {2,720}
13.34 {1,360}
8.83 {900}
8.90 {908}
1.39 {142}
1.39 {142}
2.39 {244}
13.34 {1,360}
8.83 {900}
Repeat
Movement
Pretravel
Overtravel
Differential
R.F. (N
Totaltravel
Accuracy of
Operating
(O.T.), min.
(P.T.), max.
{gf}) min.
(T.T.), min.
Position, max.
(M.D.), max.
mm
inch
mm
inch
mm
inch
mm
inch
*
1
8.92 {910} 1.7
.067
1.0
.039
6.4
.252
–
0.1
.004
8.92 {910} 1.7
.067
1.0
.039
5.6
.220
–
0.1
.004
2.23 {227} 15°±5°
12°
–
45°
1°
0.49 {50}
25°±5°
15°
–
90°
1°
8.90 {908} 50°±5°
–
–
90°±10°
–
20±10
.787±.394
–
–
–
–
–
0.27 {28}
15°±5°
12°
–
45°
1°
0.14 {14}
25°±5°
15°
–
90°
1°
2.23 {227} 15°±5°
12°
–
45°
1°
0.49 {50}
25°±5°
15°
–
90°
1°
4. Protective characteristics
Protective
construction
IEC
IP60
IP64
IP67
AZ5
AZ5 limit switches
limit switches
(With lamp)
(Standard type)
(neon/LED)
5. Lamp rating
Rated operat-
ing voltage
100V AC
neon lamp
200V AC
6V AC/DC
LED lamp 12V AC/DC
24 to 48V AC/DC
Types
Operating
Internal
voltage range resistance
80 to 120V AC
120kΩ
160 to 240V AC
240kΩ
5 to 15V AC/DC
2.4kΩ
9 to 28V AC/DC
4.7kΩ
20 to 55V AC/DC
15kΩ
*1) Value between max. and min. value in the operating position at 20 cpm, no-load
*2) Measured at the position within 5mm from the top of actuator.
*3) O.F., R.F.: measured at the center distance of 135mm
5.315inch.
*4) O.F., R.F.: measured at the center distance of 38mm
1.496inch.
*5) For the operating characteristics, refer to the TECHNICAL INFORMATION.
FOREIGN STANDARD
Standard
UL recognized product
File No.
Ratings
Applicable product
: E99838
: 10A, 1/2HP, 125V AC
6A, 1/2HP, 250V AC
Product type : standard model only
Part No.
Add “9” to the end of the standard
part No.
Notes
Please ask about the price. Comes
fitted with an earth pin.
62
AZ5
WIRING DIAGRAM
Output circuit
Terminal
N.O.
1
N.C.
1
N.O.
2
N.C.
2
N.O.
1
N.O.
2
N.C.
1
N.C.
2

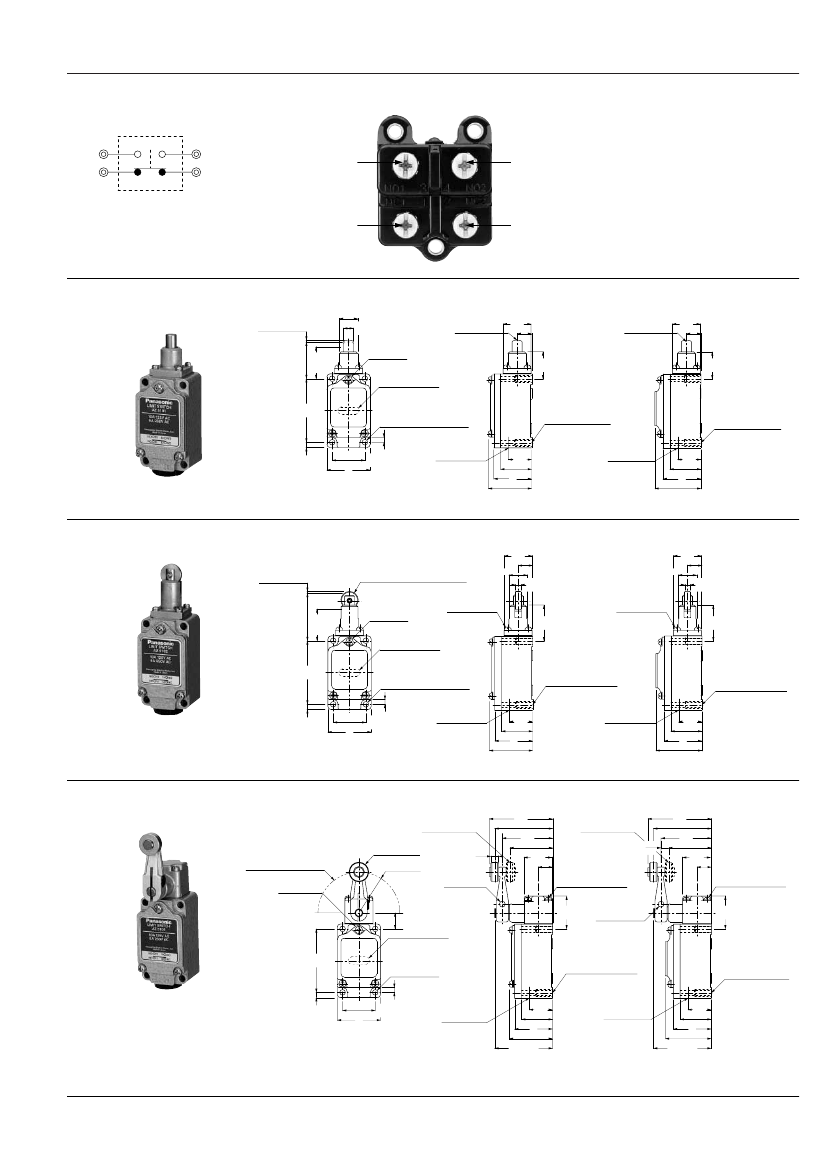

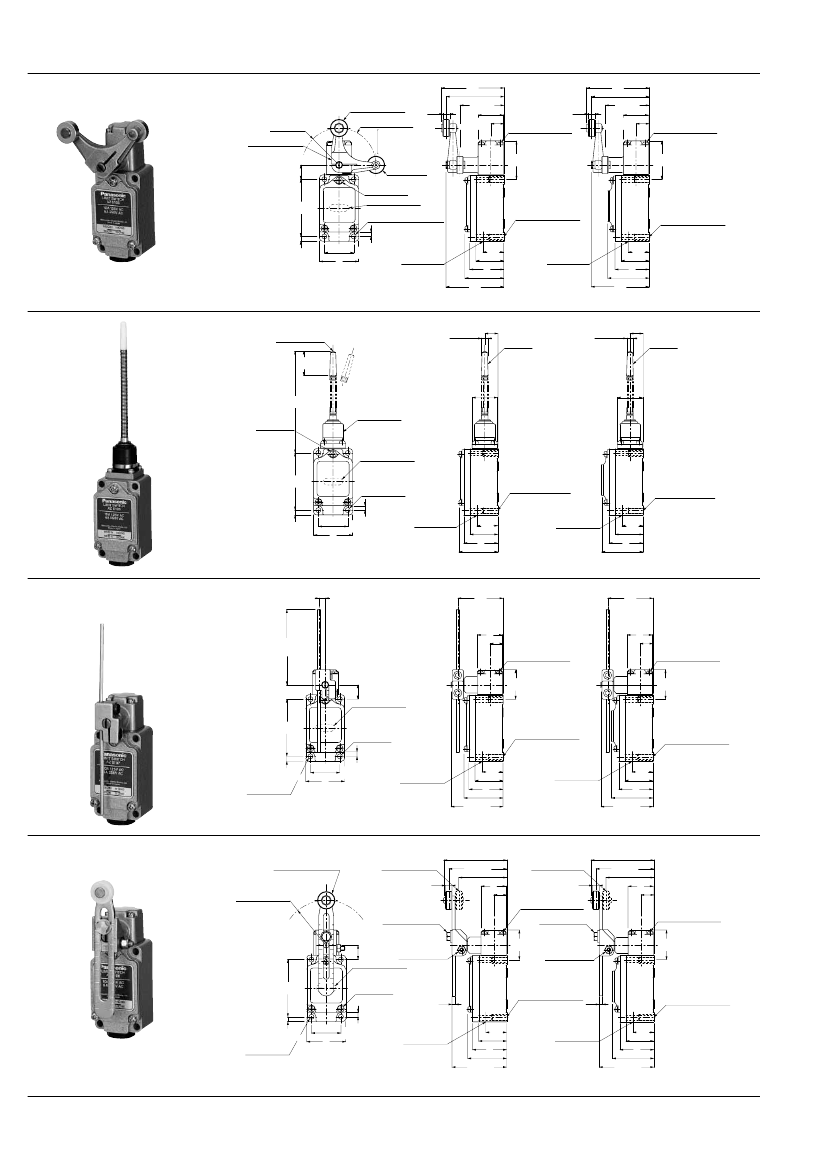

DIMENSIONS
• Push plunger
Standard type
17 dia.
.669
Pretravel (P.T.)
max. 1.7
.067
Operating
position (0.P.) Max.
33.8
±
0.8 29.5
1.331
±
.031 1.161
9.2
±
0.2 dia.
.362
±
.008
3-M4 12
cover screw
25.0
.984
Operation indicator
(for type with lamp)
58.7
±
0.2
2.311
±
.008
4-5.2
–0
dia. mounting holes
4.6 min.
.181
4.9
±
0.4
.193
±
.016
40
1.575
30.2
±
0.2
1.189
±
.008
+0.2
mm
inch
General tolerance: ±0.4
±.016
Stainless steel
plunger
25.8
1.016
13.1
±
0.4
.516
±
.016
Stainless steel
plunger
25.8
1.016
13.1
±
0.4
.516
±
.016
25.0
.984
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
G1/2 conduit
Depth min. 7
AZ5101
21.6
.850
28.7
±
0.5
1.130
±
.020
35
1.378
40
1.575
G1/2 conduit
Depth min. 7
21.6
.850
28.7
±
0.5
1.130
±
.020
35
1.378
42.5
1.673
Standard
With lamp
General tolerance: ±0.4
±.016
• Roller plunger
Standard type
Pretravel (P.T.)
max. 1.7
.067
TTP
Operating
position (0.P.)
43.8±0.8 Max.
1.724±.031
29.5
1.161
17±0.4 dia. stainless steel roller
.669±.016
25.8
1.016
13.1±0.4
.516±.016
17 dia.
.669
5±0.4
.197±.016
25.8
1.016
13.1±0.4
.516±.016
17 dia.
.669
5±0.4
.197±.016
4-M3.5 12
Mounting screw
3-M4 12
cover screw
4-M3.5 12
Mounting screw
33.1
1.303
33.1
1.303
Operation indicator
(for type with lamp)
58.7±0.2
2.311±.008
4-5.2
+0.2
0
dia. mounting holes
4-M6 P=(1.0) tapped
min. depth of 15
591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
4.6 min.
.181
AZ5102
4.9±0.4
.193±.016
40
1.575
30.2±0.2
1.189±.008
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
Standard
With lamp
General tolerance: ±0.4
±.016
• Roller arm
Standard type
Arm fixing range for
setting up the roller arm
in the opposite direction
3-M4 12
Cover screws
(L90°)
Roller arm can be
assembled in the
17.5±0.4
.689±.016
dia. opposite direction
stainless steel roller
(Roller can be set in any
position through 360°)
7±04
.276±.157
R38.1±0.5
1.5±.020
M5 11
Screw with
hexagonal hole
58.6
2.307
46.5
1.831
26
1.024
53.5
2.106
39.5
1.555
Roller arm can be
assembled in the
opposite direction
7±04
.276±.157
58.6
2.307
46.5
1.831
26
1.024
53.5
2.106
39.5
1.555
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
30.5
1.201
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
30.5
1.201
M5 11
Screw with
hexagonal hole
(R90°)
14.7
∗∗
.579
Operation indicator
(for type with lamp)
58.7±0.2
2.311±.008
4-5.2
0
dia.
mounting holes
4.6 min.
.181
4.9±0.4
.193±.016
40
1.575
30.2±0.2
1.189±.008
G1/2 conduit
Depth min. 7
+0.2
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
AZ5104
AZ5124 (O.T. amplified)
Weight: 250g
∗∗Dimension:
AZ5104 . . . 14.7 (.059)
AZ5124 . . . 16.2 (.638)
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
53.4±0.8
2.102±.031
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
53.4±0.8
2.102±.031
Standard
With lamp
63
AZ5
• Yoke
Standard type
R38.1±0.5
1.50±.020
M5 11 screw with
hexagonal hole
64.3
2.531
2-17.5±0.4 dia.
stainless steel roller
7±04
Reverse roller
.276±.157
Rotating rang (270°)
Fix the arm so that
the reverse roller
can turn within the
rotating range
Reverse roller
3-M4 12
cover screws
58.7±0.2
2.311±.008
Operation indicator
(for type with lamp)
+0.2
4-5.2
0
dia. mounting holes
4.6 min.
.181
4.9±0.4
.193±.016
40
1.575
30.2±0.2
1.189±.008
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
59.4
2.339
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
59.4
2.339
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
42.8±3.5
1.685±.138
13.1±0.4
.516±.016
(59.2)
(2.331)
26
1.024
7±04
.276±.157
64.3
2.531
42.8±3.5
1.685±.138
13.1±0.4
.516±.016
(59.2)
(2.331)
26
1.024
4-M3.5 35
Head mounting screw
mm
inch
4-M3.5 35
Head mounting screw
14.7
.579
39.4
1.551
39.4
1.551
AZ5105
The automatic reverse rotating position of arm
is within the range of 40° to 60° from free position.
With lamp
Standard
Max. 6.7 dia.
.264
13.1±0.4
.516±.016
Nylon rod
General tolerance: ±0.4
±.016
Max. 6.7 dia.
.264
13.1±0.4
.516±.016
Nylon rod
• Flexible rod
Standard type
Switch movable
in any direction
(but not in the
vertical direction)
25
.984
140±1.5
5.512±.059
3-M4 12
cover screws
26
1.024
Ruber cap and
fixing belt
26
1.024
Operation indicator
(for type with lamp)
58.7±0.2
2.311±.008
4-5.2
0
dia.
mounting holes
4.6 min.
.181
4.9±0.4
.193±.016
40
1.575
30.2±0.2
1.189±.008
+0.2
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
G1/2 conduit
Depth min. 7
AZ5106
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
With lamp
Standard
General tolerance: ±0.4
±.016
48.1
1.894
• Adjustable rod
Standard type
Adjustable
lenght of rod
(max. 141)
6.4
.252
46
1.811
26
1.024
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
30.5
1.201
26
1.024
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
30.5
1.201
14.7
∗∗
.579
Operation indicator
(for type with lamp)
AZ5107
AZ5127
(O.T. amplified)
Weight: 252g
58.7±0.2
2.311±.008
3-M4 12
cover screws
4.6 min.
.181
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
4.9±0.4
.193±.016
4-5.2 dia.
mounting holes
+0.2
0
40
1.575
30.2±0.2
1.189±.008
G1/2 conduit
Depth min. 7
∗∗Dimensions:
AZ5107 . . . 14.7
.578
AZ5127 . . . 16.2
.638
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
53.4±0.8
2.102±.031
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
53.4±0.8
2.102±.031
With lamp
Standard
64.8±0.8
2.551±.031
59.7±1.2
2.350±.047
26
1.024
Roller lever can be
assembled in the
opposite direction
49.3±1.2
1.941±.047
7±04
.276±.157
General tolerance: ±0.4
±.016
66.4±1.2
2.614±.047
61.3±1.2
2.413±.047
26
1.024
50.9±1.2
2.004±.047
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
30.5
1.201
M5 fastening nut
• Adjustable roller arm
Standard type
17.5±0.4 dia.
Nylon roller
(Roller can be set in any
position through 360°)
Roller lever can be
assembled in the
opposite direction
7±04
.276±.157
Adjustable lenght of arm
(25 to 90)
M4 fastening screw
13.1±0.4
.516±.016
4-M3.5 35
Head mounting screw
M4 fastening screw
14.7
∗∗
M5 fastening nut
.579
Operation indicator
(for type with lamp)
58.7±0.2
2.311±.008
3-M4 12
cover screws
4.6 min.
.181
4.9±0.4
.193±.016
+0.2
4-5.2
0
dia.
mounting holes
40
1.575
30.2±0.2
1.189±.008
3.2
.126
30.5
1.201
4-M6 P=(1.0) tapped
min. depth of 15
.591
mounting holes
3.2
.126
4-M6 P=(1.0)
min. depth of 15
.591
mounting holes
G1/2 conduit
Depth min. 7
AZ5108
AZ5128 (O.T. amplified)
∗∗Dimensions:
AZ5108 . . . 14.7
.579
AZ5128 . . . 16.2
.638
21.6
.850
28.7±0.5
1.130±.020
35
1.378
40
1.575
56.1±0.8
2.209±.031
G1/2 conduit
Depth min. 7
21.6
.850
28.7±0.5
1.130±.020
35
1.378
42.5
1.673
56.1±0.8
2.209±.031
With lamp
Standard
General tolerance: ±0.4
±.016
64
stm32/stm8
京公网安备 11010802033920号
EEWORLD
