D38999/23NH35PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/23NH35PA

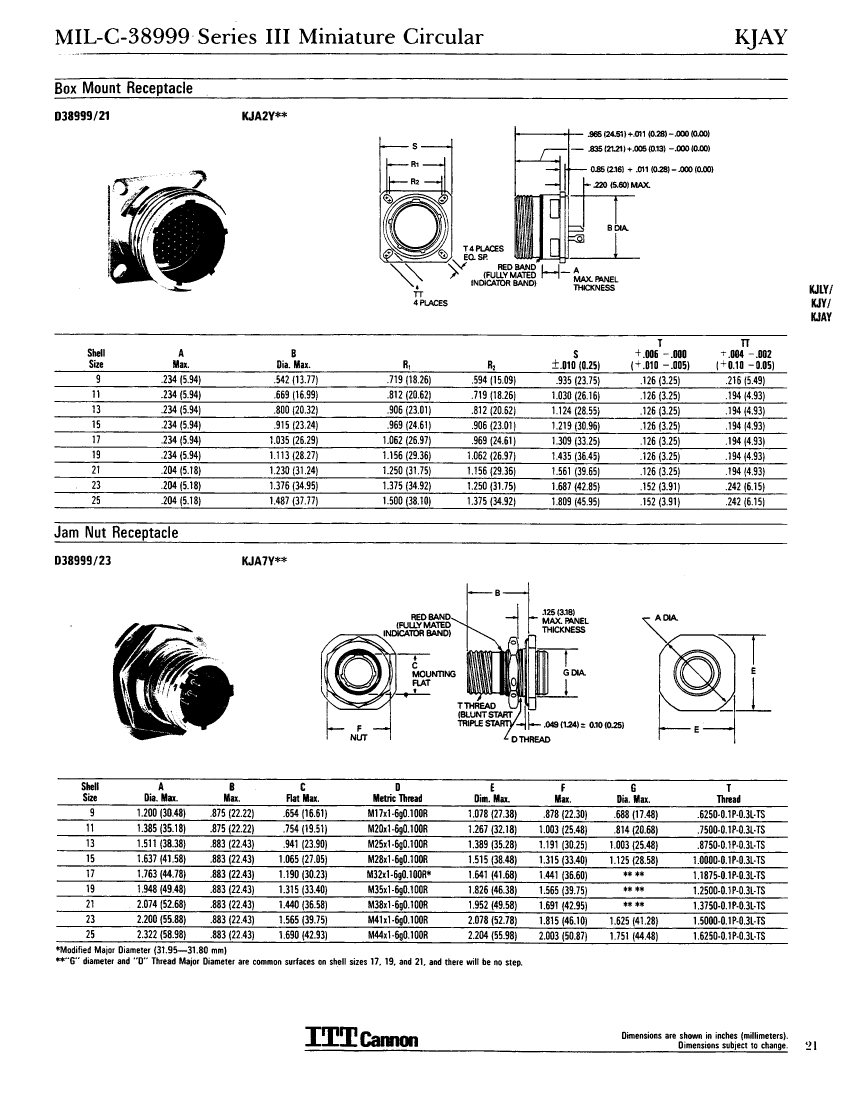

D38999/23NH35PA: DescriptionMIL Series Connector, 100 Contact(s), Steel, Male, Receptacle,; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

D38999/23NH35PA Overview

MIL Series Connector, 100 Contact(s), Steel, Male, Receptacle,

D38999/23NH35PA Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STEEL
Housing size	H
Total number of contacts	100

Preview

Download Datasheet

View All

D38999/23NH35PA Related Products

	D38999/23NH35PA	D38999/21NA35PC	D38999/23	D38999/21	D38999/23NH35PN	D38999/23NJ61PN	D38999/21NA35PD
Description	MIL Series Connector, 100 Contact(s), Steel, Male, Receptacle,	MIL Series Connector, 6 Contact(s), Steel, Male, Solder Terminal, Receptacle,	MIL Series Connector, Steel, Male, Receptacle	MIL Series Connector, Steel, Male, Solder Terminal, Receptacle	MIL Series Connector, 100 Contact(s), Steel, Male, Receptacle,	MIL Series Connector, 61 Contact(s), Steel, Male, Receptacle,	MIL Series Connector, 6 Contact(s), Steel, Male, Solder Terminal, Receptacle,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: MIL-C-38999, POLARIZED	STANDARD: MIL-C-38999, POLARIZED	STANDARD: MIL-C-38999, MAX CONTACTS (SERIES)=128	STANDARD: MIL-C-38999, MAX CONTACTS (SERIES)=128	STANDARD: MIL-C-38999	STANDARD: MIL-C-38999	STANDARD: MIL-C-38999, POLARIZED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	CORROSION RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION RESISTANT; ENVIRONMENT RESISTANT	CORROSION RESISTANT; ENVIRONMENT RESISTANT	CORROSION RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	HERMETIC	GENERAL PURPOSE	HERMETIC	HERMETIC	HERMETIC	HERMETIC	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	H	A	A; B; C; D; E; F; G; H; J	A; B; C; D; E; F; G; H; J	H	J	A
Maker	ITT	ITT	-	-	ITT	ITT	ITT
Contact to complete cooperation	GOLD	GOLD	-	-	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	-	-	GOLD	GOLD	GOLD
JESD-609 code	e4	e4	-	-	e4	e4	e4
Total number of contacts	100	6	-	-	100	61	6
